Custom OBD2 16Pin Female to Type-C Male Adapter Cable

5 day ago

1 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

Tired of swapping cables back and forth when multiple tools need to access the same vehicle port? This OBD diagnostic adapter solves exactly that problem. Built with a T-shaped dual OBD2 female connector on one end and a USB Type-C male connector on the other, it lets you connect a diagnostic scanner, data logger, or laptop while keeping a second OBD2 device online at the same time — no more unplugging and replugging between tools.

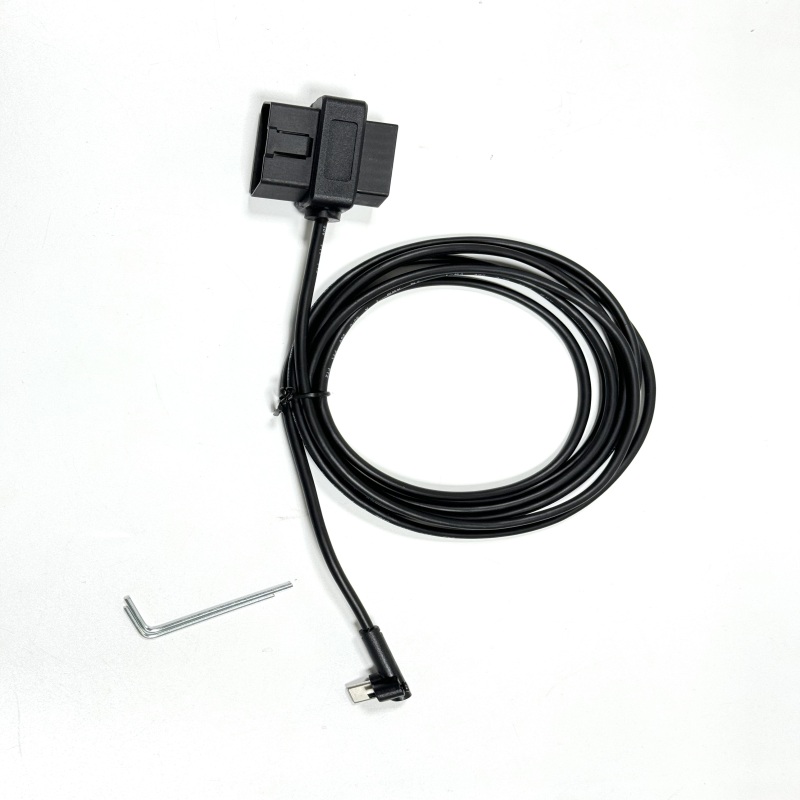

Custom OBD2 16Pin Female to Type-C Male Adapter Cable

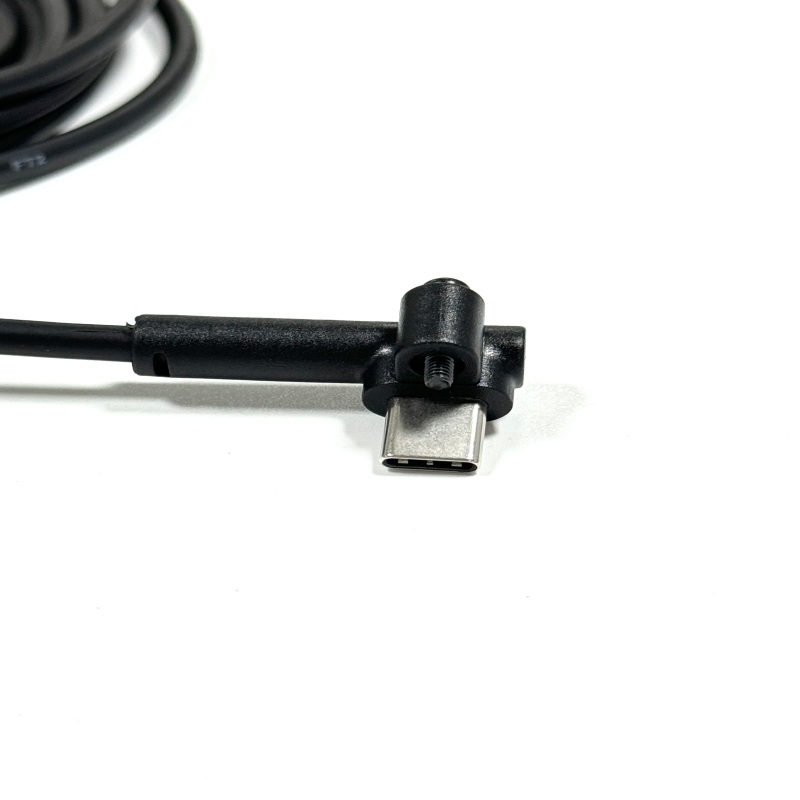

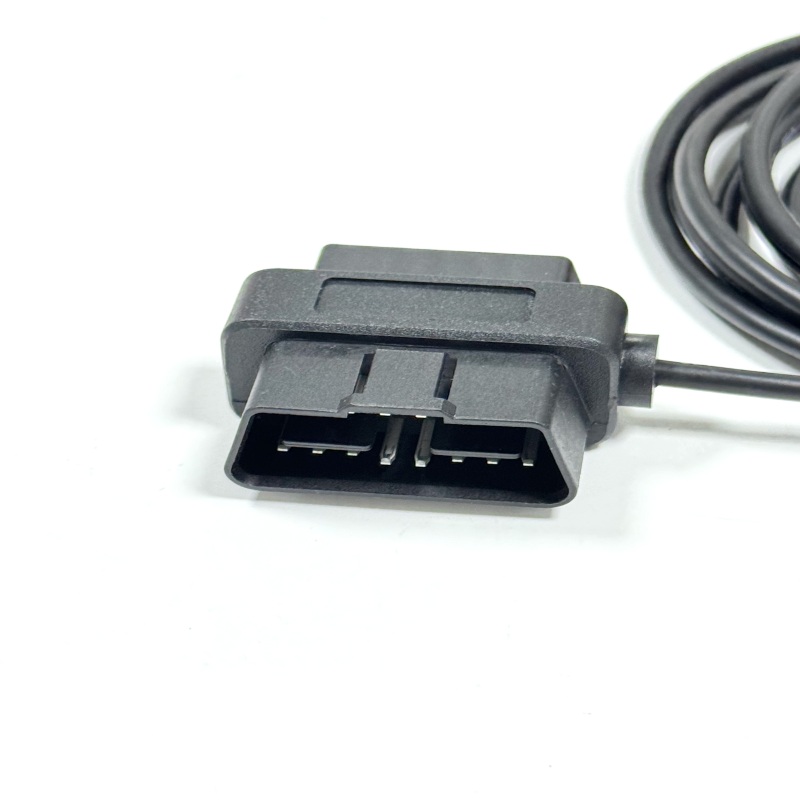

At 2750mm long, the cable gives technicians plenty of room to move around the vehicle, reach the engine bay, or work from a comfortable distance inside the workshop. Inside the jacket, six color-coded 26AWG conductors carry both data and power cleanly to the Type-C end, where each wire is precision-soldered to the connector board under strict pin mapping rules. Nickel-plated brass terminals at the OBD2 end resist corrosion and maintain solid contact through thousands of plug cycles, while a waterproof rubber ring at the Type-C transition keeps moisture out where it matters most. The whole assembly is wrapped with heat shrink at every stress point to guard against wire fatigue from repeated bending and pulling.

Item	Description
Product Name	Custom OBD2 16Pin Female to Type-C Male Adapter Cable
Type	OBD2 to USB Type-C Diagnostic Cable / Automotive Data Transmission Cable
Rated Test Voltage	DC 500V 10MS Test Voltage, 5V DC Working Voltage
Pins Material	Nickel Plated Brass Terminals, Gold Plating Optional
Plug Material	ABS+PC Automotive Grade OBD2 Connector Housing, USB Type-C Connector
Working Temperature	-40℃ ~ +105℃ Or Customized
Length	2750±30mm, Customized Length Available
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Compliance	RoHS Compliant
Application Fields	Automotive OBD2 diagnostic, vehicle data transmission, car diagnostic tool connection, on-board electronic equipment, automotive ECU programming, vehicle performance monitoring, OBD2 to Type-C device connection
Specific Shipping Cost	Please Contact Us

Quality is checked end to end before anything ships. Every cable passes full continuity testing, a DC 500V withstand voltage check, insulation resistance verification above 10MΩ, and conduction resistance control below 3Ω — plus a functional Type-C data and power test to confirm it actually works, not just that it conducts. The package also includes two L-shaped hex wrenches and a small storage bag, so installers have the basic tools they need right out of the box.

You will find this cable in auto repair shops doing ECU programming and fault diagnosis, in fleet operations running performance monitors and data loggers, and in workshops that need a single long cable to connect modern Type-C laptops to older OBD2 vehicle ports. It is one of the practical auto cables and accessories that professional technicians reach for when they need reliable, long-reach OBD2 connectivity without the hassle of constant cable swapping.

Behind every cable is Shenzhen Fubong Wiring Harness Co., Ltd., an IATF16949 certified manufacturer founded in 2013, with in-house capabilities covering wire cutting, terminal crimping, connector overmolding, USB soldering, and full electrical testing. Beyond standard products, the company develops custom automotive cable and connectors tailored to specific vehicle models, device interfaces, and installation requirements — whether that means adjusting cable length, changing connector styles, modifying pin assignments, or adding custom labels and packaging. Send over your drawings or interface specifications, and the team will work with you on sample development, pricing, and production.
