Product Description:
Huizhou Antenk Electronics Co., Ltd. manufactures FHEU09 series 2.54 millimeter pitch single row centipede foot female header to deliver reliable board to board signal and power transmission through soldering onto printed circuit boards. This connector supports 10 to 40 contacts, carries 3.0 amp rated current, reaches 500 volt AC dielectric withstanding voltage, features minimum 1000 megaohm insulation resistance and maximum 20 milliohm contact resistance, and works within minus 65 degree Celsius to plus 125 degree Celsius. It adopts UL94V 0 black PBT insulator and brass contact terminals, and provides multiple plating selections including tin and varied thickness gold finishes, with tray tube or tape and reel packing available. This item complies with RoHS and HSF standards and fits industrial control equipment precision measuring instruments consumer electronic modules and communication hardware. Operators shall pick proper contact plating and contact quantity for real projects, follow official PCB footprint for soldering work and keep finished goods in dry sealed storage to prevent brass terminal oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in‑house production including independent mold development high speed brass stamping precise PBT injection molding multi grade electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, provide custom technical solutions and round‑the‑clock engineering support, over seventy percent of connector goods are exported globally. Feel free to provide your project parameters for sample offer and complete datasheet support.

1. High Temperature Female Header maintains stable electrical performance under extreme working temperature ranging from minus 65 to plus 125 degree Celsius.
2. Board Mating Socket Connector establishes dependable board to board connection after soldering firmly on target printed circuit boards.
3. Multi Option Plating Socket offers tin and various gold thickness finishes to satisfy diverse anti corrosion and conductivity application demands.

Detailed Specifications：
1. Mechanical Specifications
    1.1 Product type: Single row centipede foot female header for board to board connection
    1.2 Measurement unit: millimeter
    1.3 Pitch: 2.54 mm, plastic height: 3.5 mm, pin dimension: PIN0.50×0.20 mm
    1.4 Available contacts: 10 contacts up to 40 contacts
    1.5 Product types: Type A, Type B
    1.6 Packing options: Tray, Bag, Tube, Tape and Reel
    1.7 Plating options: Tin, gold flash and multiple selective gold thickness options
    1.8 CTA: Contact our engineering team to receive full dimension drawings and PCB footprint files for your hardware design validation.
2. Material & Surface Plating
    2.1 Contact material: Brass
    2.2 Insulator material: Black PBT with UL94V‑0 flame retardant rating
3. Electrical Performance
    3.1 Current rating: 3.0 Amp
    3.2 Dielectric Withstanding: AC 500V
    3.3 Insulation resistance: 1000M ohms minimum
    3.4 Contact resistance: 20M ohms maximum
4. Environmental Parameters
    4.1 Operating temperature range: ‑65°C to +125°C
5. Compliance Standard
    5.1 Environmental compliance: RoHS and HSF compliant
6. Usage Method
    6.1 Assembly mode: Solder onto printed circuit board for board to board mating connection
    6.2 Operation tip: Follow recommended PCB pad layout for reliable soldering result
7. Application Scenarios
    7.1 Industrial control equipment
    7.2 Precision measuring instruments
    7.3 Consumer electronic modules
    7.4 Communication hardware
8. Operation & Storage Precautions
    8.1 Select proper contact quantity and surface plating according to real project requirements
    8.2 Adopt matching PCB footprint to avoid soldering defects
    8.3 Store connectors inside dry sealed packages to prevent brass terminal oxidation
    8.4 Choose suitable packing format to match manual or automated SMT assembly workflows
    8.5 CTA: Submit your contact count plating requirement and working condition details, we supply free sample evaluation and professional technical consultation.

FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

Product Drawing:

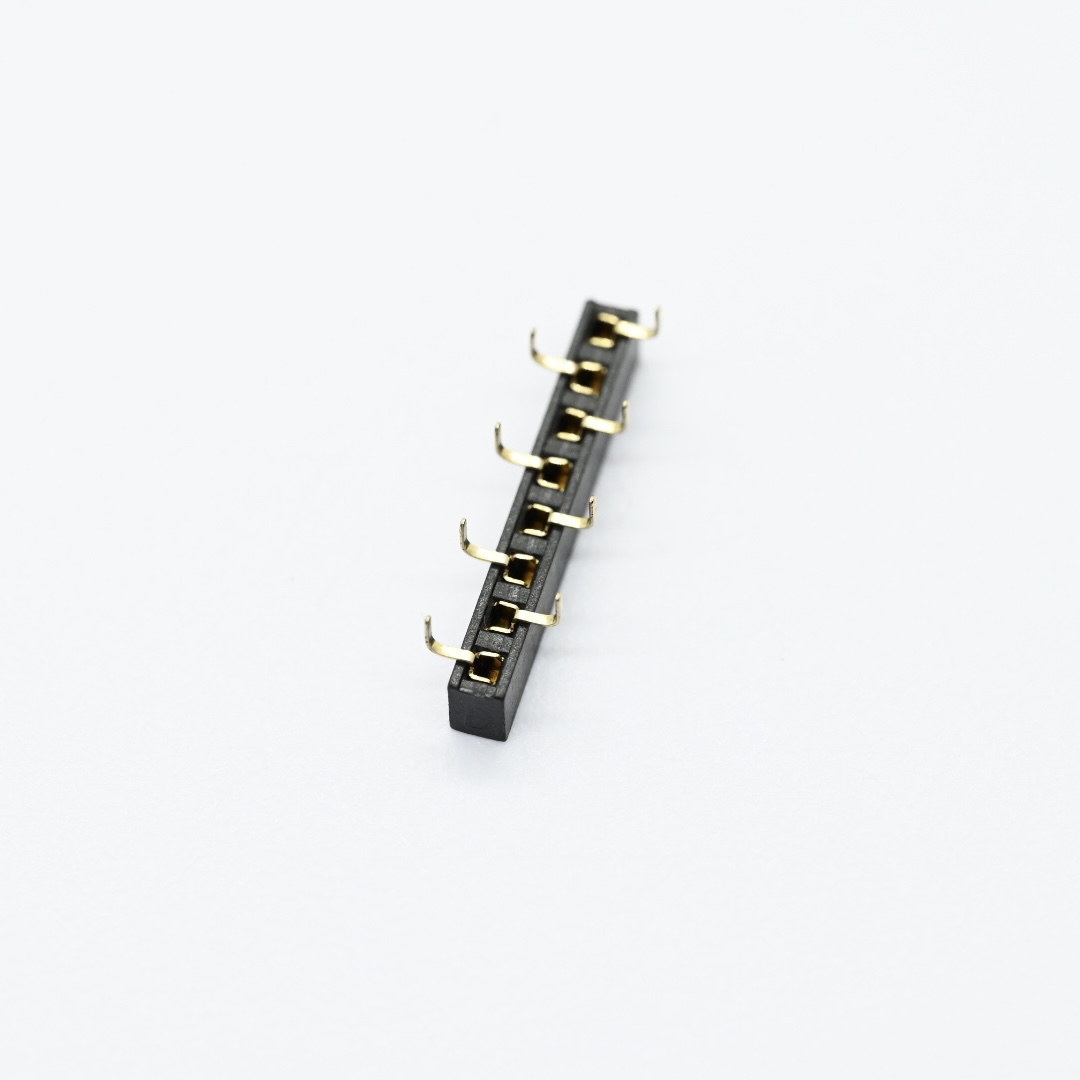

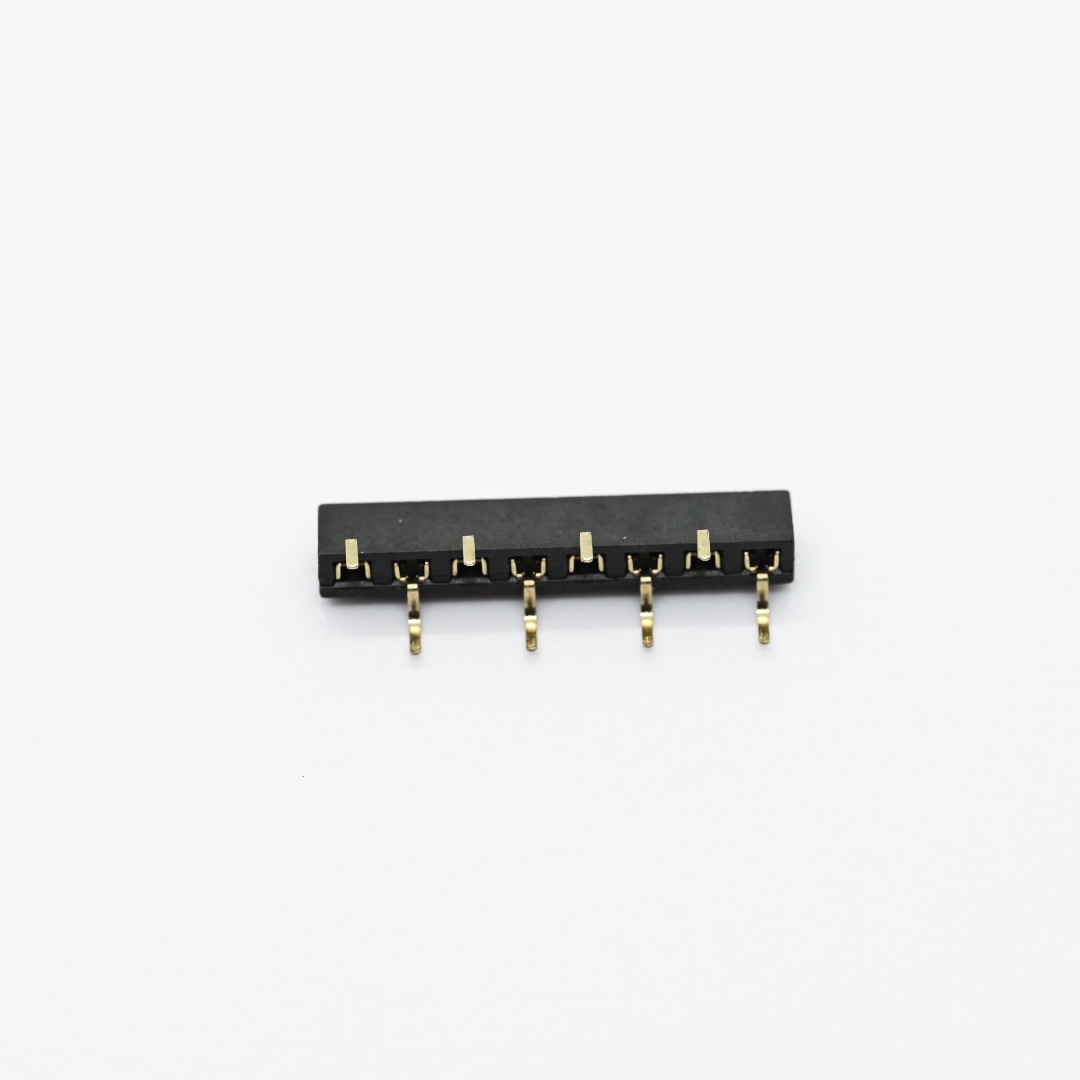

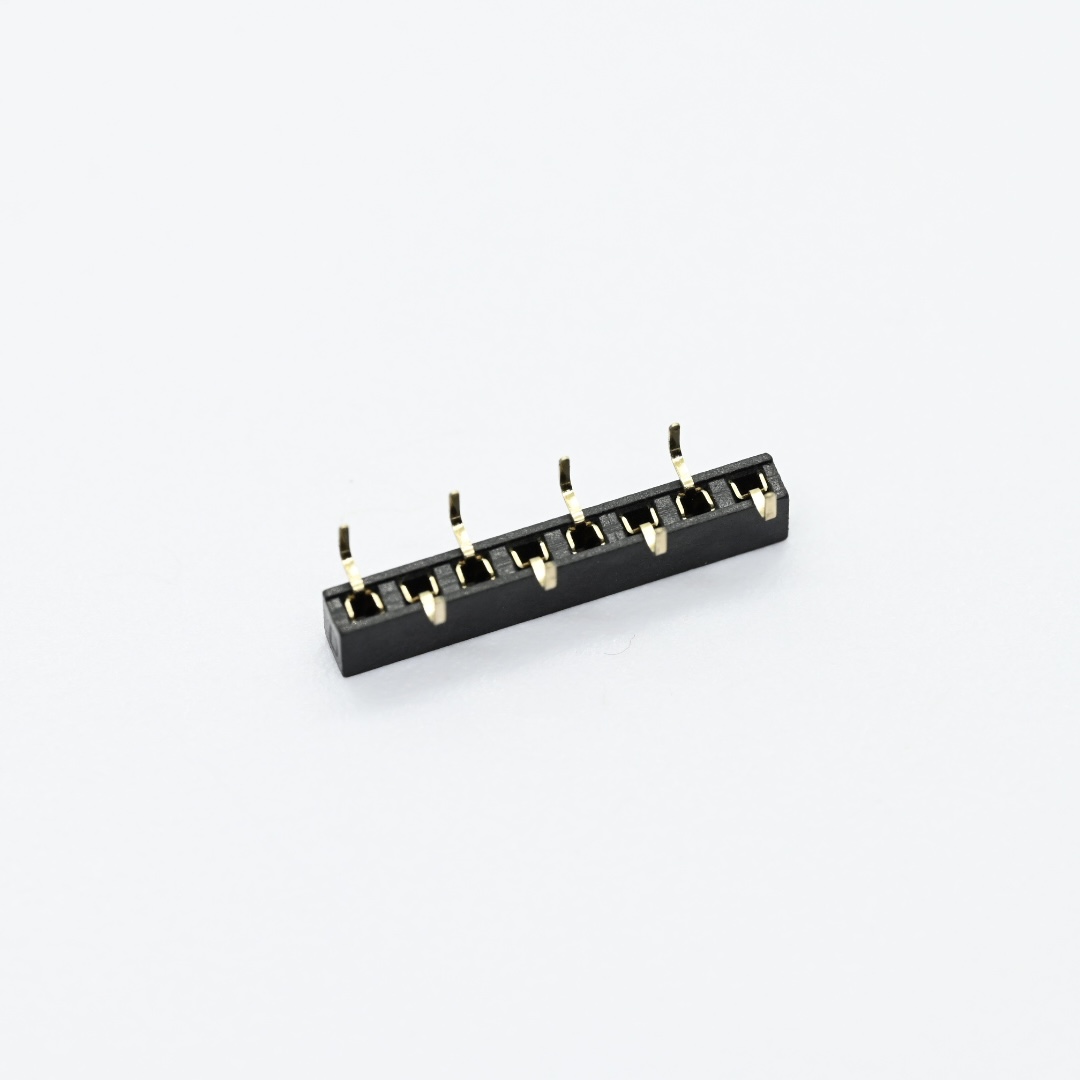

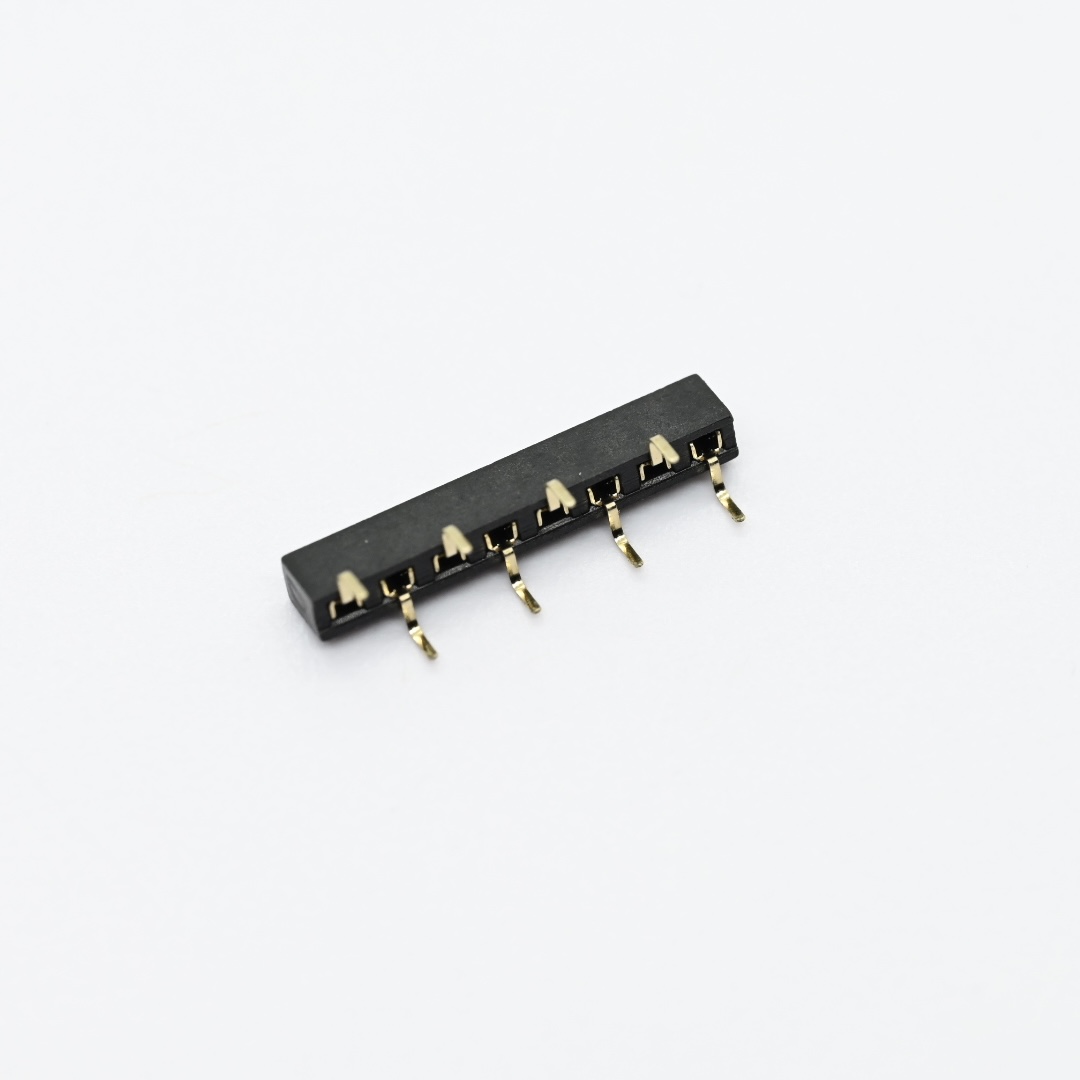

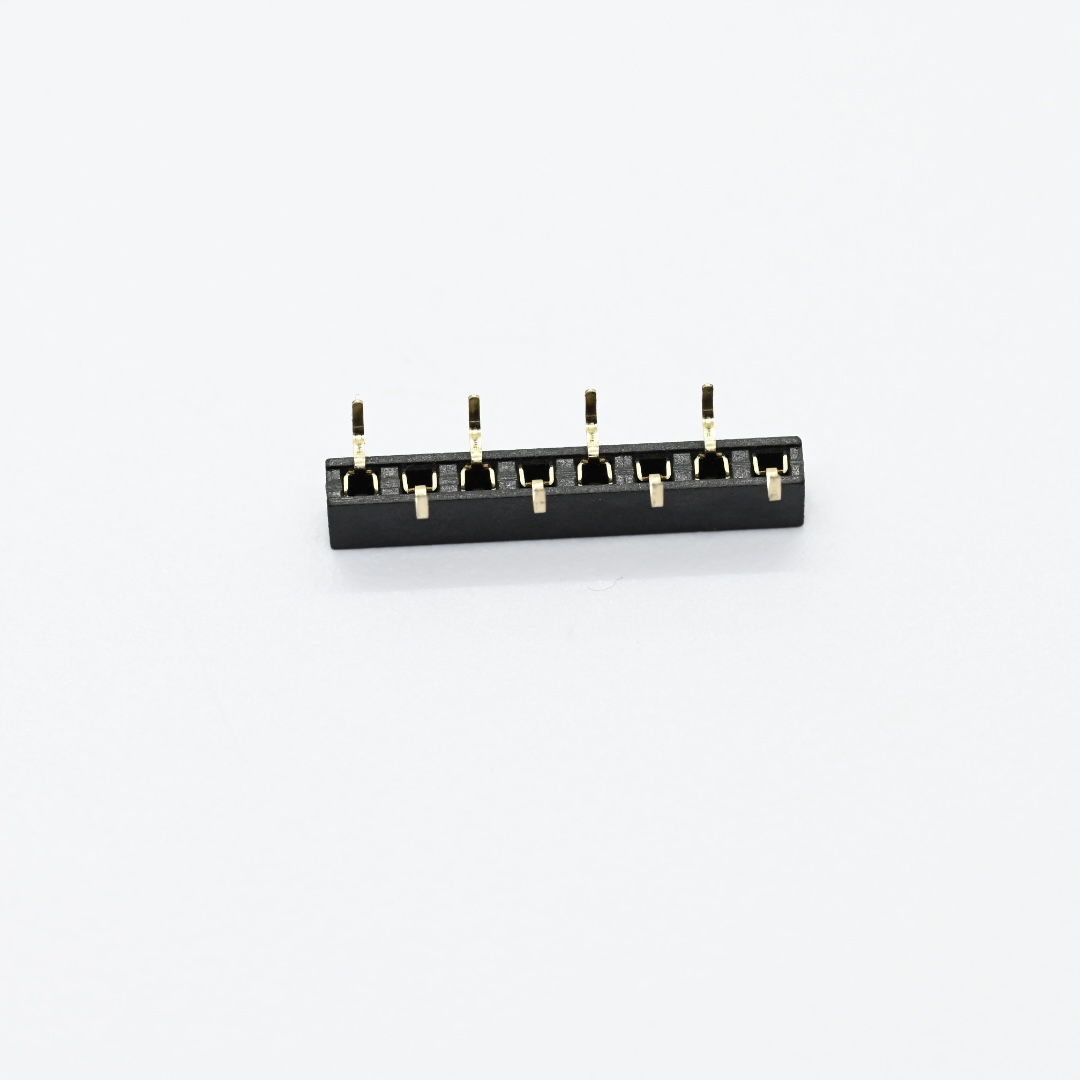

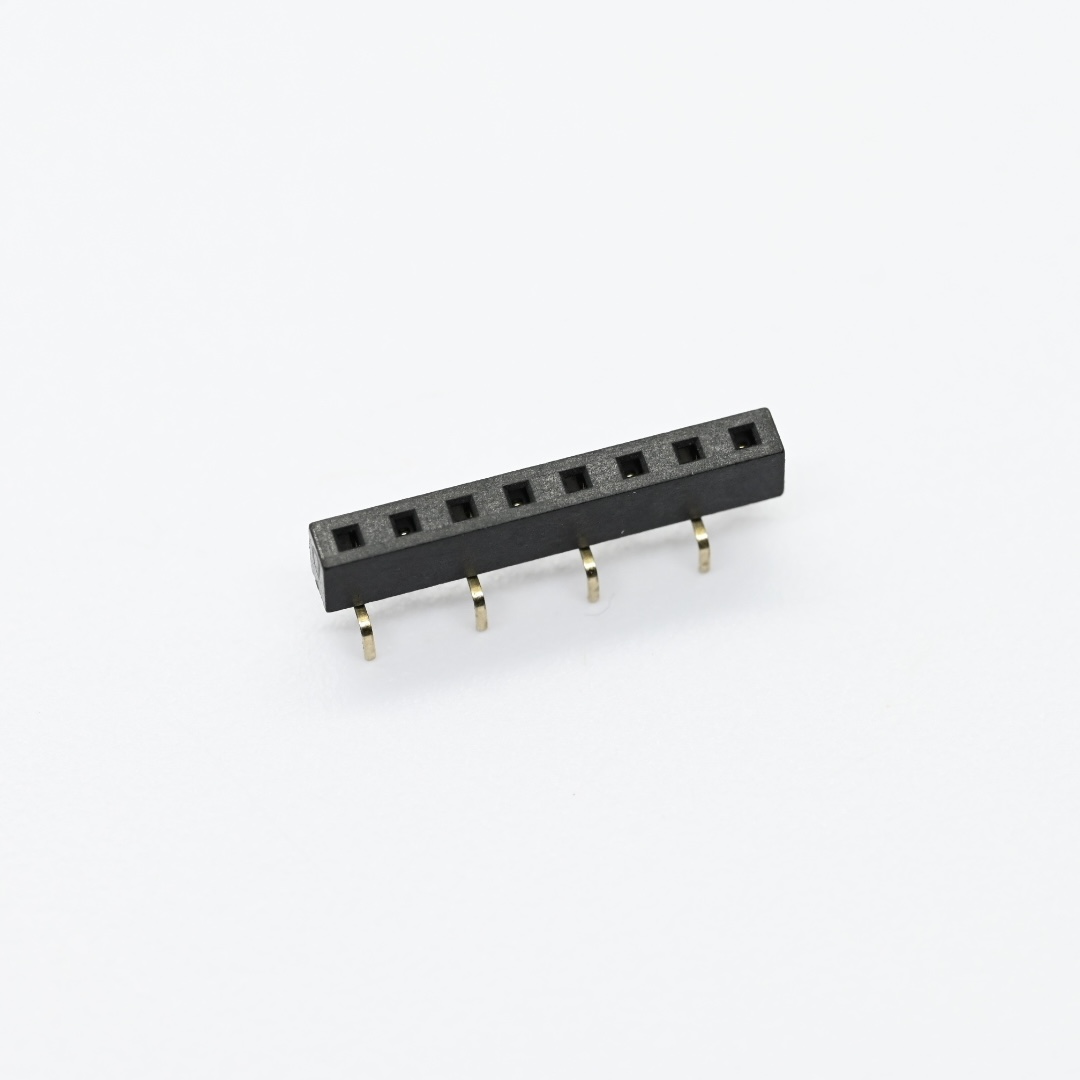

FHEU09-08-G0HBAB+2.54mm Female Header Single Row Centipede foot Type（3）FHEU09-08-G0HBAB+2.54mm Female Header Single Row Centipede foot Type（2）FHEU09-08-G0HBAB+2.54mm Female Header Single Row Centipede foot Type（5）FHEU09-08-G0HBAB+2.54mm Female Header Single Row Centipede foot Type（6）FHEU09-08-G0HBAB+2.54mm Female Header Single Row Centipede foot Type（4）FHEU09-08-G0HBAB+2.54mm Female Header Single Row Centipede foot Type（1）
