The company delivers reliable connection products to global clients in automotive repair, vehicle modification, diagnostic equipment manufacturing and electronic industries. Its product portfolio covers various automotive cable and connectors, professional car OBDII cable solutions and diverse OBD diagnostic cable products for passenger vehicles, commercial vehicles and automotive electronic equipment, all fully complying with RoHS environmental standards and strict quality inspection procedures.

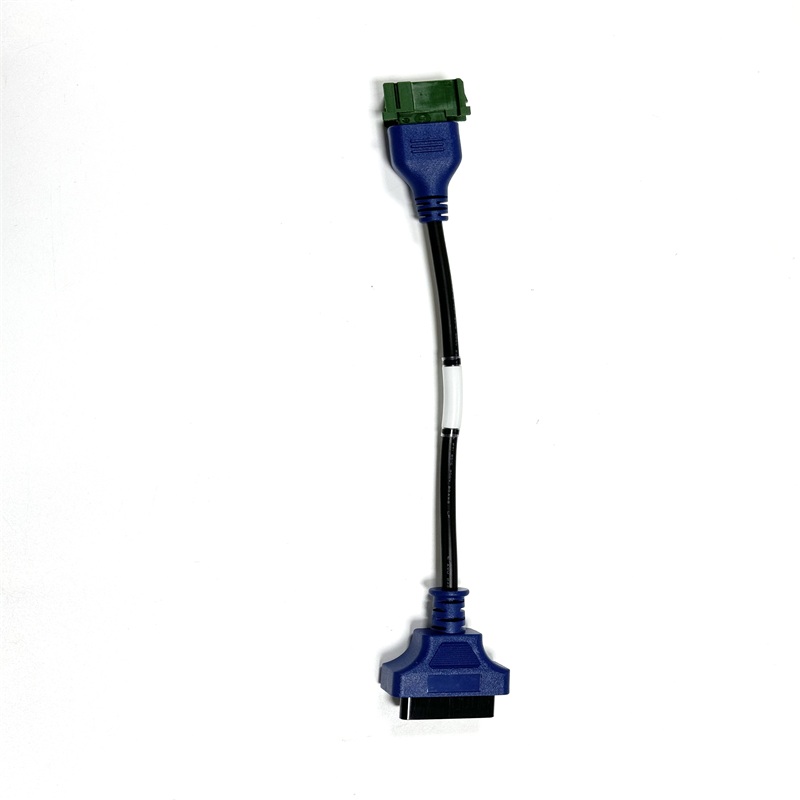

This OBD2 16Pin female to TE 6Pin connector cable is a dedicated CAN bus signal conversion harness designed for connecting vehicle OBD2 diagnostic ports to TE-interface diagnostic modules, data loggers and custom electronic devices. Different from waterproof M11 industrial extension cables and multi-branch OBD2 splitters, this product focuses on a concise two-conductor CAN bus signal path, connecting only the OBD2 pin 6 (CAN-H) and pin 14 (CAN-L) to the corresponding TE 6Pin connector terminals. This streamlined design eliminates unnecessary unused wires, reduces signal interference points and provides a clean, dedicated CAN bus connection for applications where only vehicle network data access is required, such as performance monitoring, fleet telematics and custom diagnostic tool development.
| Item |
Description |
| Product Name |
Custom OBD2 16Pin Female to TE 6Pin Connector Cable |
| Type |
OBD2 Diagnostic Adapter Cable / Automotive Signal Conversion Wiring Harness |
| Rated Test Voltage |
DC 300V 10MS Test Voltage, 12V DC Working Voltage |
| Pins Material |
Tin-Plated Brass Terminals (TE 964286-1), Gold Plating Optional |
| Plug Material |
ABS Fire-Resistant OBD2 Connector Housing, TE 6Pin Green Connector Housing |
| Working Temperature |
-40℃ ~ +80℃ Or Customized |
| Length |
300±30mm, Customized Length Available |
| Minimum Insulation Resistance |
≥3MΩ |
| Maximum Conduction Resistance |
≤5Ω |
| Compliance |
RoHS Compliant |
| Application Fields |
Automotive OBD2 diagnostic, vehicle ECU connection, on-board electronic equipment, car diagnostic tool adapter, automotive signal conversion, vehicle maintenance wiring, OBD2 to TE connector adapter |
| Specific Shipping Cost |
Please Contact Us |

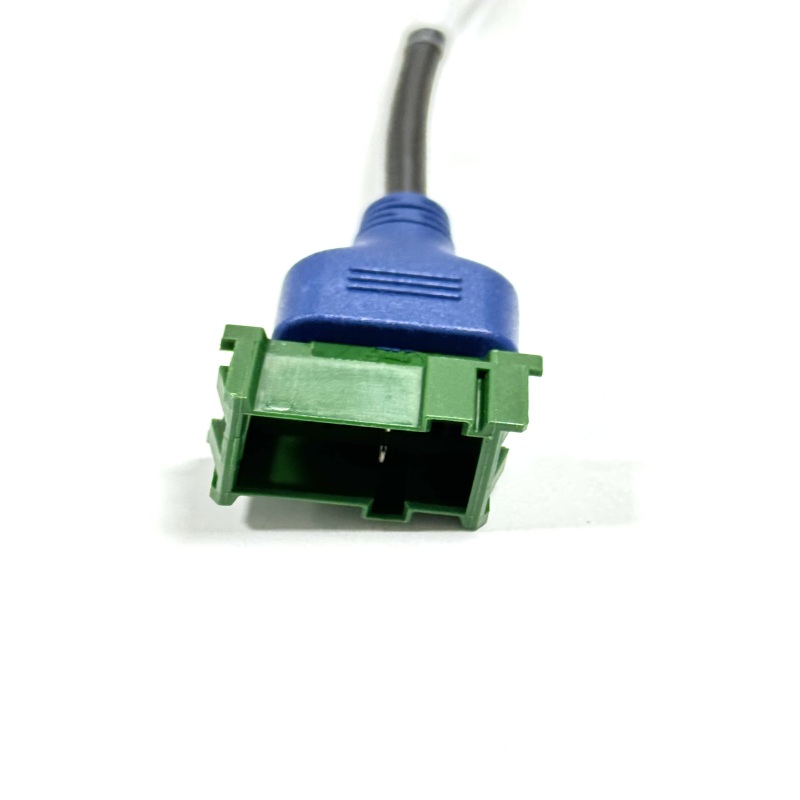

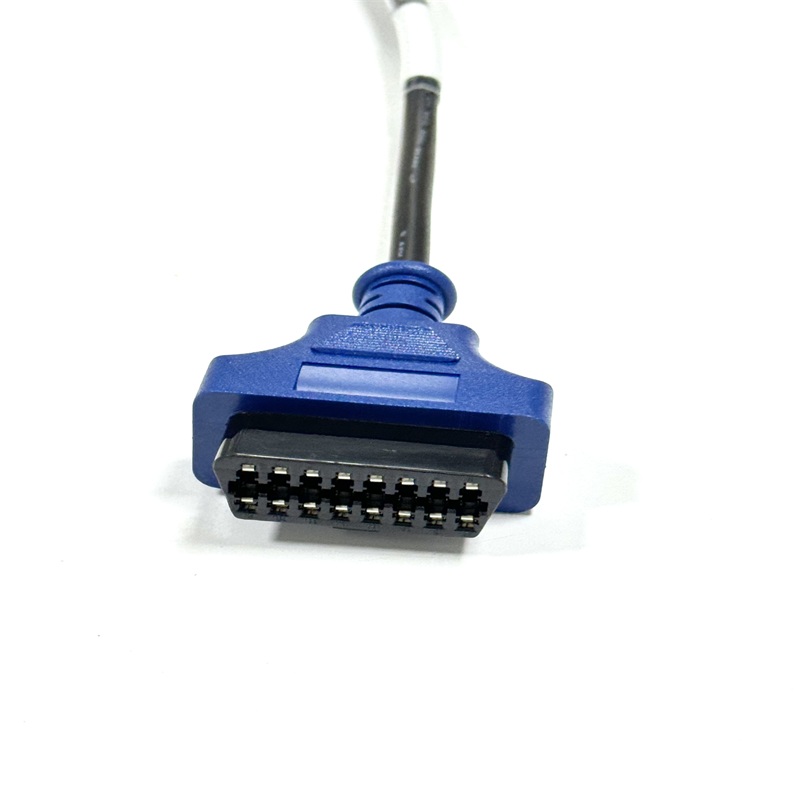

The internal conductor adopts UL2464 certified 20AWG 2-core shielded cable with black PVC outer jacket, integrating aluminum foil shielding layer to suppress electromagnetic interference from the vehicle engine compartment and ensure stable CAN bus signal transmission. The cable is rated for operation between -40℃ and +80℃, adapting to the temperature fluctuations inside vehicle cabins and engine bays. The two conductors are color-coded red and black for clear CAN-H and CAN-L identification, and a printed identification tube marked "DD-IV04" is pre-attached on the cable body for quick model recognition and installation sorting. The OBD2 female connector uses KET-style terminal housing with black ABS fire-resistant and high-temperature resistant material, while the TE 6Pin connector uses original TE 6-965421-1 green housing with TE 964286-1 tin-plated brass terminals, ensuring reliable contact and compatibility with standard TE connector systems. The connector transition points are reinforced with heat shrink tubes for strain relief, preventing wire breakage caused by frequent plugging and bending.
Every finished cable undergoes strict 100% electrical testing before delivery, including full continuity inspection, DC 300V withstand voltage test, insulation resistance measurement and conduction resistance verification to eliminate open circuits, short circuits and pin misalignment. Insulation resistance is maintained above 3MΩ while maximum conduction resistance is controlled within 5Ω, ensuring stable and low-loss CAN bus signal transmission. The OBD2 connector keyed orientation ensures correct mating alignment every time, preventing pin damage from incorrect insertion. All raw materials fully comply with RoHS environmental requirements, and connector housings are visually inspected for cracks, deformation and surface defects before shipment. The standard overall length is 300±30mm, providing sufficient reach for most vehicle interior and diagnostic device connection scenarios while avoiding excessive cable slack. The product is individually packaged in PE bags with carton outer protection and corner reinforcement for safe long-distance transportation.
This OBD2 to TE 6Pin CAN bus conversion cable is widely applied in automotive ECU programming, vehicle performance monitoring, fleet telematics device installation, custom diagnostic tool development, automotive data logging, CAN bus signal access and aftermarket electronic module connection. It serves as a reliable signal conversion medium for technicians, diagnostic equipment manufacturers and automotive electronics developers requiring clean, dedicated CAN bus access from a standard vehicle OBD2 port to TE-interface devices. For projects requiring adjustable cable length, different pin assignments, custom connector types or enhanced shielding structures, the engineering team can develop exclusive solutions using tailored automotive cable and connectors technology to match specific vehicle models and device requirements. The company continuously optimizes the signal integrity and mechanical durability of every product in its car OBDII cable lineup, and its comprehensive OBD diagnostic cable portfolio supports various custom interconnection projects for automotive and industrial applications. Welcome to send technical drawings, interface specifications or sample requests for detailed evaluation and competitive quotation.
