Product details

一、Product Description

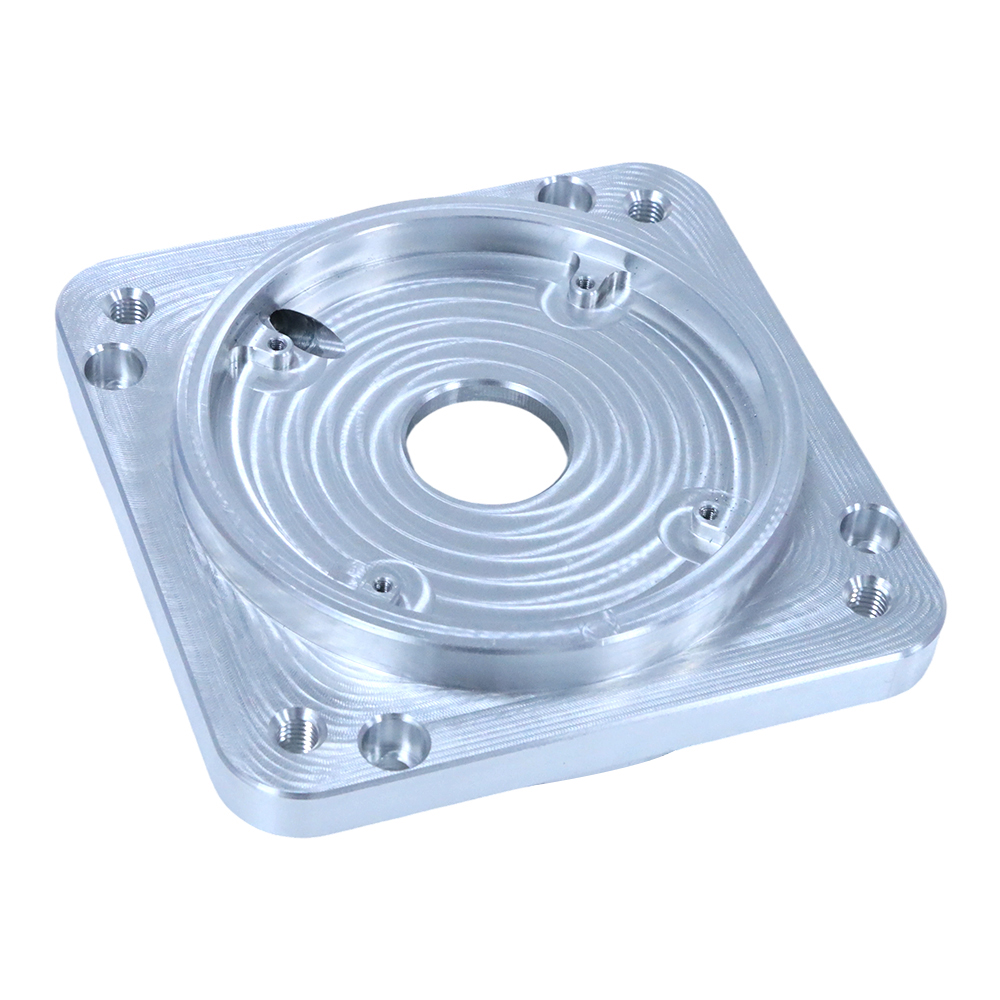

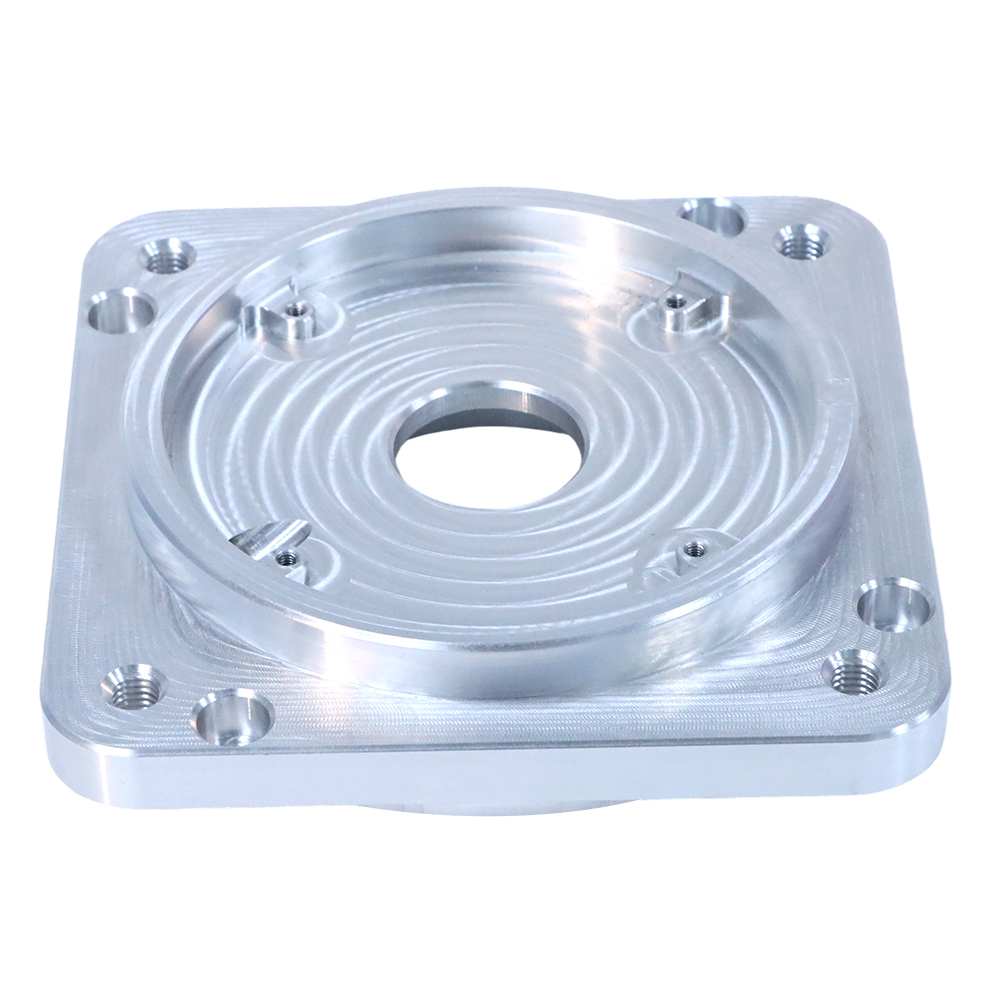

This OEM Bearing Cover Quality Parts is manufactured from 6061 aluminum alloy using composite CNC milling. The material is lightweight, offers excellent heat dissipation, and features superior structural rigidity. It protects the bearing assembly, prevents dust ingress, and provides axial restraint, while blocking external debris from entering the bearing chamber. The product retains the aluminum’s natural machined surface without additional surface treatment; customers may select subsequent protective processes such as anodizing or passivation based on their specific operating conditions. We offer comprehensive OEM customization services, allowing adjustments to the square base profile, center bore, annular cavity depth, threaded holes, and positioning latch structure according to customer drawings. It is widely used for bearing sealing and protection in rotating modules, transmission housings, and automated power units. The mating surfaces and positioning structures of this Precision Bearing Cover are subject to strict precision control, ensuring a tight fit with the bearing and housing to minimize operational vibration. The 6061 Aluminum Bearing Cover weighs significantly less than steel components, effectively reducing the overall load on the machine, making it an ideal protective accessory for rotating mechanisms.

二、Key Specifications

Product Name: Bearing Cover

Raw Material: 6061 Aluminum Alloy

Surface Treatment: No surface treatment

Product Features: Lightweight, excellent heat dissipation, high positioning accuracy, effective dust protection, compatible with secondary surface treatments

Applications: Automated rotating modules, transmission housings, power units for testing equipment, and bearing protection end caps for precision equipment

三、Manufacturing Process

After cutting the 6061 aluminum billet to size, rough machining of the square base, annular cavity, and through-hole threads is performed using CNC milling. Key areas such as sealing contact surfaces, center holes, and positioning tabs undergo finish machining via high-precision CNC milling, with strict control over flatness, hole positioning, and cavity dimensional tolerances. The machined workpieces are high-standard CNC milling parts; burrs and flash are thoroughly removed upon completion of machining. The workpieces do not undergo surface treatment but are subjected to coordinate measuring machine (CMM) and visual inspections to ensure consistent interchangeability during batch assembly.

四、Company Profile

Dongguan Shengpeng Precision Technology Co., Ltd. holds dual qualifications as both a manufacturer and a trading company, specializing in OEM customization of various non-standard milled parts for transmission protection applications. The factory is capable of mass-producing various types of non-standard metal bearing cover components, supporting customization of dimensions, cavity structures, and a wide range of material options. Equipped with a full suite of precision CNC milling equipment, the company can coordinate with external partners for various surface treatments and accepts both small and large batch orders. Leveraging mature aluminum alloy machining expertise, flexible customization solutions, and a comprehensive international trade delivery system, we continuously provide one-stop, precision non-standard component customization solutions for global automation equipment customers.
