8Pin to 3x2Pin Shutter Laser Cable

2 week ago

0 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

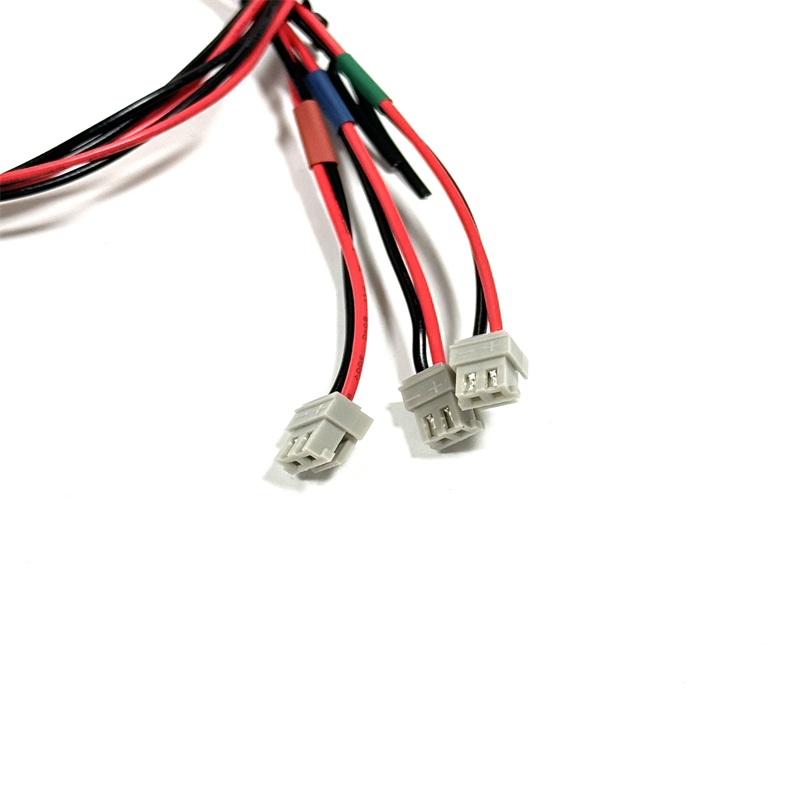

For precision laser and measuring equipment where every signal path must be clean, clearly identified and reliably connected, this multi-branch cable delivers exactly that. One TE 8Pin white connector on the main end splits into three independent SMC 2Pin gray connectors, each carrying a dedicated red-and-black conductor pair for shutter control, laser trigger or measurement signal transmission. The three branches are color-coded with green, red and blue heat shrink markers at the split point, so technicians can identify each circuit at a glance without tracing wires back to the main connector — a small detail that saves real time during equipment assembly and field maintenance.

Built with UL1007 22AWG single-core wires in red and black, the cable is rated for reliable signal and low-current power delivery in industrial equipment environments. The main branch reaches 458±25mm in total length, with the split point positioned at 222±25mm from the main connector, leaving three equal-length branches for clean routing inside equipment enclosures. TE original 794617-8 white plastic housings and 794606-1 terminals are used at the main end for dependable contact consistency, while SMC phosphor bronze terminals at the branch ends provide secure mating with standard 2Pin receptacles. Every stress point is reinforced with heat shrink tubing to guard against wire fatigue from repeated bending and equipment vibration.

Item	Description
Product Name	8Pin to 3x2Pin Shutter Laser Cable
Type	Multi Branch Signal Cable
Rated Test Voltage	DC 300V 10MS Test Voltage
Pins Material	Phosphor Bronze Terminals (SMC), Tin-Plated Brass (TE)
Plug Material	PA66 White TE 8Pin Housing, Gray SMC 2Pin Housing
Working Temperature	-40℃ ~ +105℃ Or Customized
Length	458±25mm, Customized Length Available
Minimum Insulation Resistance	≥5MΩ
Maximum Conduction Resistance	≤3Ω
Compliance	RoHS Compliant
Application Fields	Laser equipment, shutter control, measuring instruments, industrial sensor connection, electronic device signal wiring
Specific Shipping Cost	Please Contact Us

Quality is checked before anything ships: every cable passes 100% continuity testing, a DC 300V withstand voltage check, insulation resistance verification above 5MΩ and conduction resistance control below 3Ω. Housings are inspected for cracks, deformation and surface defects, and all materials meet RoHS requirements. As a practical custom wiring harness for precision industrial equipment, it is widely used in laser engraving machines, shutter control systems, optical measuring instruments, industrial sensor arrays and electronic test equipment where multiple independent signal circuits need to branch from a single main interface.
