Heat Shrink Terminal

7 day ago

0 0

Dong Guan KE YU New Material Technology co.,LTD

 9 year year

Product details

Heat Shrink Ring Terminal

Product Description:

Heat Shrink Ring TerminalConstructed from PA hot-melt adhesive heat shrink tube and 99% pure copper. It features an excellent insulation protection system, offering reliable waterproof and anti-corrosion performance. The high-purity copper tube at the core ensures outstanding electrical conductivity. It also has good elongation, resistance to mechanical damage (keeping the outer layer intact), excellent electrical performance, high elasticity, and no tube warping.

Heat Shrink Crimp Terminals (including Ring Type)Compared to conventional connectors, it has advantages like higher durability, easier installation, and lower installation costs. It also boasts good elongation, resistance to mechanical damage (preventing outer layer damage), excellent electrical performance, high elasticity, and no tube warping.The product complies with the UL224 standard and meets the RoHS 2.0 environmental requirements.

Product Application:

Widely used in wiring, wire harnesses, and electrical connector protection. Suitable for fixing in harsh environments and ensuring seismic stability (earthquake-resistant dynamic function) in related electrical systems.

Technical Performance:

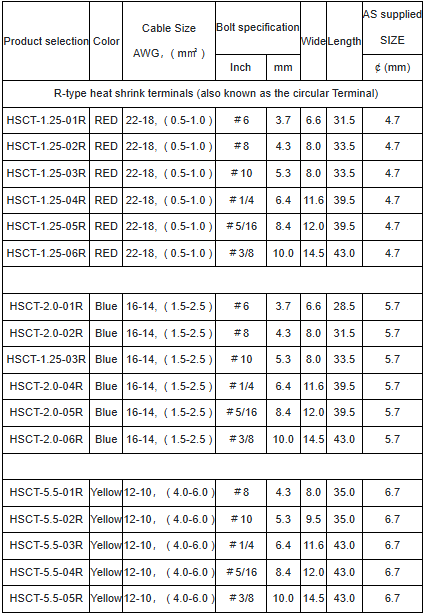

Product Specifications:

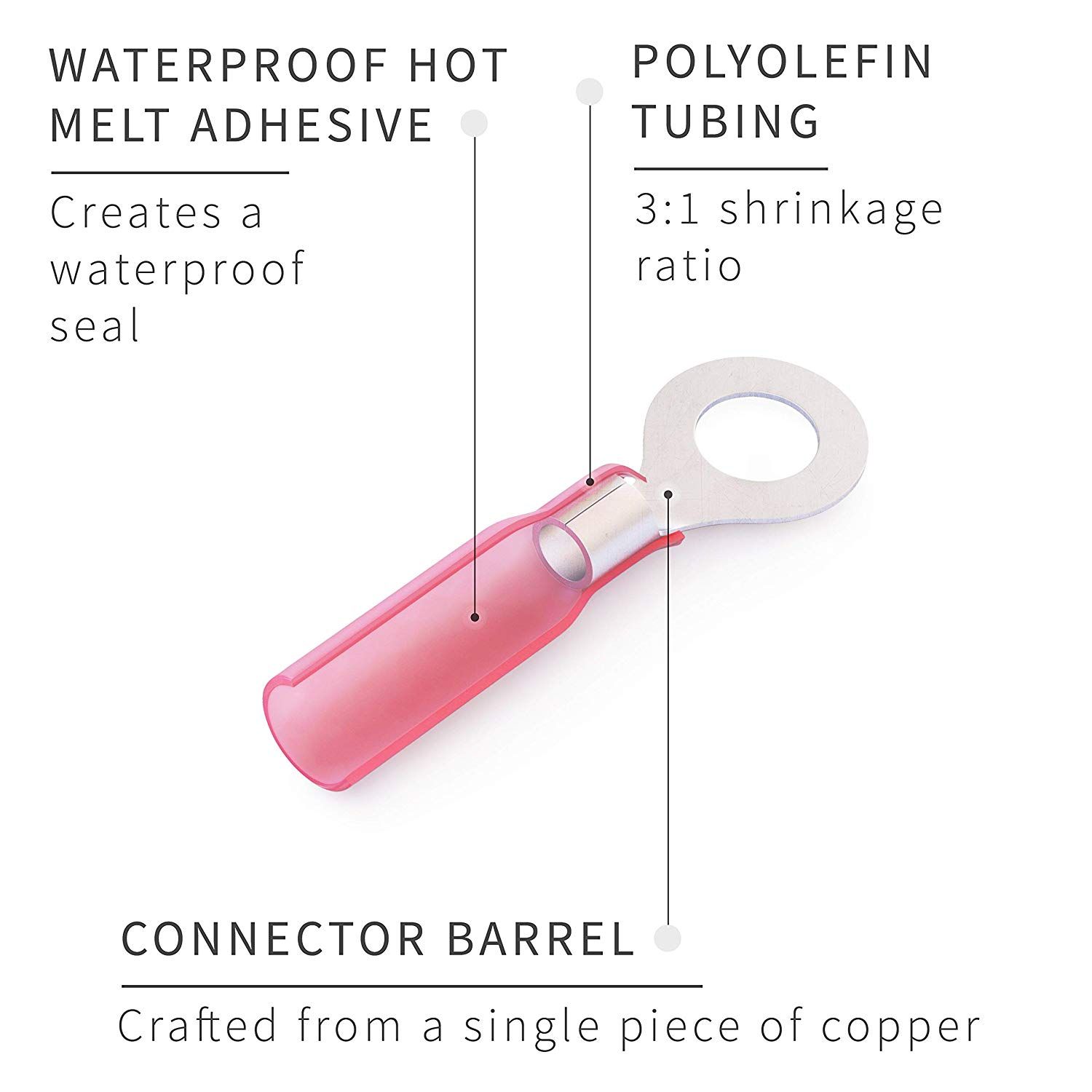

Structural Analysis Diagram:

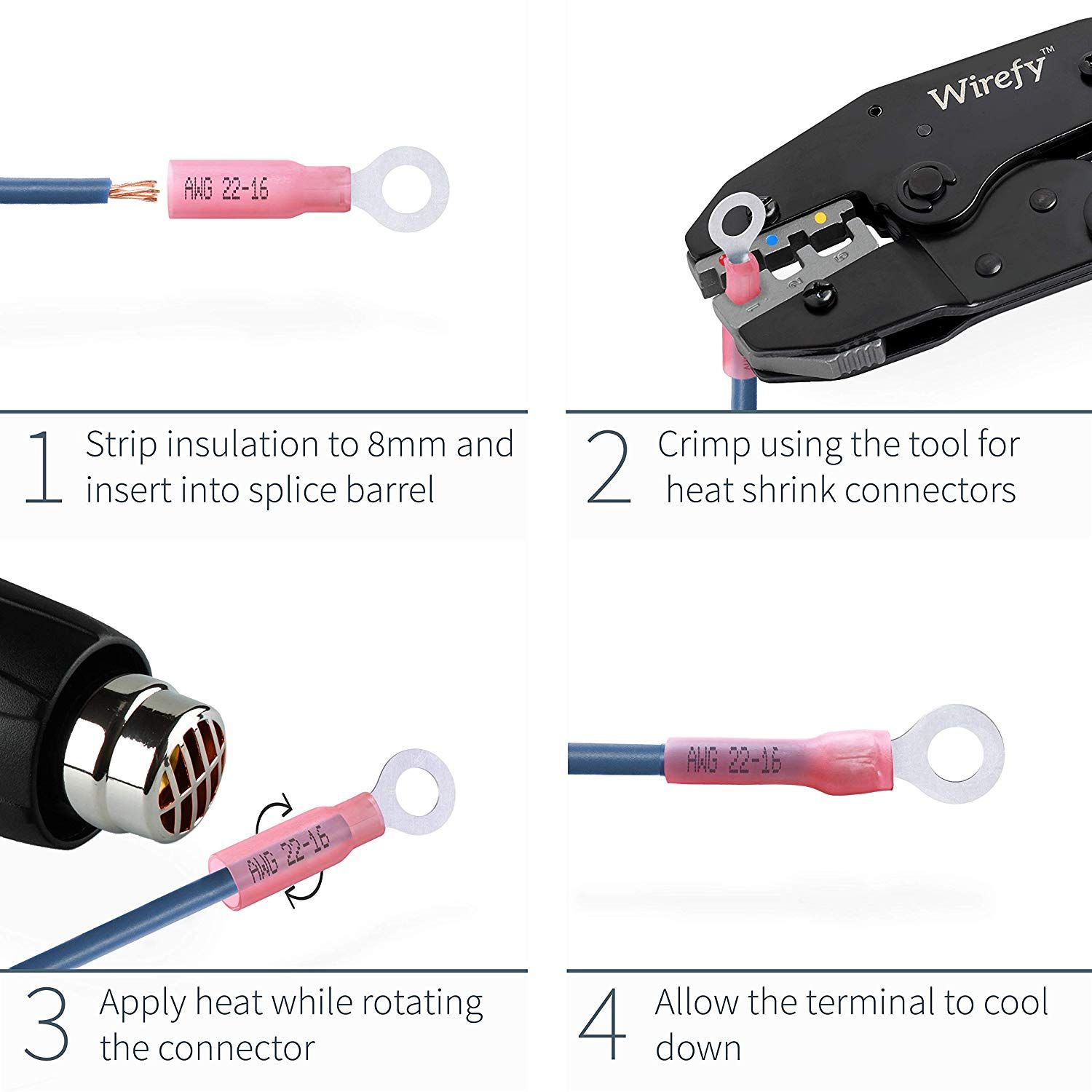

Usage Steps
