2.00mm Pitch Phosphor Bronze Crimp Terminal

2.00mm Pitch Phosphor Bronze Crimp Terminal

2 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures AT2012T xP series 2.00 millimeter pitch crimp terminal to build stable wire‑to‑board electrical connection after professional wire crimping operation for wire harness assembly. This crimp contact mates with AH2012F series housing, adopts phosphor bronze base material with optional tin plating or gold plating while gold plating requires minimum order quantity. It supports AWG22 to AWG28 wire gauge, rated for 3A AC DC current and 250V AC DC voltage, reaches 800V AC one minute dielectric strength and minimum 1000 megaohm insulation resistance with maximum 10 milliohm contact resistance and operating temperature ranges from minus 40 degree Celsius to plus 105 degree Celsius. This product complies with RoHS and REACH standards and fits consumer electronics household appliances and industrial control devices. Operators must apply matched crimping tool and compatible housing and store goods in dry environment to prevent metal surface oxidation. Unlike competitors outsourcing stamping molding and plating Antenk completes full in house production covering independent mold development phosphor bronze terminal stamping precision electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, deliver custom configuration solutions and round the clock engineering support, over seventy percent of connector goods are exported globally. Feel free to submit your project specifications for sample quotation and full datasheet resources.

1. Gold Plated Crimp Terminal delivers superior corrosion resistance for high reliability electronic connection scenarios.

2. Phosphor Bronze Terminal Pin maintains stable mechanical spring performance under repeated plug and pull cycles.

3. Wire Harness Crimp Contact ensures secure electrical conduction after standardized crimp processing.

Detailed Specifications :

1. Mechanical Specifications

1.1 Product type: Crimp style terminal for wire harness assembly

1.2 Measurement unit: millimeter

1.3 Key dimension: contact pitch 2.00 mm, refer to official engineering drawing for full dimensional parameters

1.4 Available option: tin plated finish or gold over nickel plating, gold plating requires minimum order quantity

1.5 Mating information: designed for AH2012F series housing

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and crimp reference data for your wire harness design validation.

2. Material Construction

2.1 Terminal base material: Phosphor Bronze

2.2 Surface finish: Tin plating or gold over nickel plating

3. Electrical Parameters

3.1 Rated current: 3A AC DC

3.2 Rated voltage: 250V AC DC

3.3 Applicable wire: AWG 22 to AWG 28

3.4 Contact resistance: maximum 10 milliohm

3.5 Insulation resistance: minimum 1000 megaohm

3.6 Dielectric strength: 800V AC for one minute

4. Environmental Parameters

4.1 Operating temperature range: minus 40°C to plus 105°C

5. Compliance Standard

5.1 Environmental compliance: RoHS and REACH compliant

6. Usage Method

6.1 Assembly mode: Crimp with AWG22‑AWG28 wires and insert into AH2012F series housing

6.2 Operation tip: Use dedicated crimping tool to achieve qualified crimp performance

7. Application Scenarios

7.1 Consumer electronic devices

7.2 Household electrical appliances

7.3 Industrial control modules

8. Operation & Storage Precautions

8.1 Use matched AH2012F series housing for proper assembling

8.2 Adopt suitable crimping tool to avoid bad crimping or terminal deformation

8.3 Store terminals in dry environment to prevent metal surface oxidation

8.4 Select proper plating finish according to actual project requirements, note MOQ requirement for gold plating version

8.5 CTA: Submit your wire gauge and plating requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

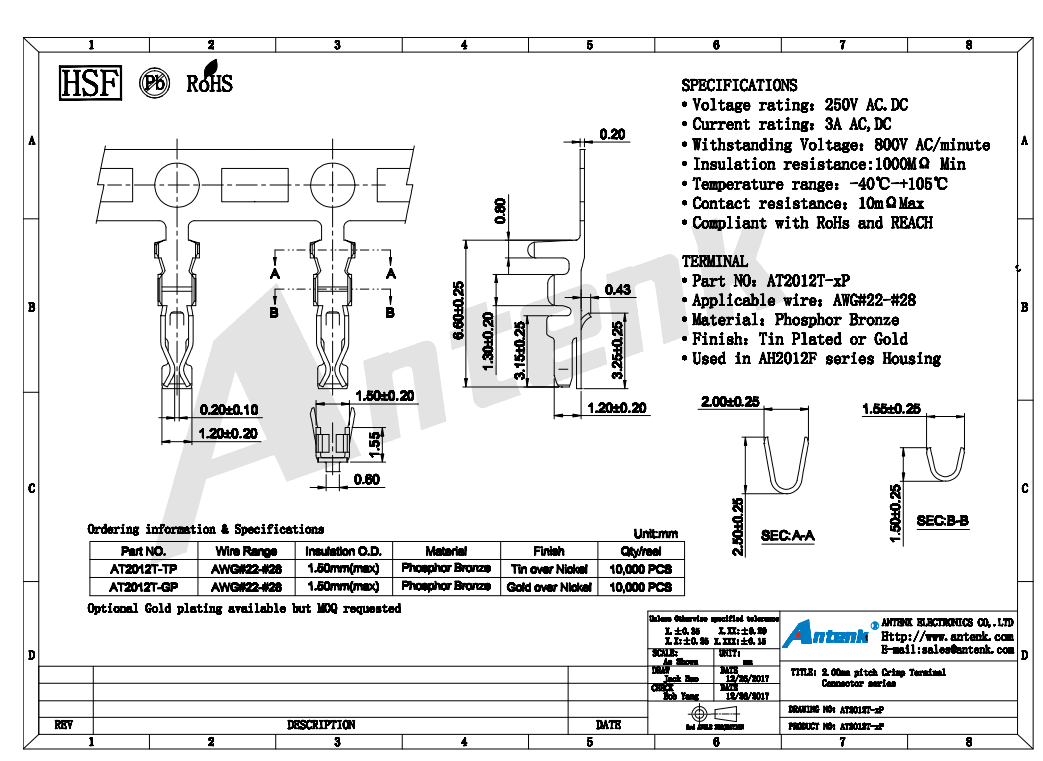

Product Drawing：

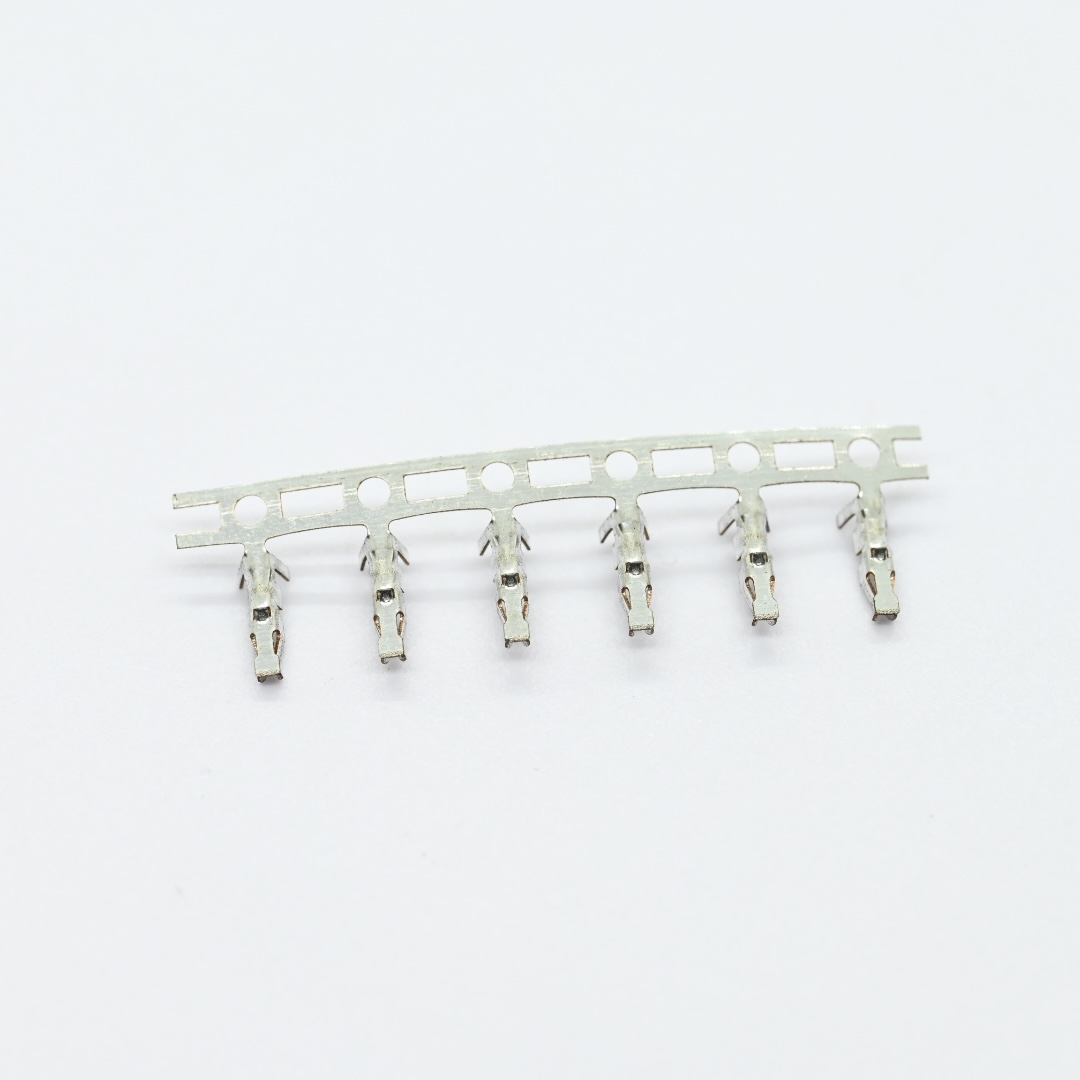

AT2012-TP+2.00mmpitch Crimp Terminal Connector series（3）

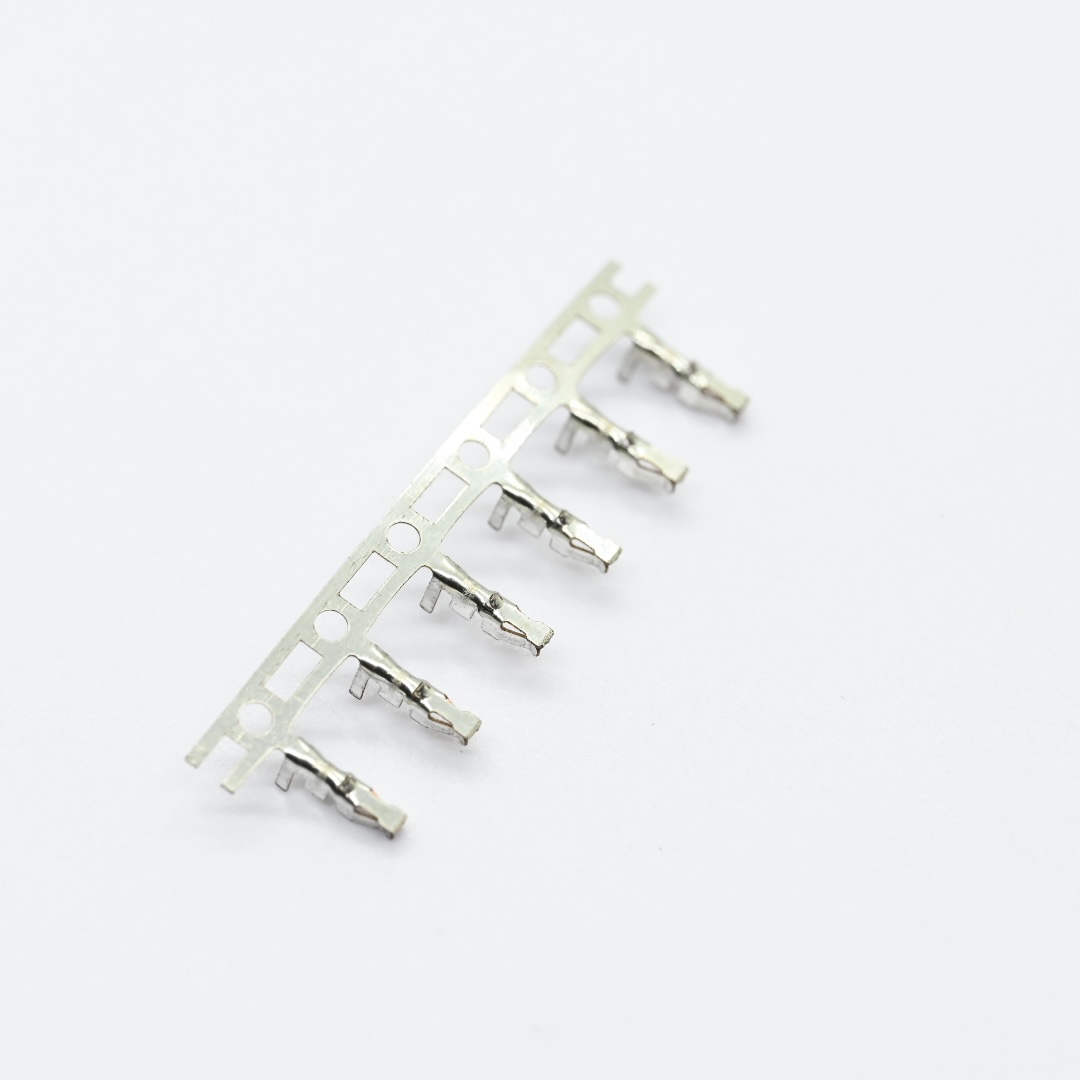

AT2012-TP+2.00mmpitch Crimp Terminal Connector series（4）

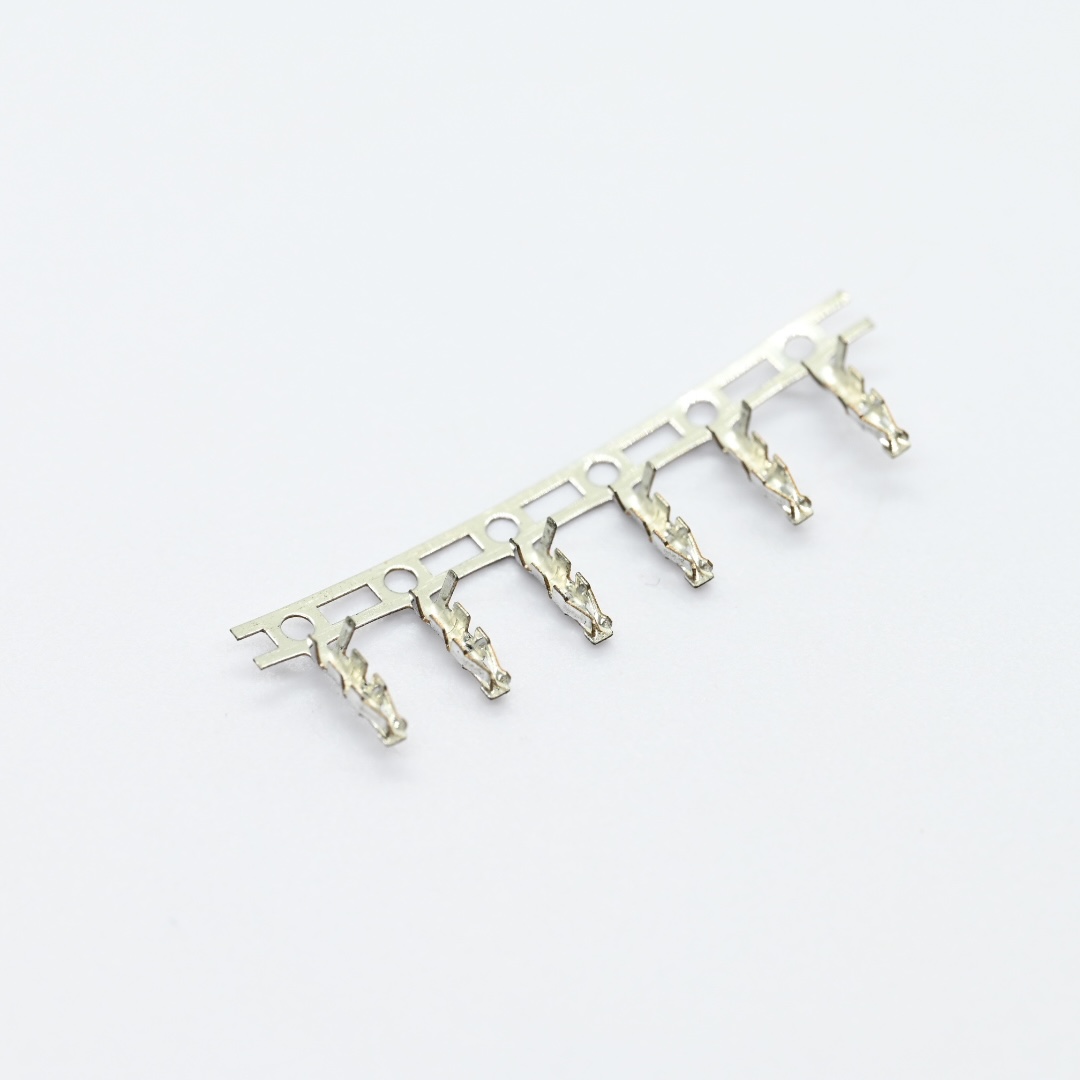

AT2012-TP+2.00mmpitch Crimp Terminal Connector series（2）

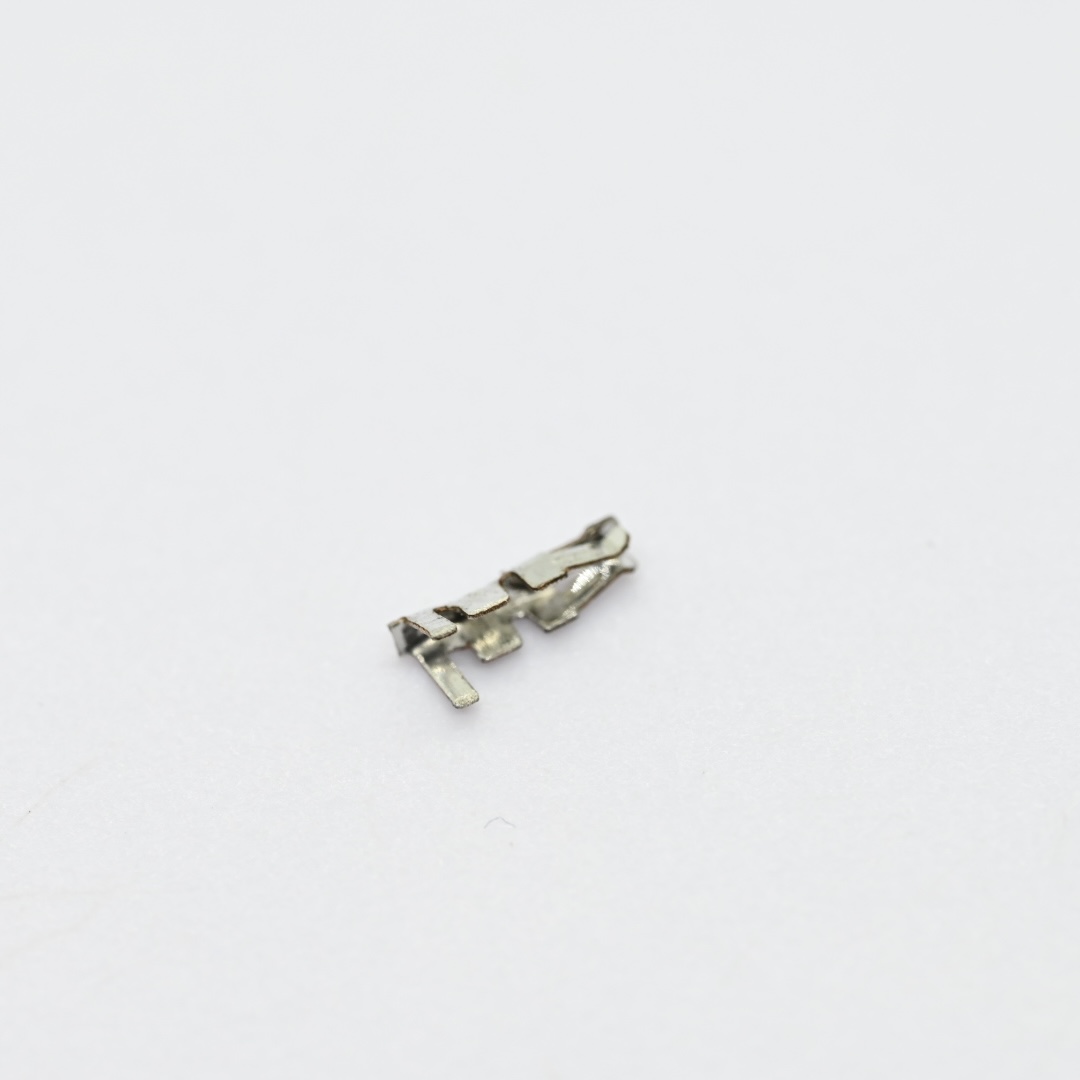

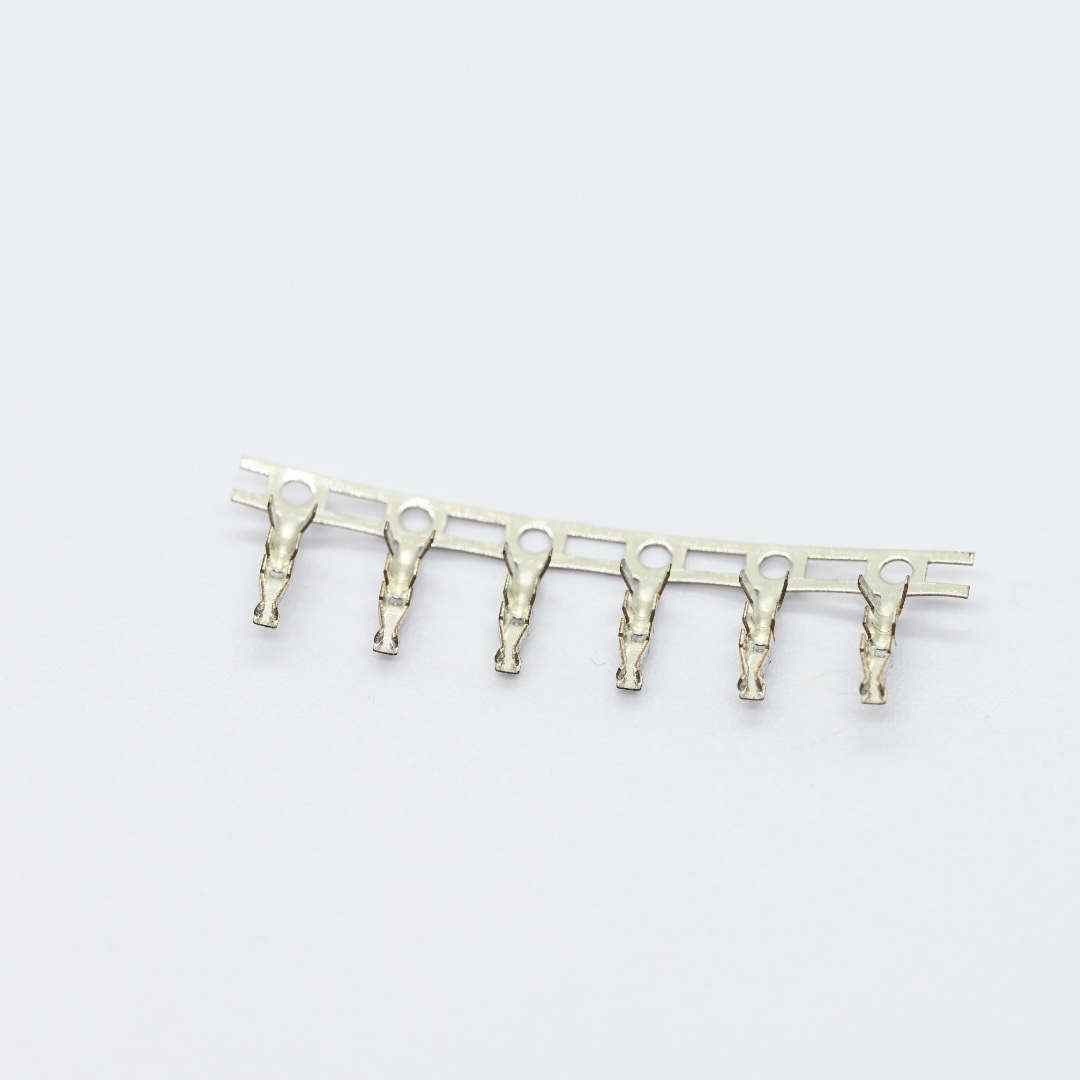

AT2012-TP+2.00mmpitch Crimp Terminal Connector series（1）

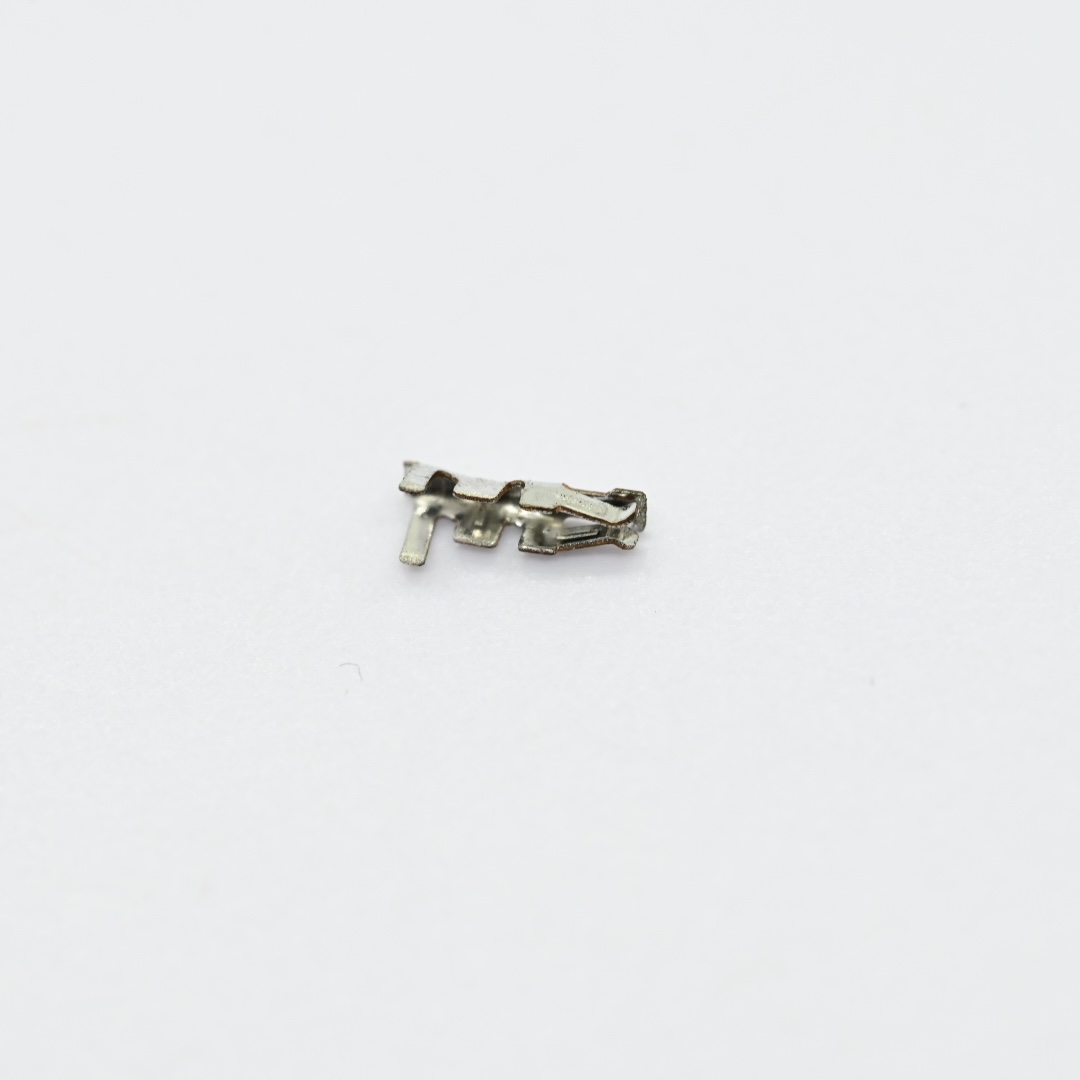

AT2012-TP+2.00mmpitch Crimp Terminal Connector series（5）

AT2012-TP+2.00mmpitch Crimp Terminal Connector series（6）

Contact Now

If you are interested in the product, contact 2bvideo.com for more information for more information

To:: HuiZhou Antenk Electronics Co., LTD

Message:

Submit
