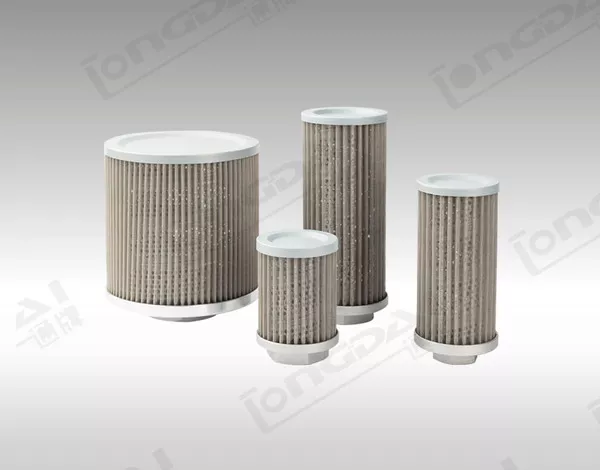

JF‑JP Series Hydraulic Suction Filter

Product Overview

JF‑JP Series Hydraulic Suction Filter is a high‑quality intake FILTER specially designed for the inlet side of hydraulic pumps. It is an essential protective component for industrial hydraulic system, used to block solid impurities from entering the oil circuit and prevent damage to hydraulic components inside the Machine.

This suction FILTER is installed on the suction pipeline of the hydraulic pump. It can effectively trap metal particles, dust and other contaminants in the hydraulic oil. It protects key parts such as pumps and valves of the hydraulic system, extends service life of the whole Machine, and reduces the frequency of maintenance and breakdowns. It is widely applied to various hydraulic equipment, construction machinery and industrial hydraulic devices.

Technical Specifications

‑ Model: JF‑JP Series Hydraulic Suction Filter

‑ Product Type: Hydraulic Suction FILTER

‑ Application: Suction‑side filtration for hydraulic system

‑ Working pressure: 0.7 MPa

‑ Working medium: Anti‑wear hydraulic oil, ISO‑VG32 / VG46 recommended

‑ Operating oil temperature: ‑20℃ ~ +80℃

‑ Filtration precision: Multiple optional grades available

‑ Installation position: Pump suction inlet inside oil tank

‑ Key Features: Reliable impurity‑blocking performance, compact structure, easy installation and replacement, stable protection for hydraulic components of industrial Machine

Working Principle

As a core suction‑side FILTER for the hydraulic system, the hydraulic oil flows through the filter element when the hydraulic pump draws oil from the oil tank. Solid particles and dirt are intercepted by the filter element, while clean oil flows into the pump. This avoids abrasive particles entering the hydraulic pump and causing wear or failure of internal parts of the Machine.

When the filter element is clogged by impurities, the flow resistance increases. Timely replacement of the filter element can maintain normal circulation of the hydraulic system, and avoid pump cavitation and abnormal operation of the Machine.

Core Advantages

1. Efficient impurity filtration, protects hydraulic pump and valves, greatly reduces wear risk for the hydraulic system and Machine.

2. Compact and lightweight design, easy to install and disassemble inside the oil tank, convenient for daily maintenance.

3. Multiple filtration precision options to match different working conditions of various industrial Machine.

4. Good compatibility, suitable for most standard hydraulic equipment, ideal for retrofitting or new‑build hydraulic system.

5. Cost‑effective protective solution, lowers overall maintenance cost of hydraulic equipment.

Application Range

JF‑JP Series Hydraulic Suction FILTER is widely used in the hydraulic system of injection molding machines, hydraulic presses, machine tools, construction machinery and other hydraulic‑driven Machine. It is suitable for hydraulic repair workshops, equipment integrators and global spare‑parts distributors.
