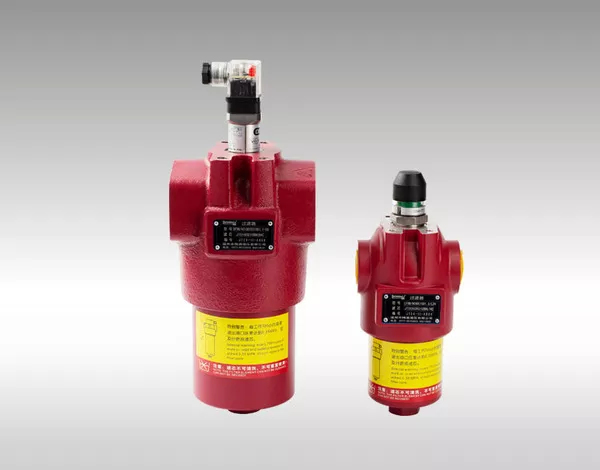

DF Series Hydraulic High‑Pressure Filter

Product Overview

DF Series Hydraulic High‑Pressure Filter is a plate‑mount inline high-pressure FILTER, an essential precision protection component for industrial hydraulic system. It can be directly installed under directional valves on pressure pipelines to trap fine solid contaminants and safeguard high-precision hydraulic components of the Machine.

This high-pressure FILTER adopts high-strength cast iron filter head and steel filter bowl to resist high pressure and pressure impact. It intercepts metal wear debris, rubber fragments and fine particulate impurities inside pressurized hydraulic oil, maintaining high cleanliness of hydraulic fluid. It effectively prevents valve core jamming, scratches and abrasion on proportional valves, servo valves and hydraulic cylinders in the hydraulic system, extending service life and lowering breakdown risk of the whole Machine.

Technical Specifications

‑ Model: DF Series Hydraulic High‑Pressure Filter

‑ Product Type: Plate-mounted inline high-pressure hydraulic FILTER

‑ Application: Pressure line filtration for hydraulic system

‑ Max working pressure: Up to 32 MPa

‑ Working medium: Anti-wear hydraulic mineral oil, ISO-VG32 / VG46 recommended

‑ Operating oil temperature: -20℃ ~ +80℃

‑ Filtration precision: Multiple micron grades optional (1μm ~ 20μm)

‑ Installation: Plate mounting / inline pipeline mounting

‑ Built-in feature: Differential pressure clogging indicator, optional bypass valve

‑ Key Features: Compact plate installation structure, high pressure resistance, high filtration accuracy, reliable differential pressure alarm, stable protection for precision hydraulic components of industrial Machine

Working Principle

As a plate-type high-pressure inline FILTER for the hydraulic system, pressurized hydraulic oil flows into the filter housing. Tiny solid contaminants are captured by high-performance filter media, and purified high-pressure oil continues to be delivered to actuators of the Machine. It stops hard particles from scuffing precision matching surfaces of valves and pumps within the hydraulic system.

When the filter element accumulates contaminants, the differential pressure rises. The clogging indicator triggers an alarm signal to remind operators to replace the filter element timely. If the filter element is heavily blocked, the optional bypass valve opens to prevent oil supply interruption and unexpected shutdown of the Machine, ensuring continuous running of the hydraulic system.

Core Advantages

1. Compact plate-mounted structure, can be directly installed under hydraulic valves, saves installation space for the hydraulic system and Machine.

2. Robust pressure-resistant housing, suitable for long-term high-pressure operation, provides precise filtration protection for servo and proportional hydraulic circuits.

3. High-efficiency filter material with excellent dirt holding capacity, keeps hydraulic oil clean and avoids valve stuck failure.

4. Differential pressure monitoring indicator, real-time element clogging status, supports predictive maintenance and reduces unplanned downtime.

5. Standard connection dimensions, great interchangeability for newly-built or retrofitted hydraulic system.

Application Range

DF Series Hydraulic High‑Pressure FILTER is widely applied in the hydraulic system of hydraulic presses, injection molding machines, servo hydraulic stations, machine tools and other high-pressure hydraulic-driven Machine. Popular among hydraulic maintenance workshops, hydraulic system integrators and global spare parts distributors.
