SMT Micro USB 5P B Type Receptacle

SMT Micro USB 5P B Type Receptacle

3 week ago

9 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures MUFM11 micro USB 5P B type receptacle with four DIP shell legs for stable data and power transmission for compact electronic hardware. This micro USB female socket adopts SMT main mounting paired with four DIP shell pins to enhance mechanical locking strength on printed circuit boards, insulator housing uses LCP material with UL94V 0 flame retardant grade, contact terminals are brass or phosphor copper alloy while shell can select brass iron or stainless steel material. It supports multiple contact plating options ranging from gold flash up to 30u gold plating, achieves maximum 0.8A current rating, 50 milliohms maximum contact resistance, 100V AC dielectric withstanding voltage and minimum 100 megaohm insulation resistance. Operators complete SMT reflow soldering together with shell DIP soldering and follow official PCB layout tolerance of plus minus 0.05 millimeter during board design, keep products under dry storage condition to avoid contact surface oxidation. Different from competitors who outsource stamping molding and plating Antenk carries out full in house production covering independent mold development terminal stamping plastic injection molding electroplating and complete laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications, support custom shell material contact plating and diverse packaging choices with round the clock engineering assistance, more than seventy percent of our connector goods are exported worldwide. Feel free to share your project parameters for sample quotation and complete datasheet resources.

1. Four DIP Shell USB delivers superior mechanical stability by four through hole shell pins to resist physical stress during plug and unplug cycles.

2. SMT Micro USB Socket adopts surface mount technology for compact layout and fits high density printed circuit board assembly requirements.

3. Gold Plated USB Receptacle provides low contact resistance and excellent anti oxidation performance for stable data and power transmission.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Micro USB 5P B type female receptacle, SMT contact mounting with four DIP shell legs

1.2 Measurement unit: millimeter

1.3 Key dimension: Follow drawing dimension values, PCB layout tolerance is ±0.05 millimeter. Refer to official engineering drawing for full dimension tables and PCB footprint reference data.

1.4 Plating options for contact area: Gold flash, 3u gold, 5u gold, 10u gold, 15u gold, 30u gold

1.5 Optional shell material: Brass, iron, stainless steel

1.6 Optional insulator material: PBT plus 30 percent glass fiber, LCP

1.7 Available packaging form: Tray, bag, tube, tape and reel

1.8 CTA: Contact our engineering team to acquire complete dimension drawings and PCB layout files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: LCP thermoplastic with UL94V 0 flame retardant grade

2.2 Contact terminal: Brass or phosphor copper copper alloy, mating area gold plated, solder tail tin plated, terminal thickness 0.15 millimeter

2.3 Shell: Brass with 0.25 millimeter thickness, nickel plated finish

3. Electrical Parameters

3.1 Maximum rated current: 0.8A

3.2 Maximum contact resistance: 50 milliohms

3.3 Dielectric withstanding voltage: 100V AC at sea level

3.4 Minimum insulation resistance: 100 megaohms

4. Usage Method

4.1 Assembly mode: SMT reflow soldering for signal contacts combined with DIP soldering for four shell mounting legs onto printed circuit boards

4.2 Operation tip: Select proper shell material, insulator material, contact plating and packaging solution according to your actual project requirements

5. Application Scenarios

5.1 Compact consumer electronic devices

5.2 Portable digital products

5.3 Smart home hardware

5.4 Computer peripheral equipment

6. Operation & Storage Precautions

6.1 Adhere strictly to official PCB layout tolerance of ±0.05 millimeter for circuit board design

6.2 Do not apply excessive plugging force to prevent terminal deformation and shell damage

6.3 Keep inventory in dry storage environment to avoid oxidation of gold and tin plated contact surfaces

6.4 Verify shell material insulator material contact plating and packaging specifications before mechanical and circuit design

6.5 CTA: Submit your material plating and packaging requirements, we can offer free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

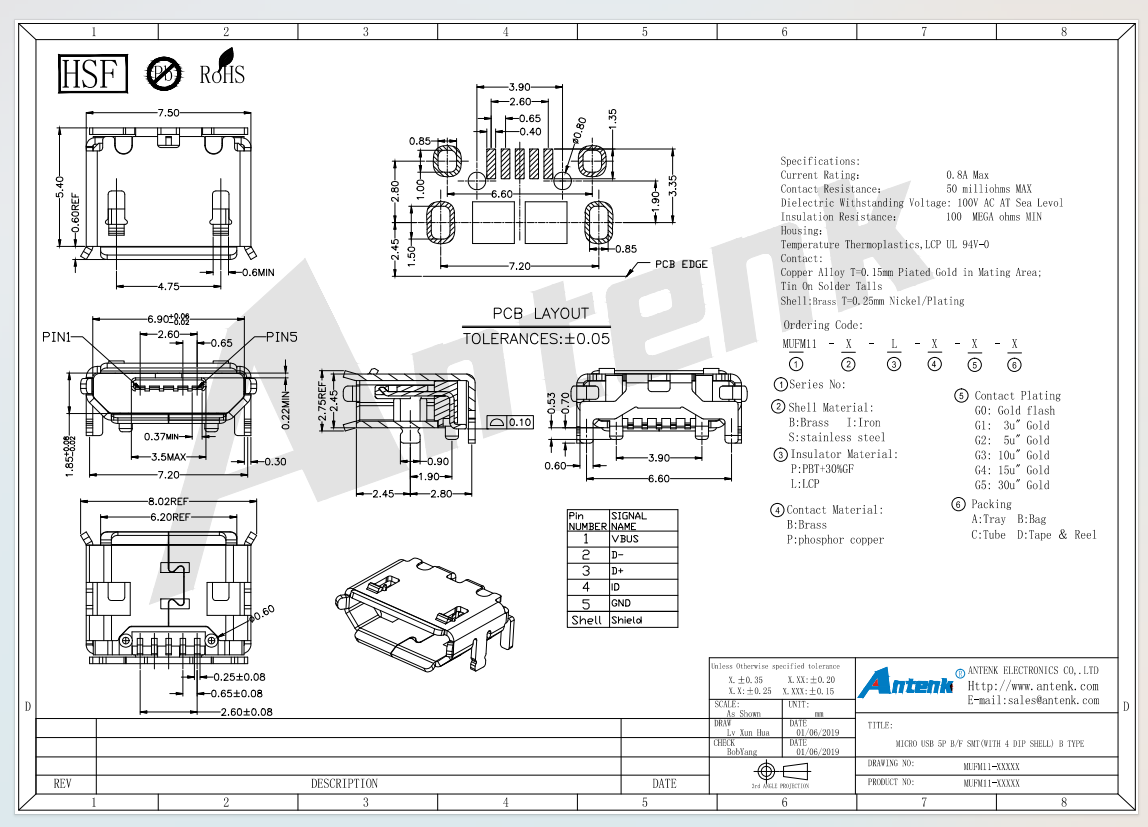

Product Drawing;

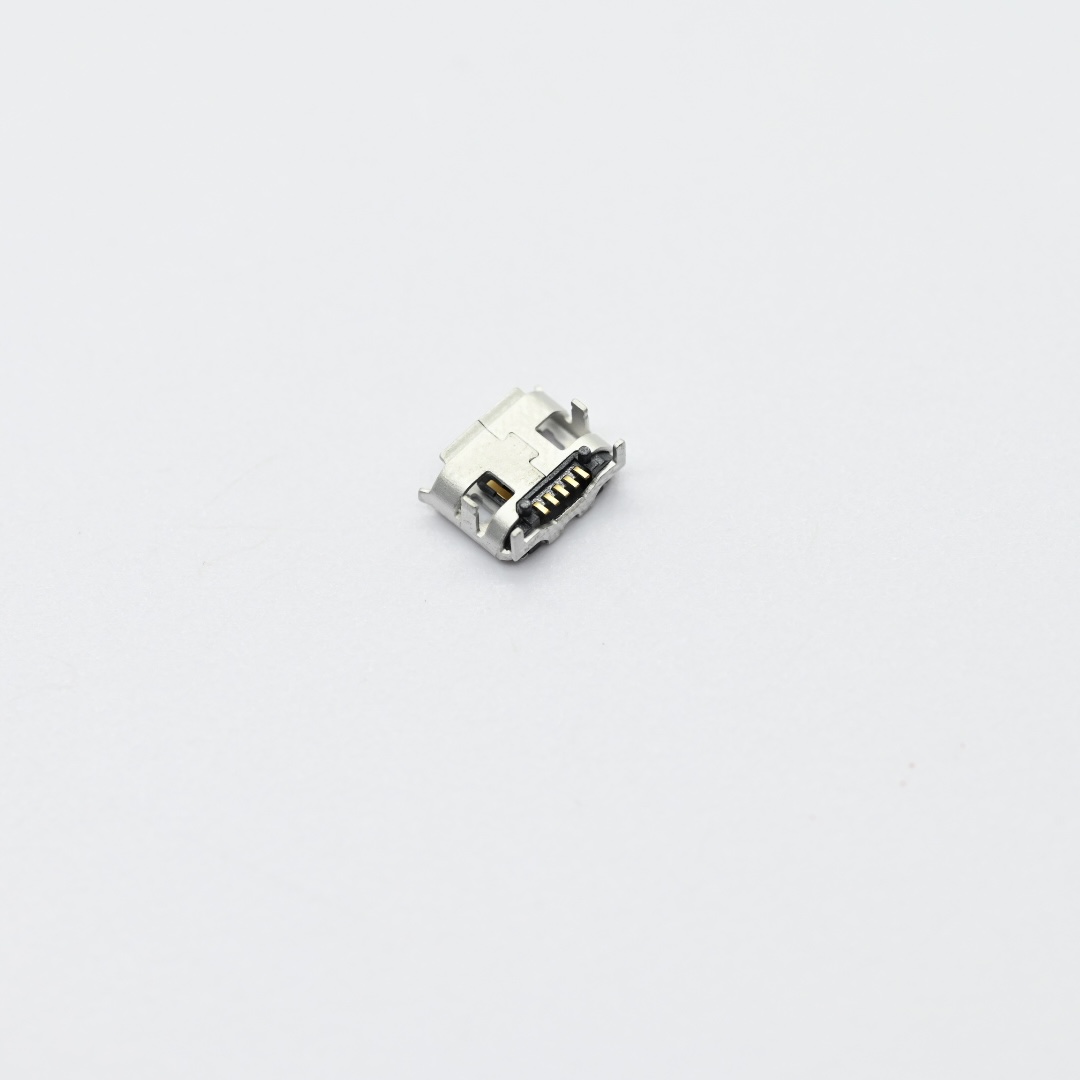

MUFM11-B-C-P-G0-X+MICRO USB 5P SMT (WITH 4 DIP SHELL)B TYPE（6）

MUFM11-B-C-P-G0-X+MICRO USB 5P SMT (WITH 4 DIP SHELL)B TYPE（3）

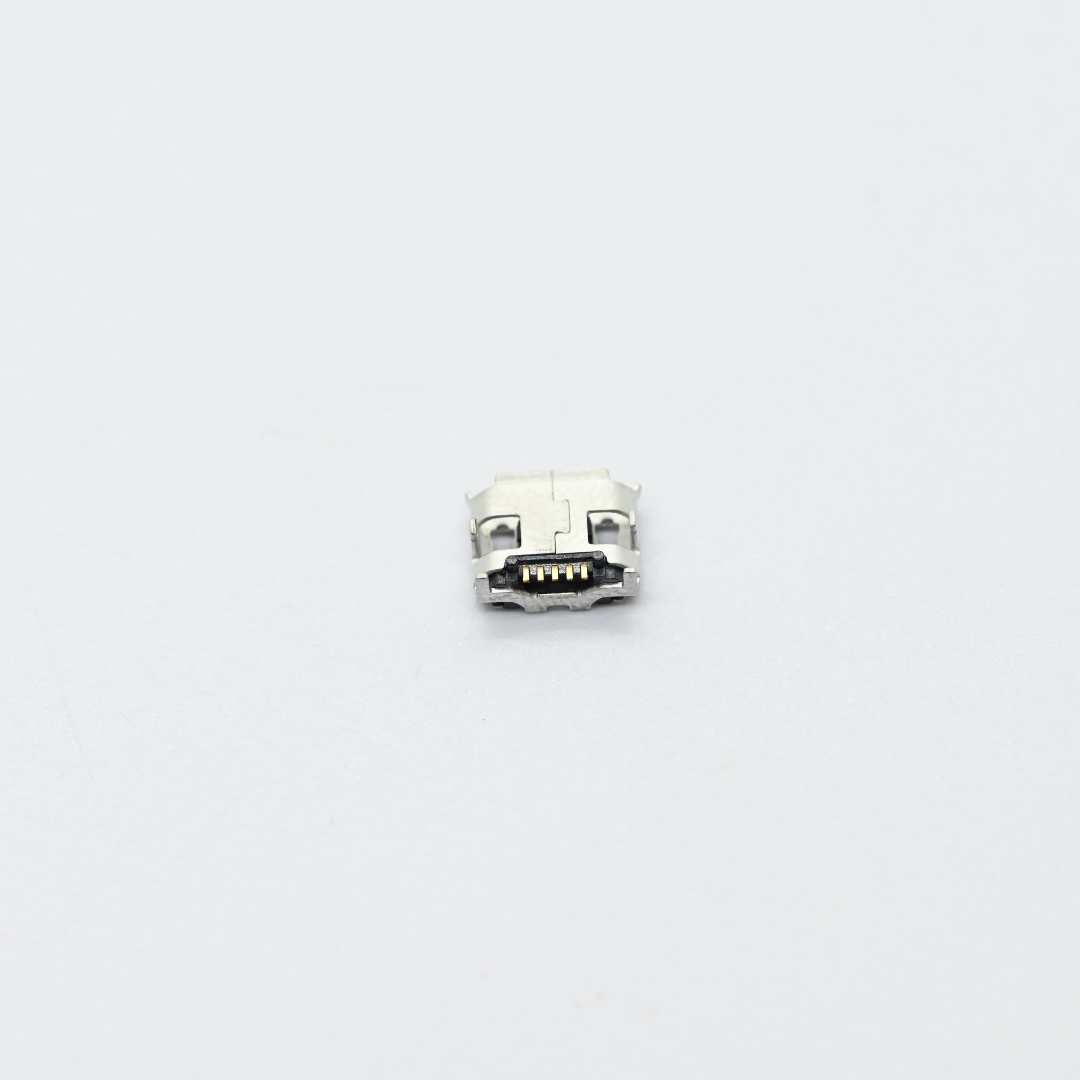

MUFM11-B-C-P-G0-X+MICRO USB 5P SMT (WITH 4 DIP SHELL)B TYPE（5）

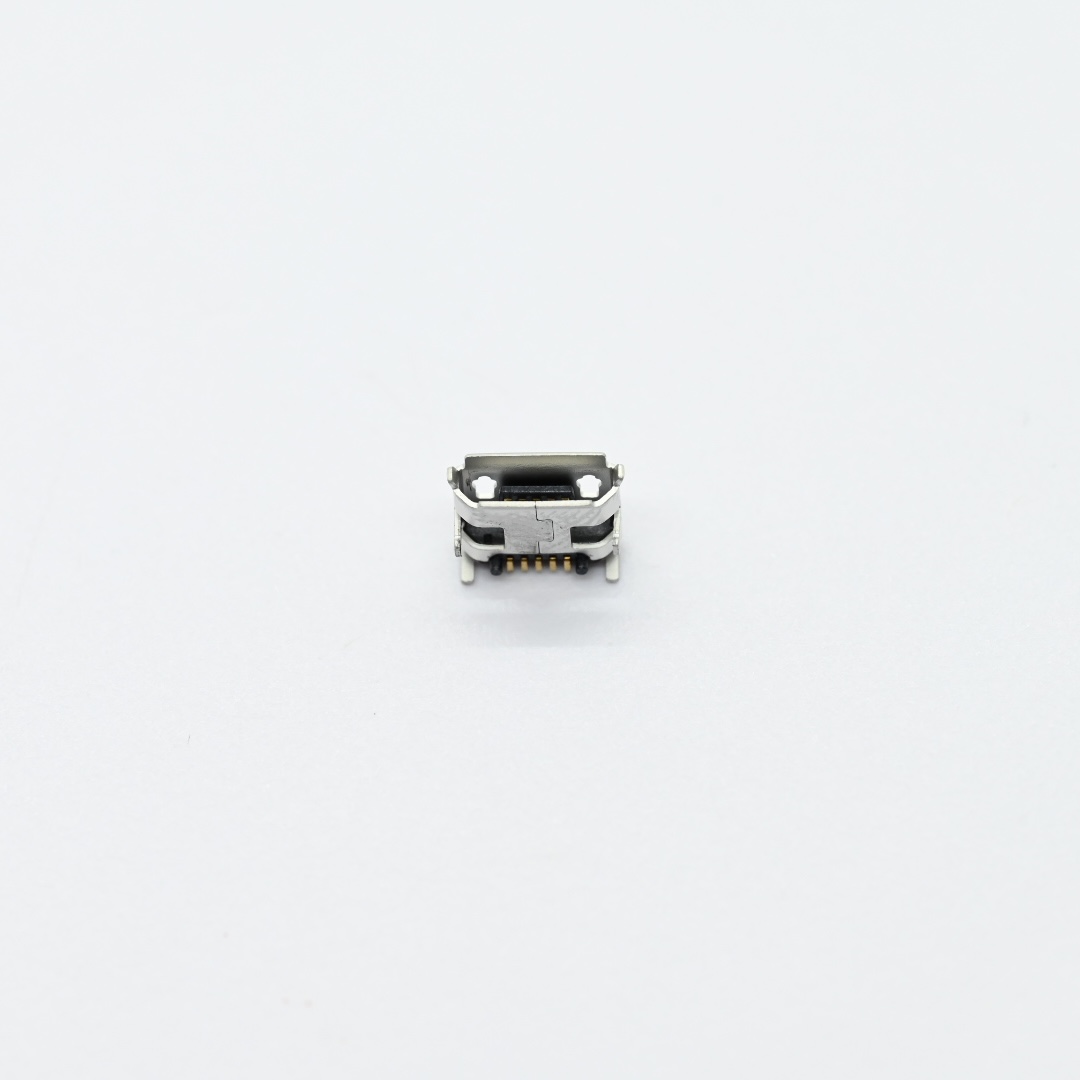

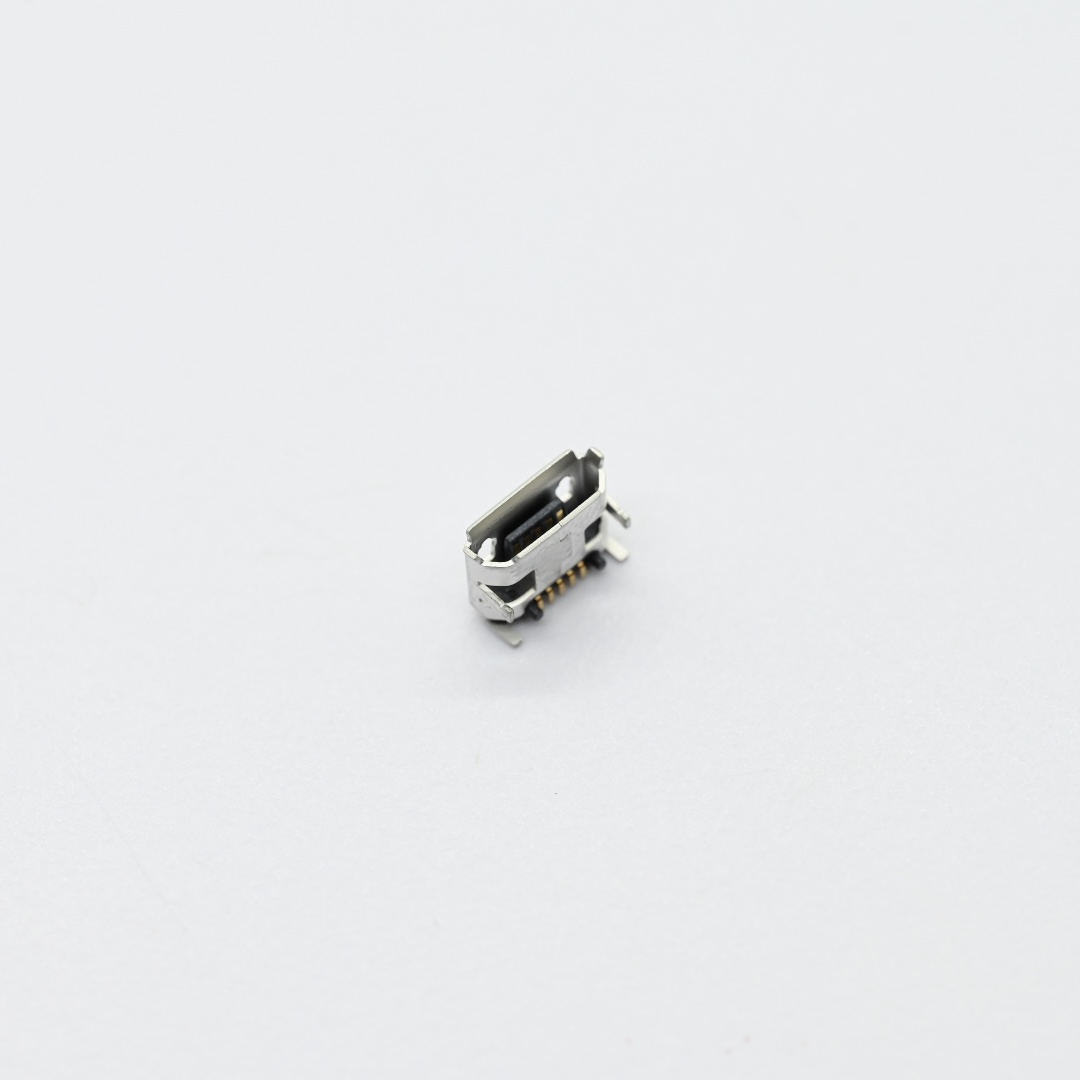

MUFM11-B-C-P-G0-X+MICRO USB 5P SMT (WITH 4 DIP SHELL)B TYPE（4）

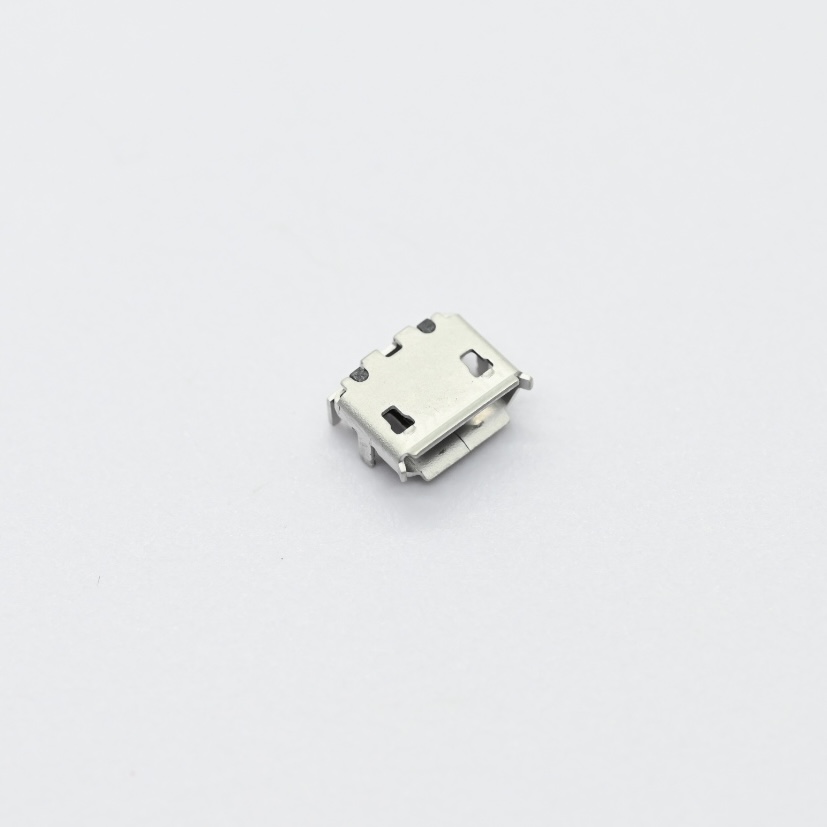

MUFM11-B-C-P-G0-X+MICRO USB 5P SMT (WITH 4 DIP SHELL)B TYPE（2）

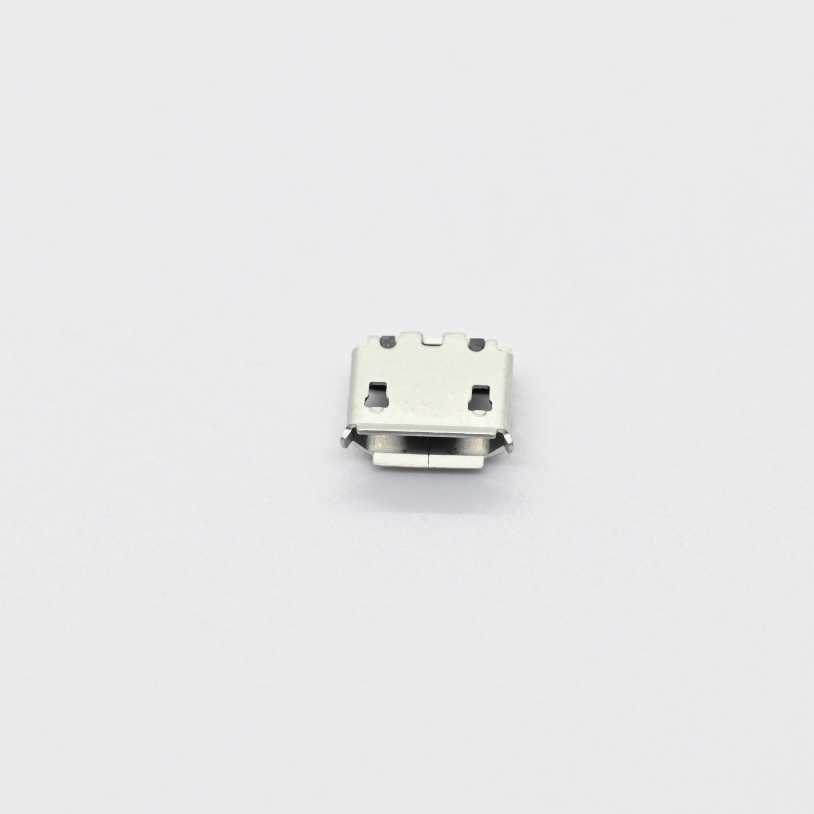

MUFM11-B-C-P-G0-X+MICRO USB 5P SMT (WITH 4 DIP SHELL)B TYPE（1）

Contact Now

If you are interested in the product, contact 2bvideo.com for more information for more information

To:: HuiZhou Antenk Electronics Co., LTD

Message:

Submit
