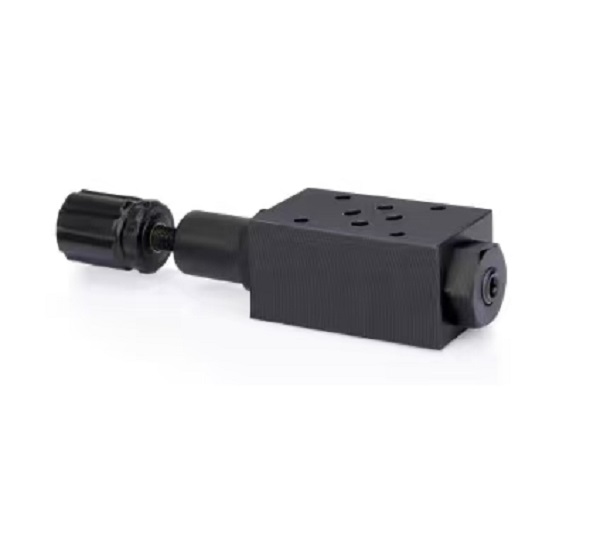

MBRV Modular Pressure Reducing Valve

Product Overview

MBRV Modular Pressure Reducing Valve is a sandwich modular Hydraulic valve, serving as pressure regulation component for the hydraulic system of industrial Machine. This Hydraulic valve adopts ISO4401 standard stacked installation design. It reduces high inlet pressure to a stable preset lower outlet pressure independently, supplying constant low pressure for control circuits inside the hydraulic system. It can be stacked directly on the valve manifold together with other modular valves, eliminating extra pipeline connections and simplifying the valve assembly of the Machine.

Users can adjust the output pressure via the top adjustment knob. Even if the inlet pressure of the hydraulic system fluctuates, the MBRV Hydraulic valve maintains steady secondary pressure to protect low-pressure actuators and control components from overpressure damage.

Technical Specifications

- Model: MBRV Modular Pressure Reducing Valve

- Type: Modular pressure reducing Hydraulic valve

- Mounting standard: ISO4401, NG6 / NG10 optional

- Max inlet pressure: 25 MPa

- Adjustable outlet pressure range: 0.3~7 MPa

- Rated flow: 30 L/min (NG6), 60 L/min (NG10)

- Working medium: Anti-wear hydraulic mineral oil

- Working temperature: -20℃ ~ +80℃

- Application: Pressure regulation for branch circuit of hydraulic system for industrial Machine

- Feature: Stacked installation, easy pressure adjustment, stable secondary pressure output

Working Principle

When the Machine is in operation, high-pressure hydraulic oil from the main hydraulic system enters this Hydraulic valve. The internal spool and spring work together to throttle the high-pressure oil and lower it to the preset pressure value. If outlet pressure rises above the set value, the spool moves automatically to increase throttling area and reduce outlet pressure. If outlet pressure drops, the spring pushes the spool to decrease throttling and raise pressure. In this way, this Hydraulic valve keeps the branch circuit pressure stable, providing reliable low-pressure oil for pilot control circuits of the Machine.

Core Advantages

1. MBRV Hydraulic valve uses modular stacked structure, convenient to assemble with other valves on manifold block, reduces leakage points of the hydraulic system.

2. Continuous adjustable pressure setting via the top knob, stable secondary pressure even with fluctuating inlet pressure of the hydraulic system.

3. Precision ground spool, low internal leakage, reliable pressure regulation performance for long time running of industrial Machine.

4. Compact valve body structure, small installation space, easy maintenance and replacement.

5. Widely used for hydraulic power pack assembly and spare parts stocking, good interchangeability.

Application Range

This Hydraulic valve is installed in hydraulic system of hydraulic power units, machine tools, injection molding machines, automation fixtures and other industrial Machine. It is used to reduce pressure for pilot control loops and auxiliary hydraulic circuits, protecting downstream hydraulic components. Suitable for new machine assembly and equipment maintenance replacement.
