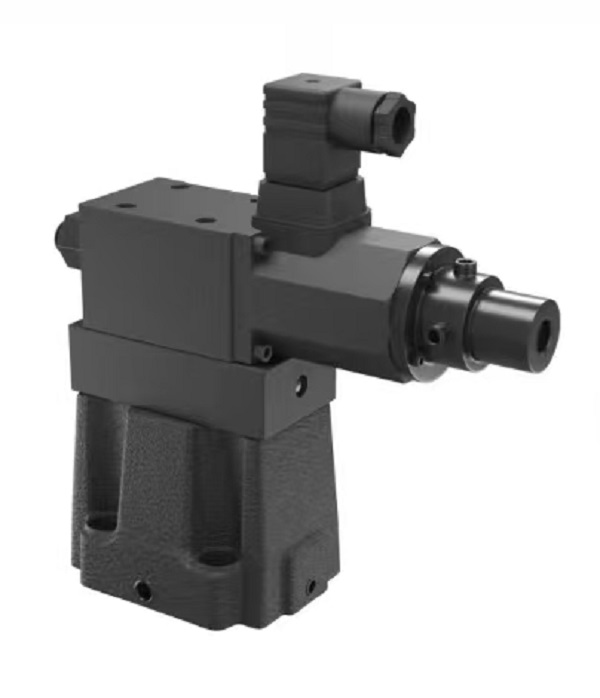

EBG Pilot Proportional Relief Valve

Product Overview

EBG Pilot Proportional Relief Valve is high precision electro-hydraulic Hydraulic valve, designed for main circuit pressure regulation of the hydraulic system of industrial Machine. This Hydraulic valve adopts pilot operated two-stage structure, composed of proportional pilot valve and main relief valve. It can continuously adjust system pressure linearly according to 0~10V voltage or 4~20mA current signal from controller. It limits and stabilizes the pressure of the whole hydraulic system, realizing stepless pressure control during different working stages of the Machine.

The EBG series includes EBG-03, EBG-06, EBG-10 sizes with C and H pressure range options. It is plate mounting type and requires matching proportional amplifier. Original and aftermarket replacement versions are available, widely used on hydraulic press, injection molding machine and other heavy-duty industrial Machine for pressure closed-loop control.

Technical Specifications

- Model: EBG Pilot Proportional Relief Valve

- Type: Pilot operated proportional relief Hydraulic valve

- Mounting: Subplate mounting

- Max working pressure: 24.5 MPa

- Rated flow: 100L/min (03), 200L/min (06), 400L/min (10)

- Pressure range: C type 1.2~14MPa; H type 1.5~24.5MPa

- Input signal: 0~10V or 4~20mA, matched with proportional amplifier

- Hysteresis: ≤3%, Repeatability: ≤1%

- Working medium: Anti-wear hydraulic mineral oil

- Application: Main circuit pressure control for hydraulic system of industrial Machine

- Feature: Low noise, high control accuracy, stable pressure output

Working Principle

When the Machine is running, the controller sends adjustable electric signal to this Hydraulic valve. The proportional solenoid generates electromagnetic force proportional to the signal value and acts on the pilot spool. The pilot pressure changes accordingly and controls the opening of the main valve spool. When pressure of the hydraulic system exceeds the preset value, main valve opens to discharge excess oil and limit the system pressure. By changing input electric signal, the set pressure can be adjusted continuously. It automatically maintains stable pressure for the hydraulic system to satisfy varying load requirements of the Machine.

Core Advantages

1. EBG Hydraulic valve adopts two-stage pilot structure, high pressure control precision and low hysteresis, ensures stable pressure regulation for the whole hydraulic system.

2. Optimized low-noise main valve design, greatly reduces working noise during pressure adjustment, suitable for precision industrial Machine.

3. Multiple sizes and pressure grades optional, meets different flow and pressure demands of various hydraulic system.

4. Reliable sealing structure and anti-vibration design, stable performance under long-time continuous operation.

5. Good interchangeability, original and spare replacement versions available, convenient for equipment overhaul and spare part stocking.

Application Range

This Hydraulic valve is widely installed in the hydraulic system of hydraulic presses, injection molding machines, thermal forming machines, metal cutting machine tools and other industrial Machine. It is used for stepless pressure adjustment and overpressure protection of main hydraulic circuit, applied for new machine assembly and maintenance replacement.
