Product Description：
Huizhou Antenk Electronics Co., Ltd. produces MFHES series 2.54 millimeter machined socket connectors to deliver stable signal and power connection for precision electronic assemblies. This machined socket adopts PPS insulator housing with UL94V 0 flame retardant grade and six finger beryllium copper contact clip, it supports multiple type versions and various pin quantities, mating pin diameter ranges from 0.7 to 0.9 millimeter for type one and type two. It provides 3 amp rated current, maximum 10 milliohm contact resistance and minimum 1000 volt RMS dielectric strength with mechanical life up to minimum 500 insertion removal cycles. Users complete through hole mounting on printed circuit boards and select suitable socket type pin count and contact plating including tin gold flash and multiple gold thickness options according to project requirements, follow drawing tolerance for PCB design and store items in dry environment to avoid contact clip oxidation. Unlike competitors that outsource key production procedures Antenk conducts full in house manufacturing covering independent mold development precision machining terminal processing injection molding electroplating and comprehensive laboratory reliability testing. We hold ISO9001 ISO14001 IATF16949 and UL certifications and offer tray bag tube tape and reel plus special custom packaging choices, over seventy percent of connector products are exported globally. Please send over your project specifications for free sample evaluation and complete technical datasheet resources.

1. Beryllium Copper Socket features six finger contact clip to maintain stable electrical performance during repeated insertion and withdrawal operations.
2. PPS Insulator Socket applies high temperature resistant PPS material with UL94V 0 flame retardant grade for harsh working condition applications.
3. High Cycle Machined Socket delivers minimum 500 mechanical cycles to satisfy long term service requirements of precision electronic devices.

Detailed Specifications：
1. Mechanical Specifications
    1.1 Product type: 2.54 millimeter machined socket connector
    1.2 Measurement unit: millimeter
    1.3 Key dimension: 2.54 millimeter pitch, customizable pin count. Type1 and Type2 fit mating pin diameter from 0.7 millimeter to 0.9 millimeter. General drawing tolerances X.±0.35, X.X ±0.25, X.XX ±0.20, shtur ±0.15. Refer to official engineering drawing for full dimension tables and PCB footprint reference data. Typical insertion force 3 N and typical withdrawal force 1.5 N.
    1.4 Contact plating options: no plating, 150 micro inch tin, 200 micro inch tin, gold flash, 3 micro inch gold,10 micro inch gold,15 micro inch gold
    1.5 Available packaging form: tray, bag, tube, tape reel, special custom packaging
    1.6 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout files for your hardware design validation.
2. Material Construction
    2.1 Insulator housing: PPS material with UL94V 0 flame retardant grade
    2.2 Contact clip: Six finger beryllium copper, pin material is brass
3. Electrical & Performance Parameters
    3.1 Rated current: 3 Amp
    3.2 Maximum contact resistance: 10 milliohms
    3.3 Minimum dielectric strength: 1000V RMS
    3.4 Mechanical life: minimum 500 insertion and withdrawal cycles
4. Usage Method
    4.1 Assembly mode: Through hole mounting onto printed circuit boards
    4.2 Operation tip: Select proper product type, pin count, clip plating and pin plating according to actual project requirements
5. Application Scenarios
    5.1 Precision instrument equipment
    5.2 Industrial control modules
    5.3 Electronic test assemblies
    5.4 High reliability board to board interconnection systems
6. Operation & Storage Precautions
    6.1 Strictly follow official drawing tolerance standards for PCB layout design
    6.2 Do not apply excessive insertion force to avoid permanent deformation of six finger beryllium copper contact clip
    6.3 Store products in dry environment to prevent oxidation of plated contact surfaces
    6.4 Confirm product type, pin quantity and plating specifications before mechanical and circuit design
    6.5 CTA: Submit your type pin count and plating demands, we can provide free sample evaluation and professional technical consultation.

FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

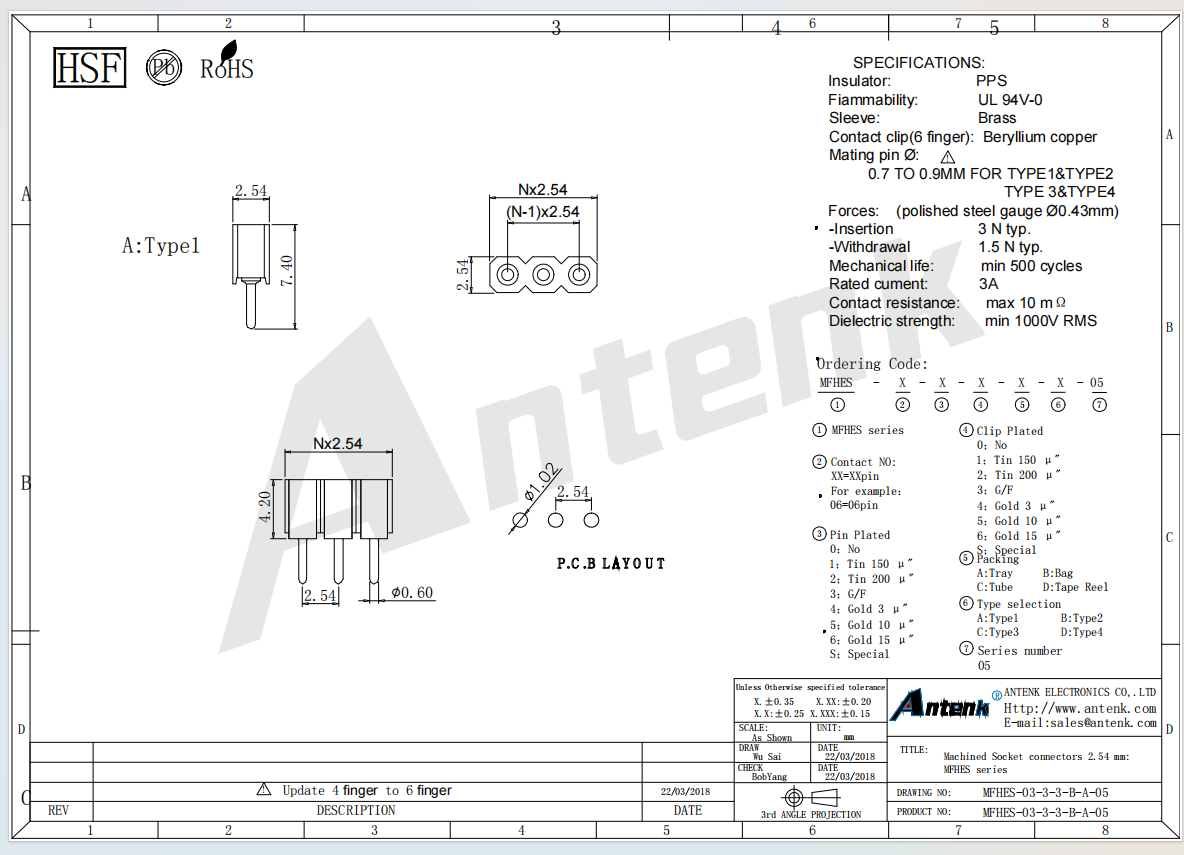

Product Drawing：
MFHES-03-3-3-B-A-05

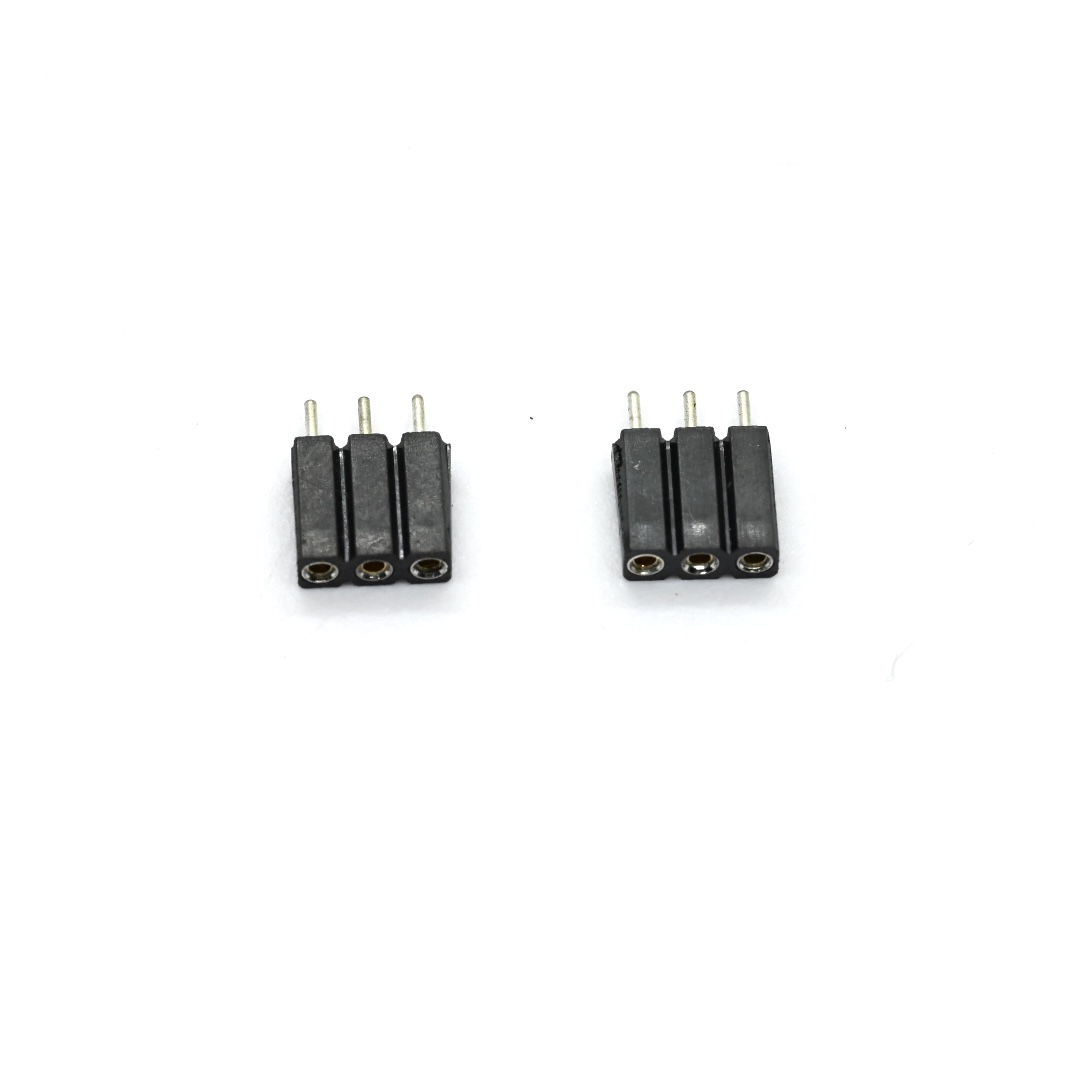

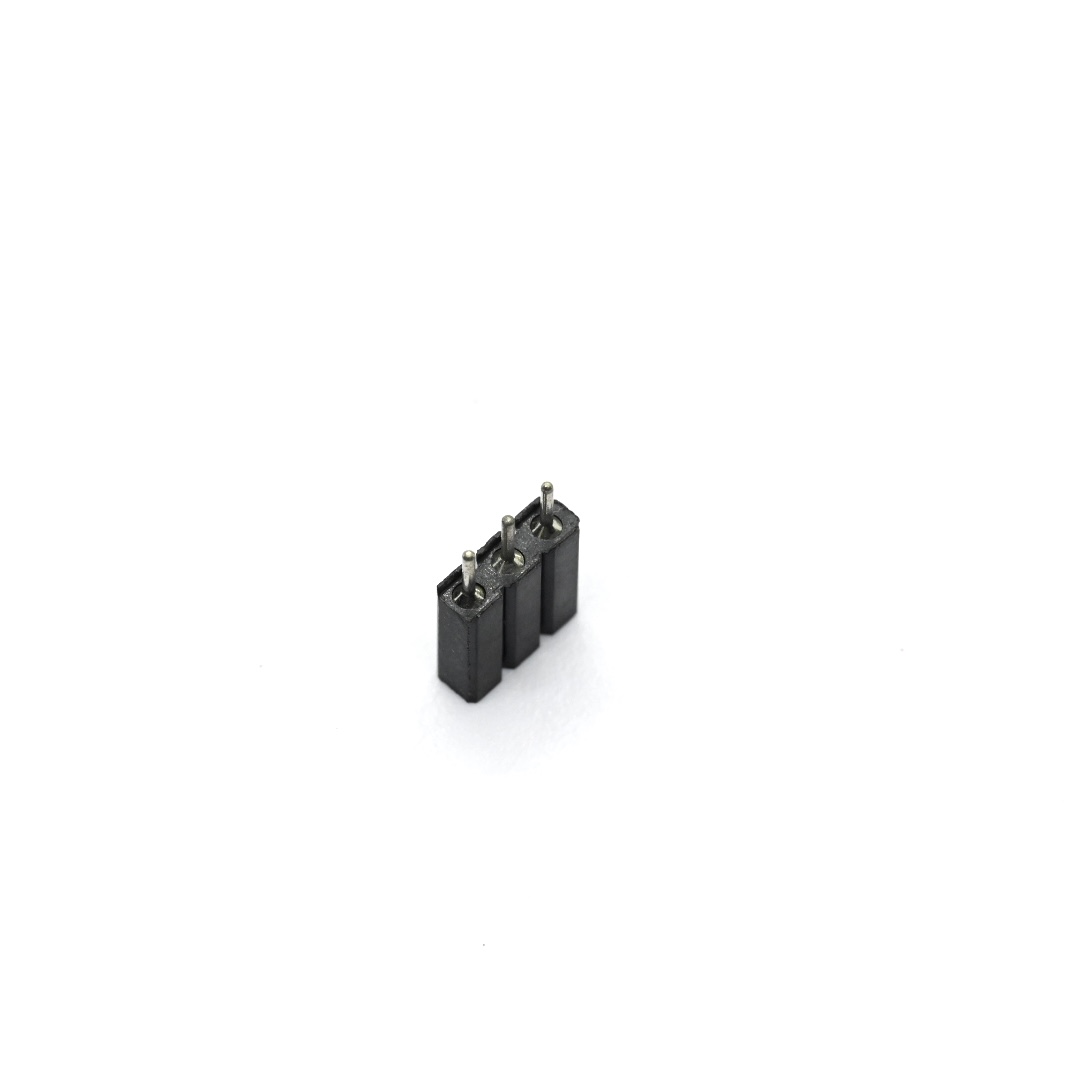

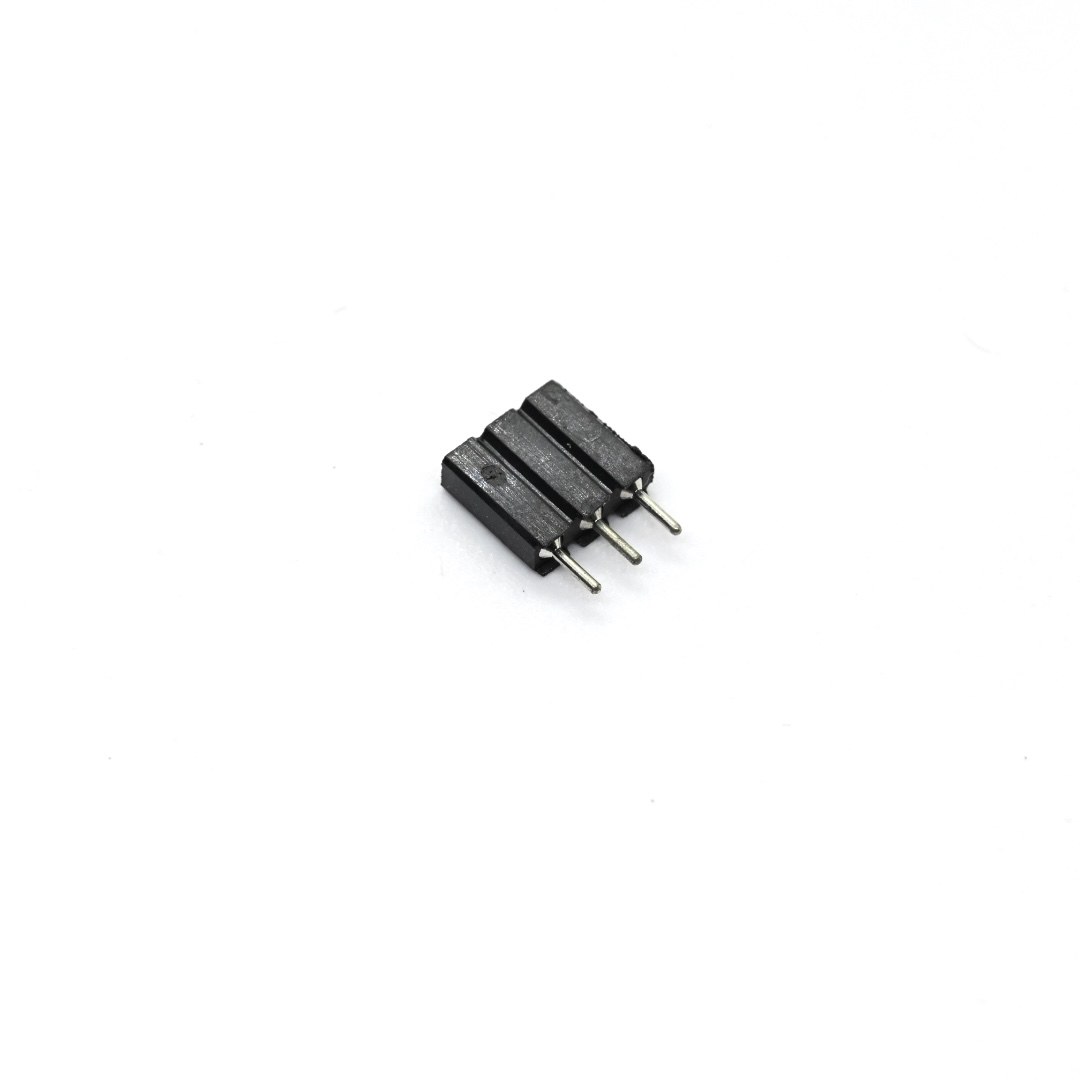

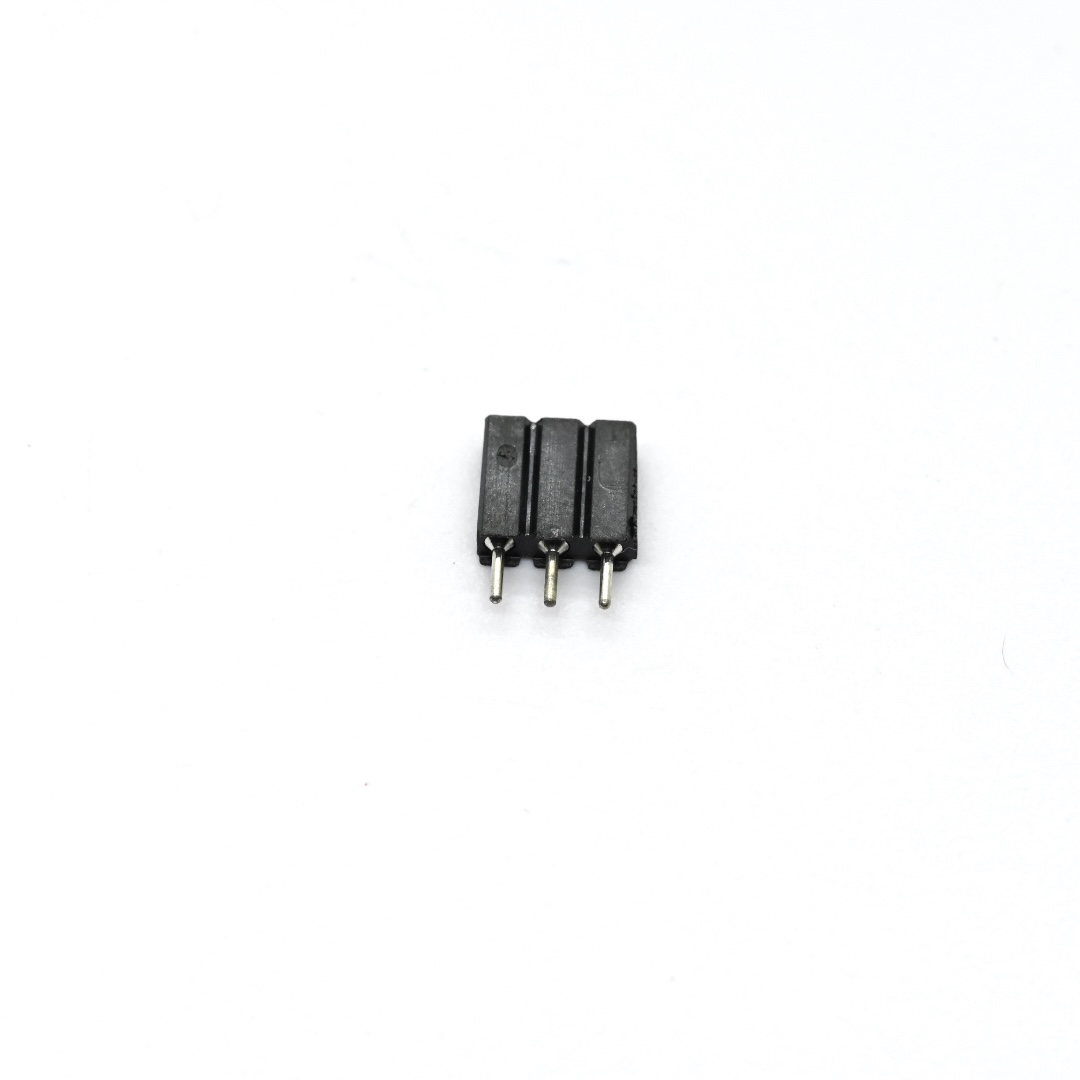

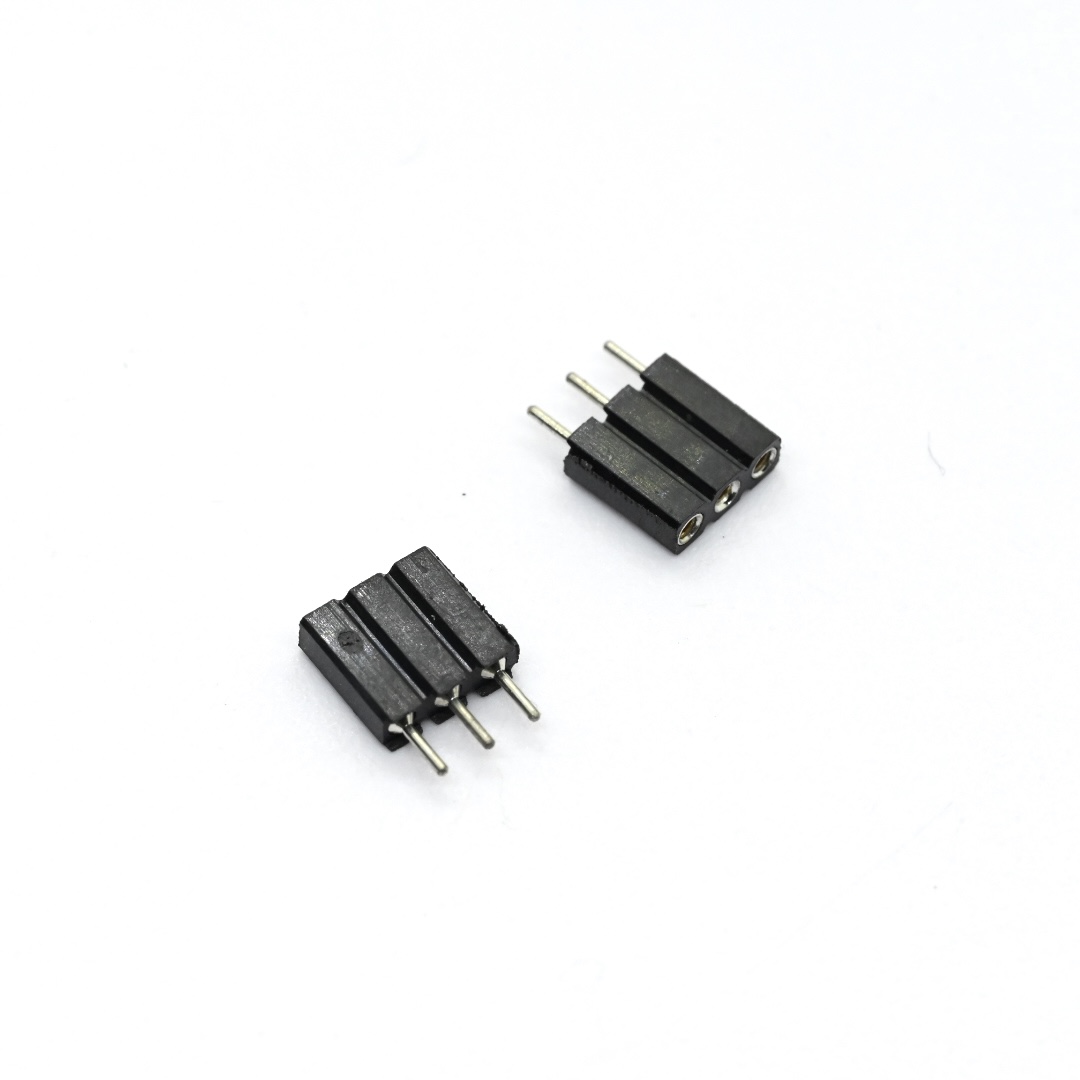

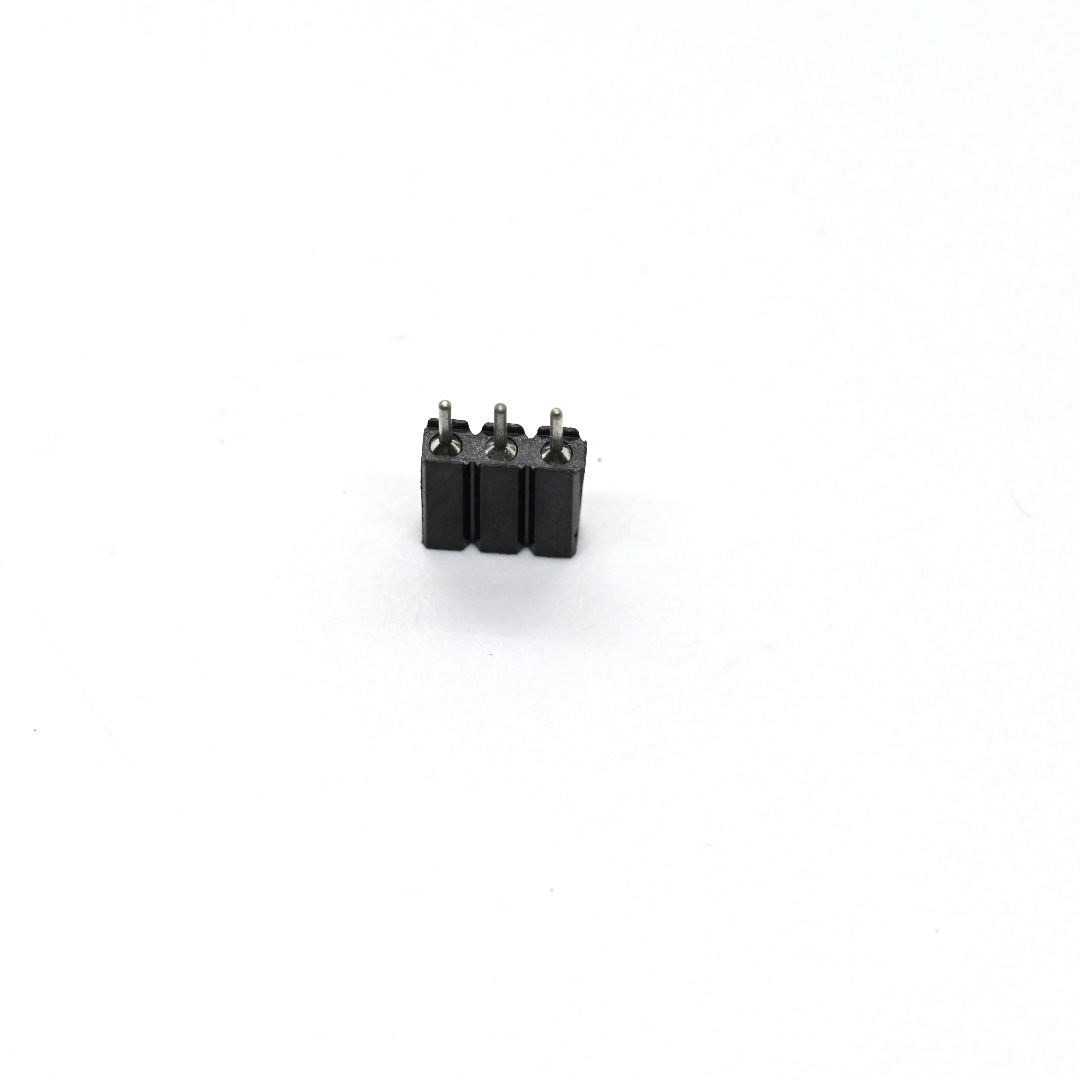

MFHES-03-3-3-B-A-05+Machined Socket connectors 2.54 mm MFHES series（1）MFHES-03-3-3-B-A-05+Machined Socket connectors 2.54 mm MFHES series（2）MFHES-03-3-3-B-A-05+Machined Socket connectors 2.54 mm MFHES series（6）MFHES-03-3-3-B-A-05+Machined Socket connectors 2.54 mm MFHES series（5）MFHES-03-3-3-B-A-05+Machined Socket connectors 2.54 mm MFHES series（3）MFHES-03-3-3-B-A-05+Machined Socket connectors 2.54 mm MFHES series（4）
