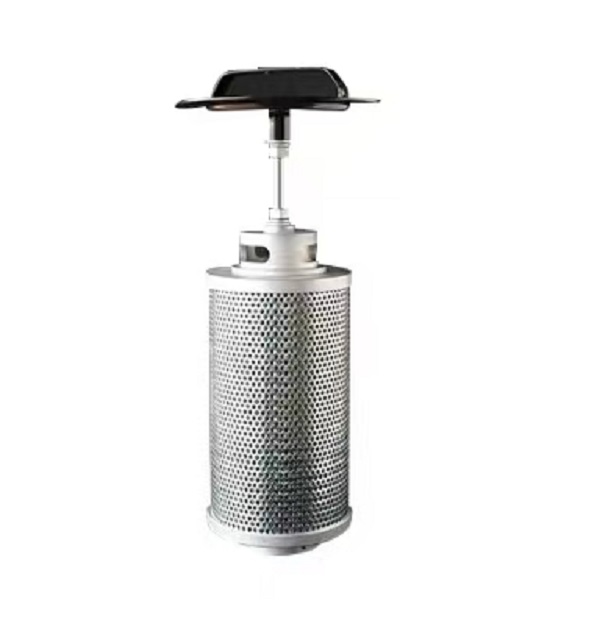

XNL Tank Mounted Return Line Filter

Product Overview

XNL Tank Mounted Return Line Filter is a reliable FILTER fitted on the hydraulic oil tank, designed to purify return oil of the hydraulic system. This FILTER traps solid particles and impurities carried by returning hydraulic oil before oil enters the tank. It prevents abrasive damage to precision hydraulic parts and ensures stable operation of the Machine. It is widely used on construction Machine, mining equipment, hydraulic power units and other industrial machinery.

Technical Specifications

- Rated flow: 63 ~ 800 L/min

- Max working pressure: 1.6 MPa

- Filtration accuracy: 3μm,5μm,10μm,20μm,30μm optional

- Bypass valve opening pressure: 0.3~0.4 MPa

- Medium: mineral hydraulic oil, water-glycol

- Working temperature: -10℃ ~ +100℃

- Installation: tank top mounted

Working Principle

Contaminated oil from the hydraulic circuit flows back through this FILTER into the oil tank. The filter element intercepts solid pollutants. Once the FILTER becomes clogged, the built-in bypass valve automatically opens to maintain oil circulation in the hydraulic system, avoiding sudden halt of the Machine.

Core Advantages

1. Effective filtration keeps oil clean and protects the whole hydraulic system.

2. Tank-mounted compact structure, easy installation and saves pipeline space.

3. Built-in bypass valve provides safety protection when FILTER is blocked.

4. Large dirt holding capacity, low pressure drop, long service life.

5. Simple filter element replacement, convenient maintenance for the Machine.

Application Range

This FILTER matches various types of Machine, including engineering machinery, metallurgical equipment, agricultural machines and hydraulic stations. It extends the service life of pumps, valves and cylinders within the hydraulic system.
