4P 2.50mm Reversed Dual End Assembly Cable

4P 2.50mm Reversed Dual End Assembly Cable

2 week ago

4 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures 4P 2.50mm reversed dual end assembly cables to deliver stable power and signal interconnection between different electronic modules. This finished wire harness adopts 2.50 millimeter pitch four position dual housing structure with one positive and one reversed plastic housing on two ends, uses UL1007 26AWG wire and offers multiple wire color selections for circuit identification, standard wire length reaches 85±5 millimeter and every finished piece undergoes one hundred percent continuity test. Users complete circuit link by plugging both end connectors onto corresponding matching board mount connectors. Operators should avoid excessive pulling force and sharp bending during installation, guarantee full connector insertion and store finished harness in dry surroundings to prevent metal terminal oxidation. Unlike competitors outsourcing harness production Antenk carries out full in house workflow including wire cutting stripping terminal crimping dual housing assembly and laboratory electrical performance inspection. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent of finished goods are exported globally. Please provide your custom dimension color and project requirements for free sample evaluation and complete technical document support.

1. Dual End Reversed Harness features opposite orientation housings at two ends to satisfy special internal wiring layout demands of electronic equipment.

2. UL Certified Wire Harness adopts qualified UL1007 26AWG wire material to ensure reliable safety performance for commercial and industrial applications.

3. Bidirectional Plug Cable supports two side connector mating to realize convenient cross module signal and power interconnection inside electronic systems.

Detailed Specifications：

1.1 Product type: 4 positions 2.50 millimeter pitch dual end assembly cable with one positive and one reversed plastic housing at two ends

1.2 Measurement unit: millimeter

1.3 Key feature: Standard total cable length 85±5 mm. Dimension tolerances follow drawing requirements: X.±0.35, X.X ±0.25, X.XX ±0.20, shtur ±0.15. Wire color options contain black brown red and orange. Every finished product passes one hundred percent continuity test.

1.4 Component list: Equipped with AH2501‑04P housing, AT2501T‑X terminal and UL1007 26AWG wire

1.5 Assembly method: Dual end pre crimped harness for plug‑to‑plug connection between two connectors

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and bill of material for your hardware design validation.

2. Material Construction

2.1 Housing: Plastic housing model AH2501‑04P

2.2 Terminal: Crimp terminal model AT2501T‑X

2.3 Conductor wire: UL1007 26AWG insulated electronic wire

2.4 Compliance: Meet RoHS 2.0 and HSF lead‑free environmental requirements

3. Electrical & Performance Parameters

3.1 Inspection standard: One hundred percent continuity test is performed for each finished cable

3.2 Note: Complete rated current voltage and insulation performance data are recorded in official datasheet. Please request technical documents for full electrical parameters.

4. Usage Method

4.1 Assembly mode: Plug connectors on both ends of harness onto respective matching board mounted connectors

4.2 Operation tip: Ensure full insertion of both end connectors to achieve stable electrical continuity

5. Application Scenarios

5.1 Digital household appliance cross‑module internal wiring

5.2 Industrial control module signal and power interconnection

5.3 Communication equipment internal unit connection

5.4 Compact consumer electronic device assembly

6. Operation & Storage Precautions

6.1 Observe drawing tolerance standards during mechanical structural design

6.2 Avoid excessive pulling force and sharp bending to prevent wire breakage or terminal separation

6.3 Prevent scratching the outer insulation layer of UL1007 26AWG wire in installation

6.4 Store finished harness products in dry environment to avoid oxidation of metal terminals

6.5 Confirm pin count cable length wire color and housing direction before procurement and project design

6.6 CTA: Submit your customized length color and project application demands, we can provide free sample evaluation and professional technical consultation services.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

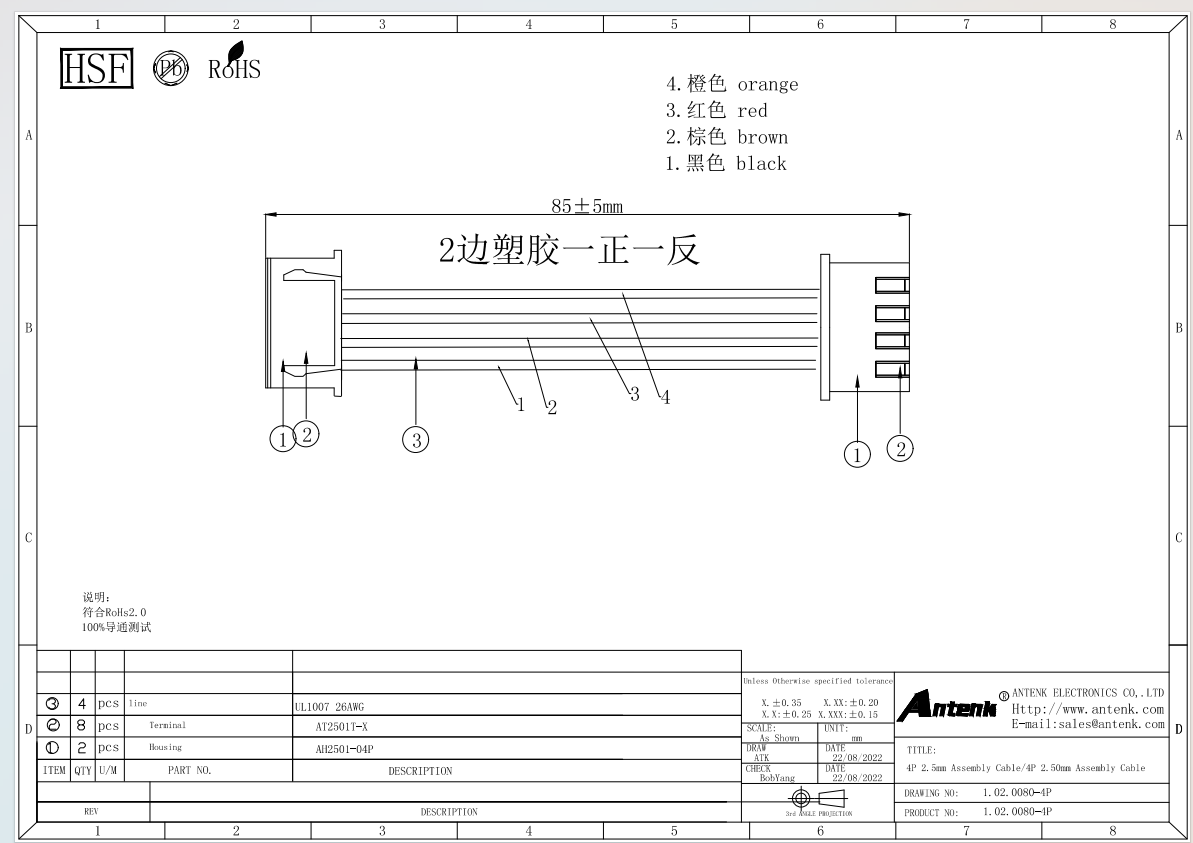

Product Drawing：

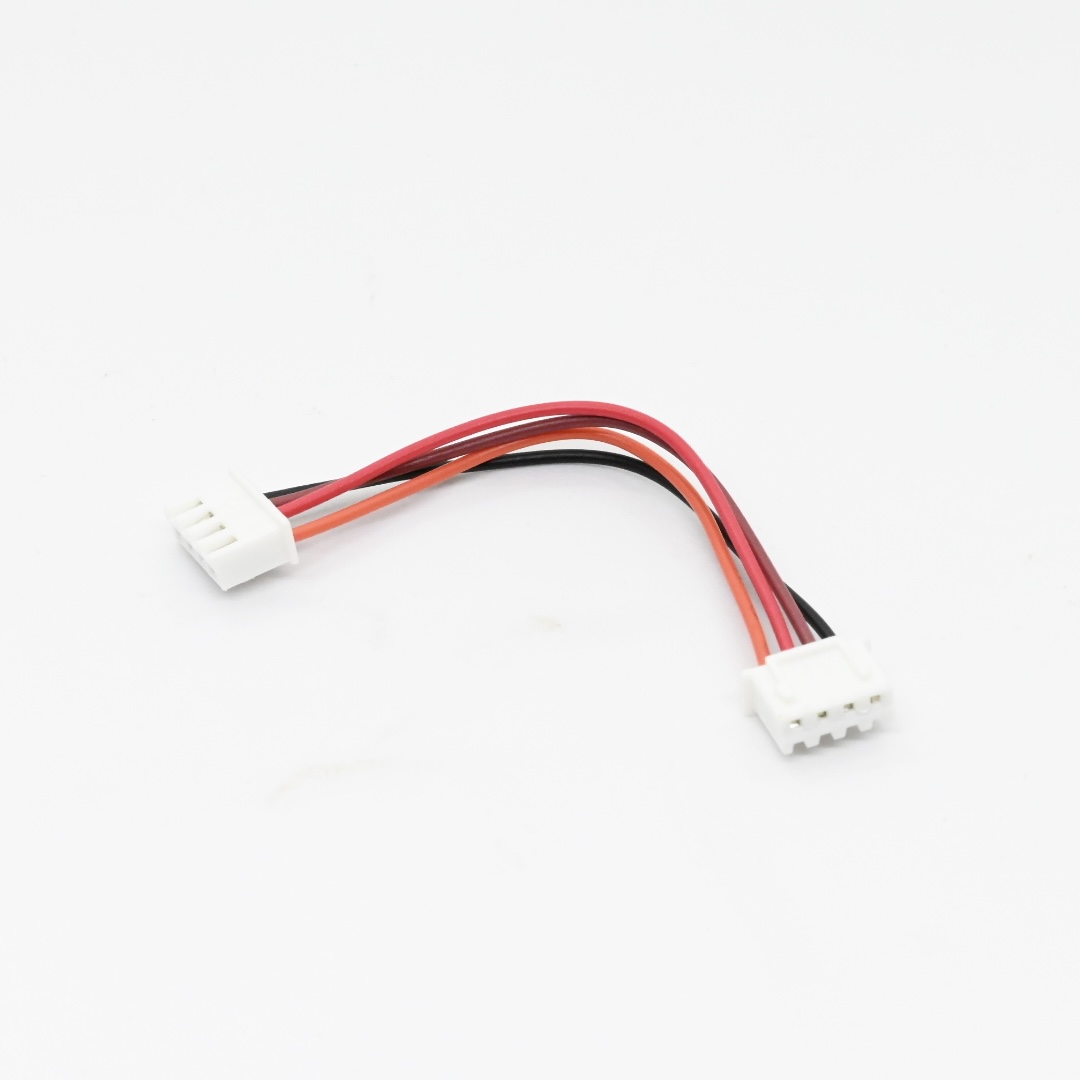

E-RM-000112-4P+4P 2.5mm Assembly Cable（3）

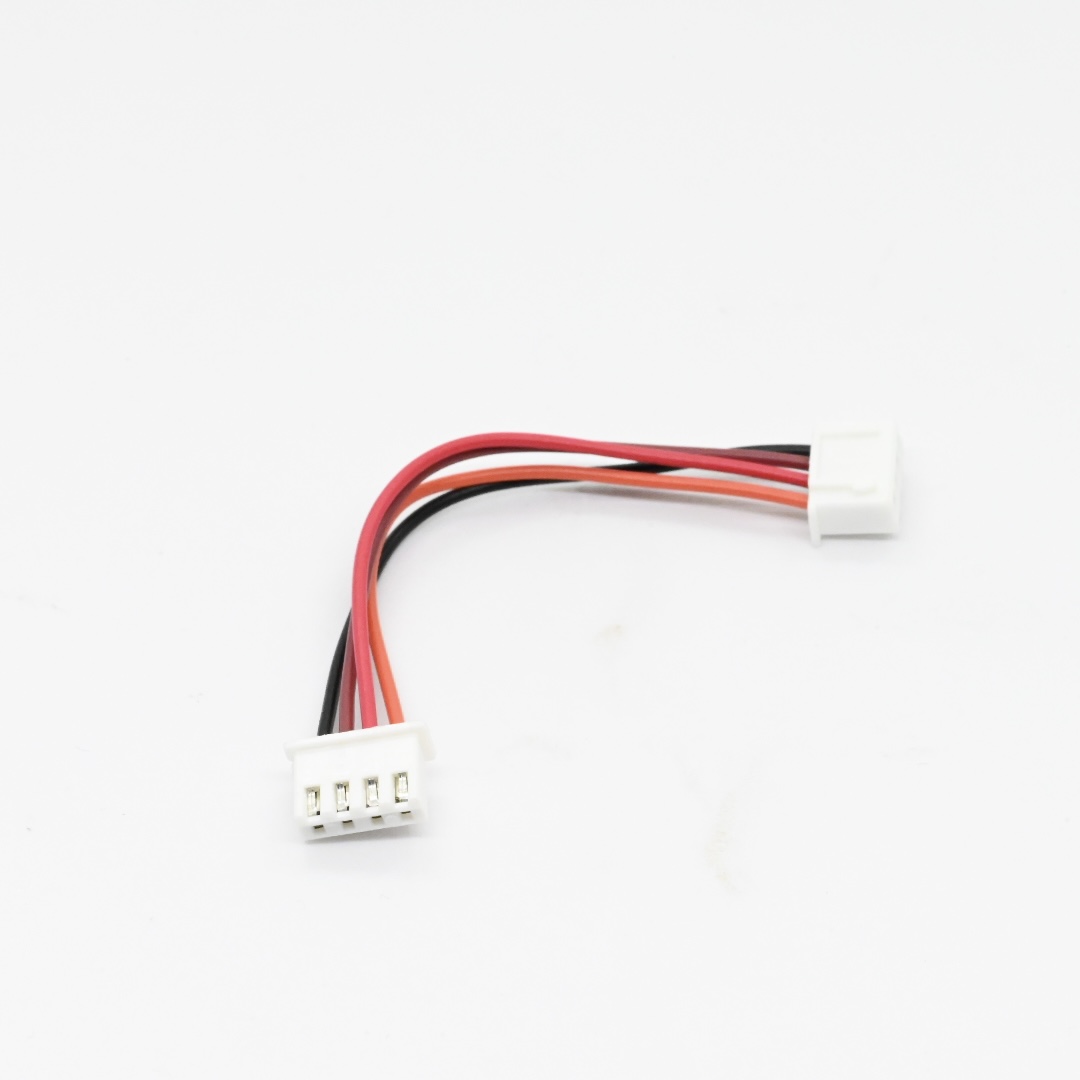

E-RM-000112-4P+4P 2.5mm Assembly Cable（4）

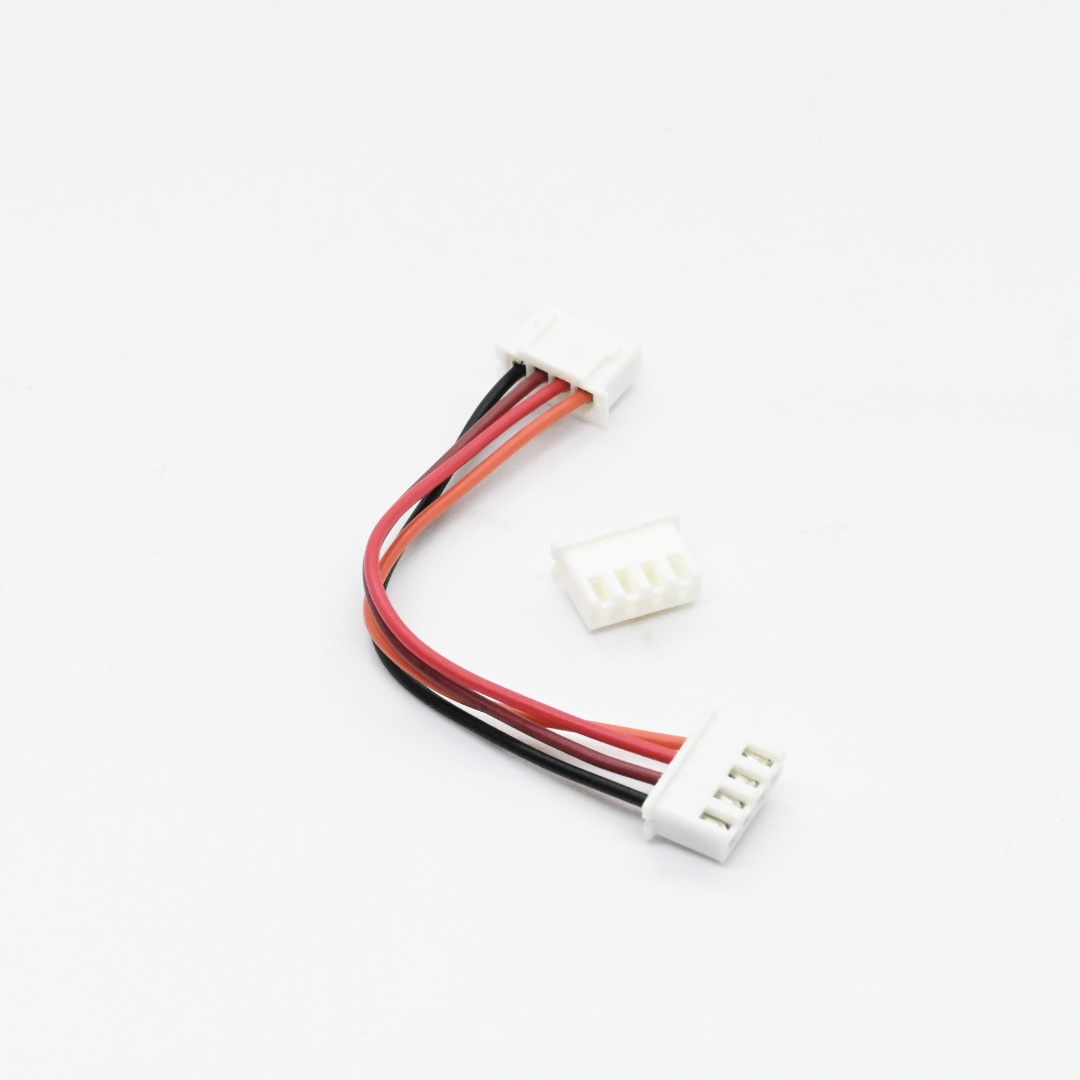

E-RM-000112-4P+4P 2.5mm Assembly Cable（6）

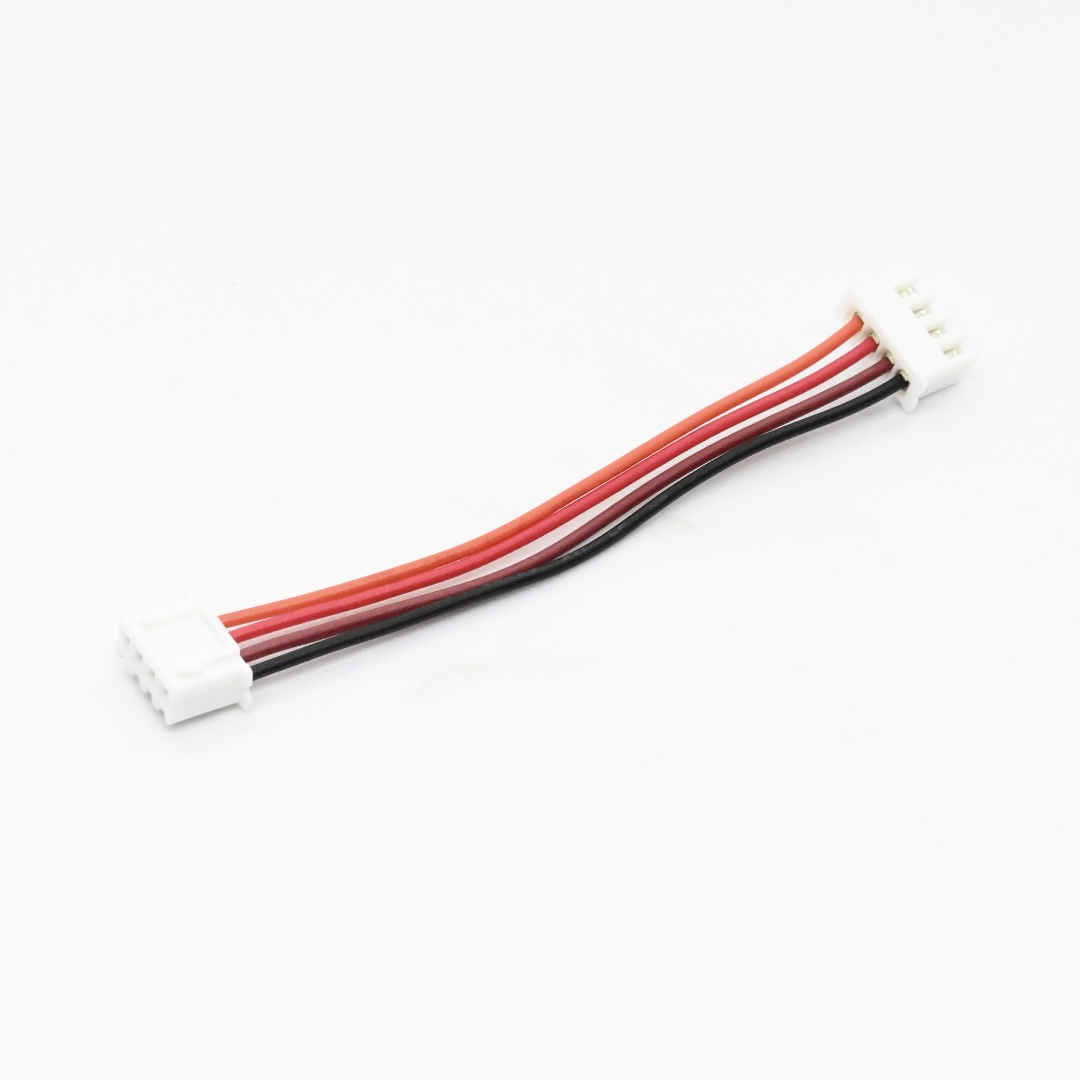

E-RM-000112-4P+4P 2.5mm Assembly Cable（2）

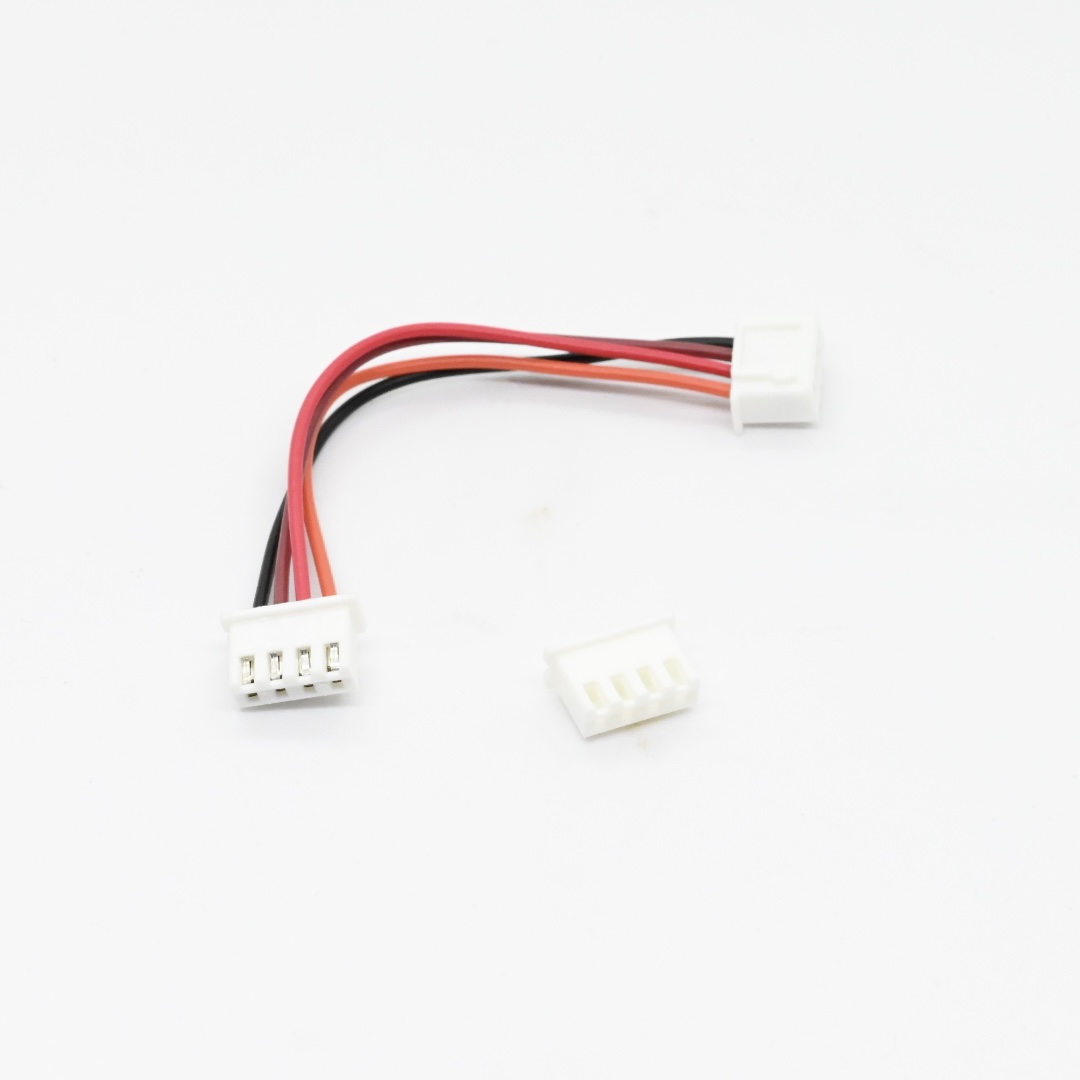

E-RM-000112-4P+4P 2.5mm Assembly Cable（5）

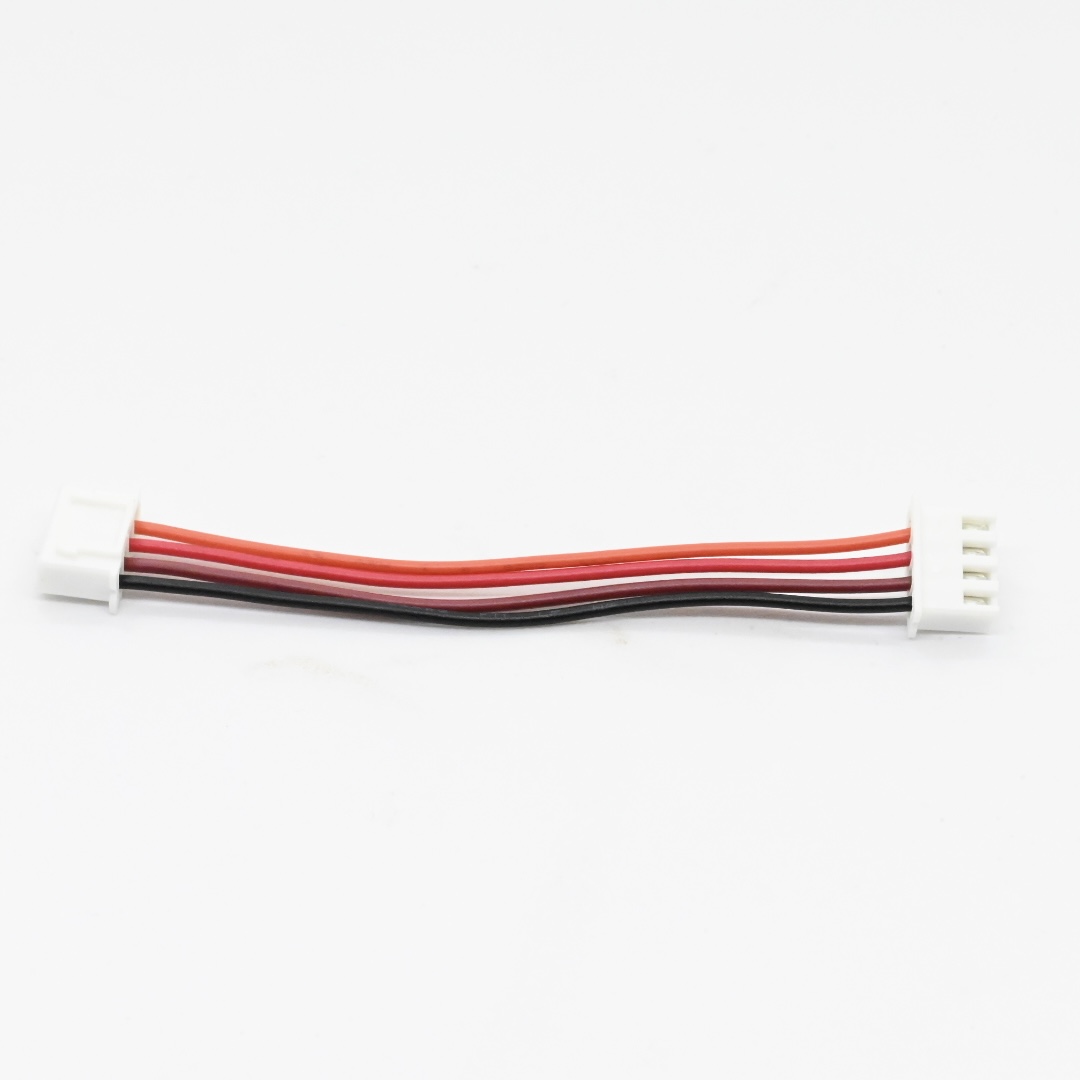

E-RM-000112-4P+4P 2.5mm Assembly Cable（1）
