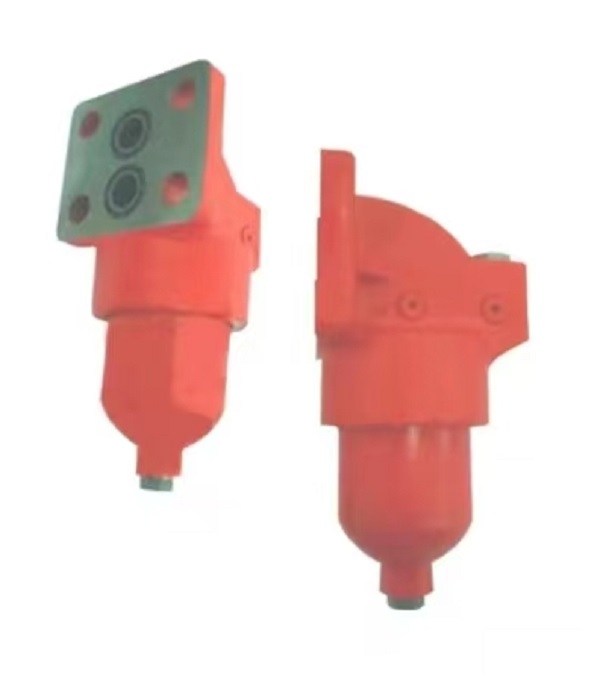

DFB Pressure Filter For Plated Connection Series

Product Overview

DFB Pressure Filter For Plated Connection Series is a high-pressure plate-mounted FILTER, directly mounted on manifold blocks and pressure pipelines of the hydraulic system. This heavy-duty FILTER captures metal wear debris, solid particles and other contaminants inside hydraulic oil, protecting precision control components for different types of industrial and mobile Machine. Its plated connection design enables compact assembly, making it ideal for servo hydraulic circuits and high-precision hydraulic system to prevent valve jamming and component abrasion caused by oil contamination.

Technical Specifications

- Series: DFB Plated Connection Pressure FILTER

- Nominal working pressure: 32 MPa

- Rated flow range: 30 ~ 500 L/min

- Filtration accuracy: 1μm,3μm,5μm,10μm,20μm optional

- Filter media: High efficiency glass fiber, Beta ratio ≥200

- Standard configuration: Built-in bypass valve, differential pressure clogging indicator (visual or electric signal available)

- Working medium: Mineral hydraulic oil, water-glycol

- Operating temperature: -10℃ ~ +100℃

- Mounting form: Plate connection, direct installation on valve block

Working Principle

As an essential FILTER on the pressure side of the hydraulic system, pressurized hydraulic fluid flows into the filter housing and passes through the glass fiber filter element. Solid impurities are trapped on the filter media to keep hydraulic oil clean. When the filter element accumulates dirt and the pressure difference reaches the set threshold, the differential pressure indicator triggers an alarm to remind maintenance. If the pressure difference continues rising, the built-in bypass valve opens automatically, ensuring continuous oil supply and avoiding sudden failure of the whole Machine.

Core Advantages

1. Plated connection structure, compact size, easy installation on manifold blocks, saves space for the hydraulic system.

2. High-efficiency glass fiber media, large dirt holding capacity and low initial pressure drop for long service life.

3. Integrated bypass valve and differential pressure indicator to monitor the status of the FILTER in real time.

4. Robust housing withstands up to 32MPa high pressure, stable performance under heavy load working conditions of Machine.

5. Simple element replacement, no need to disassemble the whole manifold block, reduces maintenance downtime.

Application Range

This DFB FILTER is widely installed in the hydraulic system of metallurgical equipment, mining machinery, plastic injection machines, construction machinery and other heavy-duty Machine. It is commonly used in servo control circuits and high-pressure hydraulic power units to safeguard hydraulic pumps, valves and actuators from contamination damage.
