1. Curling Shell USB Socket enhances structural stability and provides reliable mechanical locking during frequent plug and unplug operations.
2. LCP High Temp Connector maintains stable physical and electrical properties when exposed to high temperature wave soldering environment.
3. Through Hole USB Receptacle achieves firm mechanical fixation and dependable electrical connection after pins are soldered onto printed circuit boards.
Detailed Specifications：
1. Mechanical Specifications

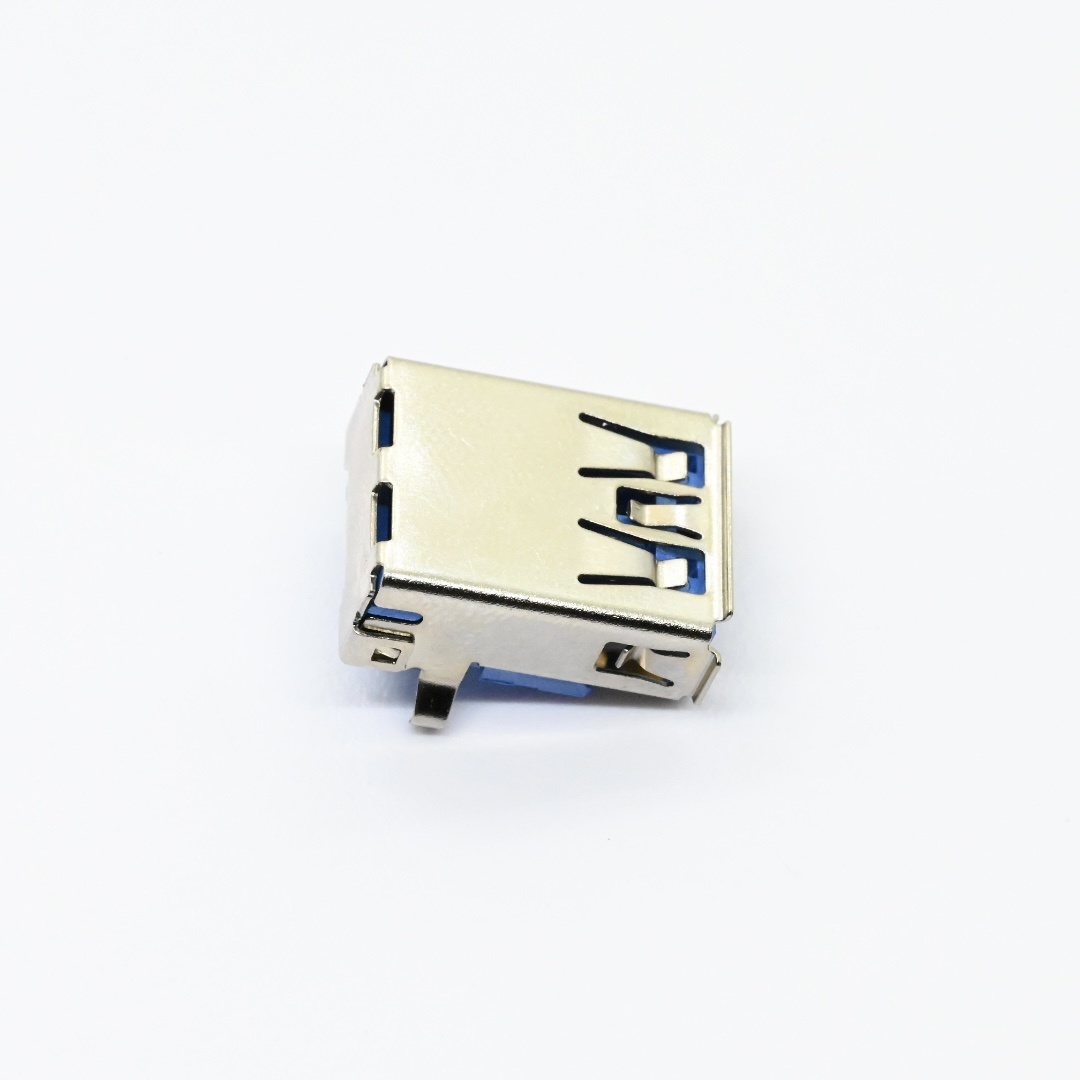

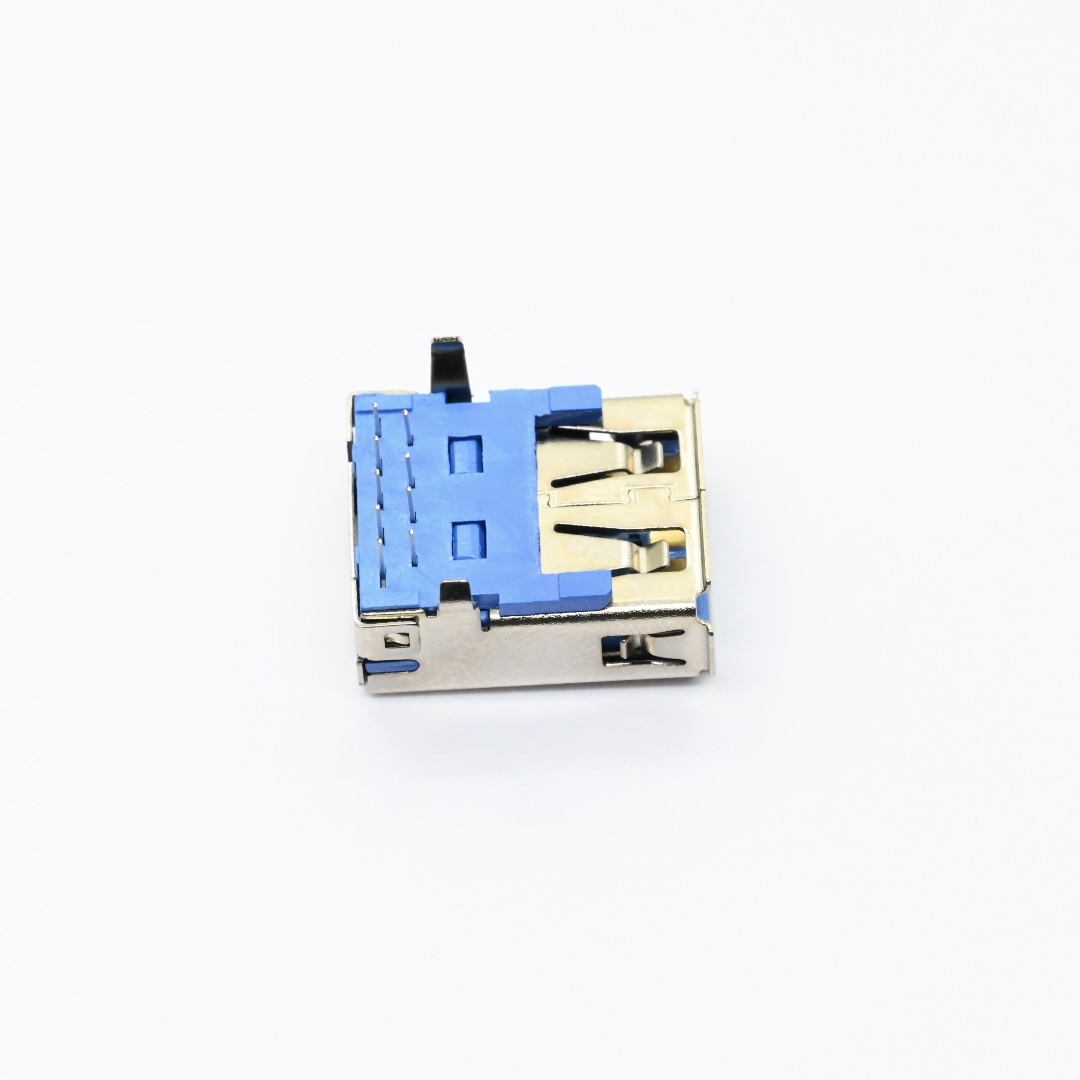

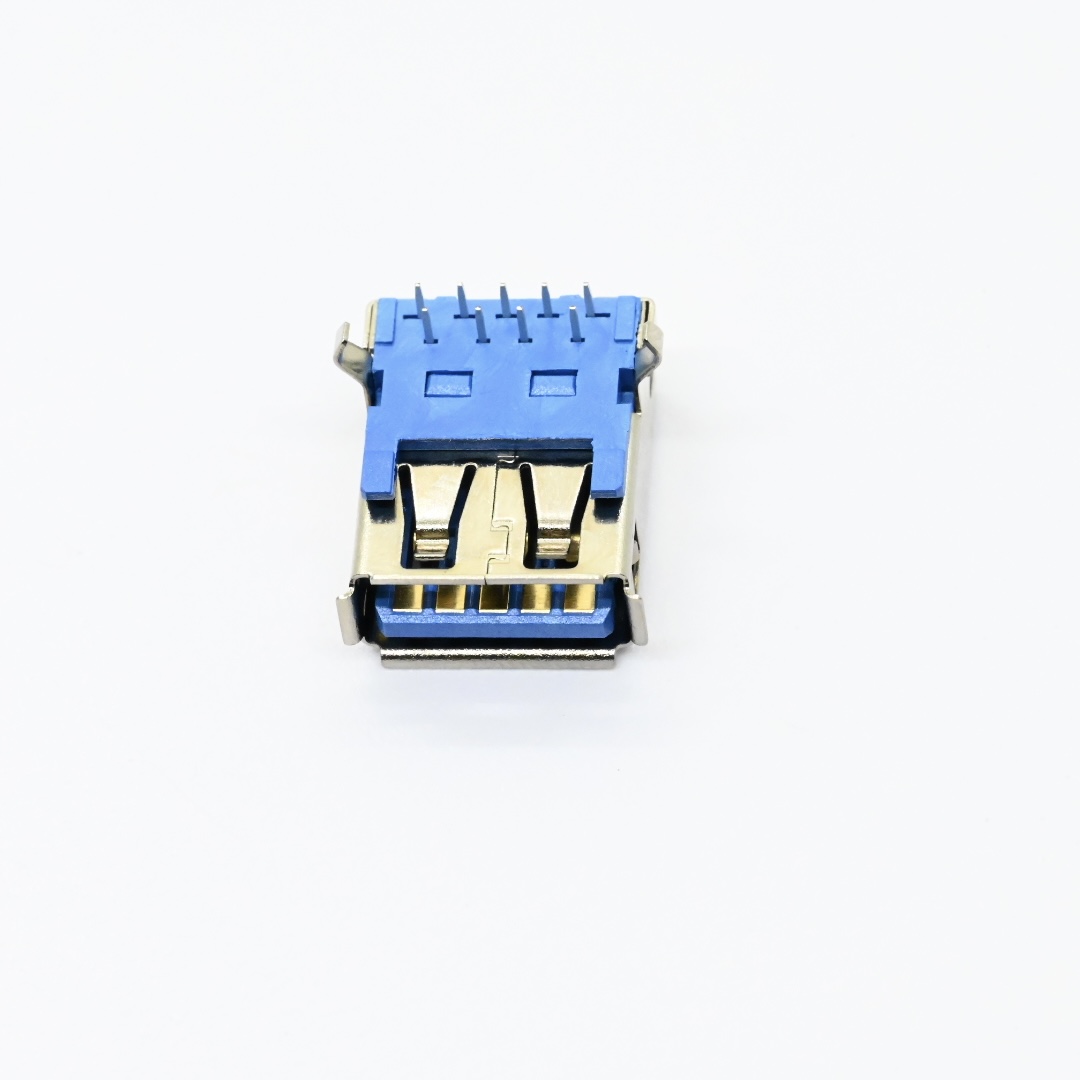

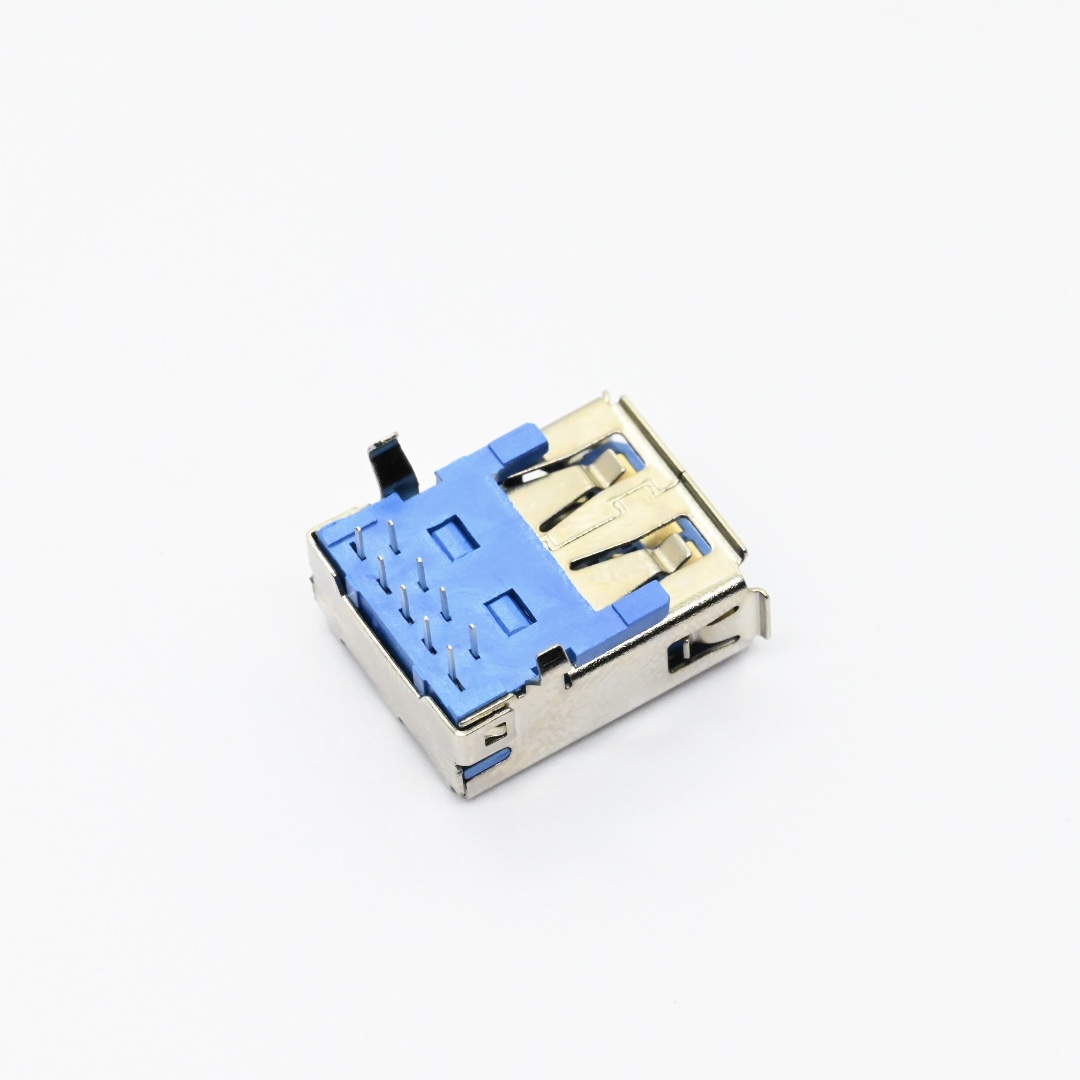

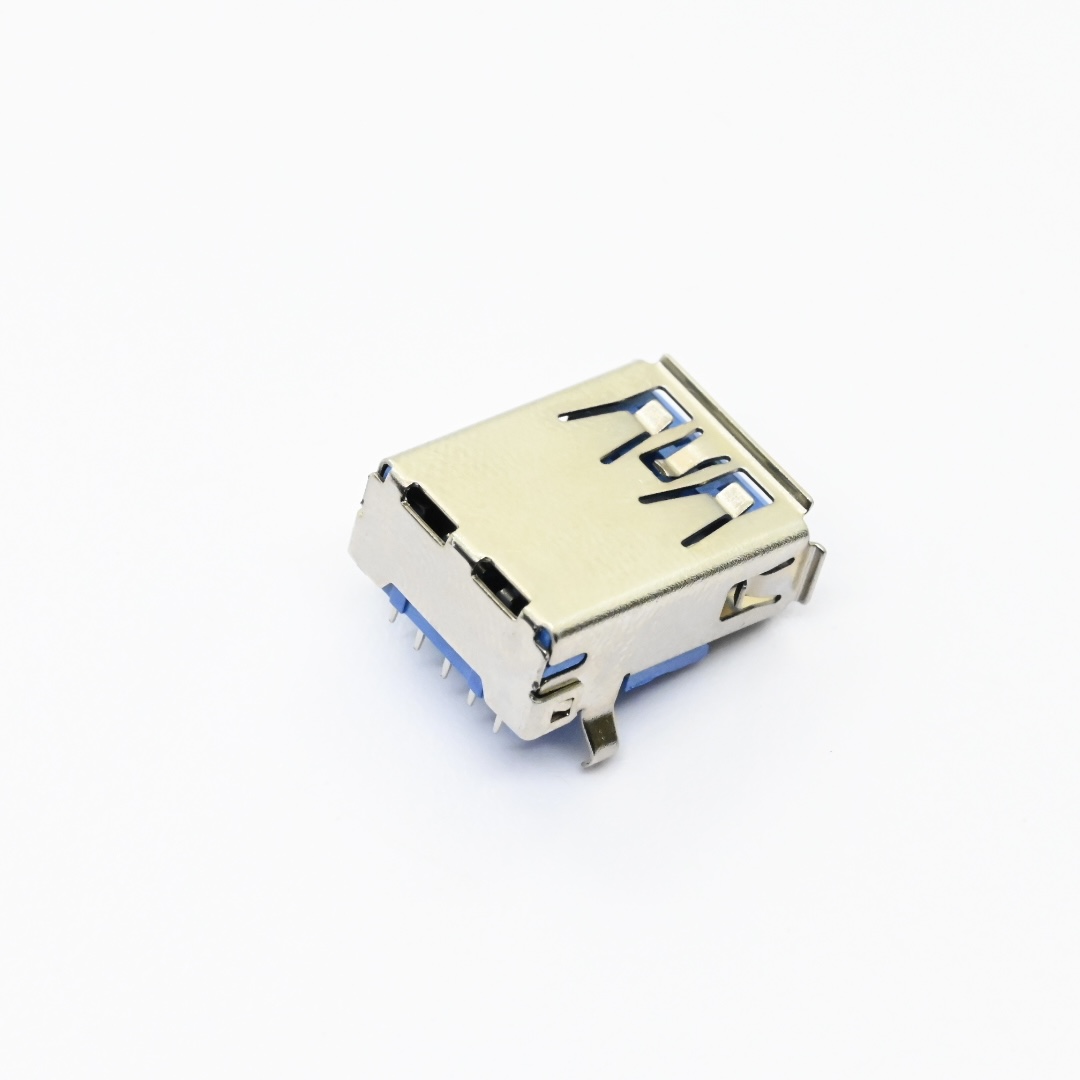

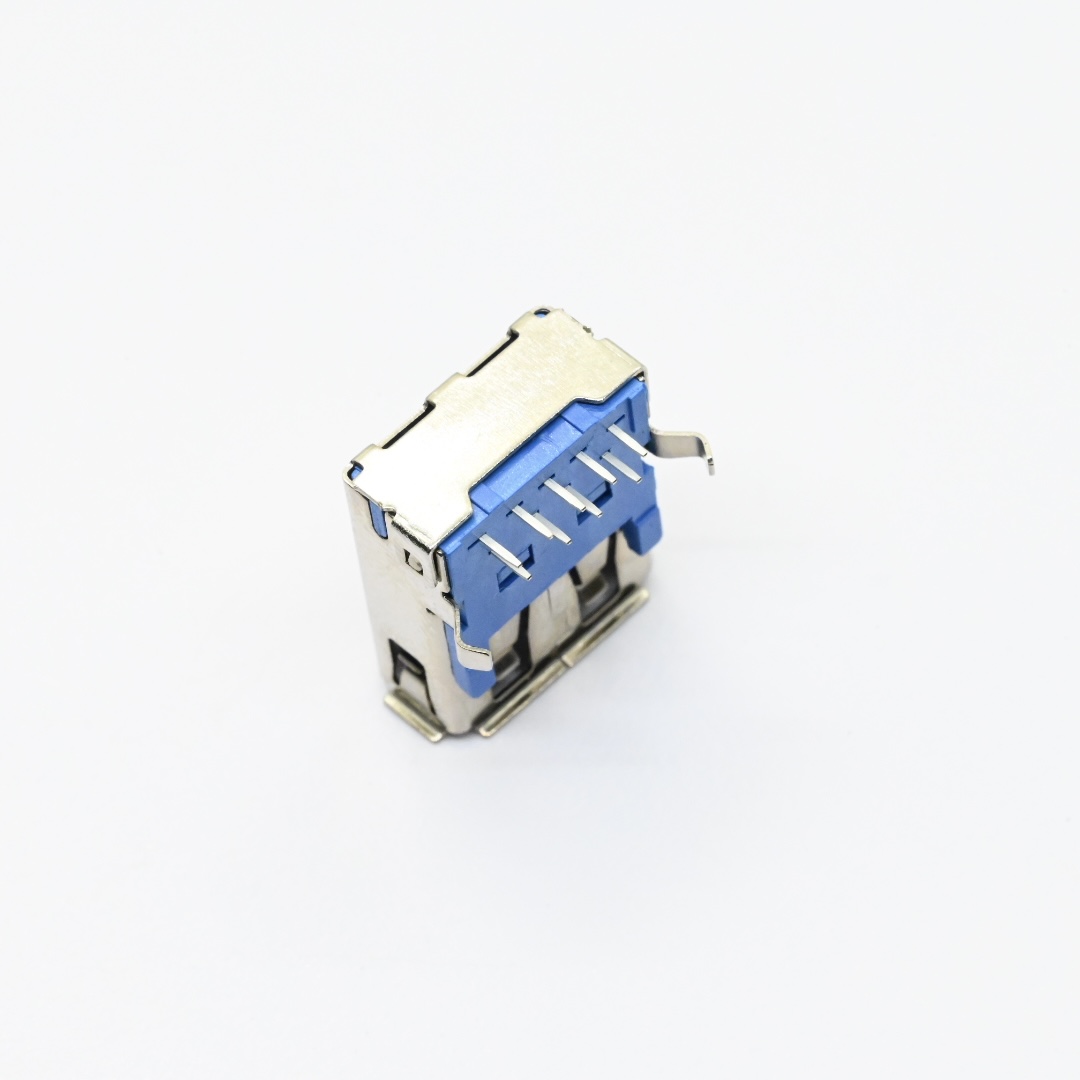

1.1 Product type: 90 degree reverse through hole USB3.0 female socket with curling shell
1.2 Measurement unit: millimeter
1.3 Key dimension: Overall dimensions follow technical drawing, PCB layout reference is provided, recommended PCB thickness is 1.2 mm. Multiple shell materials and plastic color options are available.
1.4 Assembly method: Through hole DIP mounting for wave soldering onto printed circuit board
1.5 Mechanical performance: Max mating force 35N, minimum initial unmating force 10N, minimum 8N unmating force after testing
1.6 Ordering feature: Multiple contact plating selections, various packing types including tape and reel tray tube and bag
1.7 CTA: Contact our engineering team to obtain complete dimension drawings and ordering guide for your hardware design validation.
2. Material Construction
2.1 Insulator: LCP high temperature plastic, UL94 V‑0 flame retardant grade, default blue color
2.2 Contact terminal: C5210 copper alloy with thickness 0.20 mm
2.3 Shell: C2680 brass with thickness 0.30 mm, alternative shell material is stainless steel
2.4 Plating requirement: Contact terminal supports multiple gold plating options, solder area with nickel and tin plating. Shell full surface nickel plating.
3. Electrical & Performance Parameters
3.1 Rated current: 1.5 Amp
3.2 Contact resistance: Max 30 milliohm
3.3 Insulation resistance: Minimum 100 megaohm
3.4 Dielectric Withstanding Voltage: 100V AC RMS
3.5 Operating temperature range: ‑40℃ to +85℃
4. Usage Method
4.1 Assembly mode: Insert through hole pins into PCB pre drilled holes then complete wave soldering process
4.2 Operation tip: Select suitable shell material plastic color contact plating and packing way according to actual project demands.
5. Application Scenarios
5.1 High speed data transmission port for consumer electronic devices
5.2 Internal USB interface of digital household appliances
5.3 Storage device and industrial equipment USB port assembly
5.4 Computer peripheral hardware internal connection setup
6. Operation & Storage Precautions
6.1 Follow drawing dimension tolerance and recommended PCB layout data during product structural design
6.2 Avoid terminal bending shell deformation and plastic damage in handling and installation
6.3 Prevent scratch and contamination on gold plated contact area before soldering
6.4 Keep products stored under dry condition to avoid oxidation of metal parts
6.5 Confirm shell material color plating specification and packing requirement before procurement
6.6 CTA: Submit your customized material color plating and project information, we provide free sample evaluation and professional technical consultation services.
FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

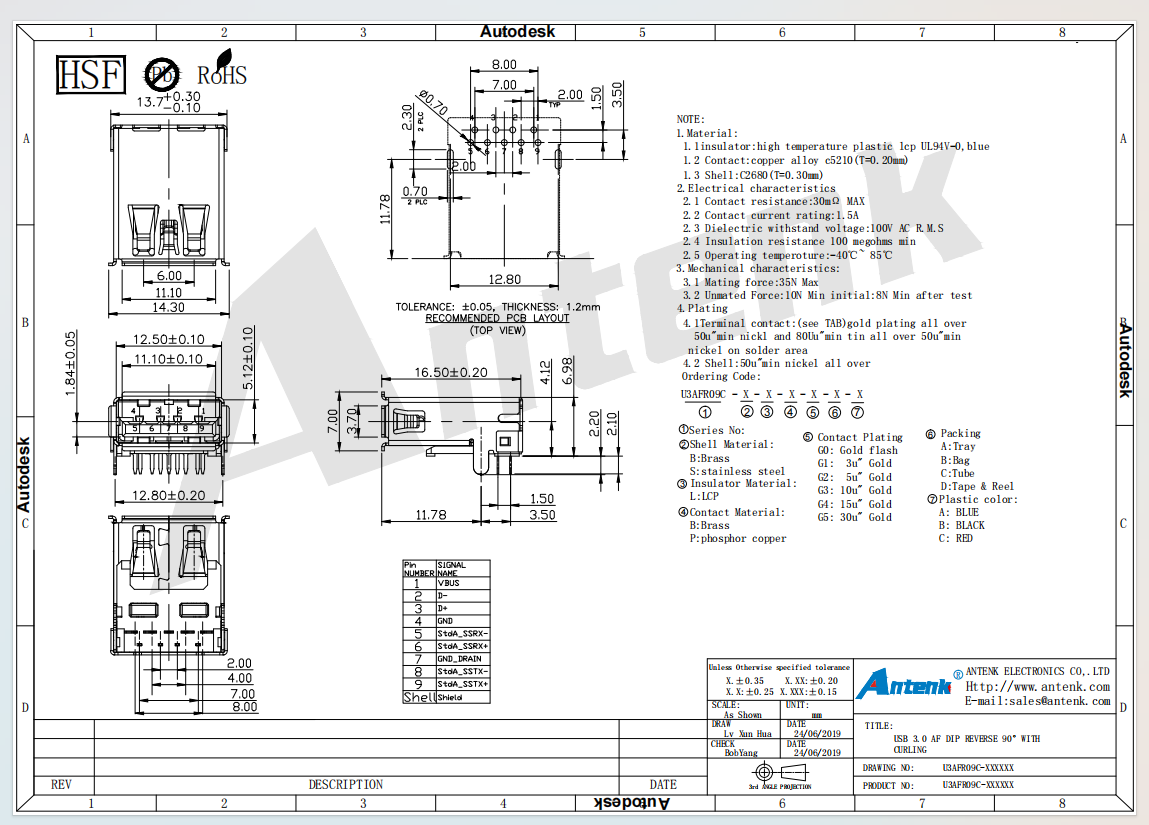

Product Drawing：
