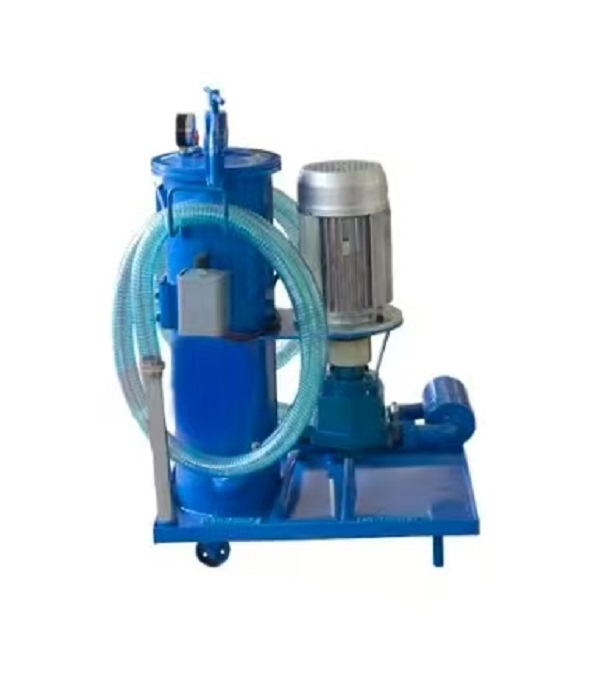

LUC LUCA LUCB Pushcart Filter

Product Overview

LUC LUCA LUCB Pushcart Filter is a mobile trolley‑type FILTER, widely used for oil purification and oil filling treatment for the hydraulic system of various industrial and construction Machine . This high‑performance FILTER separates solid particles, metal debris and dirt from hydraulic and lubricating oil. It effectively reduces component abrasion inside the hydraulic system, avoids valve blockage and pump wear, and extends the service life of core parts of the Machine. With rolling trolley design, the unit can be quickly transferred between workshop and job‑site for offline oil maintenance work.

Technical Specifications

- Model Series: LUC, LUCA, LUCB Pushcart Filter

- Product Type: Mobile trolley oil purification FILTER

- Flow Rate Options:16‑100 L/min

- Filtration Precision:3μm,5μm,10μm,20μm,30μm,40μm (interchangeable filter elements)

- Working Medium: Anti‑wear hydraulic oil, lubrication oil

- Structure: Trolley frame, motor‑pump assembly, coarse filter & fine filter, pressure gauge, oil hoses

- Application: Off‑line filtration, new oil filling, bypass purification for hydraulic system of Machine

Working Principle

Driven by the built‑in motor pump, contaminated oil is sucked into this pushcart FILTER. Fluid firstly passes through the coarse‑filter stage to trap large‑size impurities, then flows into fine‑filter cartridges for deep purification. Clean oil is pumped out to refill or circulate the hydraulic system of target Machine. Independent offline filtration can be carried out without disassembling the main body of the Machine. Continuous oil treatment stabilizes oil cleanliness and lowers failure risks for the whole hydraulic system.

Core Advantages

1. Mobile pushcart frame with rolling wheels, flexible relocation, convenient for on‑site servicing of different Machine.

2. Multi‑grade filtering structure; users can swap filter cartridges to adjust precision for diverse working conditions of the hydraulic system.

3. Equipped with pressure gauge to monitor clogging status of the FILTER in real‑time.

4. Compact layout, low‑noise operation, simple start‑stop workflow, easy filter‑element replacement.

5. Helps decrease breakdown frequency and maintenance expense for the Machine, protecting expensive components inside the hydraulic system.

Application Scope

This LUC LUCA LUCB series FILTER applies to excavators, loaders, machine tools, hydraulic power stations and other heavy‑duty Machine. It executes new‑oil filling filtration and periodic circulating purification for the hydraulic system. Suitable for machinery repair workshops, construction sites, metallurgical plants and mining equipment maintenance projects.
