HSSD Series Monoblock & Sectional Directional Control Valves

Product Overview

HSSD Series Monoblock & Sectional Directional Control Valves is a versatile multi-spool Hydraulic valve specially developed for mobile machinery. This series provides two structural options: monoblock (one-piece cast body) and sectional (bolt-combined modular sections). It controls flow direction, flow rate and pressure of the hydraulic system to drive multiple hydraulic cylinders and hydraulic motors. The monoblock version features compact structure while the sectional type supports flexible addition or removal of valve sections. It can be equipped with various spool functions and multiple control modes to match different working demands of mobile Machine.

Technical Specifications

- Valve Type: Monoblock & Sectional directional control Hydraulic valve

- Rated flow range: 45 ~ 380 L/min

- Max working pressure: 31.5 MPa (315 bar)

- Number of sections: 1 ~12 sections customizable

- Control options: Manual lever, cable remote, pneumatic, solenoid, electro-hydraulic control

- Circuit type: Parallel circuit; open center / closed center optional

- Built-in components: Main relief valve, load holding check valve, anti-cavitation valve optional

- Port connection: BSPP or SAE thread ports

- Working temperature: -40℃ ~ +80℃

- Suitable hydraulic oil viscosity: 10 ~ 400 mm²/s

Working Principle

This multi-way Hydraulic valve adopts parallel oil circuit design. For monoblock type, all spools are installed inside one integrated cast body. For sectional type, separate valve slices are assembled together by tie rods. When actuating the control handle or remote control signal, the spool slides and switches internal oil passages, changing oil flow direction of the hydraulic system to make actuators extend, retract or stop. The built-in relief valve limits maximum pressure to protect the whole hydraulic system. Load holding check valves prevent load falling due to oil backflow. Multiple spools can work independently or simultaneously to complete compound actions for the Machine.

Core Advantages

1. Dual structure options: monoblock for compact installation, sectional for flexible section adding and easy maintenance

2. Wide flow coverage from 45 to 380 L/min, covers light, medium and heavy-duty mobile Machine

3. Multiple control methods available, can realize local manual operation or remote automatic control

4. Optional built-in relief valve, anti-drop check valve and anti-cavitation valve, fully protect hydraulic system

5. Good anti-pollution performance, stable operation under harsh outdoor working environments

Application Range

Suitable for hydraulic system of various mobile Machine: agricultural machinery, small & medium excavators, loaders, aerial work platforms, sanitation trucks, forestry equipment, mining drill rigs, material handling machinery and special engineering vehicles.

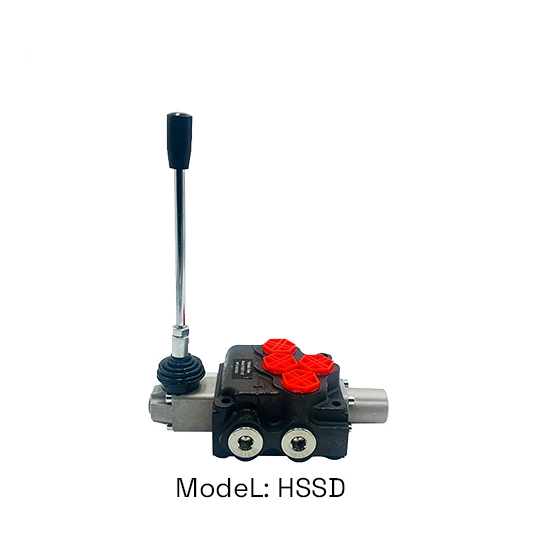

adiffer-hssd-series-monoblock-directional-control-valve
