KM600 Lightweight Hydraulic PTO Gearbox

Product Overview

KM600 lightweight PTO gearbox is an aluminium housing speed-increasing multiplier, designed to connect tractor PTO shaft and drive hydraulic pump. It converts tractor PTO input speed (normally 540 rpm) to the required pump operating speed, delivering power to your hydraulic system and Machine. Its lightweight aluminium construction greatly reduces mounting load on compact agricultural equipment.

Technical Specifications

- Rated continuous power: 10 kW

- Weight: approx 5.8 kg

- Housing: Cast aluminium alloy

- Gear type: Helical bevel gear

- Speed ratio options: 1:1.5 / 1:2.0 / 1:2.5 / 1:3.0 / 1:3.5 / 1:3.8

- Input PTO shaft: 1 3/8", DIN 9611 spline

- Pump side flange: Group2 / SAE A (96100) for hydraulic pump

- Input standard speed: 540 rpm (tractor PTO)

- Mounting: 4-direction optional mounting positions

- Lubrication: Splash lubrication, gear oil

- Optional: Oil sight glass, breather plug, different spline sleeves

Working Principle

Tractor power is transmitted from PTO shaft into the gearbox. Internal helical bevel gears increase rotational speed to match the optimum working speed of hydraulic pump. The gearbox transfers torque steadily while adjusting speed, so the hydraulic pump can generate stable flow and pressure for the whole hydraulic system.

Key Features

1. Lightweight aluminium alloy body, much lighter than cast iron gearbox, easy installation

2. Multiple speed ratios available, flexible to match different hydraulic pump displacement

3. High-efficiency helical bevel gear, low noise and stable power transmission

4. Standard DIN 9611 PTO spline and SAE A pump flange for quick assembly

5. 4-way mounting design, flexible orientation for limited installation space

6. Splash lubrication structure, simple maintenance, long service life

7. Compact size, suitable for small and medium tractors & mobile farm Machine

Application

Tractor hydraulic pump drive, agricultural sprayers, fertilizer spreaders, small wood chippers, field maintenance equipment, mobile hydraulic power packs and other farm hydraulic system.

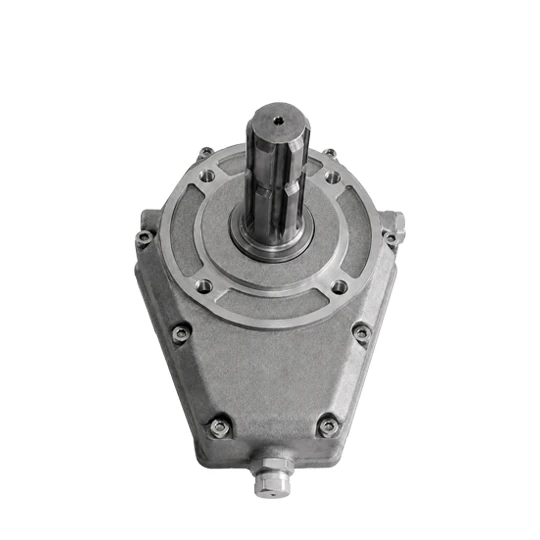

adiffer-km600-hydraulic-pto-gearbox-speed-increaser-1
