KM700 Multi-Interface PTO Gearbox

Product Overview

KM700 Multi-Interface PTO Gearbox is an aluminium PTO speed increaser for tractors, upgraded from KM600 with higher power and richer pump mounting interfaces. It takes power from tractor PTO shaft (standard 540 rpm), increases rotation speed to drive hydraulic pumps, delivering stable power for your hydraulic system and Machine. Multiple flange options allow matching various hydraulic pumps without extra adapter plates.

Technical Specifications

- Rated continuous power: 20 kW

- Weight: approx 8.3 kg

- Housing: Cast aluminium alloy

- Gear type: Precision spur gear

- Speed ratio options: 1:1.5 / 1:2.0 / 1:2.5 / 1:3.0 / 1:3.5 / 1:3.8

- Input PTO shaft: 1 3/8", DIN 9611 spline (male / female optional)

- Pump side flanges: Group2, Group3, SAE A, SAE B (multi-interface design)

- Standard input speed: 540 rpm

- Mounting: 4 optional installation directions

- Lubrication: Splash lubrication with SAE90 gear oil

- Optional parts: Oil sight glass, breather plug, different spline sleeves, sealing kits

Working Principle

Power flows from tractor PTO spline shaft into the gearbox. Internal spur gears boost the input speed to the optimal operating speed of hydraulic pumps. The multi-output flange supports different pump models, converting tractor mechanical power into hydraulic power for the whole hydraulic system.

Key Features

1. Multi-interface flange design: Group2 / Group3 / SAE A / SAE B, compatible with most hydraulic pumps

2. 20kW high power rating, double the power capacity compared with KM600

3. Lightweight aluminium housing, lower load on tractor frame

4. Precision hardened spur gears, high efficiency, low noise and long service life

5. 6 kinds of speed ratios for flexible pump speed matching

6. 4-way mounting orientation, fit limited installation space on farm Machine

7. Simple splash lubrication, easy inspection and maintenance

Application

Tractor-driven hydraulic pump unit, agricultural sprayers, wood chippers, fertilizer spreaders, hedge cutters, mobile hydraulic power packs, field maintenance equipment and other farm hydraulic system.

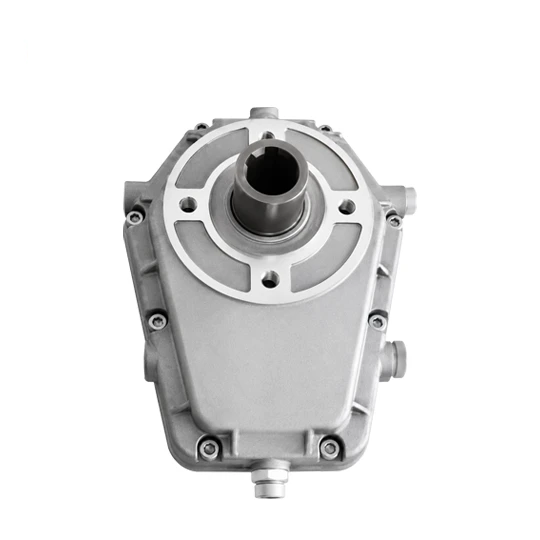

adiffer-km700-pto-drive-gearbox-hydraulic-pump-1
