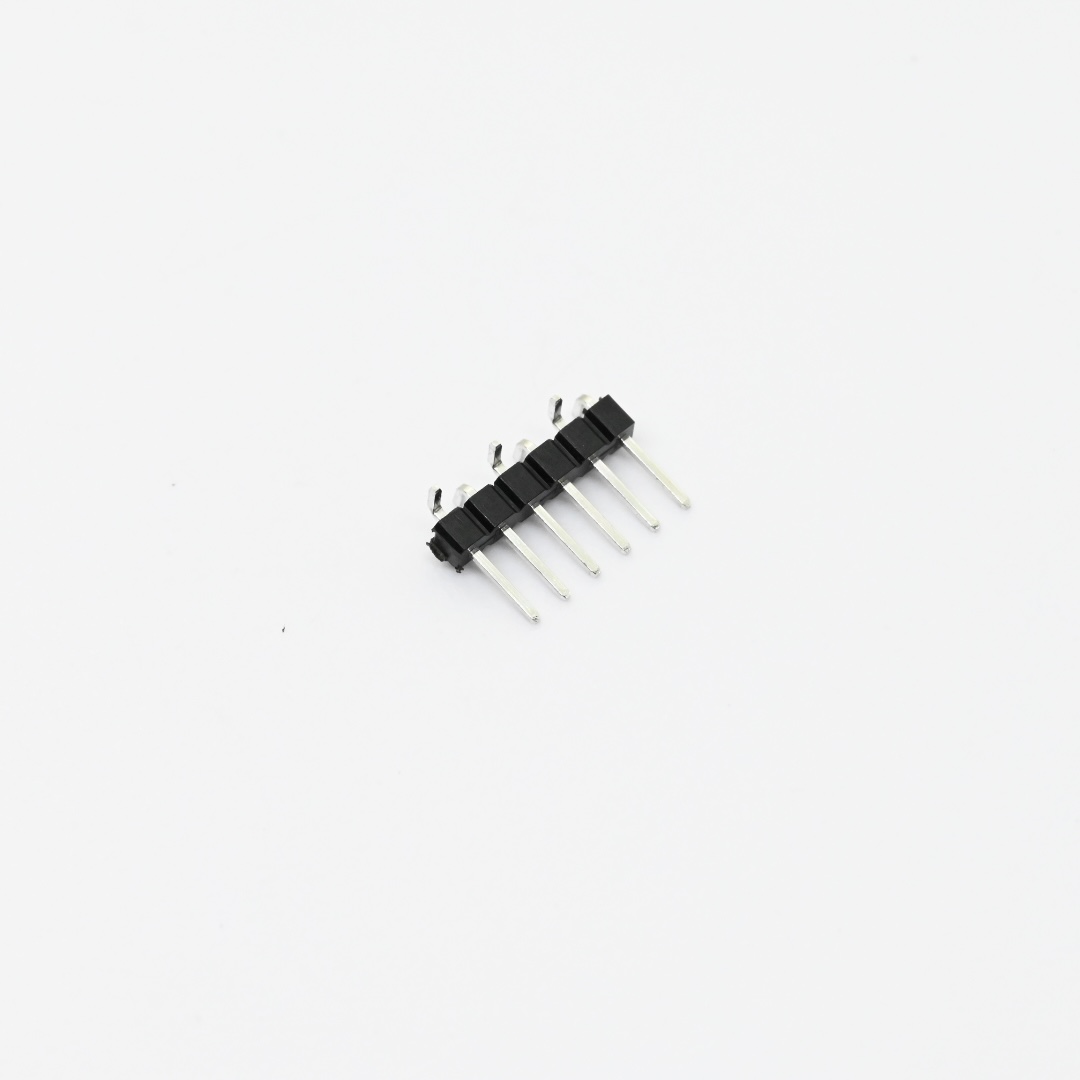

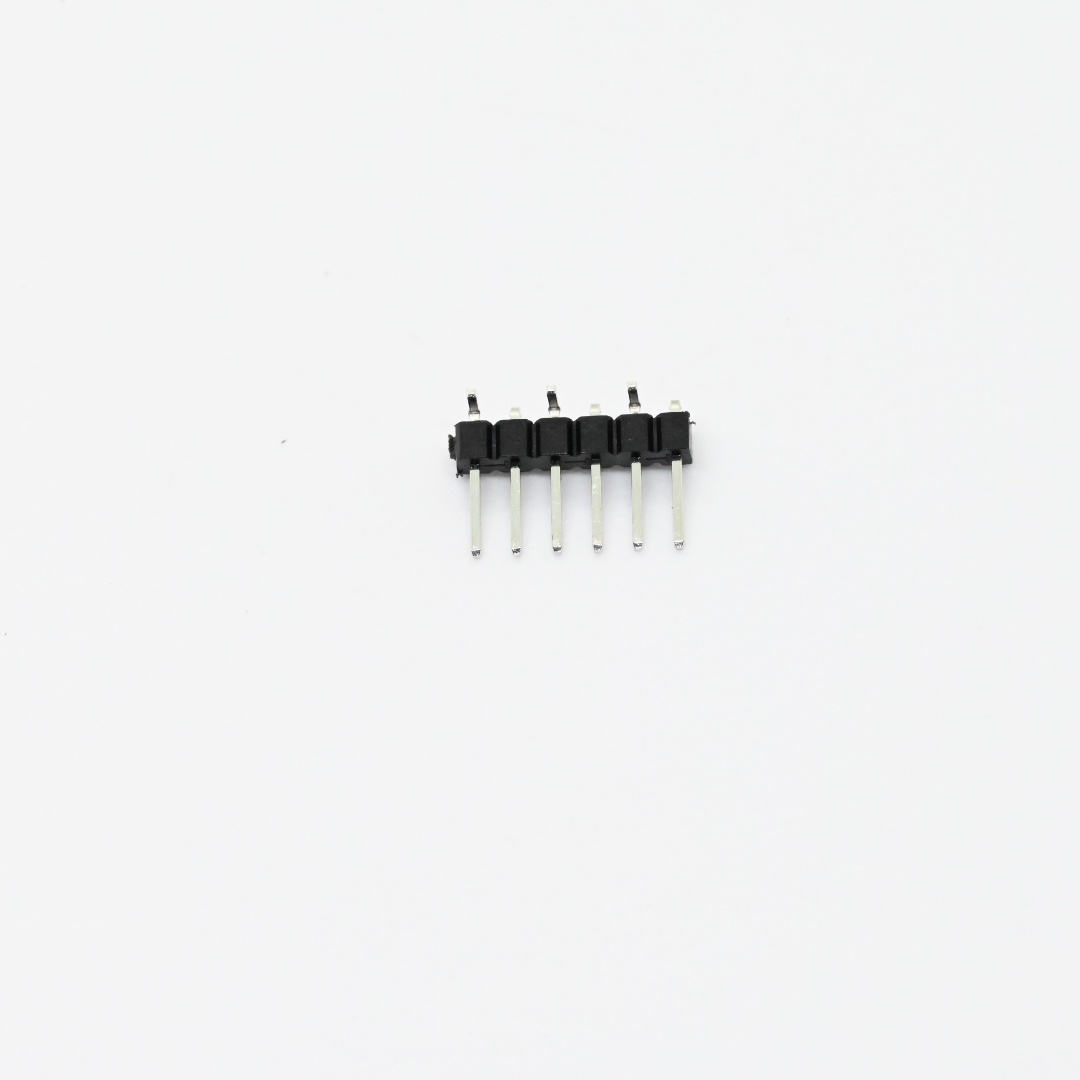

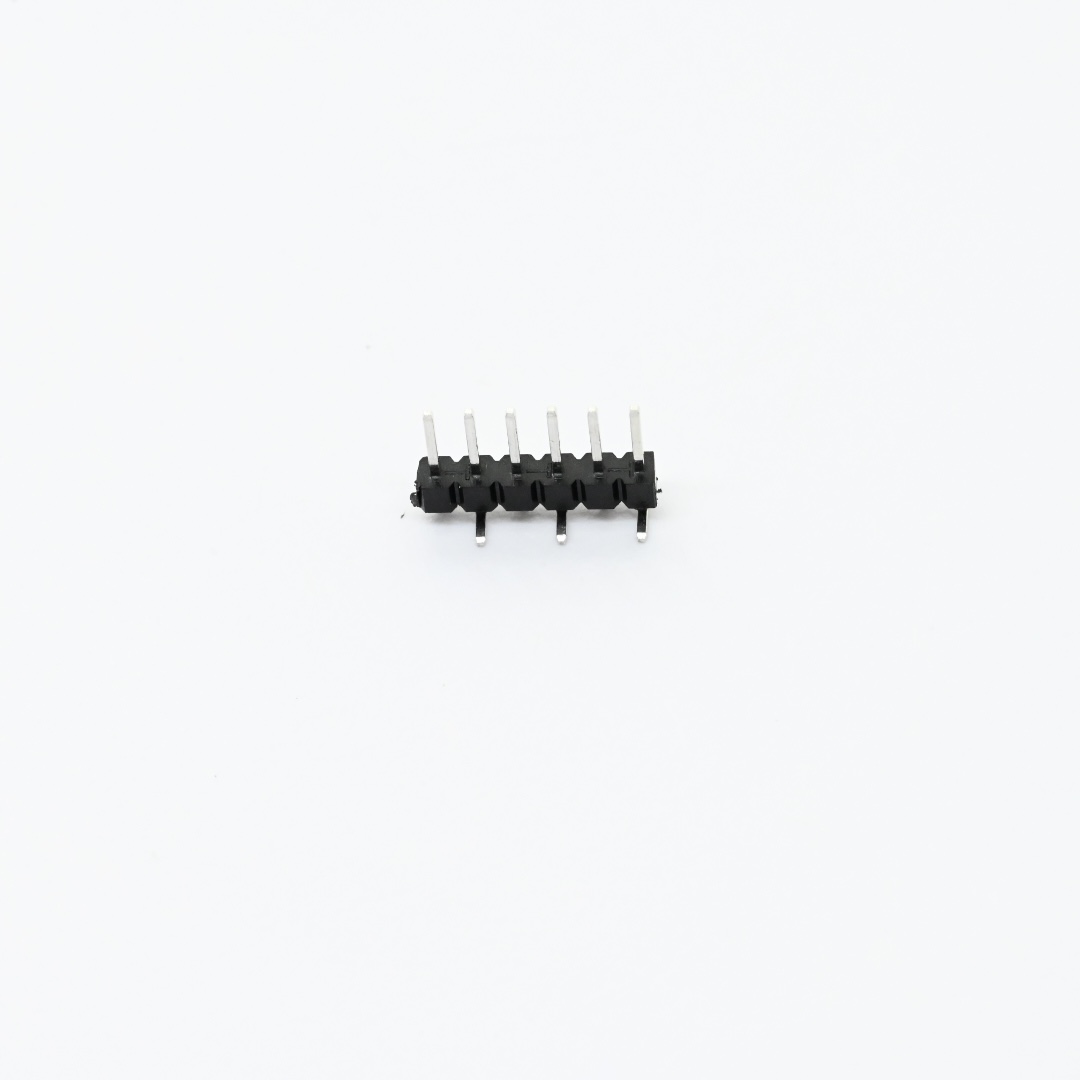

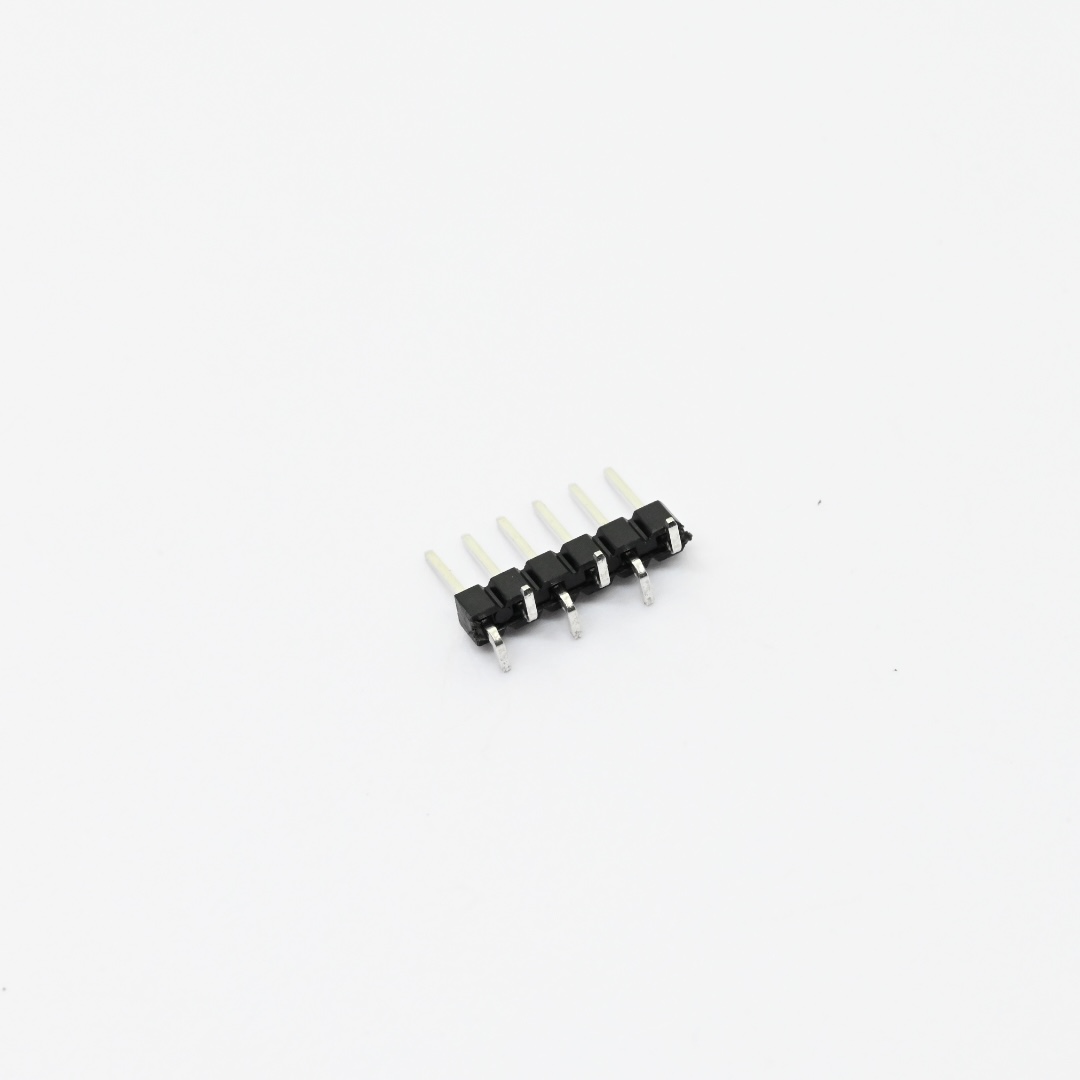

1.Product Description：
Huizhou Antenk Electronics Co Ltd manufactures single row surface mount pin header with two point zero millimeter pitch to offer reliable board to board signal and low power interconnection for compact printed circuit board assemblies. This SMT pin header uses UL94 V zero grade insulator with multiple material selections and brass contact pins, it supports one to forty contact positions, diverse selective gold plating and tin plating choices alongside multiple pin length plastic height and surface mount type selections, full dimension data can be obtained from engineering drawing for PCB footprint reference, it delivers one point five amp rated current, five hundred volt AC dielectric withstanding voltage, insulation resistance above one thousand megaohm and contact resistance below twenty milliohm and performs stably within minus forty degree Celsius to one hundred twenty five degree Celsius. Users complete surface mount reflow soldering following official PCB drawing and mate with matching female header to establish stable circuit links for target miniaturized electronic hardware. Operators shall strictly follow drawing dimensional tolerances for PCB layout avoid excessive mating force to prevent brass pin deformation and store goods in dry condition to protect plated surfaces from oxidation. Unlike competitors sourcing external components Antenk runs complete in house workflow covering plastic molding terminal stamping assembly and full laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent finished goods export worldwide. This header fits compact consumer electronics portable devices and mini industrial modules. Please share your contact count insulator material plating option and project requirements for free sample evaluation and comprehensive technical document support.
Tape Reel SMT Connector adopts standardized tape reel packaging to suit automatic surface mount production for high volume PCB assembly tasks.
High Temperature SMT Header endures reflow soldering thermal shock and stable operation under wide working temperature range for miniature electronic modules.
Compact Single Row Header saves valuable board space and achieves dependable board to board signal transmission for space‑constrained electronic hardware.
2.Detailed Specifications of PHDM02‑XXS 2.0 mm Single Row SMT Pin Header
1. Mechanical Specifications
1.1 Product type: Single row surface mount SMT pin header
1.2 Measurement unit: millimeter
1.3 Key dimension: Pitch is 2.0 millimeter, contact quantity ranges from 1 position to 40 positions. Two SMT mounting styles Type A and Type B are available. Refer to engineering drawing for outline dimension and dedicated PCB layout dimensions. Apply drawing standard dimensional tolerances for unspecified dimensions during printed circuit board design. Multiple pin length and plastic height options are supported.
1.4 Assembly method: Complete surface mount reflow soldering onto printed circuit board, mate with matching female header to realize board to board signal and low power interconnection.
1.5 Ordering feature: Multiple insulator material options, various selective gold plating and tin plating grades, diverse pin length plastic height and packing styles for customized project requirements.
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specifications for your hardware design validation.
2. Material Construction
2.1 Contact Material: Brass
2.2 Insulator Material: PA6T UL94 V zero black, alternative insulator materials are selectable
3. Electrical & Environmental Performance Parameters
3.1 Current rating: 1.5 Amp
3.2 Dielectric withstanding voltage: AC 500V
3.3 Insulation resistance: Minimum 1000 Megaohm
3.4 Contact resistance: Maximum 20 milliohm
3.5 Operating temperature range: Minus 40 degree Celsius to plus 125 degree Celsius
3.6 Compliance: Meets RoHS and HSF environmental requirements
4. Usage Method
4.1 Assembly mode: Perform surface mount reflow soldering following official PCB layout drawing, connect with matched female header to achieve stable signal and low power transmission.
4.2 Operation tip: Adopt PCB layout dimension data shown on engineering drawing for circuit board layout development.
5. Application Scenarios
5.1 Compact board to board signal connection for consumer electronic devices
5.2 Internal circuit interconnection for portable electronic assemblies
5.3 Signal interface for mini industrial control modules
5.4 Low power interconnection for space limited electronic hardware
6. Operation & Storage Precautions
6.1 Strictly follow drawing dimensional tolerances for PCB footprint design
6.2 Avoid excessive mating force to prevent permanent deformation of brass contact pins
6.3 Prevent scratches dirt and mechanical impact on insulator and brass pins before assembly
6.4 Store products in dry environment to avoid oxidation of plated surfaces
6.5 Confirm contact count insulator material plating grade pin dimension mounting style and packing type before placing purchase order
6.6 CTA: Submit your hardware requirement material plating options and project information, we provide free sample evaluation and professional technical consultation services.
3.FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

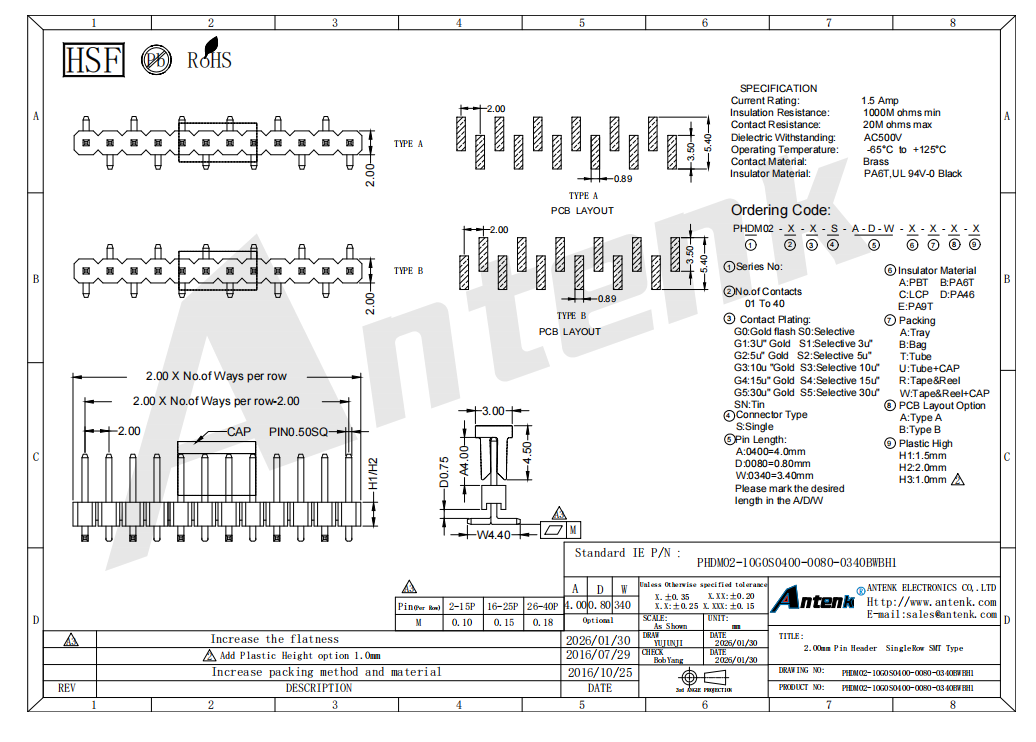

4.Product Drawing：
