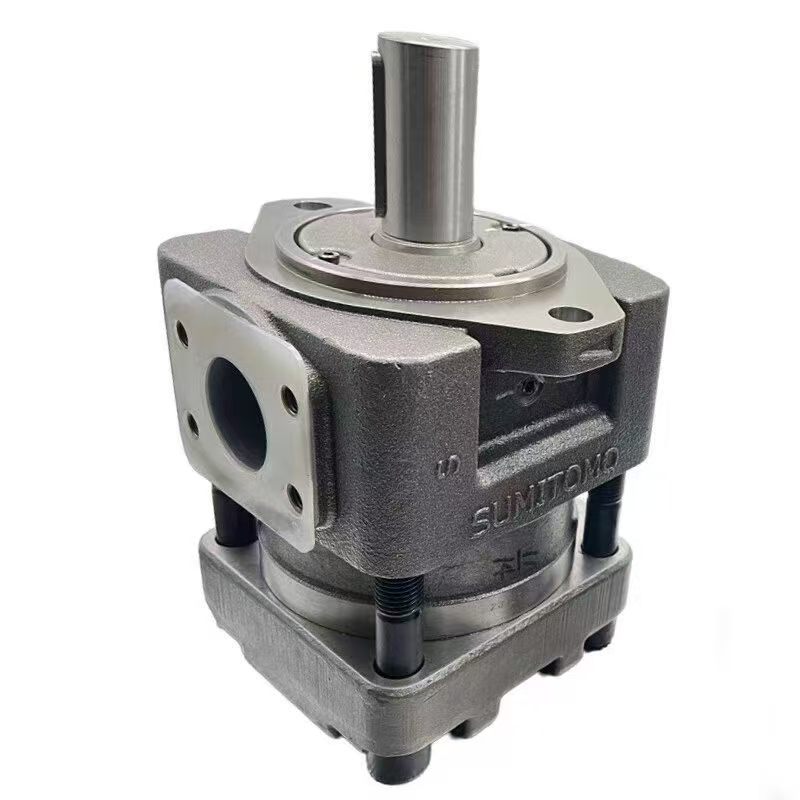

Sumitomo QT42-31.5F-BP-Z Internal Gear Pump

This is a Japan Sumitomo fixed displacement internal gear hydraulic pump, one classic model of QT series hydraulic pump. It is widely matched to servo hydraulic system, featuring ultra-low noise and minimal pressure pulsation, ideal for precision control on industrial Machine. We also supply complete Hydraulic Pump Spare Parts for overhaul and maintenance of this hydraulic pump and Hydraulic piston pump.

Main Technical Specs

- Model: QT42-31.5F-BP-Z

- Displacement: 31.5 ml/r

- Rated pressure: 24.5 MPa; Max instant pressure: 31.4 MPa

- Max speed: 1800 rpm

- Rotation direction: Clockwise (BP)

- F: Flange mounting type

- Pump body material: Cast iron

- Feature: Conjugate internal gear structure

Key Features

✅ Adopt patented conjugate internal gear profile, low pressure ripple, ultra quiet running even under high pressure condition.

✅ High volumetric efficiency, low heat generation, great energy-saving performance for servo hydraulic system.

✅ Excellent wear resistance, stable output flow, long service life, easy to maintain.

✅ Compact structure, flange installation, convenient to assemble into different hydraulic system.

✅ Original & interchangeable replacement available, complete spare parts and seal kit in stock.

Application

This internal gear hydraulic pump is commonly installed on injection molding machine, die casting machine, precision press and other industrial Machine. It is widely used for servo energy-saving transformation of hydraulic equipment. Corresponding Hydraulic Pump Spare Parts can be used to repair this hydraulic pump and Hydraulic piston pump to restore the performance of the whole hydraulic system.
