Product details

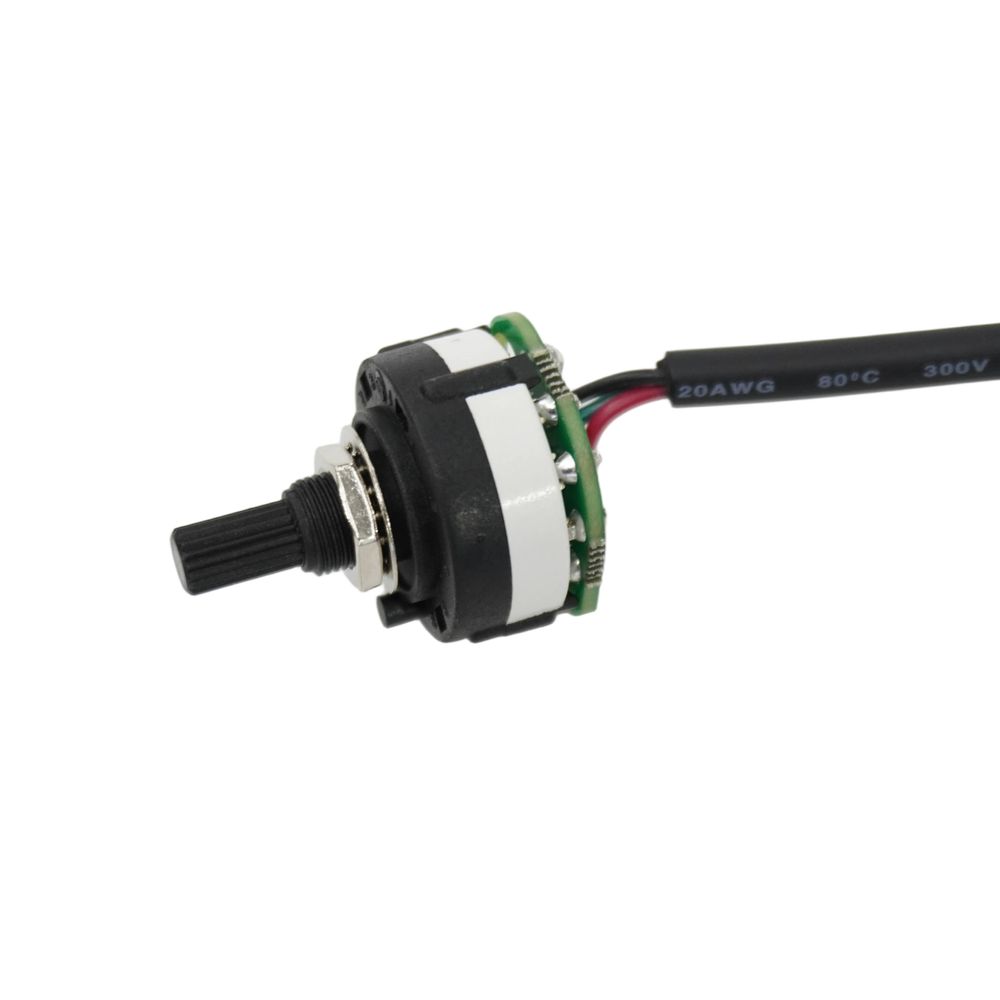

5 Position Automotive Rotary Switch Harness

Flexible Control for Heavy-Duty Vehicle Applications

When a truck or heavy-duty vehicle needs a rotary switch connection, the wiring harness must match the control system and its installation requirements. The 5 Position Automotive Rotary Switch Harness is designed for applications involving truck engine control, vehicle speed adjustment, and heavy-duty equipment control. It gives equipment manufacturers and vehicle system integrators a cable assembly to consider when planning a rotary switch connection.

Item	Specification
Type	Truck Adjustable Rotary Switch Cable
Wire Gauge	20AWG
Working Temperature	-40℃ ~ +105℃
Length	2000±30mm

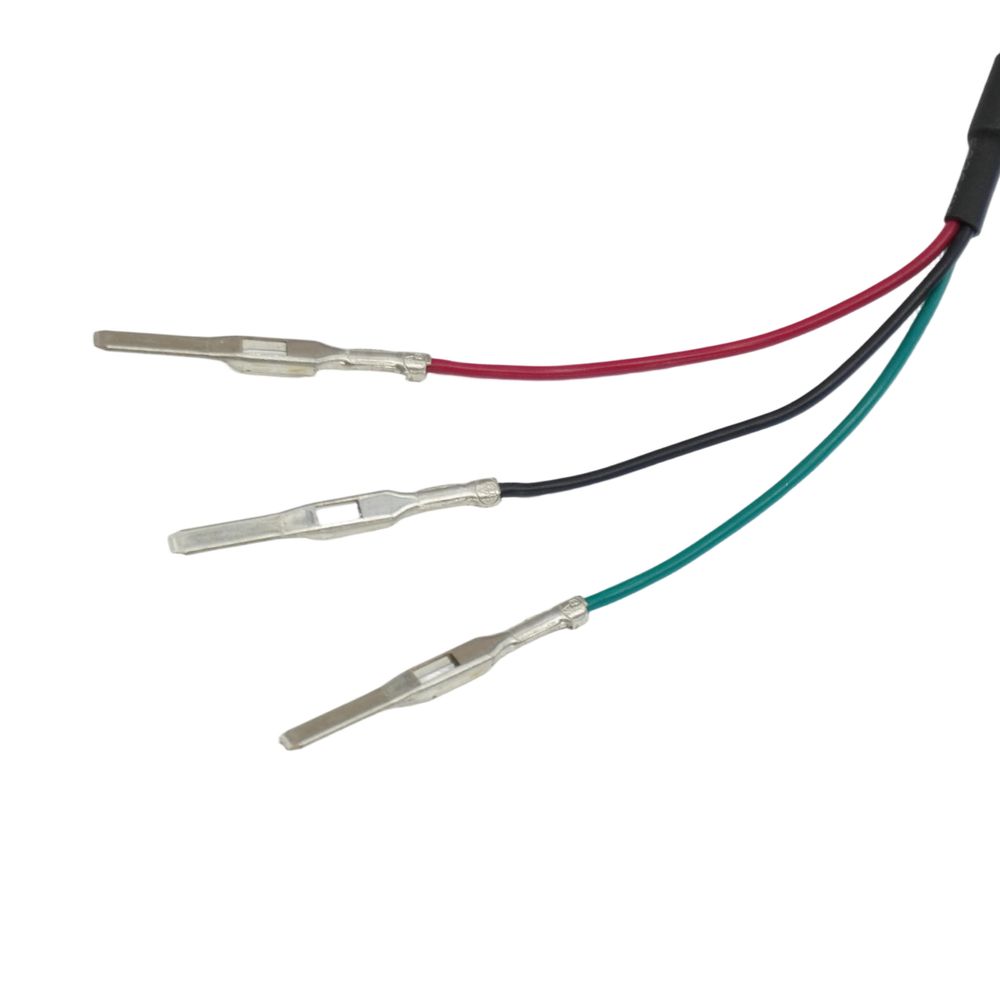

Pins Material	Tin-Plated Brass Terminals
Cable Type	UL2464 3 Core Cable
Minimum Insulation Resistance	≥10MΩ
Tensile Strength	6.5kg for 20AWG wire
Application Fields	Truck engine control, vehicle speed adjustment, heavy duty equipment control
Specific Shipping Cost	Please Contact Us

Listed as a Truck Adjustable Rotary Switch Cable, this product has a cable length of 2000±30mm. The extra reach can help when the switch and the connected control unit are installed at different points within the equipment. If you are sourcing an Automotive rotary switch harness for a specific vehicle project, the switch interface, wiring layout, and required control functions should be confirmed before ordering.

Three-Core Cable with Practical Wire Specifications

This harness uses a UL2464 3 Core Cable with 20AWG wire. These specifications give buyers a clear starting point when checking the cable against their control system, available installation space, and wiring requirements. For a car wire harness or other vehicle electrical project, it is important to confirm that the conductor size and cable construction suit the intended circuit.

The listed working temperature range is -40°C to +105°C, and the terminals are made from tin-plated brass. The minimum insulation resistance is ≥10MΩ, while the stated tensile strength is 6.5kg for 20AWG wire. These details help engineering teams review the harness for their application. The final suitability should be assessed against the equipment design, installation conditions, and applicable testing requirements.

A Connection Option for Vehicle and Equipment Controls

This harness is intended for truck engine control, vehicle speed adjustment, and heavy-duty equipment control. It may suit manufacturers and integrators developing control panels or vehicle systems that use a compatible five-position rotary switch. Before installation, confirm the switch pinout, circuit function, and connection sequence so the wiring matches the actual control system.

For buyers developing a Truck rotary switch cable assembly or a Heavy duty vehicle control harness, FBXSlink can review the requested cable length, terminal arrangement, and wiring details. The product may also fit into wider automotive wiring projects where a dedicated control connection is required. Share your drawing or connection requirements with the team to discuss a suitable configuration and request a quotation.

Why Choose FBXSlink?

Founded in 2013 and based in Shenzhen, China, FBXSlink develops and manufactures automotive and industrial wiring products. Its work covers vehicle diagnostic connection cables, wiring for new energy vehicles, and energy storage harnesses. The company serves customers looking for standard cable products as well as wiring solutions tailored to particular equipment and installation needs.

FBXSlink combines technical development capabilities with a professional production team to support custom harness projects. Customers can discuss wire specifications, connector requirements, cable length, and intended operating conditions with the team before confirming a design. This approach helps establish a clear product specification for each project. Contact FBXSlink to discuss your five-position rotary switch harness requirements and obtain a quotation. Shipping costs can be confirmed according to the destination and order details.
