M8 to M12 Ethernet Cable CAT5E for Industrial Automation & Sensor Connection

M8 to M12 Ethernet Cable CAT5E for Industrial Automation & Sensor Connection

2 week ago

0 0

Shenzhen Fubang Wire harness Co.,Ltd

 2 year year

Product details

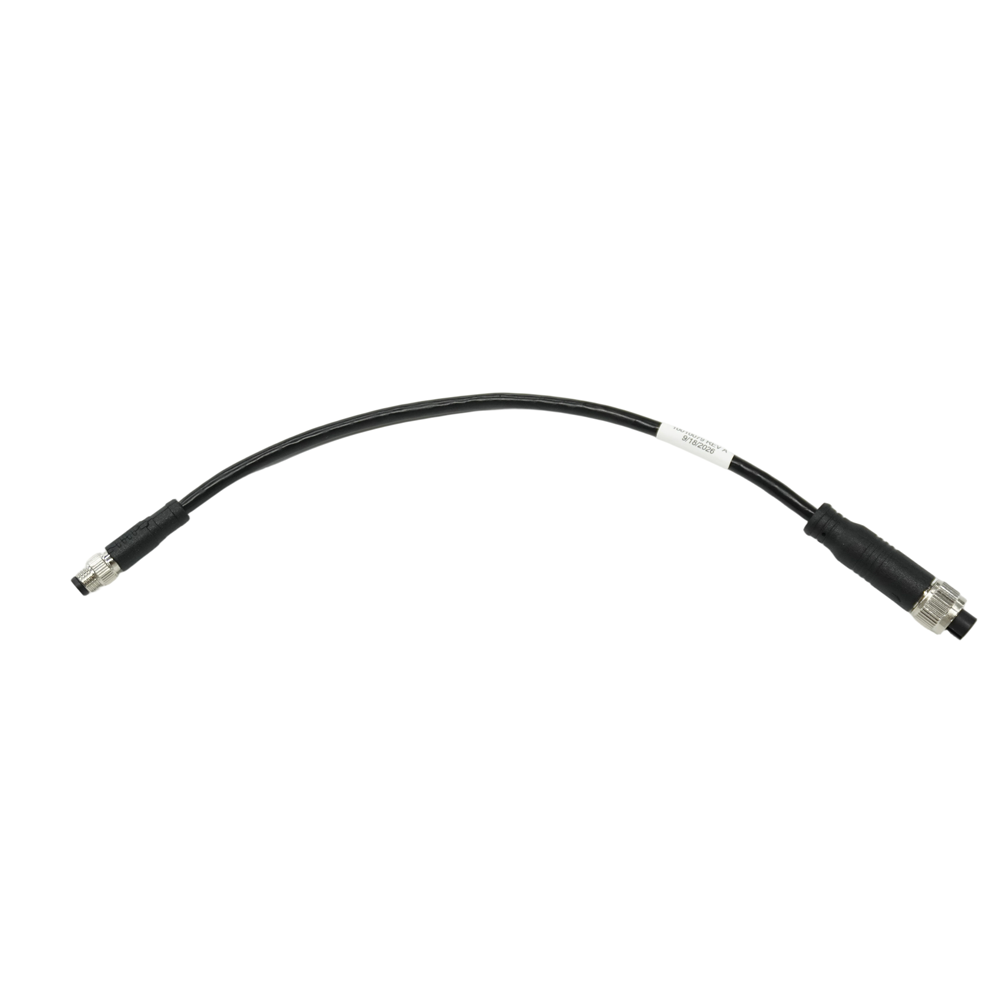

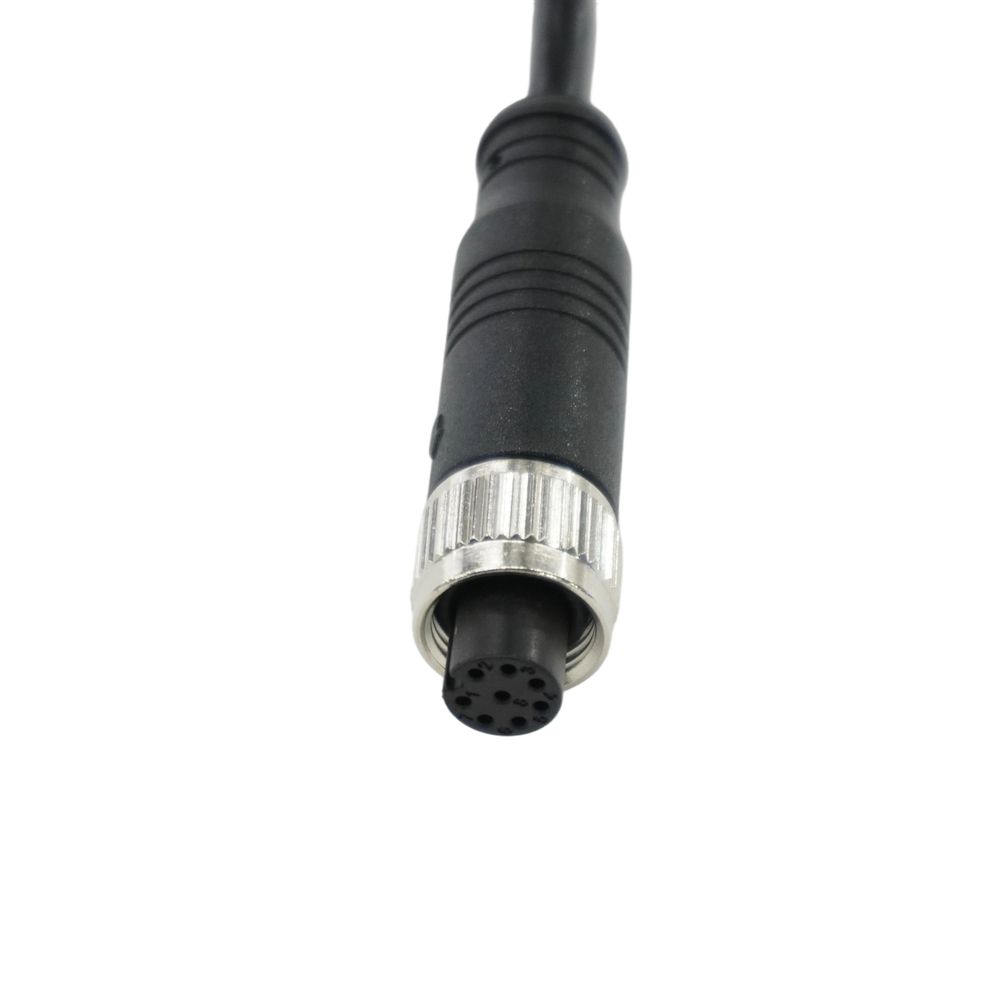

CAT5E M8 M12 Industrial Sensor Cable

M8 to M12 Connection for Industrial Equipment

Connecting sensors to different pieces of industrial equipment is not always straightforward, especially when the system uses different connector sizes. This CAT5E M8 M12 Industrial Sensor Cable provides an M8 to M12 connection for compatible Ethernet and sensor applications. With a compact length of 305±20mm, the cable is easy to work with when the connection needs to stay close to the equipment.

The M8 male M12 female cable design gives equipment builders a clear connection option when their sensor and device interfaces use these two connector formats. Before selecting the cable, it is important to check the connector gender, pin assignment, and equipment interface. For applications that already use circular connection cables, this cable can be considered when an M8-to-M12 connection is required.

CAT5E Cable for Sensor Signal Transmission

The cable follows the CAT5E standard and uses 26AWG conductors. This makes the CAT5E industrial sensor cable suitable for equipment projects where Ethernet-based communication or sensor signal transmission is part of the system. The gold-plated brass terminals provide the specified contact material, while the TPU jacket forms the outer protection of the cable.

Item	Specification
Type	Industrial M8 to M12 Ethernet Cable
Wire Gauge	26AWG
Cable Standard	CAT5E
Working Temperature	-40℃ ~ +105℃
Length	305±20mm
Pins Material	Gold-Plated Brass Terminals
Jacket Material	TPU
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Test Voltage	DC 500V 10MS
Application Fields	Industrial automation, sensor connection, equipment signal transmission
Specific Shipping Cost	Please Contact Us

The working temperature is rated at -40°C to +105°C. The product also has a minimum insulation resistance of ≥10MΩ and a maximum conduction resistance of ≤3Ω. Its listed test voltage is DC 500V 10MS. These specifications give engineers useful information when checking the cable against their equipment requirements. If your system uses circular cable connectors, the complete interface and electrical specifications should be confirmed before production.

Made for Automation and Sensor Connections

This cable is intended for industrial automation, sensor connection, and equipment signal transmission. Its short length can be useful inside control cabinets, machine assemblies, and compact equipment where excessive cable length can make routing more difficult. The M8 and M12 connection format also gives system designers a practical option for compatible sensor interfaces.

For equipment manufacturers working with automotive circular connectors cable or other industrial connection products, FBXSlink can discuss custom cable requirements based on the actual project. Cable length, connector arrangement, wire specifications, and other details can be reviewed before production. If you need a vehicle circular connector cable or a related custom assembly for a particular application, send us your requirements so our team can check the configuration.

Why Choose FBXSlink?

For industrial automation projects, the cable is only one part of the connection. The connector type, cable structure, operating temperature, and installation space all need to work together. FBXSlink has experience developing automotive and industrial wiring products, so our team can look at these details together when customers need an M8/M12 sensor cable or another equipment connection solution.

This product combines CAT5E cable construction, 26AWG wire, a TPU jacket, and M8/M12 connector requirements in one compact assembly. When a standard cable does not quite fit your machine or sensor setup, FBXSlink can work from your drawings, samples, or technical requirements to discuss a suitable custom configuration. Since 2013, our Shenzhen-based production team has supported customers with customized wiring products, with a focus on practical designs, reliable production, and consistent quality.
