OBDII Cable OBD2 DB15P Diagnostic Wiring Harness

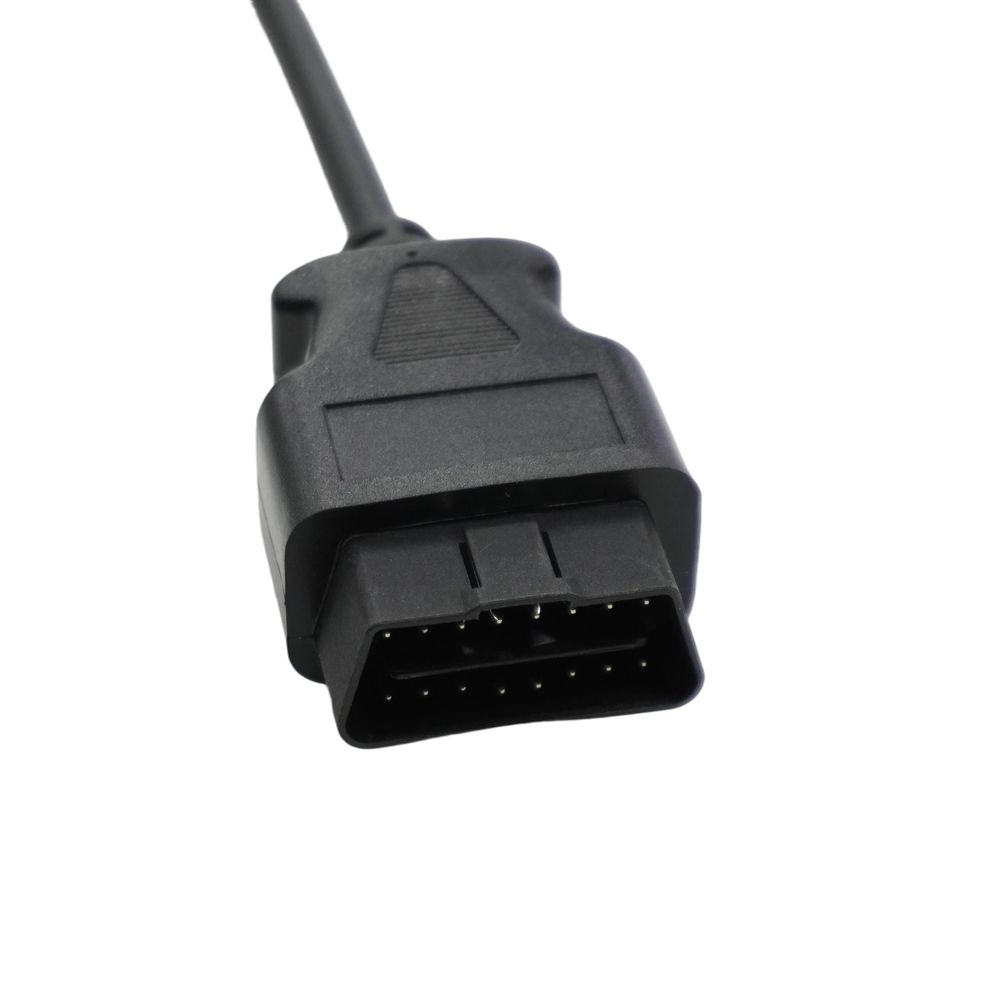

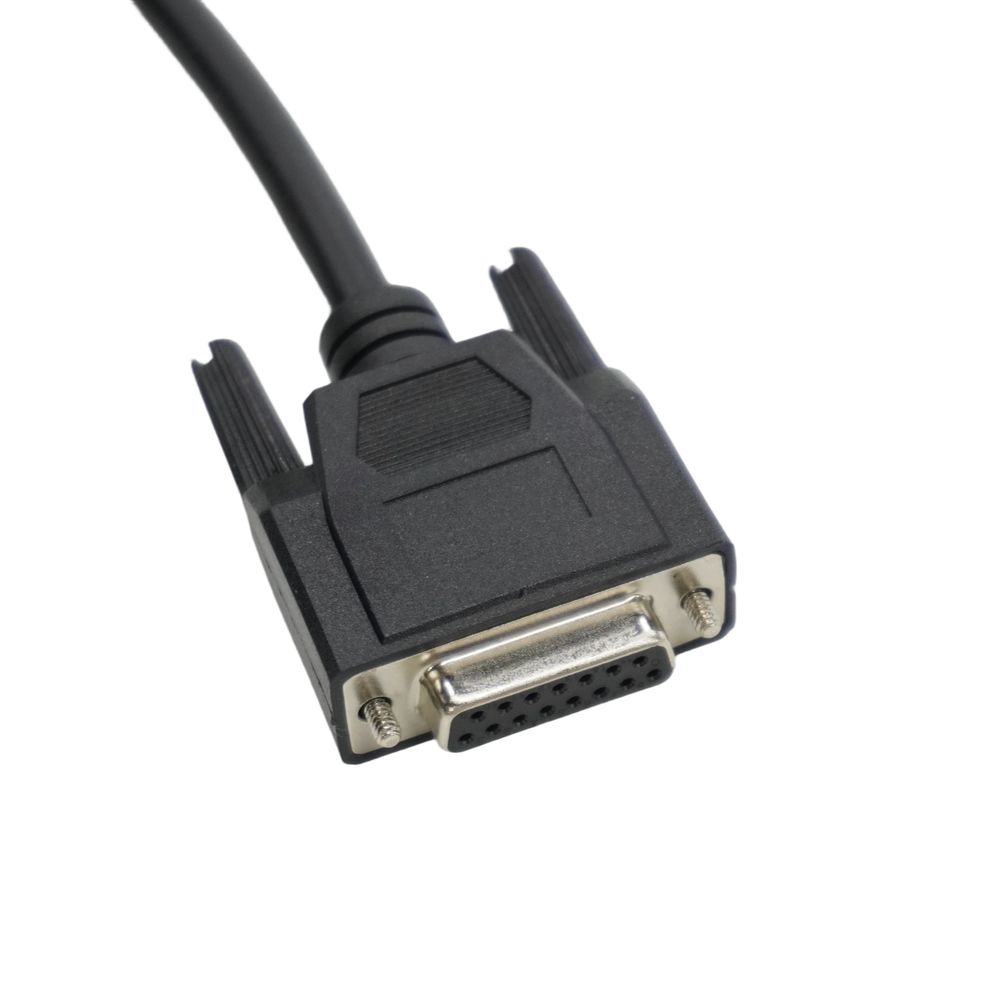

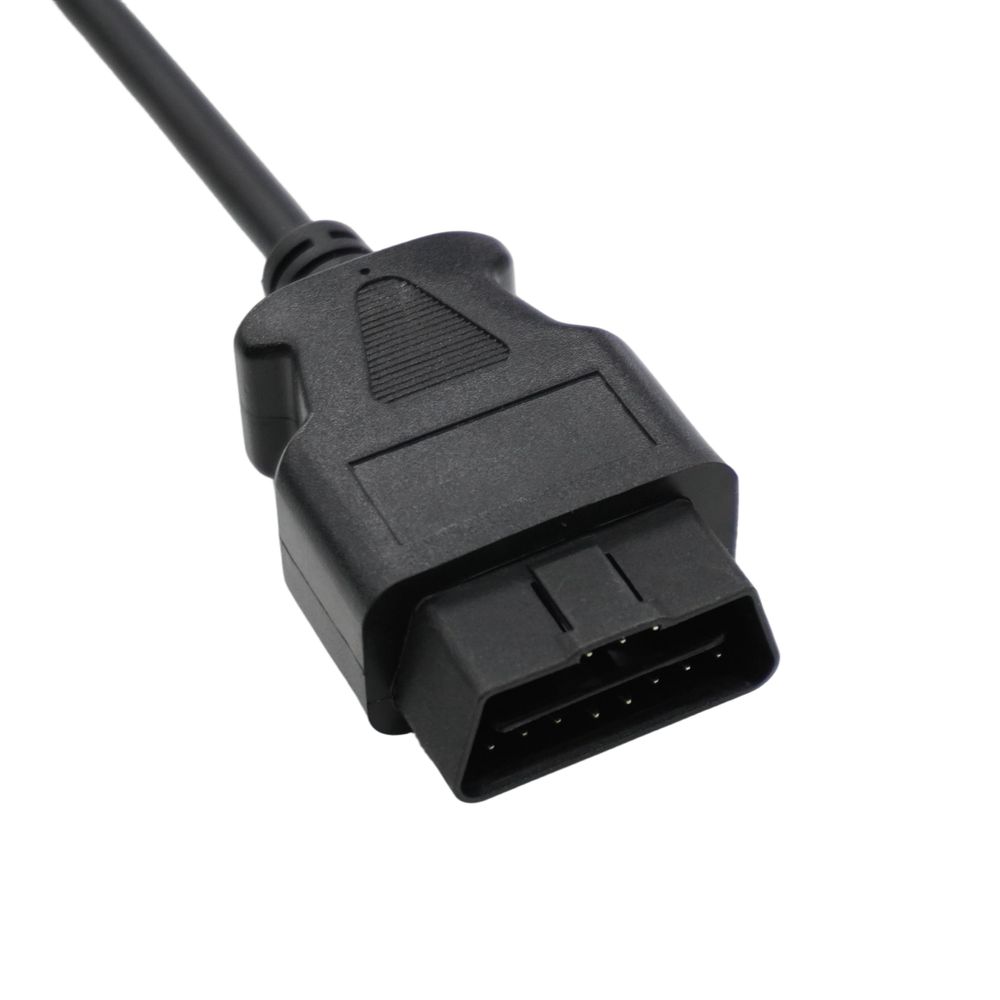

OBDII 16Pin Male to DB15P Female Connection

This OBDII Cable OBD2 DB15P Diagnostic Wiring Harness connects an OBDII 16Pin male plug to a DB15P female connector. It's intended for automotive diagnostic tools and vehicle fault detection equipment that use this interface combination. The black PVC plastic housing gives the connectors a straightforward, practical finish for workshop and testing setups.

If you're sourcing an OBDII cable OBD2 16pin to DB15p harness, make sure the connector layout matches your equipment before placing an order. The OBDII and DB15P interfaces need the correct pin assignment to pass the intended signals. A drawing or pinout is the best way to confirm the wiring, particularly when the cable will be used with a dedicated scanner or diagnostic tool.

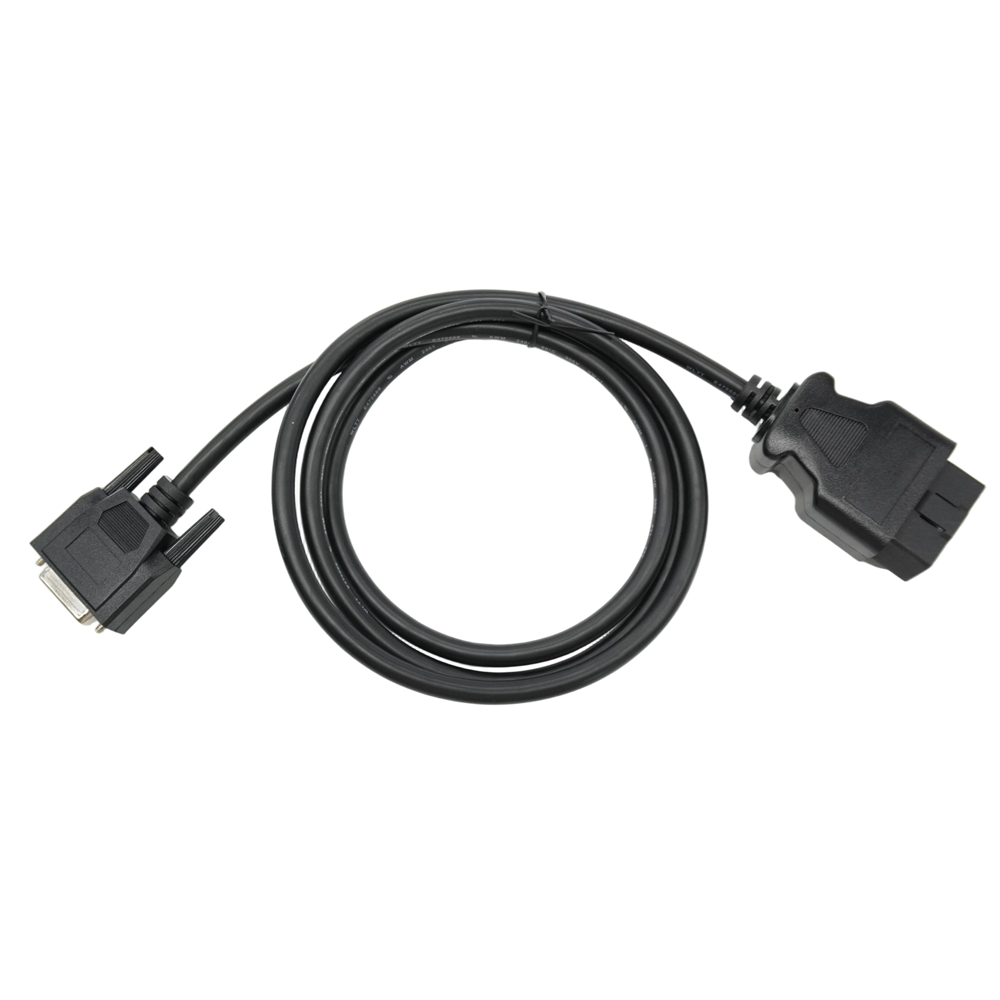

1500mm Cable for Flexible Equipment Placement

With a specified length of 1500±30mm, this harness gives you more reach between the vehicle connection and the diagnostic equipment than a short adapter lead. That extra length can be useful when a scanner or testing unit needs to sit away from the vehicle's diagnostic port. When choosing a car OBDII cable, consider where the equipment will be placed and how the cable will run during testing.

Item	Specification
Type	OBDII 16Pin Male to DB15P Female Automotive Wiring Harness
Voltage	DC 300V
Pins Material	Nickel-Plated Brass Terminals
Plug Material	Black PVC Plastic Housing
Working Temperature	-25℃ ~ +80℃
Length	1500±30mm
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤5Ω
Application Fields	Automotive diagnostic tools, vehicle fault detection equipment, auto scanner connection, on-board electronic signal transmission
Specific Shipping Cost	Please Contact Us

The cable uses nickel-plated brass terminals and a black PVC housing. Its stated working temperature is -25°C to +80°C, with minimum insulation resistance of ≥10MΩ and maximum conduction resistance of ≤5Ω. The specified voltage is DC 300V. These values can help you compare the harness with your project requirements, but the voltage definition should be confirmed if your application has specific electrical test or operating-voltage conditions.

For Vehicle Fault Detection and Diagnostic Tools

This harness is designed for automotive diagnostic tools, auto scanner connections, vehicle fault detection equipment, and on-board electronic signal transmission. The Automotive diagnostic OBDII cable harness configuration may suit a testing setup that requires an OBDII 16Pin male connection on one end and a DB15P female connection on the other. Actual compatibility depends on the equipment's wiring and signal requirements.

For repair shops and diagnostic equipment developers, a Vehicle fault detection OBDII cable needs to match the intended interface rather than just the connector shape. FBXSlink can review the required connection details for a vehicle diagnostic OBDII cable, OBD cable, or automotive OBDII cable project. Please share the relevant drawing or pinout for review, and contact us for shipping costs.

Why Choose FBXSlink?

A 1500mm cable can make a difference when a diagnostic tool needs to sit farther from the vehicle's OBDII port. The OBDII 16Pin male to DB15P female layout also gives this harness a specific role in equipment connections, so both cable reach and the receiving device's interface need to be considered together. FBXSlink supplies automotive diagnostic wiring products for these kinds of connection requirements.

For buyers comparing cable options, the listed PVC housing, nickel-plated brass terminals, and electrical specifications provide concrete points to review before ordering. FBXSlink can assess the required connector arrangement and pinout against your equipment documentation, helping you confirm whether this harness fits the intended setup. If your application calls for a different length or wiring layout, those requirements can be discussed before production.
