Product details

Industrial PC I5 8305G Processor with Dual LAN Dual COM

Industrial Computer — Product Introduction

This mini PC is equipped with Intel Core i5 8250U processor. Our fanless industrial mini PC adopts a fanless fin heat dissipation design for efficient heat conduction, making it suitable for various complex and harsh environments. It comes with dual Gigabit LAN ports to support network isolation, and dual COM serial ports for device connection. It provides independent triple-display output via 1*VGA + 2*HD-MI, along with rich interfaces including 8 USB ports. It is ideal for industrial automation, production line monitoring, machine vision and other scenarios, and reliably supports long-term 24/7 continuous operation at industrial sites.

Industrial Computer — Product Specifications

Processor	Inter Core I5 8305G, 4 cores 8 threads
RAM	2*DDR4 SODIMM, up to 64GB
LAN	2*R45 Realtek 8111H
SSD	2M.2 NVME 2280(One of them supports the SATA protocol), 1HDD/SSD
I/O Interface	1power button, 4USB3.0, 4USB2.0, 2COM ports, 1power jack, 2WiFi antenna connectors, 1VGA, 2HD-MI, 2LAN, 1microphone jack, 1*headphone jack
OS	Win7/8/10, ubuntu/LINUX/CENTOS
Power Input	12V-19V
Dimensions	Approx. 21015068mm
Weight	Approx. 1.55kg
Installation Method	VESA / Wall mounted / Desktop mounted

Industrial Computer — Memory and Storage

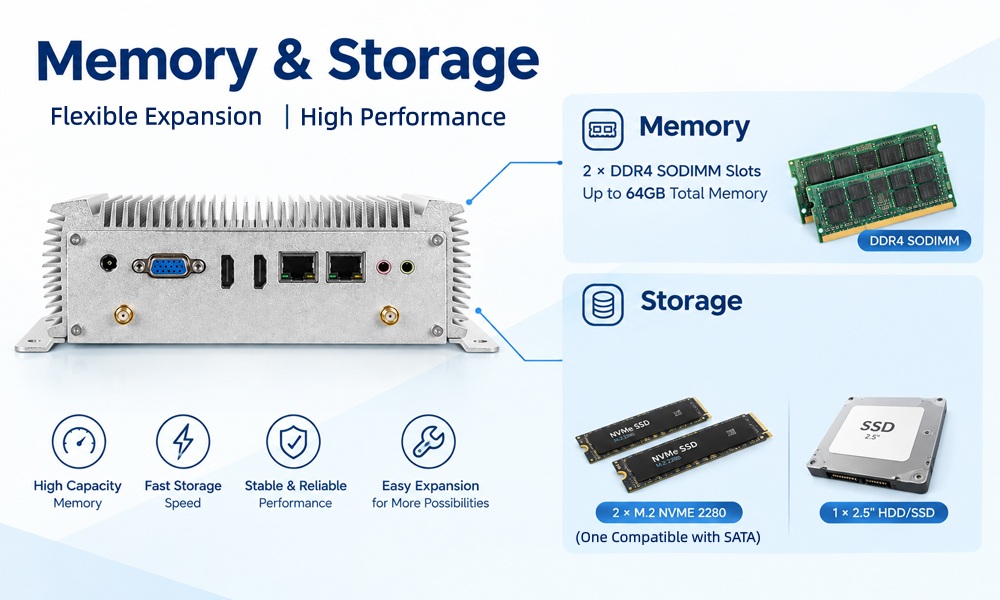

This Mini Computer has 2*DDR4 SODIMM slots, supporting up to 64GB large memory for smoother multi-task concurrent processing. It adopts a 3 bay storage design: 2*M.2 NVME 2280 slots (one compatible with SATA protocol) + 1*2.5-inch HDD/SSD bay. Different drives can be flexibly combined to physically separate system, business and archive data, improving data security.

Industrial Computer — CPU

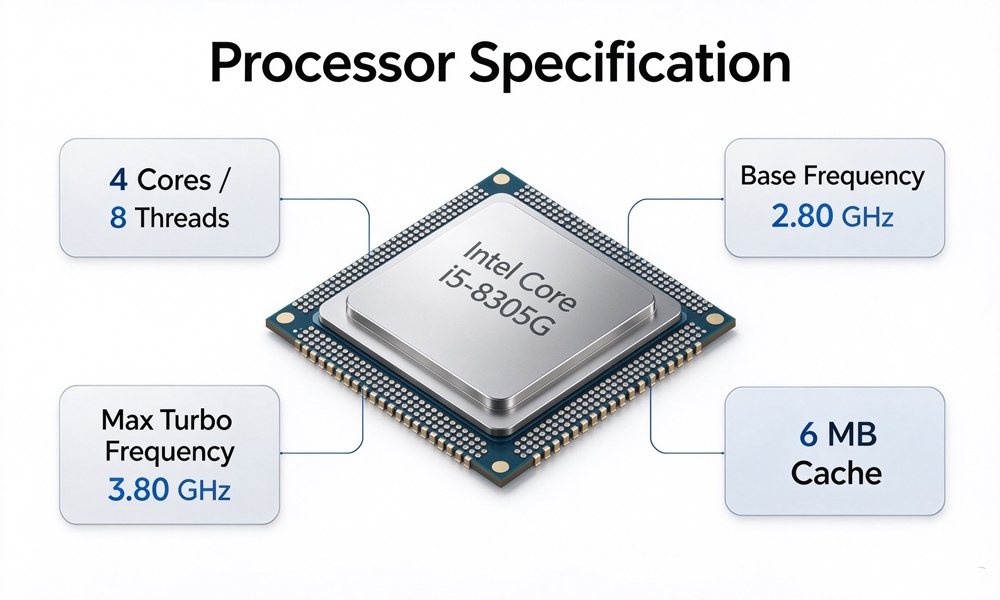

This Industrial Mini PC is powered by the Intel Core i5 8305G processor, which has 4 cores and 8 threads. It runs at a base frequency of 2.80 GHz with a maximum turbo frequency up to 3.80 GHz and comes with 6 MB cache. Integrated with Intel UHD Graphics 630 and Radeon RX Vega M GL graphics chips, it delivers balanced computing and graphics processing performance. Designed for fanless industrial mini PCs, it can steadily handle industrial workloads such as multitasking, industrial machine vision and multi-display output applications.

Industrial Computer — Application Scenarios

This Mini PC with RS232 can operate in special factory environments of various industries. It applies to industrial automation, workshop equipment, financial devices, automobile assembly, smart transportation, self-service kiosks in shopping malls and more.

Industrial Computer — Interface Description

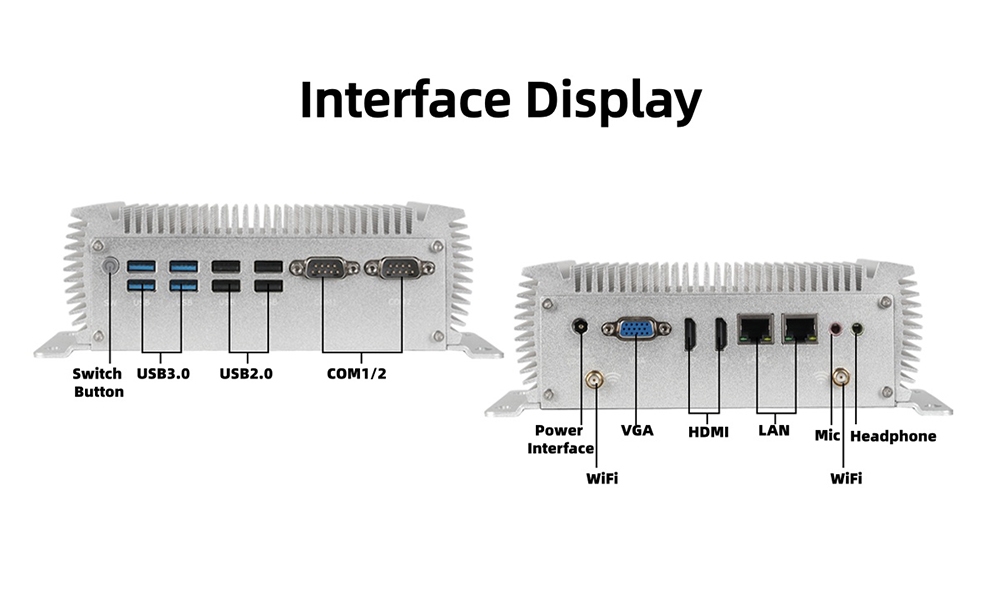

This Fanless Industrial PC features abundant interfaces and multiple expansion options to meet diverse industrial requirements. Front panel: 1*power button, 4*USB3.0, 4*USB2.0, 2*COM ports;
Rear panel: 1*power jack, 2*WiFi antenna connectors, 1*VGA, 2*HD-MI, 2*LAN, 1*microphone jack, 1*headphone jack.

Industrial Computer — Expansion Features

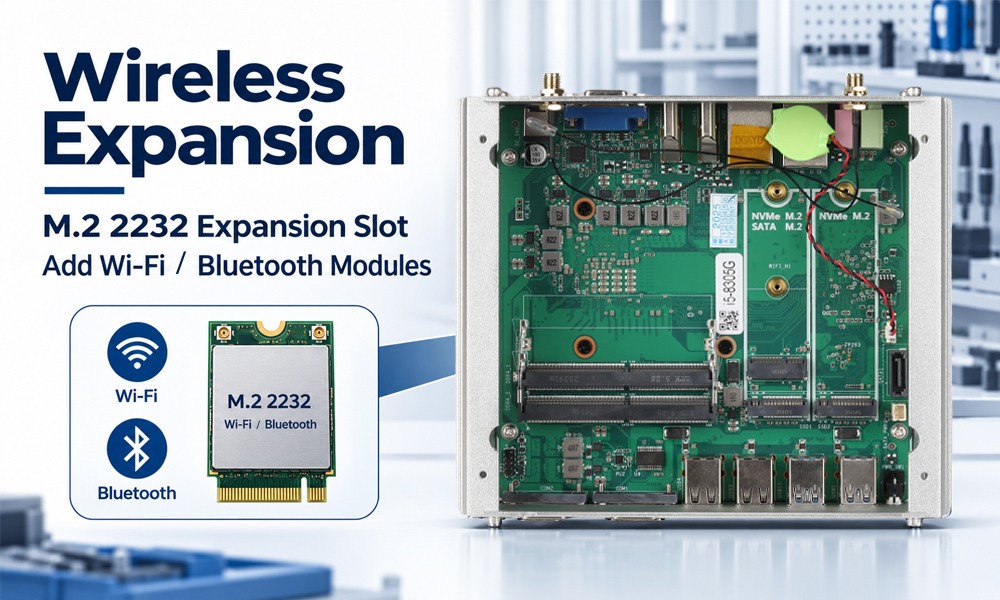

This mini computer reserves an M.2 2232 wireless expansion slot. Users can install WIFI/BT modules to add wireless communication capability flexibly. When wired network ports are unavailable outdoors, the M.2 WiFi module can connect to wireless networks or hotspots for data transmission.
