Eaton 5423-6423 Hydraulic Pump

Product Description

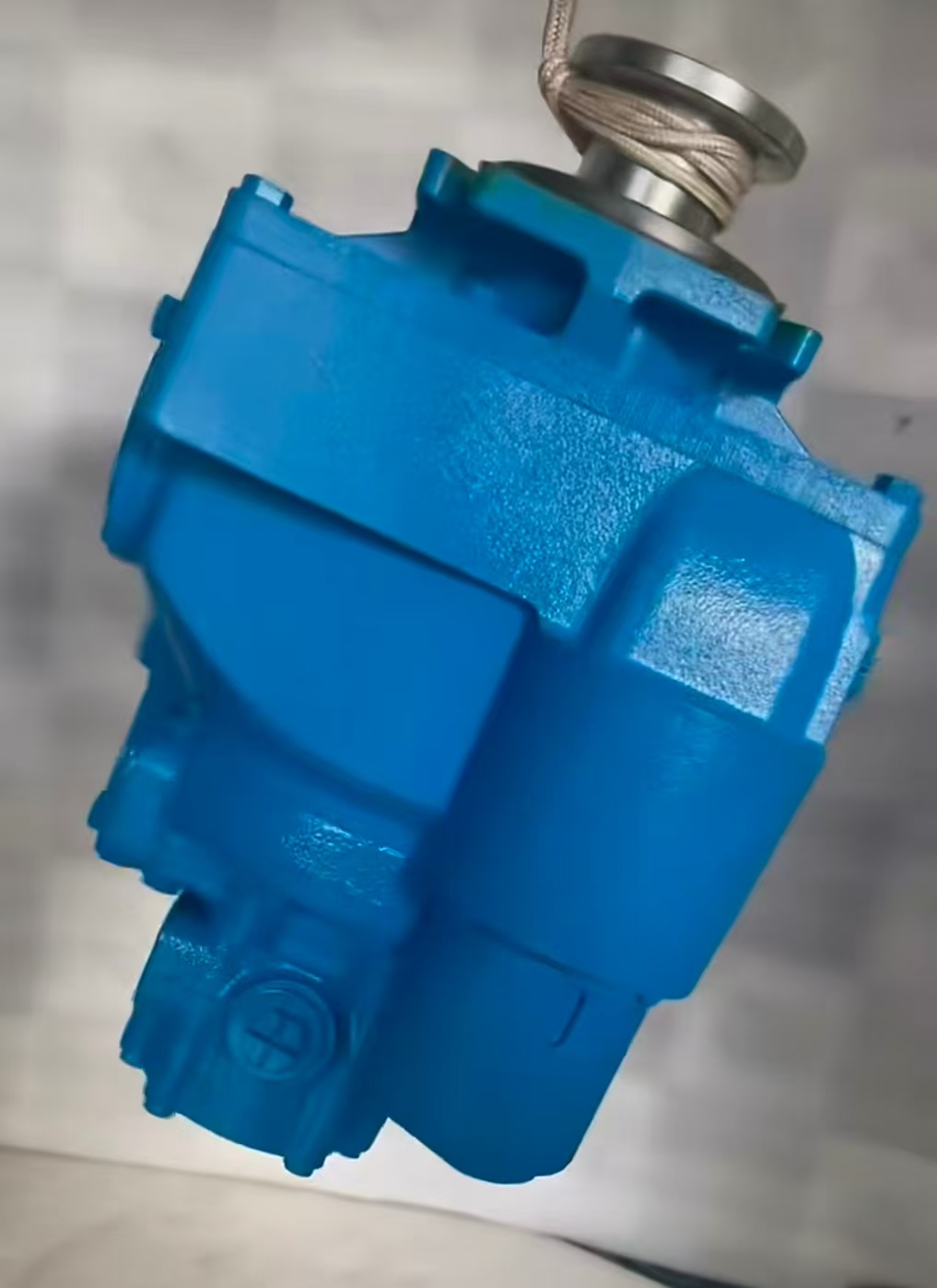

The Eaton 5423-6423 Hydraulic Pump is a high-performance closed-loop Hydraulic piston pump widely used in the hydraulic system of concrete mixer truck Machine. As a core power source, this hydraulic pump converts mechanical power into hydraulic pressure energy to drive the mixer drum rotation steadily under continuous heavy load.

This series axial piston pump adopts robust cast iron housing and precision polished piston assembly. It features high volumetric efficiency, low noise and stable output under high pressure. The integrated control valve design enables convenient adjustment of displacement and torque. It can perfectly replace the original Eaton pump, easy to install and maintain for your hydraulic system overhaul.

We supply original and high-quality aftermarket Eaton 5423-6423 hydraulic pumps. Every unit undergoes strict factory pressure and leakage testing before shipment. It can withstand continuous operation in harsh construction environments and extend the service life of your heavy-duty Machine.

Technical Parameters

- Model: Eaton 5423 / 6423 Hydraulic Piston Pump

- Pump Type: Variable Displacement Axial Hydraulic piston pump

- Displacement: 5423: 89.1 cm³/rev; 6423:105.5 cm³/rev

- Rated Pressure: 42 MPa

- Max Peak Pressure: 48 MPa

- Rated Speed: Up to 3200 rpm

- Fluid: Anti-wear hydraulic oil

- Oil Viscosity Range: 10 ~ 400 mm²/s

- Working Temperature: -20℃ ~ +85℃

- Application: Concrete mixer truck hydraulic system

- Condition: Brand New / Aftermarket Replacement

- Package: Standard export wooden case
