AD-60 Air Oil Cooler (AH0608T Hydraulic Radiator)

Product Description

AD-60 Air Oil Cooler, also known as AH0608T Hydraulic Radiator, is an air-cooled plate-fin heat exchanger specially designed to dissipate heat for the hydraulic system of industrial and mobile Machine. It keeps hydraulic oil within a safe working temperature range during continuous heavy-duty operation, preventing oil degradation, seal aging and overheating failures of pumps, motors and Hydraulic valve assemblies .

This cooler adopts high-quality aluminum plate-fin heat dissipation core with large heat exchange area, matched with axial cooling fan. It supports multiple fan voltage options including DC12V, DC24V, AC220V and AC380V to meet different power supply requirements of various Machine. The AD-60 is 1:1 interchangeable with AH0608T, with max oil flow up to 60 L/min and G3/4 inch oil port connection for easy installation into existing hydraulic system circuits .

Compact and rugged overall structure, good vibration resistance, dust and oil mist resistance, suitable for harsh outdoor working environments of construction machinery, hydraulic stations, lifting equipment and agricultural machinery. It is widely used for heat dissipation of hydraulic power units and matched with CARTRIDGE VALVE manifolds, hydraulic pumps and valve groups. Strict pressure and performance testing ensures stable long-term operation. Ready stock supports fast delivery for OEM assembly and aftermarket replacement.

Key Features

- AD-60, fully interchangeable with AH0608T hydraulic oil radiator, air-cooled heat exchanger for hydraulic system

- Aluminum plate-fin core, large heat dissipation area, high heat exchange efficiency

- Max flow rate: 60 L/min, G3/4" oil port, convenient pipeline connection

- Multiple fan voltage selections: DC12V/24V, AC220V/380V optional

- Heavy-duty vibration-resistant structure, adapts to harsh working conditions of mobile Machine

- Protects pumps, motors and Hydraulic valve from high-temperature damage

- Easy mounting and maintenance, ideal for hydraulic station and mobile machinery cooling

- Reliable quality inspection before shipment, quick delivery for aftermarket replacement

Technical Specifications

- Model: AD-60 (AH0608T interchangeable)

- Type: Air-cooled hydraulic oil cooler / hydraulic radiator

- Max oil flow: 60 L/min

- Heat dissipation structure: Aluminum plate-fin

- Oil port: G3/4"

- Fan voltage: DC12V, DC24V, AC220V, AC380V optional

- Working pressure: 2 MPa

- Application: Hydraulic stations, construction Machine, lifting equipment and other hydraulic system cooling

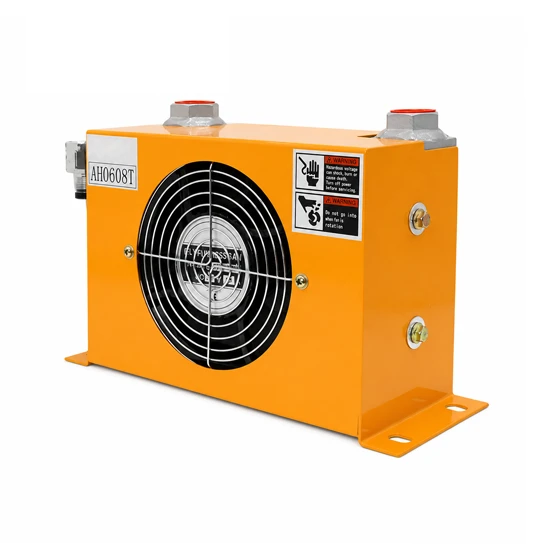

adiffer-AH0608T-AD60-vane-pump-oil-drain-cooler-60lpm-fan-driven-01
