Product details

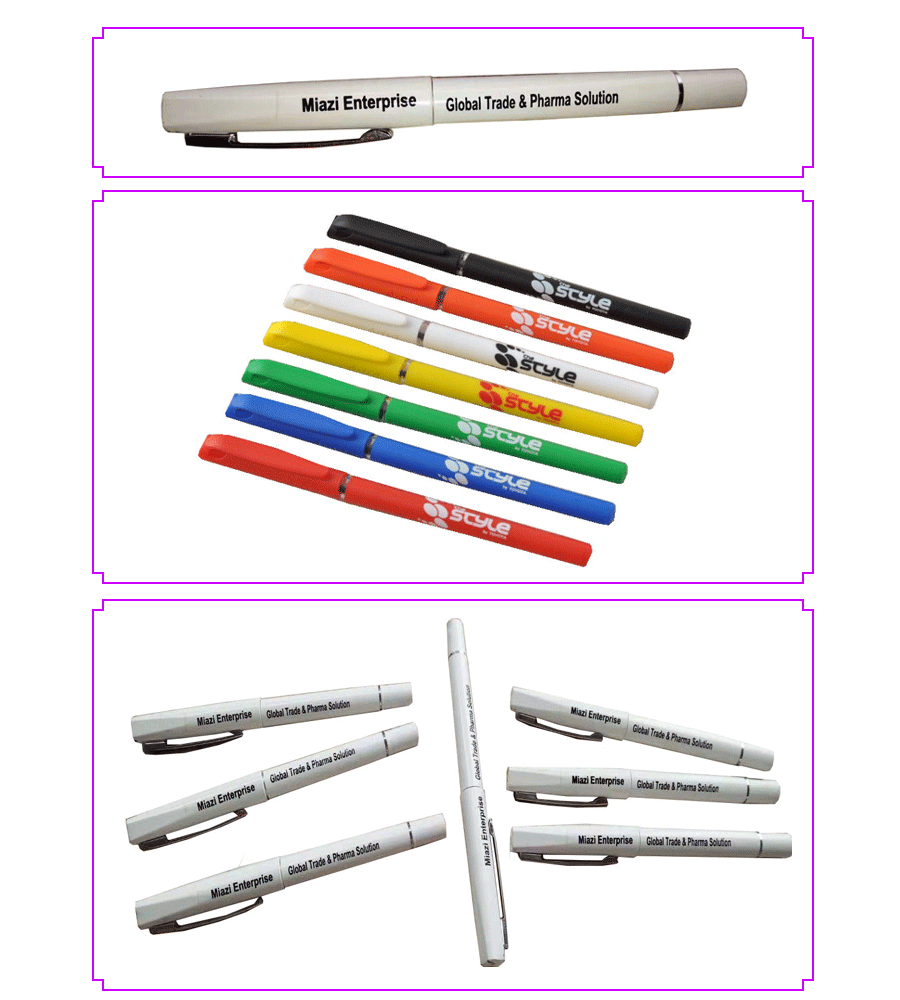

Samples

This fully automatic high-speed automatic screen printing machine is a high-precision automatic silk screen printer designed for circumferential single-color printing on small-diameter cylindrical products up to 20 mm. It is widely used in the stationery industry and is ideal for high-efficiency production on ballpoint pens, pencils, markers, whiteboard pens, gel pens, cosmetic tubes, medical syringes, bamboo chopsticks, and other cylindrical products. As a professional automatic screen printing machine / automatic silk screen printing equipment, this model delivers high-speed operation, stable performance, and consistent printing quality. The integrated automatic screen printing system ensures precise ink transfer and excellent print durability, making it suitable for industrial-scale production. The machine features an advanced automatic loading and unloading system for screen printing, which significantly reduces labor intensity and improves production efficiency. The smooth rocker-type transfer mechanism ensures stable motion control, accurate positioning, and continuous high-speed output. Designed as a dual-station automatic screen printing machine, this equipment integrates two screen printing units into one system, greatly improving productivity while saving factory space. It is an ideal solution for manufacturers seeking a compact yet powerful automatic cylindrical screen printer. In addition, this automatic silk screen printing machine is widely applied in various industries, including printing on birthday candles, round metal parts, precision cylindrical components, small plastic containers, chopsticks, drumsticks, and ceramic heating tubes. It ensures stable, high-precision results across different materials and shapes. As a cost-effective and versatile automatic screen printing solution, this equipment is perfect for businesses looking to upgrade to high-speed industrial automation.

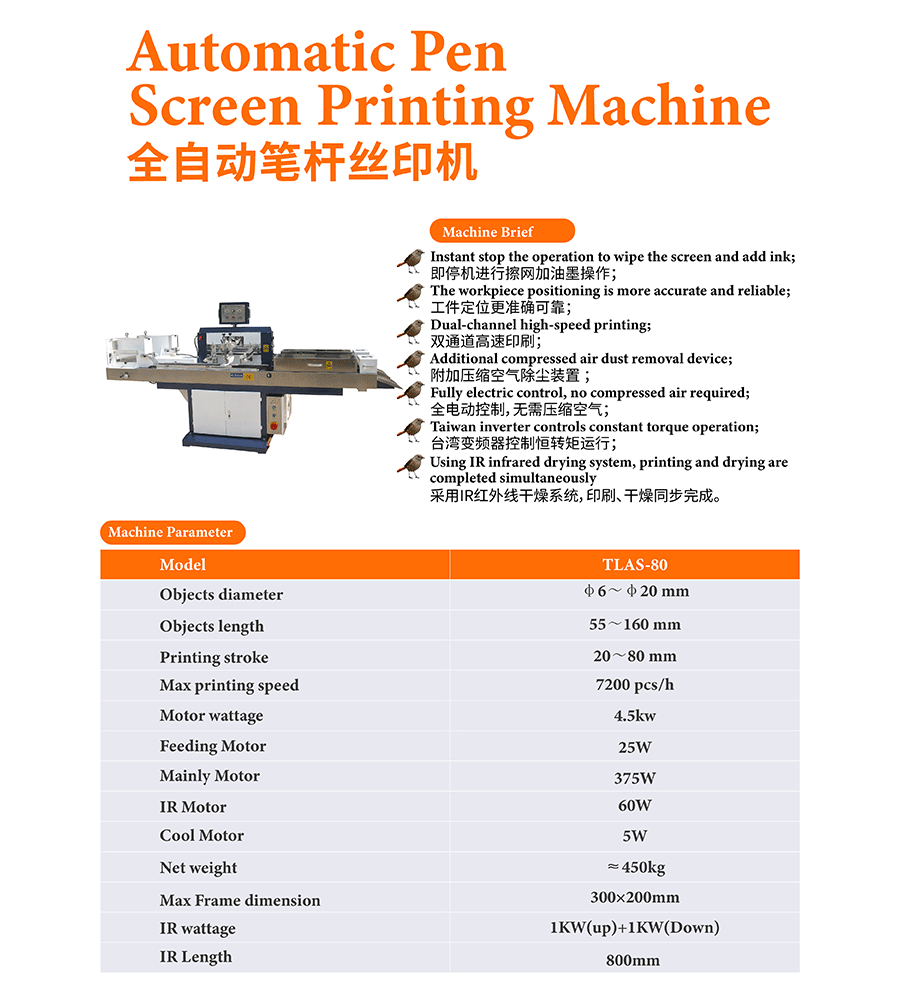

Technical parameters

Objects diameter:φ6~φ20 mm
Objects length:55~160 mm
Printing stroke: 20~80 mm
Max printing speed: 7200 pcs/h
Motor wattage: 4.5kw
Feeding Motor: 25W;
Mainly Motor: 375W;
IR Motor: 60W
Cool Motor: 5W.
Net weight: ≈450kg
Max Frame dimension: 300×200mm.
IR wattage: 1KW(up)+1KW(Down)
IR Length: 800mm

Power: 1 phase 220V;
5-7Bar Compress air ;
Liquefied petroleum Gas, Natural gas

Package dimension: 3110*1270*1550mm; Gross weight: 750kg. 6.12204

Advantage

Fully automatic feeding and printing system for continuous production
High-speed screen printing performance for improved output efficiency
Inline IR drying system for fast and stable curing
Screen cleaning function during machine stop to maintain print quality
Ink refill support without stopping production, improving uptime
Optional vacuum adsorption system for precise product positioning
Dual-product printing capability for higher productivity and flexibility
Integrated surface cleaning device for improved ink adhesion
Double-blade ink coating system ensuring uniform ink distribution
Adjustable printing stroke for different product sizes and requirements
Adjustable printing speed for flexible production control
Taiwan frequency conversion system for stable and energy-efficient operation
Low-noise electrical control system for improved working environment
High-precision printing accuracy for consistent quality output
Stable mechanical structure for long-term continuous operation
Suitable for round, flat, and irregular industrial product printing
Easy operation with intelligent control system and parameter adjustment
Designed for high-volume industrial screen printing production lines

Catalogue

Details

Types of pen holder screen printers

The pen is the most important stationery, which almost everyone will encounter in life and study. The automatic screen printer for pen holders is a printing device that performs screen printing on the surface of the pen holder. There are several types of pen holder screen printers:

Chain-type linear pen holder screen printer

The transmission method of the pen holder adopts the chain transmission method. When entering the printing area, there will be a support seat to lift the pen holder, and then print. The drying of the ink adopts IR curing or UV curing.

Vertical turntable pen holder screen printer

The vertical turntable structure is an important form of monochrome automatic screen printer. When the pen holder is pushed onto the turntable fixture, it will enter the pre-press processing, positioning, screen printing, UV curing and unloading position in a clockwise or counterclockwise direction. The vertical turntable structure is more complex than the chain-type linear structure, but it has high precision and fast speed.

Flat turntable pen holder screen printer

For multi-color pen holder screen printing, the flat turntable pen holder screen printer is a more ideal way. It can perform precision overprinting of two-color, three-color or even more colors. The flat turntable structure generally also includes pre-press processing, positioning, silk screen printing, UV curing and other devices. Since it is generally multi-color silk screen printing, its structure is more complicated.
