H-TC650MT Roller thhermal transfer foil stamping machine

5 year ago

211 0

KC Printing Machine (Group) Limited

 10 year year

Product details

H-TC20RRZ Roll to Roll Zipper Hot foil Stamping Machine//

Usage and characters

The zipper consists of two toothed cloth strips and a slidable puller. When the puller slides, the teeth can mesh or separate with each other, thereby closing and opening the object. It is widely used in clothing, backpacks, tents and other items. The toothed belt of the zipper can be plastic or metal. When it is made of plastic, hot foil stamping and thermal transfer processes are used to decorate its surface with colors to improve its aesthetics.

Zipper hot stamping machine and thermal transfer machine are special hot stamping equipment. Since the lock part of the zipper is higher than the cloth strip it is connected to, the lock part is usually fixed during hot stamping and thermal transfer, that is, a groove is set on the workbench of the hot stamping machine and thermal transfer machine, and the width of the groove is just equal to the lock part of the zipper, so that the position of the zipper can be fixed during the hot stamping and transfer process.

Zippers are generally supplied in rolls, so zipper hot stamping machines and zipper heat transfer machines also use roll-to-roll motion, that is, one set of winding devices is used to install hot stamping foil, and the other set of winding devices is used to install zippers. The hot stamping foil will be deposited on the zipper and enter the silicone roller hot stamping device. Driven by the motor, the zipper and the hot stamping foil move synchronously, and the hot stamping foil will be transferred to the zipper.

Technical data of Roll to Roll Zipper thermal trasnfer Machine

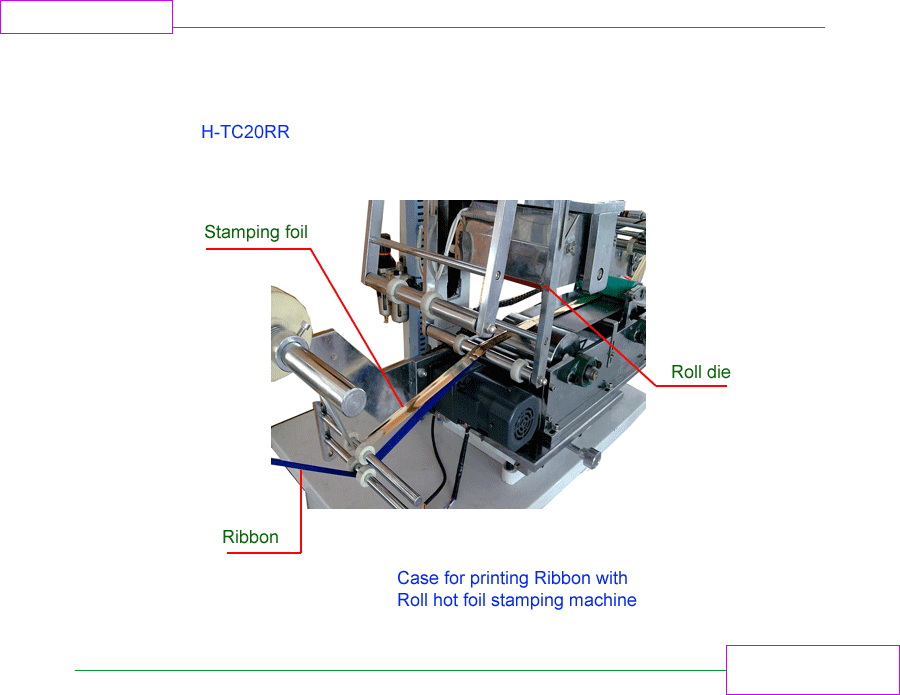

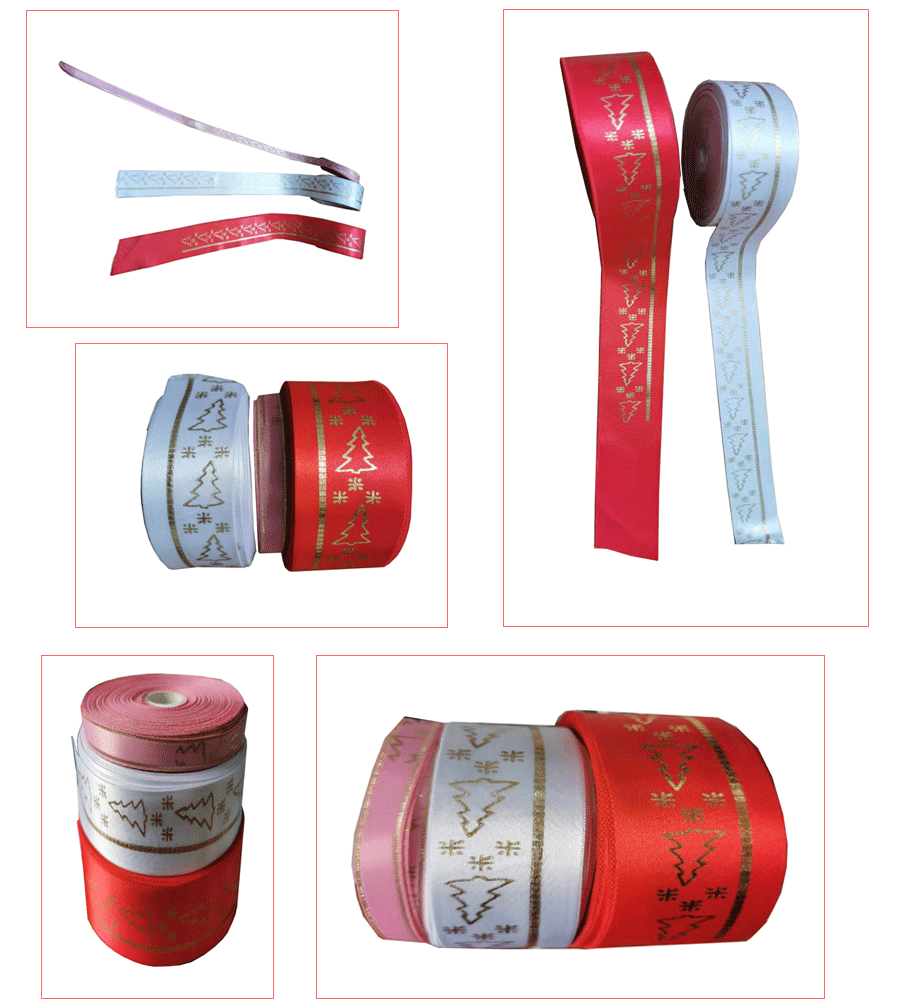

H-TC20RRZ is designed for roll-like PVC, ribbon or other materials such as stickers gilt surface heat transfer machine, it has two sets of feeding roll, a set of installation tipping paper, a set of installation need gilt roll material. It is widely used in ribbon, stickers, PVC film, ribbon, rubber stamping and other products. Indirect stamping process: First, in gilt plasma screen above the ribbon, followed by then H-TC20RR heat transfer machine transfer. For the indirect process, logo screen spacing depends on the spacing. Direct stamping process: the silicone roller replacement rollers for the prototype model of the copper can be achieved directly bronzing. For the direct process, logo copperplate roller spacing depends on the diameter.
H-TC20RRZ Ribbon hot foil stamping machine//Parameters
Size of Roller:120mm Max roller width: 100 mm Max pressure:100 Kg Up-and down distance: 75 mm Heat wattage: 4×400 W Foil feed: Motor Drive Temperature range: 0 - 400oC	Net Weight :310 Kg Outer dimension:1300 x 620 x 1430 mm . Works supply : 110V-220V Power supply. Pakcage dimension:970×700×900mm; Gross weight: 95.5KG; CBM: 0.6111 H.S.CODE : 8443192190 Certificate : CE

Structure-Advantage of zipper hot foil stamping machine

Table settings embossing roller, can be tightly foil paper or transfer film pressure in the ribbon surface;
Rubber rollers rotating heat transfer uniformity, suitable for ribbon continuous stamping;
Workbench can adjust the position of the front and rear direction, to ensure the best stamping position of the ribbon;
The transfer pressure, temperature, speed can be based on different material for the flexible adjustment;
The nose height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products;
Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor;
Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect.

What is the principle of the zipper hot foilstamping machine?

The zipper roll-to-roll hot stamping machine is used to stamp a whole strip of hot stamping foil of various colors on the zipper teeth. It consists of two sets of roll feeding mechanisms, one for the conveying of hot stamping foil and one for the conveying of zippers. The stamping mechanism of the hot stamping machine is composed of a silicone roller driven by a motor, and the workbench is composed of two steel rods as a transmission device. After the silicone roller is pressed down, the hot stamping foil is pressed against the workbench and kept rotating continuously to transfer the metal coating on the hot stamping foil to the zipper.

Material conveying

The zipper is continuously conveyed in roll form through the unwinding device, and the hot stamping foil (roll) is also unrolled synchronously. The hot stamping foil passes through the gap between the silicone roller and the steel roller to form a "roll-to-roll" continuous processing mode.

Hot stamping heating and pressure

The silicone roller adopts radiation heating. The temperature control method is the same as that of the general hot stamping machine. The actual temperature is detected by thermocouple and compared with the set temperature. When the actual temperature is lower than the set temperature, the heating system will continue to work. When the set temperature is reached, the heating device will be powered off and stop heating. This is repeated to ensure that the actual temperature fluctuates within the set temperature range.

Heat transfer process

High temperature and pressure melt the adhesive on the surface of the hot stamping foil, and at the same time, the metal layer (such as aluminum foil) or the pigment layer is separated from the base film (usually PET film) and firmly attached to the zipper surface under pressure.

Separation and Rewinding

After hot foil stamping, the base film of the hot stamping foil is separated from the zipper and recycled through the rewinding device.
