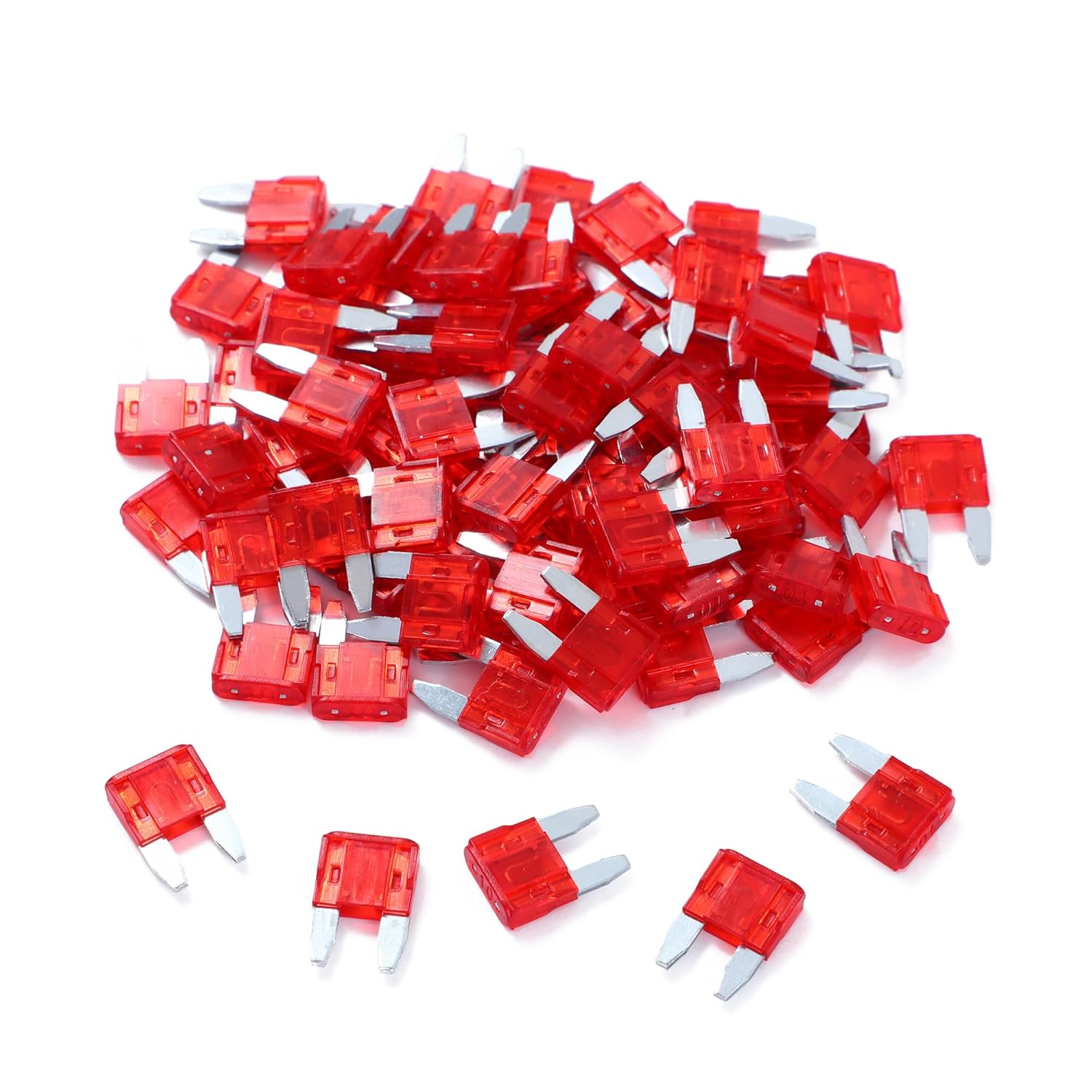

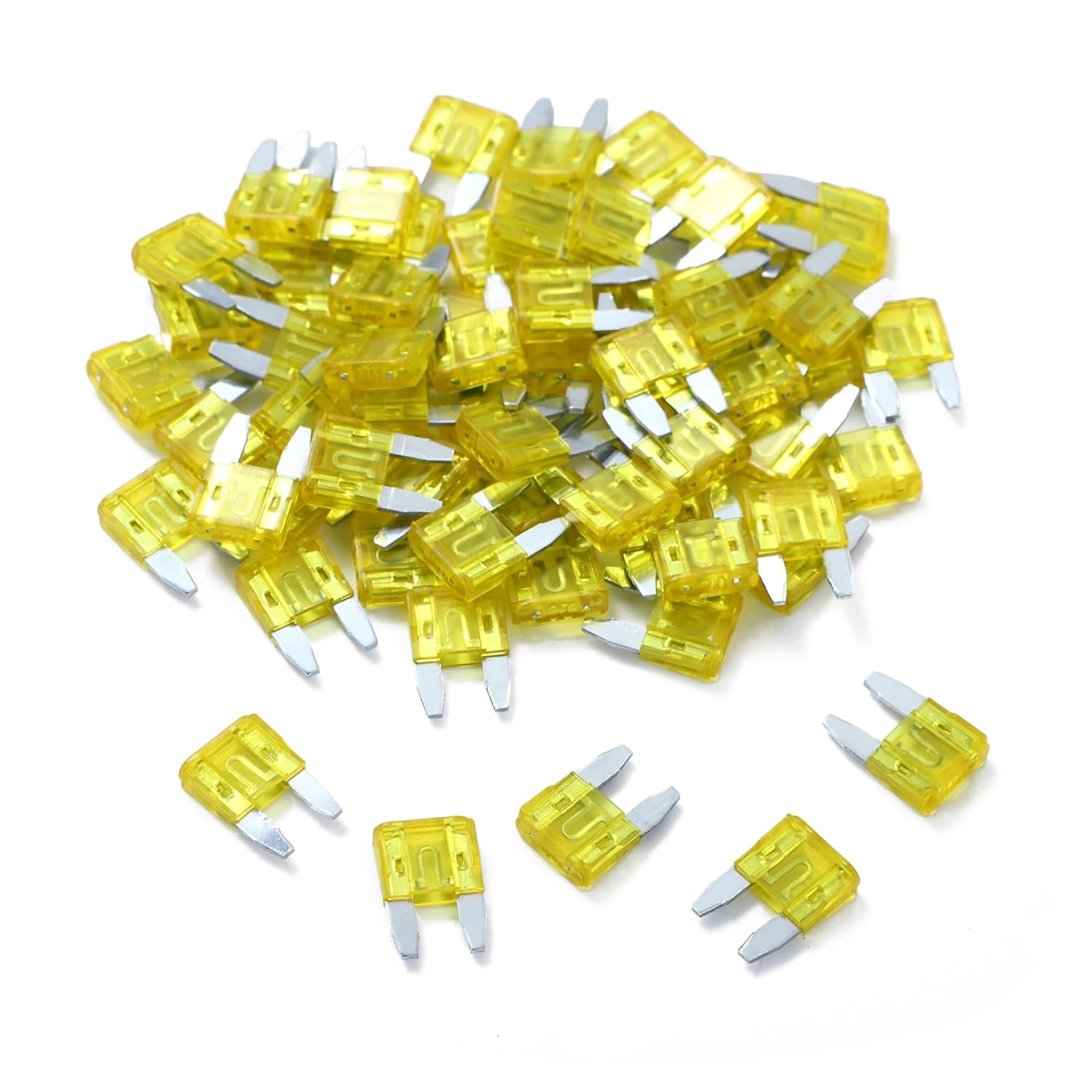

The Autoido 32V MINI automotive blade fuse is a compact plug-in fuse designed to protect vehicle electrical circuits against overload and short-circuit conditions. It is available in multiple current ratings from 1A to 40A and is commonly used in passenger cars, trucks, motorcycles, RVs, and other 12V/24V DC automotive electrical systems.
Product Description
The Autoido ADM series is a 32V MINI automotive blade fuse designed to protect compatible automotive and DC electrical circuits from overcurrent conditions. The fuse is available in current ratings from 1A to 40A and features a PC housing with zinc alloy terminals.
With a specified breaking capacity of 1000A at 32V DC and an operating temperature range of -40°C to +125°C, the MINI blade fuse is suitable for cars, trucks, RVs, motorcycles and other compatible 32V DC electrical systems.
Different current ratings are available to meet different circuit protection requirements. Customers should select the same fuse size and current rating specified by the vehicle or equipment manufacturer.
| Parameter | Specification |
|---|---|
| Product Type | MINI Automotive Blade Fuse |
| Rated Voltage | 32V DC |
| Current Rating | 1A–40A |
| Breaking Capacity | 1000A at 32V DC |
| Operating Temperature | -40°C to +125°C |
| Housing Material | PC |
| Terminal Material | Zinc Alloy |
| Mounting Type | Plug-In Blade |
| Application | Automotive / Motorcycle / RV / Truck |
| Brand | Autoido |
| OEM/ODM | Available |
Available 32V MINI Fuse Ratings
The Autoido MINI blade fuse is available in 12 standard current ratings from 1A to 40A, allowing users to select a fuse according to the original circuit protection specification.
|
Catalog NO.
|
Voltage Rating
|
Ampere Rating
|
|
ADMIN-01
|
32V
|
1A
|
|
ADMIN-02
|
32V
|
2A
|
|
ADMIN-03
|
32V
|
3A
|
|
ADMIN-05
|
32V
|
5A
|
|
ADMIN-7.5
|
32V
|
7.5A
|
|
ADMIN-10
|
32V
|
10A
|
|
ADMIN-15
|
32V
|
15A
|
|
ADMIN-20
|
32V
|
20A
|
|
ADMIN-25
|
32V
|
25A
|
|
ADMIN-30
|
32V
|
30A
|
|
ADMIN-35
|
32V
|
35A
|
|
ADMIN-40
|
32V
|
40A
|
To choose the correct MINI blade fuse, check three key specifications: fuse size, voltage rating and current rating.
Make sure the vehicle or equipment uses a MINI blade fuse rather than Standard ATO/ATC, Micro, Micro2 or another fuse format.
The fuse should have a voltage rating suitable for the electrical system. This product is rated at 32V DC.
Use the same current rating specified by the vehicle or equipment manufacturer. For example, replace a 10A fuse with another 10A fuse rather than installing a higher-rated fuse.
MINI fuses and standard ATC/ATO blade fuses are both commonly used for automotive circuit protection, but the MINI fuse has a smaller body and requires less installation space. Both fuse types are available in overlapping current ratings, but they are not interchangeable simply because the amperage or fuse color is the same.
When replacing a fuse, always match the correct fuse type, physical dimensions, current rating, and voltage rating specified by the vehicle or equipment manufacturer. A fuse with the same color or amperage but a different body size may not fit the fuse holder correctly or provide the intended protection.
A standard MINI fuse and a Low Profile MINI fuse are designed for similar low-voltage automotive applications, but their physical designs are different. The Low Profile MINI fuse has a shorter housing and more compact terminal structure, making it suitable for fuse boxes where installation height is limited.
Although MINI and Low Profile MINI fuses may share similar current ratings and color coding, they should not be treated as direct replacements unless the fuse box or equipment specification allows both types. Always confirm the fuse dimensions, terminal design, amperage, and voltage rating before replacement.
| Feature | MINI Fuse | Standard ATC/ATO Fuse | Low Profile MINI Fuse |
|---|---|---|---|
| Body Size | Compact | Larger | Very compact |
| Typical Use | Automotive circuits | Automotive circuits | Space-limited fuse boxes |
| Current Ratings | Multiple ratings available | Multiple ratings available | Multiple ratings available |
| Interchangeable | Not automatically | Not automatically | Not automatically |
| Selection Basis | Size, amperage, voltage, fuse type | Size, amperage, voltage, fuse type | Size, amperage, voltage, fuse type |
Autoido supplies 32V MINI automotive blade fuses in multiple current ratings from 1A to 40A for automotive, motorcycle, RV, and other low-voltage DC applications. Our manufacturing process includes inspection and electrical performance testing to help ensure stable conductivity, consistent fuse characteristics, and reliable circuit protection.
OEM/ODM services are available for custom branding, packaging, current rating combinations, and bulk purchasing requirements. Autoido also provides technical support for fuse selection, application matching, and related automotive circuit protection products.
A MINI automotive fuse is a compact blade fuse designed to protect vehicle electrical circuits from overload and short-circuit conditions. Compared with a standard ATC/ATO blade fuse, the MINI fuse uses a smaller housing while providing similar circuit protection functions. It is widely used in passenger cars, trucks, motorcycles, RVs, and other low-voltage DC electrical systems.
Autoido MINI automotive blade fuses are available in multiple current ratings from 1A to 40A. Common ratings include 1A、2A、3A、5A、7.5A、10A、15A、20A、25A、30A、35A、40A. The correct amperage should always match the vehicle or equipment manufacturer's specification.
Yes, a 32V-rated MINI fuse can generally be used in a 12V automotive electrical system when the fuse size, current rating, time-current characteristics, and breaking capacity meet the original application requirements. The fuse voltage rating should be equal to or higher than the system voltage. Always check the vehicle owner's manual or original fuse specification before replacement.
A MINI fuse and a Low Profile MINI fuse are both compact automotive blade fuses, but they have different housing heights and terminal designs. A Low Profile MINI fuse is shorter and is designed for fuse boxes with limited installation space. Even if the amperage rating is the same, the two fuse types should not be considered interchangeable unless the fuse holder and vehicle specification support both designs.
Choose the same amperage rating specified by the vehicle manufacturer or shown on the original fuse. Do not install a higher-amperage fuse to prevent repeated fuse blowing, because this may reduce circuit protection and increase the risk of wire or component damage. Fuse selection should also consider fuse type, physical size, voltage rating, and application requirements.
