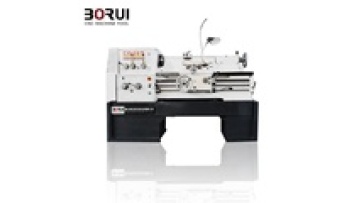

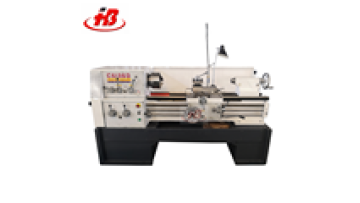

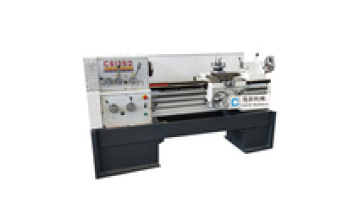

Small Metal Hobby Lathe Machine For Sale C6136D C6140D
This series lathe machine is suitable for internal and external turning, tapering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot.
Width of bed is wider than normal lathe machine, with high hardness on guidewaym, the guideway is through high-frequency quenching, wear-resisting.
This machine is easy to operate, with rapid device for carriage, design with single hand wheel to operate.
The strength and rigidity of machine is higher than normal lathe machine, high efficiency, suit for heavy duty machining.
SPECIFICATIONS UNIVERSAL LATHE C6136D/C6140D
SPECIFICATION
C6136D
C6140D
Max .Swing over bed
360mm
400mm
Max .Swing over carriage
200mm
210mm
Max .length of work piece
750/1000mm
Width of bed
312mm
Section of turning tool
20x20mm
Spindle
Spindle speed
30-1600rpm(12steps)
Hole through spindle
52mm
Spindle taper
MT6
Feed
No. of feed
Cross: 0.039-1.05mm; Horizontal: 0.019-0.52mm
Range of metric threads
0.5-20mm (25kinds)
Range of inch threads
(80-1.75tpi) (35kinds)
Range of module threads
0.25-10 (module 30kinds)
Range of diametral pitc threads
160-3.5DP (30 kinds)
Tailstock
Max. tailstock spindle travel
100mm
Tailstock spindle diameter
60mm
Taper of tailstock spindle center hole
(MT4)
Main motor
3/4KW
Packing size
for 750mm
2000x1130x1540mm
for 1000mm
2300x1130x1540mm
G.W. / N.W. (kg)
for 750mm
1500/1700kg
1600/1800kg
for 1000mm
1700/1900kg
1800/2000kg
1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard
1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
