Automatic Baby Feeding And Nipple Making Machine

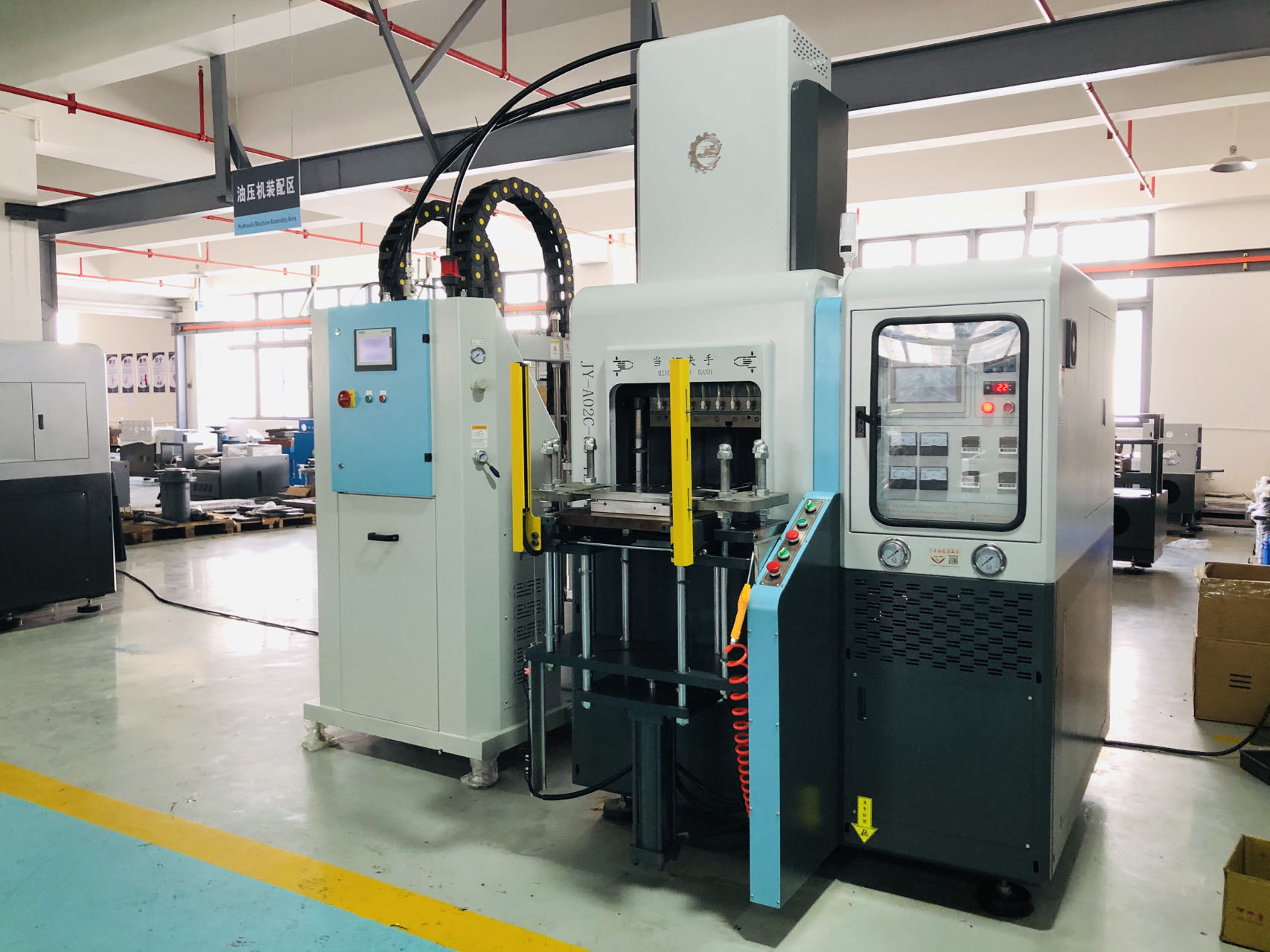

This is a vertical silicone rubber injection molding machine, a silicone liquid injection process integrated machine, the whole process of liquid silicone production, replacing the solid silicone rubber mixing and cutting process, and the products produced have no trace mold line, the product is more high-quality, and the operation is easier. CNC intelligence, saving energy, money and labor.
Silicone intelligent injection equipment, liquid silicone injection molding machine, this machine is also suitable for all kinds of silicone trademarks, gifts, dolls, bracelets, clothing electronic silicone accessories, etc., more suitable for mother and baby silicone products, household silicone products, silicone kitchen utensils, Such as pacifiers, bottle stoppers, baby bowl spoons, baby toys and other food-grade silicone products. Jinyu machinery provide the whole set of silicone machines for your procuction process line.
Features:
1. low temperature vulcanization.
2. The product does not need trimming.
3. Low mold cost; Shorten molding time.
4. Increase production capacity, affordable and easy to use.
5. CNC intelligence, full automatic.
6. Full liquid silicone production, easy to clean.
7. Save trouble, save electricity, save labor.
8. After close the injection feeding system, the molding machine can also be used as a solid silicone alone, as a conventional vulcanizing machine.
| INJECTION UNIT | |
| Screw Diameter | Φ25mm |
| Screw Diameter | Φ35mm |
| Theoretical Injection Volume | 73㎝3 |
| Theoretical Injection Volume | 240㎝3 |
| Injection Weight(PS) | 81g(oz) |
| Injection Weight(PS) | 264g(oz) |
| Max.Injection Pressure | 600Mpa(kgf/cm2) |
| Max.Injection Pressure | 450Mpa(kgf/cm2) |
| Injection Rate | 25cm3/sec |
| Injection Rate | 45cm3/sec |
| Injection Speed | 50mm/s |
| Injection Speed | 50mm/s |
| CLAMPING UNIT | |
| Clamping Force | 617/(63)kN(tf) |
| Clamping Stroke | 250mm |
| Min.Mold Thickness | 30mm |
| Max.Opening | 270mm |
| Distance Between Tie Bars | 540*300mm |
| Max Mould Size | 400*400mm |
| Ejector Distance | 300mm |
| Ejector Force | 16.6kN(tf) |
| OTHERS | |
| System Pressure | 13.7（140）Mpa(kgf/cm2) |
| Oil Tank Capacity | 35L |
| Electric Power | AC380V5.5KW |
| Heater Power | 10.8kw |
| Machine Dimension | 1500*1850*1750mm |
| Machine Weight | 2000kg |
Household goods production equipment
Silicone household production equipment
Maternal and baby silicone products production line
Silicone Maternal and Baby Products Production Line
Silicone kitchenware automatic injection equipment
Silicone kitchenware die-casting production equipment
Dongguan Jinyu Automation Equipment Co., Ltd are specialized in the development and manufacturing of PVC label machine, Silicone Trademark Machine, Garments Printing machine, Silicone injection moding machine, Silicone rubber patch dispensing machine, Silicone heat press hydraulic machine, Silicone embossing machine, PVC inteligent oven, etc.
With more than 20 years of independent research and development, we have a senior and specialized group. Our company have set up a good reputation within the industry and become the earliest production base of PVC products making machine , silicone products making machine and other related machines all over the world.
