TYPE : YZPST-SKD83-16
1600V 83A SKD83-16 power bridge rectifier,83A power bridge rectifier
Parameter
Symbol
Conditions
Values
Units
Repetitive Peak Off-State Voltage
VDRM
-
V
Non Repetitive Peak Off-State Voltage
VDSM
-
Repetitive Peak Reverse Voltage
VRRM
1600
V
Non Repetitive Peak Reverse Voltage
VRSM
1700
V
Average Rectified Output Current
IO(AV)
TC=95°C
83
A
Surge Forward Current
IFSM
50Hz; Half Sine Wave,1Pulse, Non-Repetitive Tj= 150°C
560
A
I Squared t
I2t
2msec to 10msec Tj= 150°C
1.57
KA2s
Surge On-State Current
ITSM
50Hz; Half Sine Wave,1Pulse, Non-Repetitive
A
-
I Squared t
I2t
2msec to 10msec
-
KA2s
Peak Forward Voltage
VFM
Tj=25°C; IF=80A
1.45
V
Peak On-State Voltage
VTM
-
Threshold voltage
VF(TO
Tj= 150°C
0.8
V
Forward slope resistance
rF
Tj= 150°C
7.5
mΩ
Peak Reverse Current
IRM
VRM= VRRM, Tj= 125°C
-
mA
VD=2/3VDRM, ITM=2•IO,
Critical Rate of Turned-On Current
di/dt
Tj=125°C
-
A/μs
IG=200mA, diG/dt=0.2A/μs
Critical Rate of Rise of Off-State Voltage
dv/dt
VD=2/3VDRM Tj=125°C
-
V/μs
Gate Current to Trigger
IGT
VD=6V,IT=1A,Tj=25°C
-
mA
Gate Voltage to Trigger
VGT
-
V
Holding Current
IH
-
mA
Thermal Resistance
Rth(j-c)
Junction to Case
1.4
K /W
Rth(c-f)
Case to Fin
2.83
K /W
Tvj
-40~+150
°C
Tstg
-40~+125
°C
Visol
a.c. 50Hz; r.m.s.; 1min./1S
3000/3600
V
Mounting torque
M
Case mounting
2
N.m
Terminals

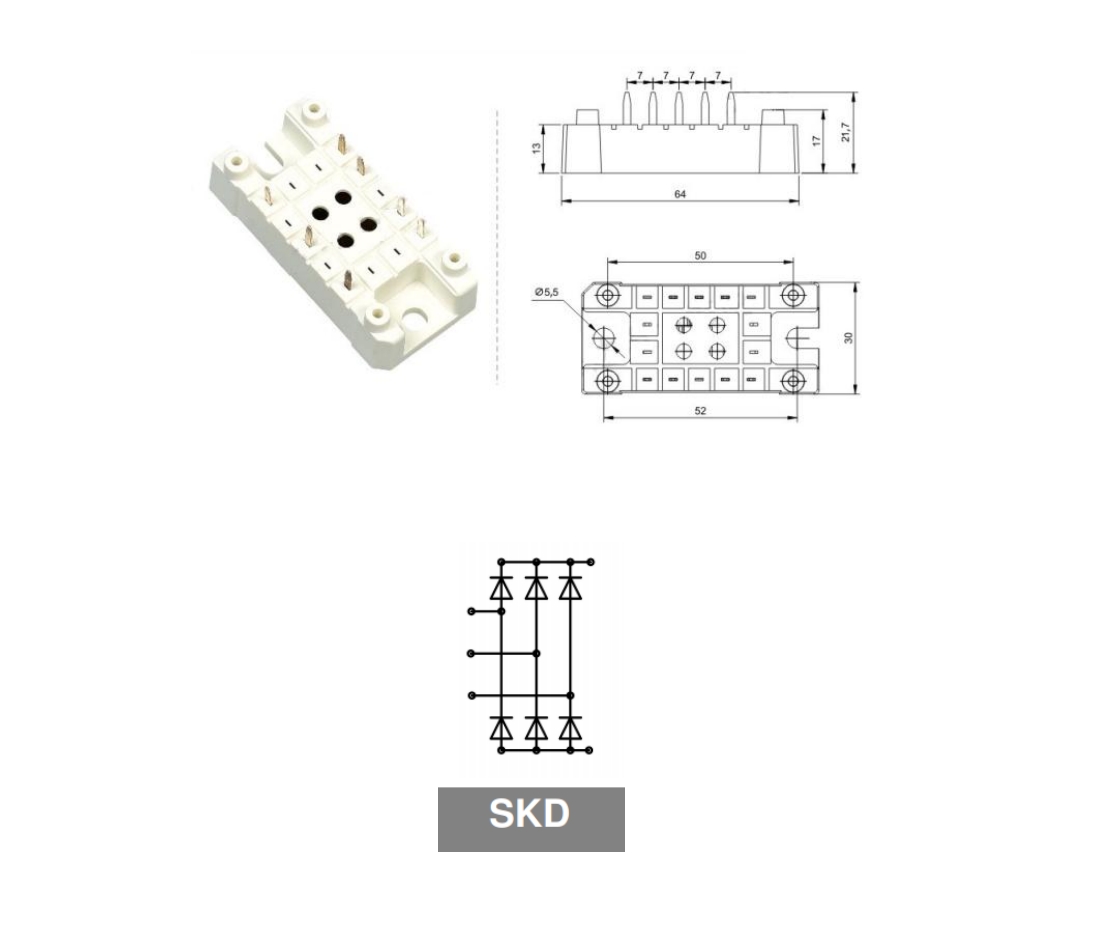

OUTLINE DRAWING (Dimensions in mm)
