Customizable Sapphire Long Crystal Furnaces

Product Overview

Our customizable sapphire long crystal furnaces are state-of-the-art systems designed for the high-yield production of single-crystal sapphire, a critical material for industries ranging from luxury watchmaking to advanced semiconductors and LEDs. The heart of these furnaces is the thermal assembly, and our expertise lies in providing complete, custom-engineered **Hot Zone Of Sapphire Growth Fixtures**. These fixtures, built from ultra-high-purity tungsten and molybdenum, ensure the extreme temperature stability and pristine environment required for flawless crystal growth. We provide a fully integrated solution, where the furnace design is optimized around our superior refractory metal components, guaranteeing performance, reliability, and a long operational lifespan. Our comprehensive material science knowledge, spanning from **Tungsten Heavy Alloys** for industrial applications to precision **Molybdenum Fabricated** components, ensures every part of our furnace hot zone is engineered to perfection.

Technical Specifications

Our furnaces are built to order, with specifications tailored to your production needs. The core of our offering is the advanced hot zone assembly.

Parameter	Specification
Maximum Operating Temperature	Up to 2200°C
Hot Zone Materials	High-purity Tungsten, Molybdenum, TZM Alloy
Crucible Capacity	Customizable, from lab-scale up to 100kg+ sapphire boules.
Temperature Control	Multi-zone PID control for precise thermal gradients.
Atmosphere	High Vacuum or Inert Gas (e.g., Argon).

Product Images and Videos

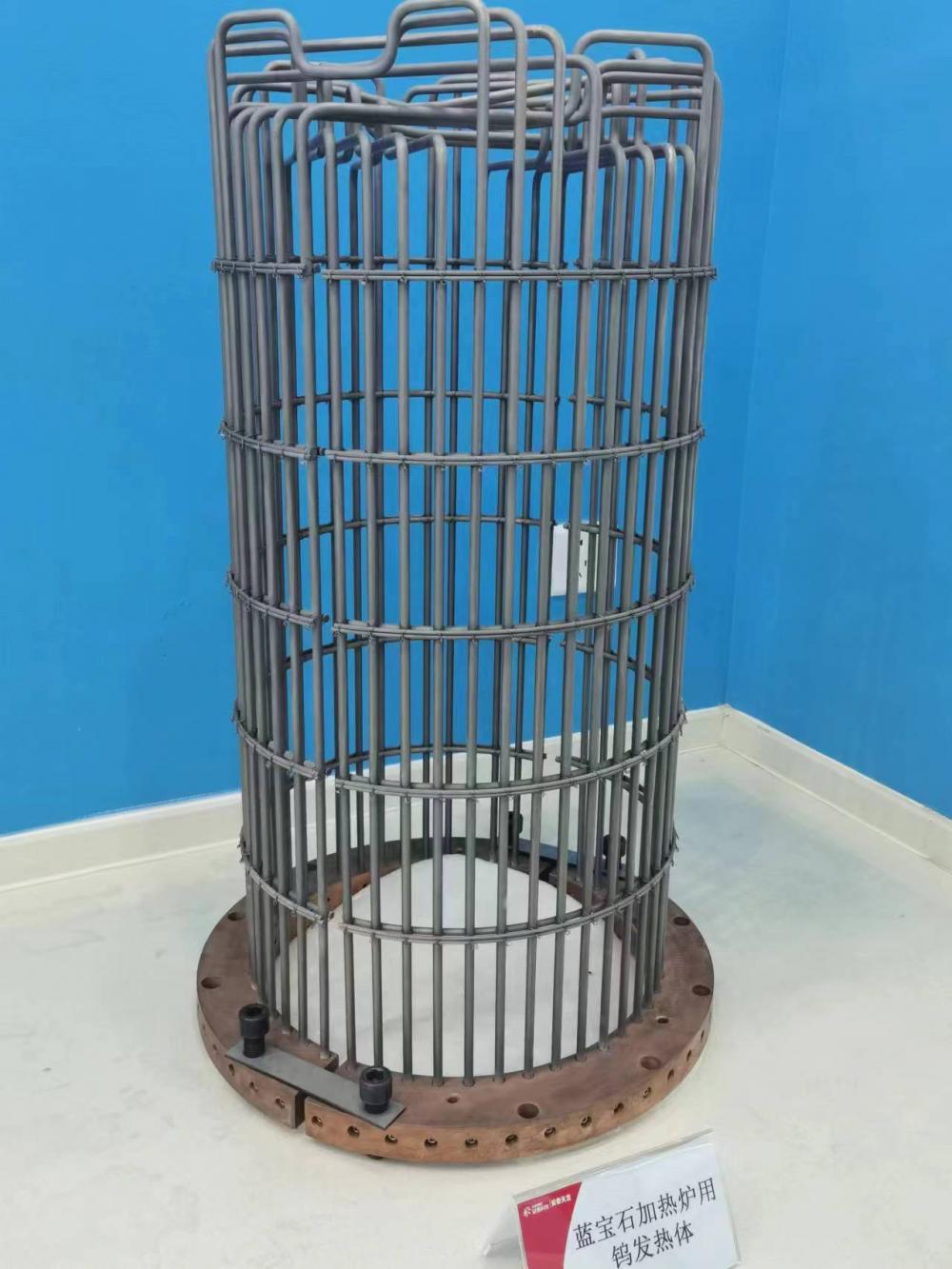

A customizable sapphire long crystal furnace, highlighting the internal hot zone components.

(Placeholder for a video showcasing the assembly of a custom hot zone)

Product Features

Optimized Thermal Performance: Our **Hot Zone Of Sapphire Growth Fixtures** are designed using advanced thermal modeling to ensure uniform temperature distribution, leading to higher quality crystals.
High-Purity Components: All internal components, including the crucible and heat shields, are made from materials with purity levels exceeding 99.95% to prevent contamination of the sapphire melt.
Durable and Long-Lasting: The use of high-grade tungsten and molybdenum ensures excellent resistance to creep and deformation at extreme temperatures, maximizing the lifespan of the hot zone.
Fully Customizable Design: We tailor every aspect of the furnace, from the chamber size to the hot zone configuration, to match your specific crystal growth methodology and production scale.
Advanced Control System: Equipped with a modern, user-friendly control system for precise and repeatable management of the entire growth process.

How to Use

Our furnaces are delivered as turnkey systems with comprehensive support:

Consultation and Design: Our engineers work with you to define the specifications for a furnace that meets your production goals.
Installation and Commissioning: Our technical team oversees the on-site installation and commissioning of the furnace to ensure it operates perfectly.
Training: We provide complete training for your operators on the furnace's control system, maintenance procedures, and best practices for sapphire growth.
Ongoing Support: We offer long-term support, including spare parts for the hot zone and technical assistance to help you maintain optimal performance.

Application Scenarios

Our customizable furnaces are designed for the production of high-quality single-crystal sapphire used in:

LED Manufacturing: For creating the sapphire substrates (wafers) on which GaN LEDs are grown.
Consumer Electronics: For producing scratch-proof sapphire glass for smartphone screens, camera lenses, and luxury watch faces.
Aerospace and Defense: For manufacturing durable, transparent windows and sensor covers that can withstand harsh environments.
Scientific and Medical: For creating optical components, laser parts, and specialized medical instruments.

Benefits for Customers

Higher Crystal Yield and Quality: Our superior hot zone design leads to fewer defects and a higher yield of usable sapphire, maximizing your return on investment.
Increased Production Uptime: The durability of our tungsten and molybdenum components reduces the frequency of maintenance and replacement, keeping your production line running.
A Single Point of Contact: We provide a complete, integrated solution, eliminating the complexity of sourcing a furnace and hot zone from different suppliers.
Access to Material Expertise: Partner with a company that has deep knowledge across a range of advanced materials, from **Tungsten Heavy Alloys** used as a **Counterweight Material** in other industries, to innovative **3D Printing Metal Powders** and **Molybdenum Sputtering Targets**.

Certifications and Compliance

Our manufacturing facilities are ISO 9001 certified, ensuring that every furnace and hot zone component is produced to the highest standards of quality and consistency. All materials are sourced from reputable, conflict-free suppliers, reflecting our commitment to ethical practices that begins with partners **For Mining Tungsten**.

Customization Options

Customization is at the core of our offering. We can tailor:

Furnace Size: From small R&D units to large-scale production furnaces.
Hot Zone Design: We can design **Hot Zone Of Sapphire Growth Fixtures** for various growth methods (e.g., Kyropoulos, EFG, HEM).
Crucible Material: Choose between pure tungsten, pure molybdenum, or specific alloys based on your process.
Control Systems: We can integrate our furnaces with your existing factory management software.

Production Process

Our process begins with a detailed engineering consultation. Once the design is finalized, we begin fabricating the furnace body and control systems. In parallel, our specialized refractory metals division manufactures the hot zone components. This involves processes like powder metallurgy, high-temperature sintering, and precision machining of the tungsten and **Molybdenum Fabricated** parts. The hot zone is then assembled and installed into the furnace, followed by a complete system test before shipment.

Customer Testimonials and Reviews

"The custom furnace we received has significantly improved our sapphire yield. The stability of the hot zone is far superior to our previous systems." - Production Manager, LED Substrate Manufacturer

"Their engineering team worked closely with us to design a furnace that was a perfect fit for our unique process. The support from design to installation was exceptional." - Founder, Specialty Optics Company

FAQ

1. What is the typical lead time for a custom furnace?: Lead time varies depending on the complexity and size of the furnace, but typically ranges from 4 to 6 months from design finalization to delivery.
2. Can you supply replacement hot zones for our existing furnaces from other manufacturers?: Yes, a significant part of our business is providing custom-designed, high-performance replacement **Hot Zone Of Sapphire Growth Fixtures** that can be retrofitted into existing furnace systems to improve their performance and lifespan.
3. Why are tungsten and molybdenum used in the hot zone?: Tungsten and molybdenum have extremely high melting points (3422°C and 2623°C, respectively) and maintain their strength at the high temperatures required for sapphire growth (~2050°C). Their high purity also prevents contamination of the sapphire crystal.
