Rs485 Ultrasonic Water Level Sensor Tank Measurement
Ultrasonic water level sensor is suitable for non-contact parking space inspection, barn inspection,tank water level measurement has maximum measuring range 0-5m. With high protection, the ultrasonic level measurement sensor can transmit and output TTL output, RS485, 4-20mA etc. If you are looking for a ultrasonic distance system, welcome to contact us.
Technical Parameters:
Product Name: Ultrasonic Level Sensor
Environmental protection: non-contact measurement
Applications: fuel tank, water tank level measure
Material: PVDF
Output signal: RS-485
Flow range: 600 ~ 5500mm
Accuracy: <1%
Protection grade IP68
Power supply: 3.3 ~ 30 VDC
Ambient temperature: -40~85℃
Working temperature: -40…85℃(233...358K)
Storage temperature: -40…85℃(233...358K)
Temperature compensation: Yes
Protection class: IP68
Supply voltage: 3.3 ... 24 VDC, ripple 10 %SS

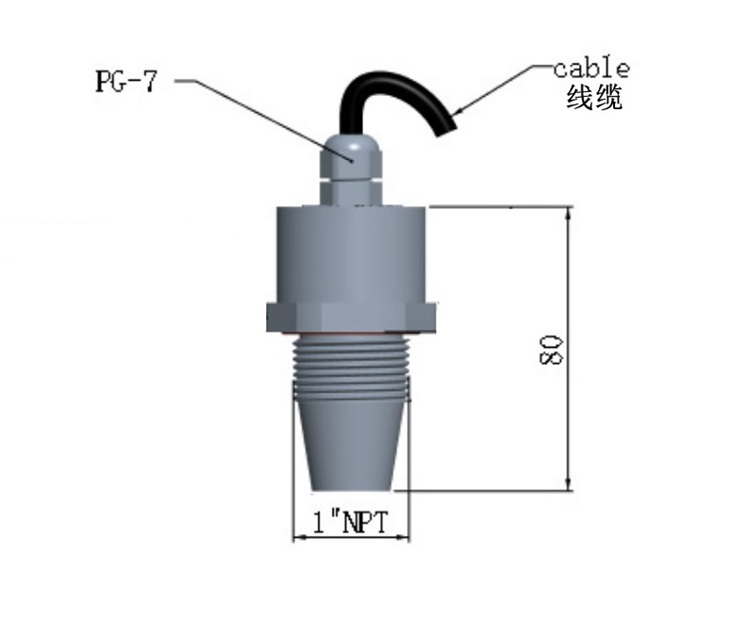

Mechanical Dimensions

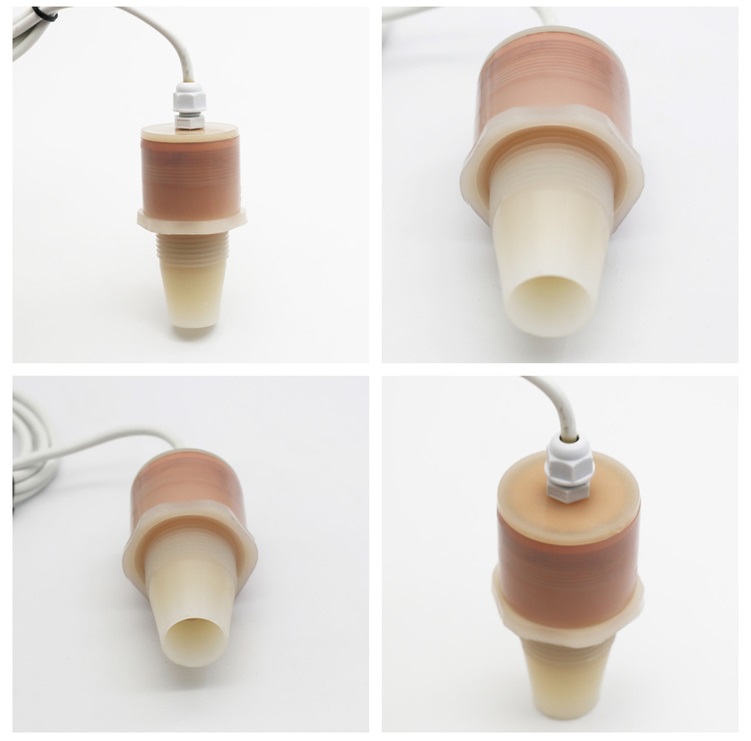

More Detailed Pictures

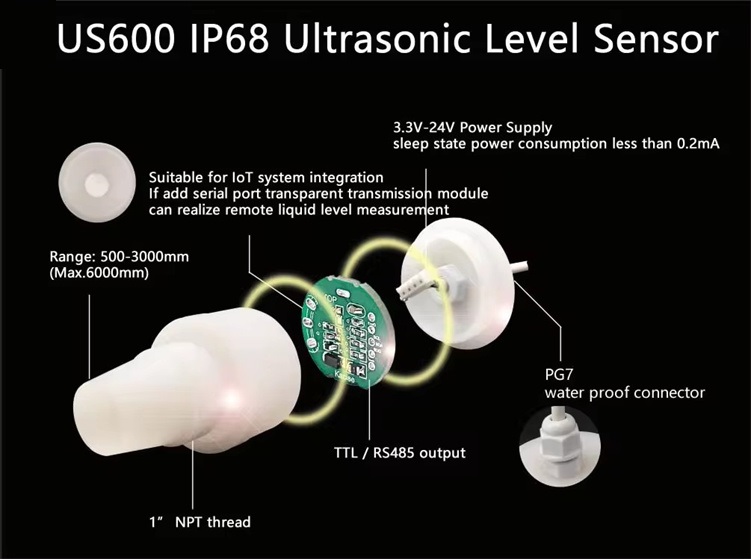

This ultrasonic water level sensor, with IP68 protection.
Detection range: solid/liquid
Features: corrosion resistance/shock absorption and noise reduction
It's really really a small size, easy to integrate.(80mm*φ22mm)

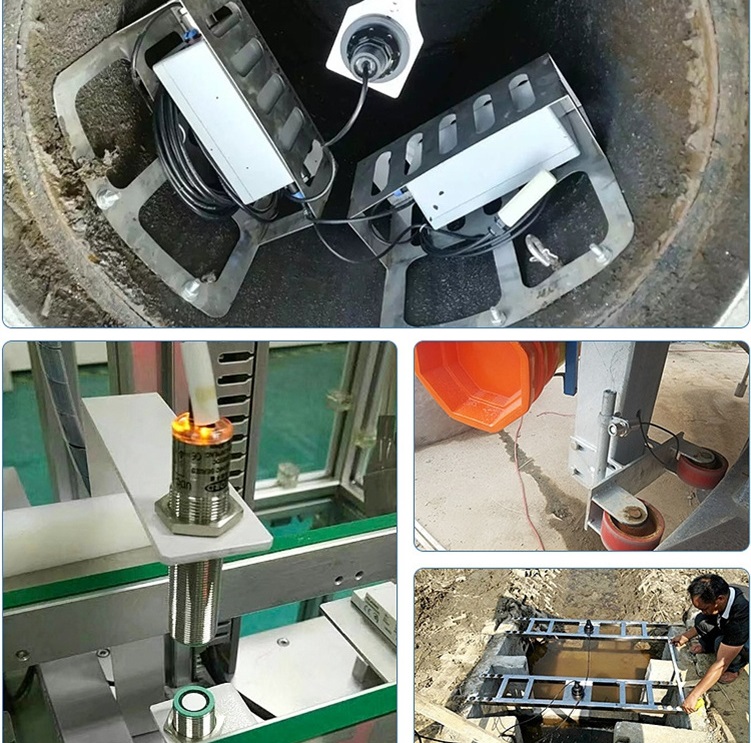

Applications
Customers will use this for power industry, intelligent transportation, smart home, etc. With automated measurement system, the ultrasonic level module can be realized water level height.
Package for your Ultrasonic Water Sensor sampels
