LED Emeregency kit for led tube

3 year ago

88 0

JIALINGHANG ELECTRONIC CO.,LTD.

 1 min year

Product details

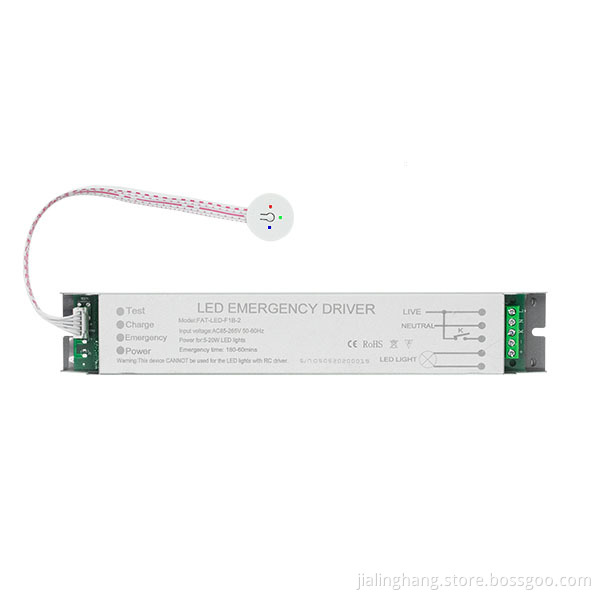

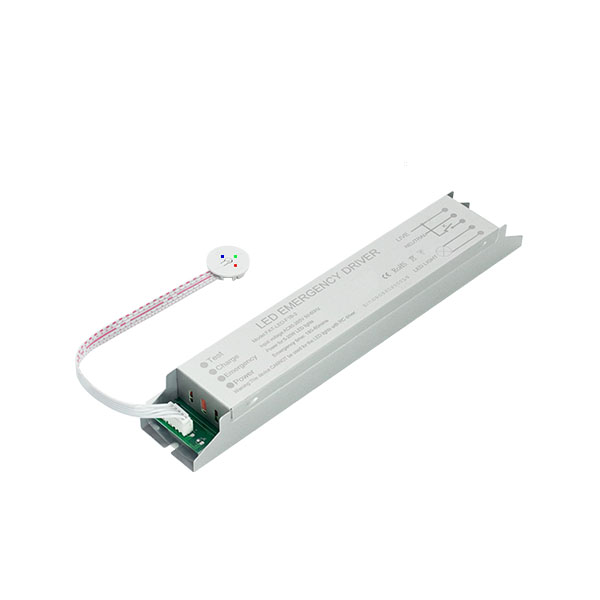

This is an LED emergency lighting LED driver. It is equipped with a built-in rechargeable lithium battery. Its main function is to keep the LD lamp lit when the mains power suddenly goes out. It is powered by the battery. The left end of this emergency driver has an external test lead, and the right end is the hole for connecting to the mains power, switch and LED lamp. When the LED is in normal lighting mode, this LED emergency driver is in charging and standby mode. Once the mains power suddenly fails, it will quickly switch the LED light to emergency lighting mode. Its battery capacity can provide an emergency duration of up to 3 hours. When the mains power returns to normal, this LED emergency driver will automatically switch to charging mode and be powered by the mains power. It takes 24 hours to fully charge It has overcharge protection function. When the LED is in normal lighting, you can also press the "TEST" button on the left to "TEST" whether it has an emergency function. When the test light is blue, it indicates that it is in an emergency state.

This LED emergency driver module supports both maintenance and non-maintenance working modes. When the main power supply is connected, the LED lights with emergency drivers can be turned on or off through a switch. When a sudden power outage occurs, the LED emergency battery pack will automatically take over the power supply to provide continuous illumination for the LED lights.It's a 100% full power output emergency driver.

This model with an extermal test button and indicator light, It,s suitable for all 5-25 watt LED lights with built-in and external driver ,such as: LED T5 and T8 tubes,LED panel lights,LED downlights, etc

Product Specification:

Product Model:	FAT-LED-F1B-3
Iuput power :	5-25W
Material:	Stainless steel
Battery type and capacity:	Built-in lithium battery 18650 11.1V 2.6AN
Input voltage:	AC85-265V 50/60Hz
Output voltage:	DC220V-240V
Product Size:	2554025mm
Emergency duration time:	180 Minutes
Certificate:	CE RoHS
Net Weight:	0.35kgs
Warranty:	3 years
Certification:	CE RoHS

Connection Diagram:

Product Packing:

Model	QTY/CTN (pcs)	G.W/CTN(KGS)	Size(CM)	CBM/CTN
FAT-LED-F1B-3	50PCS	20KGS	312623cm	0.02
