Product details

1 Ton / 3 Ton / 5 Ton Steel Ground Anchor

The MARSHINE is a professional power construction equipment developer and manufacturer, who is technology-driven, focused on devoted to making power tools that are safe and easy to use for worldwide power grid construction. The MARSHINE 1 Ton / 3 Ton / 5 Ton Steel Ground Anchor is built for on-site safety and security, which can deliver dependable temporary anchoring power for power construction equipment and can provid stability in tower building, line stringing and other high-risk activities.

This MARSHINE Screw Ground Anchor can withstand 30KN tensile force, and it can be used to anchor the equipment with the weight of less than 3 tons.

The full assembled length of the helical ground anchor is 1710mm long, and the disc diameter measures 300mm, which can make it very effective at gripping soil and stopping movement.

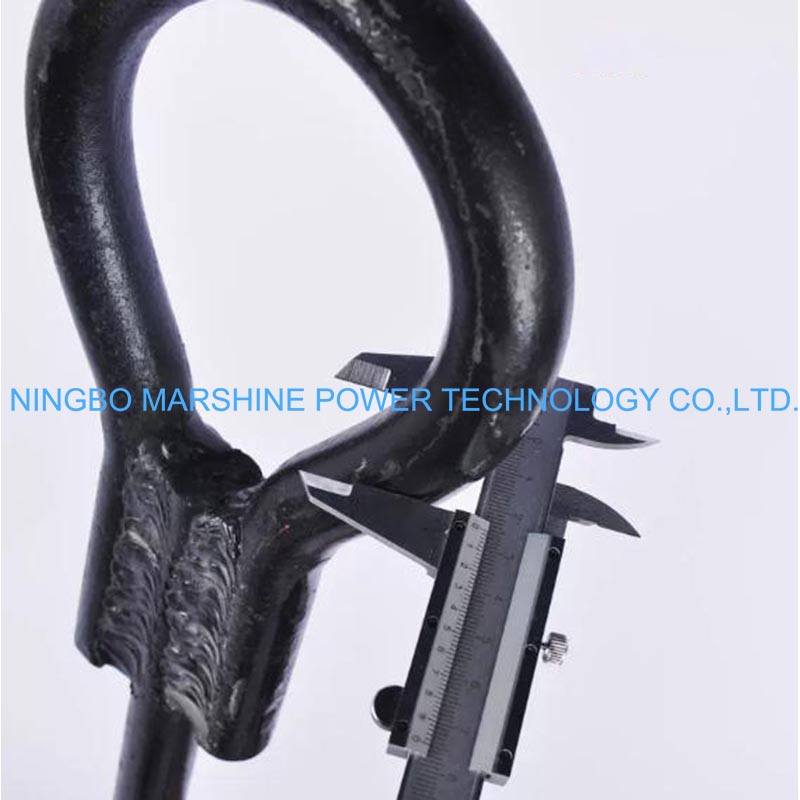

The diameter of the pulling ring is 28mm, which can be used to connect with shackles to steel cables safely.

The 15kg anchor is large yet still manageable in terms of on-site use.

And it surface is sprayed with anti-rust paint, which can prevent moisture and earth rust, and prolong the life of the product.

This helical ground anchor is suitable for power tower constructions and suitable for crane with rated load of 3t, which can prevent the crane from tilting while lifting.

It has become essential tool in line stringing for stringing tensioners rated at 30KN pulling force to stabilize conductors.

This MARSHINE Ground Anchor is good for positioning construction equipment, like anchoring winches on construction sites to provide a solid base when pulling cable.

It applicable to the road construction work with tensile anchoring for temporary guard rail.

Product Parameter

Product Name	Ground Anchor Drill
Product Material	High Carbon Steel
Product Specifications	1T: Length 1.1m, Pipe Diameter 20mm, Blade 17mm
	3T: Length 1.7m, Pipe Diameter 25mm, Blade 27mm
	5T: Length 1.7m, Pipe Diameter 30mm, Blade 27mm
