MD Mining Horizontal Wear-resistant Multistage Centrifugal Pump

The MD Wear-resistant Multistage Centrifugal Pump can deliver the neuter mineral water which solid particles percents ≤1.5% (solid Dia.<0.5mm) and other similar sewage,the temperature of the liquid is ≤ 80'C. It is suitable for steel works, mines, cities projecls elc.

The more stages the pump has, the higher the final discharge pressure. These pumps have the unique ability to produce higher and higher pressures with the addition of every stage, but flow range always remains constant for a given rpm.

MD Horizontal Multistage Pump Features

1. High pump head;

2. Wear resistant;

3. Easy to install,use, disassemble and maintain.

Applications

1. Municipal water supply & drainage;

2. Water supply for high buildings;

3. Mining drainage;

4. Other industrial applications.

Technical Parameters Part of parameters, for reference only.

Flow rate(m3/h)	Head (m)	Power (kw)	Inlet Diameter (mm)	Outlet diameter (mm)
6.3	75	4	40	40
7.5	98	5.5	40	40
7.5	196	11	40	40
25	240	37	65	65
55	230	75	80	80
190	216	185	150	150
335	130	220	250	250
280	455	630	200	200

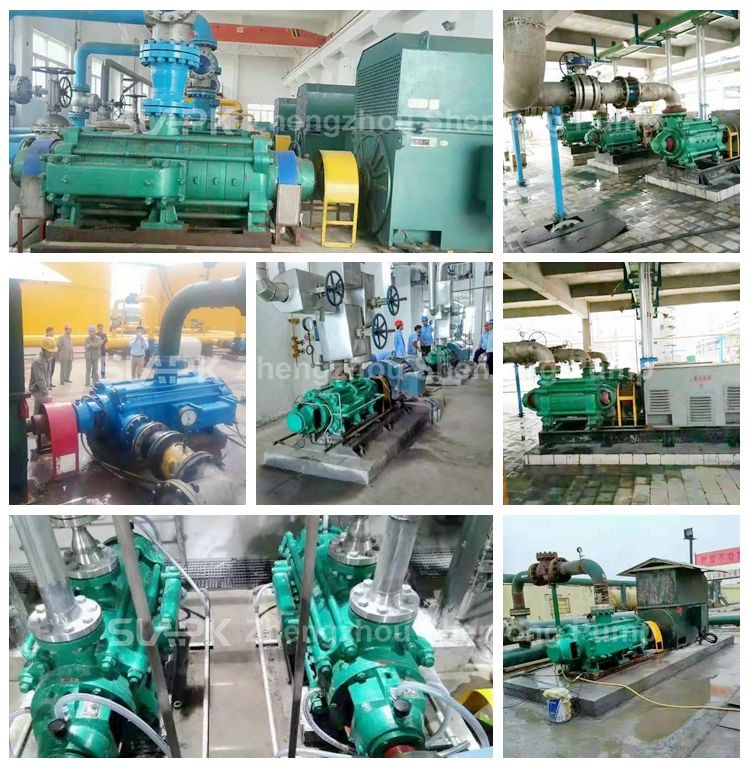

Customer Case
