1.Product Description

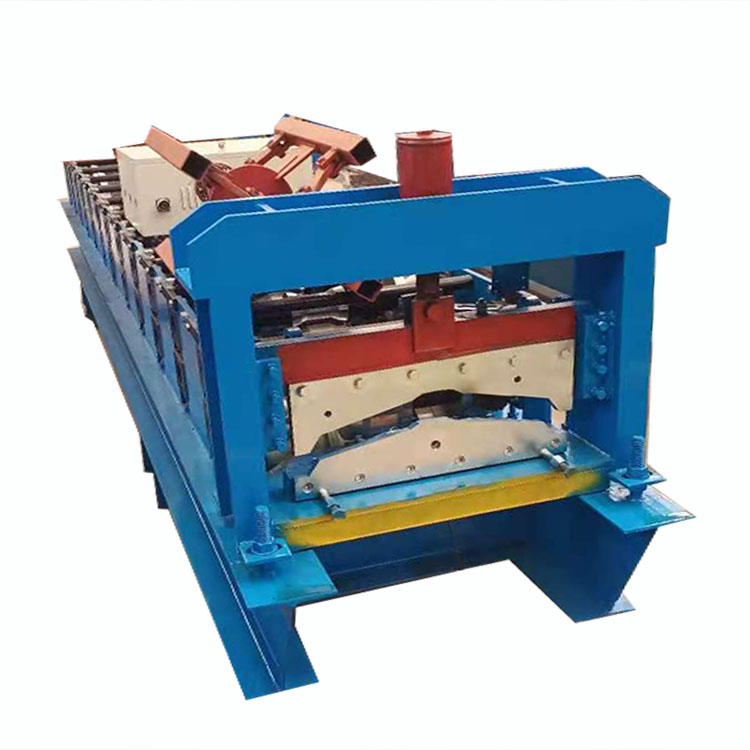

Steel Ridge Cap Roll Forming Machine
2. Product Specification / Model
SURFACE TREATMENT
1) Processing material: aluzinc/galvanized steel/colored steel coil
2) Material thickness: 0.3-0.7mm
3) Effective width: 230mm
4) Feeding width: according to above profile drawing
5) Main motor power: 1.5kw
6) Pump power: 4kw
7) Roller Stations: 14 stands
8) Productivity: 0-4m/min
9) Roller material: high grade NO.45 forged steel, with hard chrome plating
10) Shaft material: high grade NO.45 carbon wrought steel
11) Shaft diameter: 70mm
12 Driven type: gears and 1"Chain
13) Cutter material: Cr12 mould steel with quenched treatment
14) Main frame: 350H Steel
15) Medium plate thickness: 16mm
16) Control system: PLC computer control
17) Power supply: 380V, 3 Phase, 50Hz(or as per your request)
Manual decoiler→feeding device→main roll forming machine→hydraulic pressing system→hydraulic cutting system→2m output table, 1.5kw electric-motor, hydraulic station with 4kw electric motor, PLC control system
SALES TERMS
1). Machine Price: Please contact us, we will try to give you good discount for starting our cooperation
2). Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment
Or 100% LC at sight
3). Package: naked with simple plastic film and loaded in one 20-feet container
4). Delivery time: 50 working days after receipt of the deposit
5). Guarantee: 12 months. If any part of machine breaks, we will supply it for free.
6). After sales service
3. Contact Way:
If you are interested in the product, contact 2bvideo.com for more information for more information
