Product details

Main Applications:

Discover our Edge Banding Machine, designed for precise and efficient edge finishing of wood panels. Equipped with advanced automatic feeding, hot-melt gluing, and trimming systems, it ensures smooth edges, consistent quality, and high production efficiency. Ideal for furniture, cabinetry, and door manufacturing. Visit the product page to explore detailed features and applications. We are a professional manufacturer of High Precision Edgebander、 Wood Panel Edgebander、 Edge Trimming Machine.

Main features:

1、Up belt conveyor,feed smoothly;

2、Magnetic horizontal end trimmer;

3、The infeed speed is up to 32m/min;

4、Steel frame,steel beam,heavy stability;

5、The whole machine uses LEUCO customized tools.

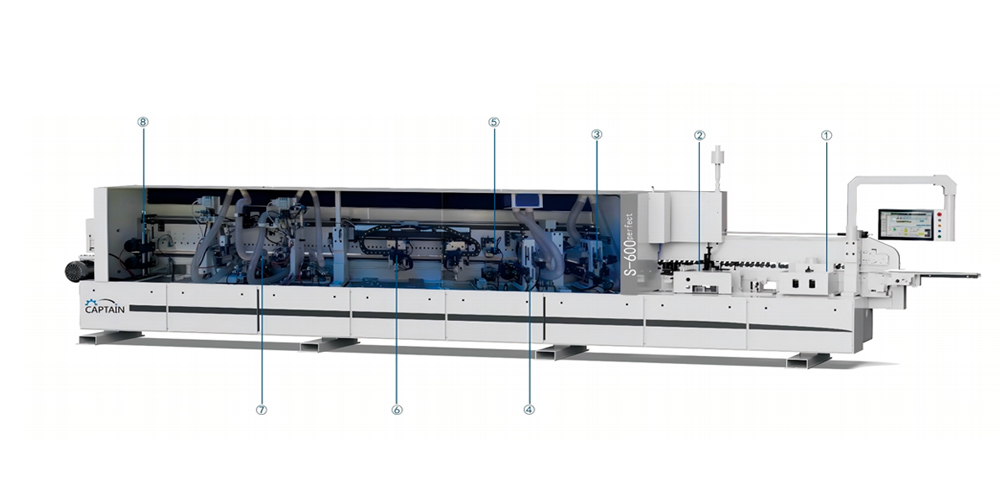

Heavy duty and high speed edge banding machine S-600

① pre-milling

②PUR spreader（Optional Hot Air/Laser device）

③Fine trimming

④Scrape

⑤Flat scraper

⑥Horizontal Magnetic end cutting

⑦Corner rounding （4 heads）

⑧Double buffing

Magnetic Horizontal End trimming Unit (Optional)

1)When the third and fourth side are trimming,the program automatically controls to keep 0.5~1mm more,to avoid cutting first or second side edge banding.The more part is processed by the rearcorner rounding unit to achieve higher production efficiency,the board spacing is 400mm,and the feed speed is 32m/min.

2)Horizontal trimming unit avoid pressure marks caused by the relative movement between the profile copy and the edge band surface.

3)Completely avoids edge broken issues during trimming.

4)With magnetic levitation technology,the trimming unit is absolute synchronization with the board,ensuring precise trimming accuracy.
