1200m Long Range Binoculars Sensor Outdoors
The TC22L long range binoculars sensor has a long measurement distance capacity up to 1200m, and the accuracy performance reference at long distance is +-0.5m~+-1m. With serial port UART output, customers can connect to Arduino,Raspberry Pi etc. More detailed user manual if neededd, please contact us NOW.
Customer frequently asked question:
Question: By the way, can you show me what is different between M703A and TC22L?
Answer： There are three aspects for you:
1. For the shape: TC22L is a small cylinder, while M703A is kind of a small cube.
2. For the Parameter: TC22L measures a long distance of 3-1200m with ±1m accuracy, using pulse principle. While M703A, using phase principle, measures 0.03-40m with 1mm high accuracy and 0.1mm resolution. So the range, accuracy, resolution, ... all differ from each other.
3. For Application: M703A may apply to high precision, short distance measurement. TC22L is most for outdoor use, like night vision, gun sight, thermal imaging, monitor, etc.
OUTSTANDING FEATURES
Long range: 1200m
Operating range: from 0 °C to 40 °C

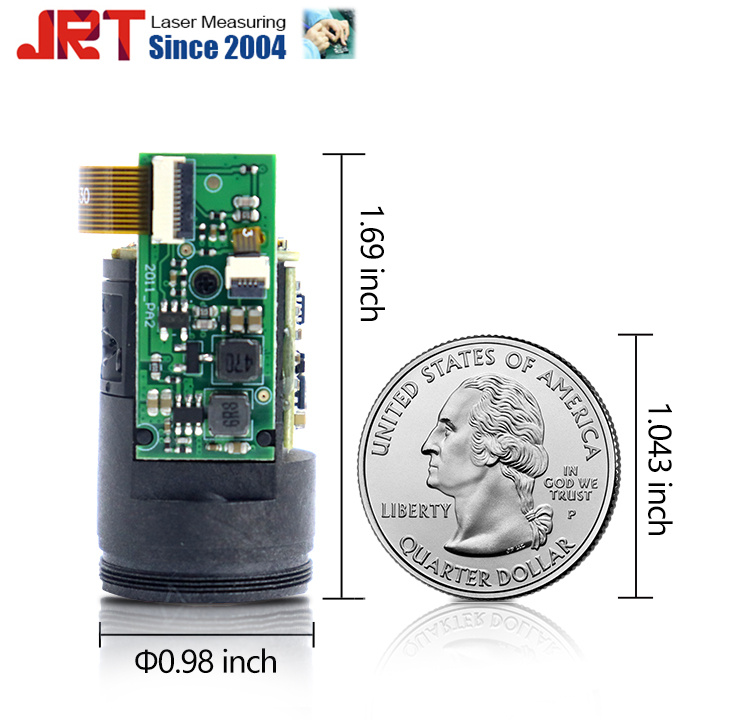

Smallest Long Sensors: a small cylinder, 43*φ25mm(1.043inch φ 0.98inch)
TECHNICAL PARAMETERS:
Rangefiner Module model: TC22L
The measurement range: 3-1200m 70% Reflectivity
Measurement accuracy: +/-0.5m~ +-1m
The Resolution: 0.1m
Laser Class: class 1 laser
Laser type: 905nm laser
Working Voltage: 2.5 to 3.5V

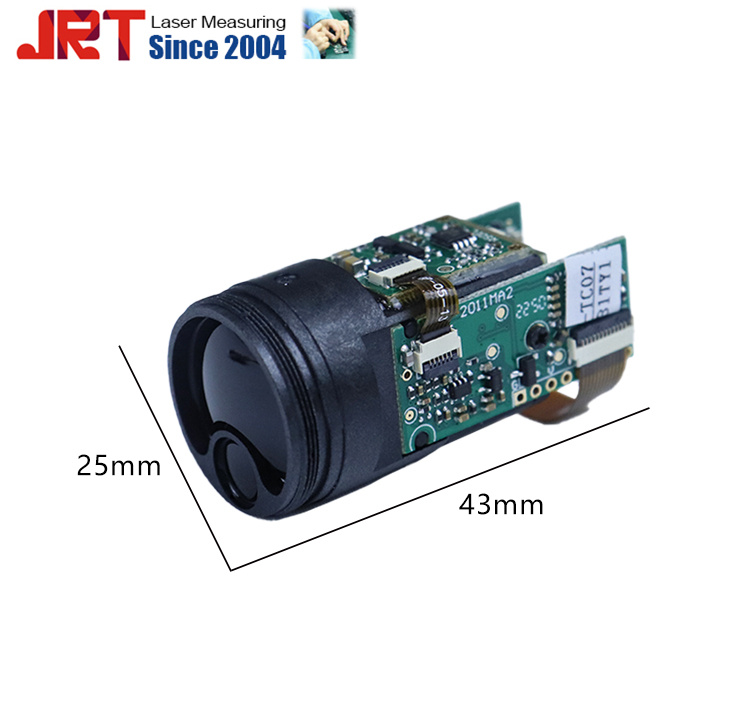

Volume: 43*φ25mm (43mm long, 25mm diameter)
Weight: 15g

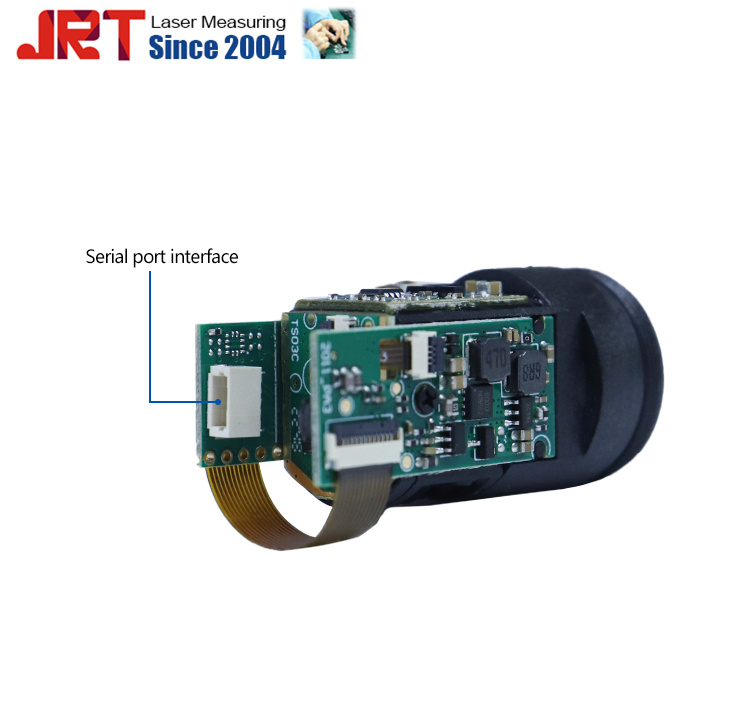

Output: Serial port communication, UART
Operating temperature range: 0-50 ℃(lower temperature can be customized)
Storage temperature range: -20 ~ 50℃
Current: 100mA
Power consumption: 330mW 3.3V
Baud rate: 115200bps (default)
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
Other Detailed Pictures
