MODEL CH1000X300 Easy Operation Corrugated Automatic Card Board Partition Slotter Machine1

MODEL CH1000X300 Easy Operation Corrugated Automatic Card Board Partition Slotter Machine1

3 year ago

19 0

DONGGUANG CANGHAI PACKING MACHINE CO.,LTD

 3 year year

Product details

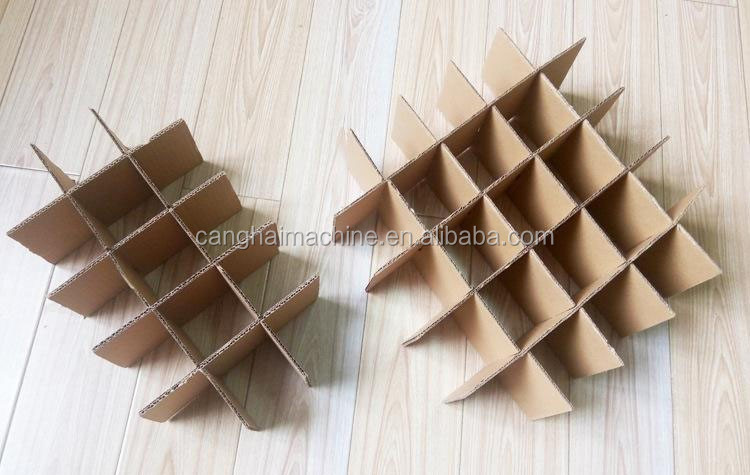

Cardboard sloter paperboard partition machine

Product Description

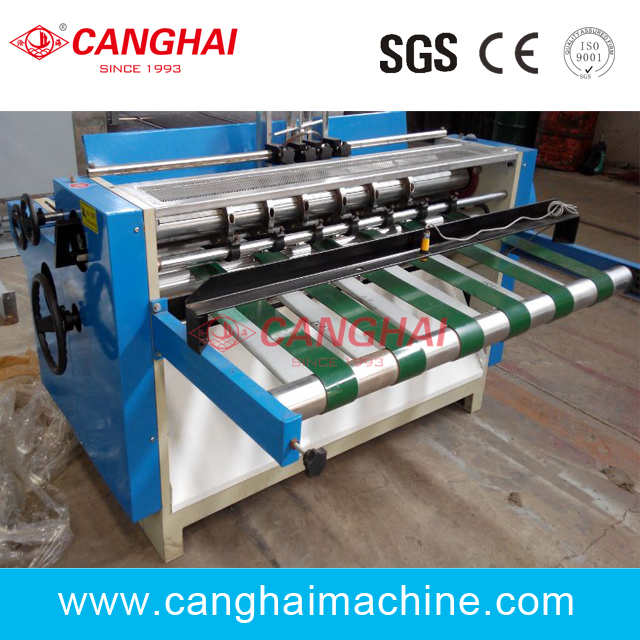

auto corrugated cardboard partition slotting machine1

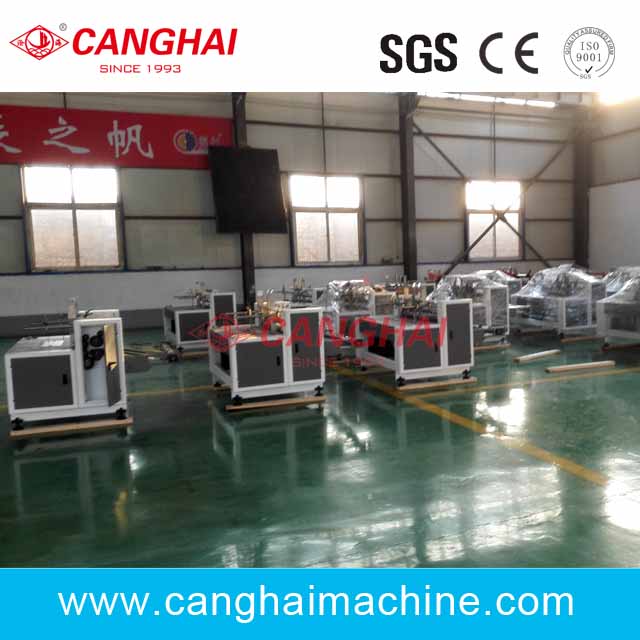

auto corrugated cardboard partition slotting machine2

Choose the corrugated paperboard which you want to process, adjust the side feeding baffle (1 in Picture A) . Adjustment method :loose the screws in circle of below picture, move the two side feeding baffles (1 in Picture A) right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .

When the length of paperboard is big , can move the front feeding baffle right or left. Adjustment method : loose the screws in
circle of below picture, move the two front feeding baffles , adjust the front feeding baffles to the suitable positions according
to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .

Adjust the back feeding baffle , adjustment method : loose the screws in circle of below picture , move the two back feeding
baffles forwards or backwards , adjust the suitable positions according to the width of paperboard , after finishing adjustment ,
tight the screw and fix the baffles .

PARAMETERS
Model	1000X300
Machine max speed	120 pieces/min
Max feeding size (L×W)	1000mm×280mm
Min feeding size (L×W)	100mm×70mm
Min slotting distance	45 mm
Slotting number	9 groups of slotting knives
Slotting width	3.5mm 5mm 7mm(Choose one according to the thickness of paperboard)

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Founded in 1999 Dongguang County Canghai Packing Machine Co., Ltd. located in the major carton machinery production area of Dongguang County in North China's Hebei Province, with the major cities of Jinan to the south, Tianjin to the north and Shijiazhuang to the west. With our 65,000 square meter factory beside the Jing-Hu Highway, Jing-Hu Railway and No. 104 National Road, we have convenient access to major transportation networks. With accumulated experience and rapid growth over the past 13years, we now boast sophisticated manufacturing equipment and a team of experienced managerial personnel. Producing low, middle and high-speed corrugated paperboard printing, pressing and slicing machines, our main units include pressure corner slicers, slitting machines, 3, 5 and 7-ply corrugated cardboard production lines, automatic and chained rotary die-cutters and rolling lines, single face corrugated cardboard machines, paper rolling lines, pasting machines, platform grinder slicers, stitching machines and other related products. Boasting over twenty branch offices and maintenance stations around China, we have also exported our various products to Australia, Mongolia, India, Egypt, Mexico and Vietnam. As an ISO9001 certified entity that has been commended as a "Brilliant Star", "Star Enterprise" and "Unit Trusted by Consumers", we have meanwhile been awarded "Quality Trusted Product" titles in many cities, counties and provinces in China. Adhering to the concept of "Honesty and Trustworthiness", we are striving to ensure that all customers receive high quality products and services. By shaking hands with us, both sides can go from one victory to another!

FAQ

1. who are we?
We are based in Hebei, China, start from 2004,sell to South Asia(33.00%),Southeast Asia(25.00%),South America(21.00%),Eastern Europe(21.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Making Machine, Automatic Flexo Printer Slotter Die Cutter Machine, Stitching Machine, Folder Gluer Machine, Printing slotting die cutting folding gluing strapping machine

4. why should you buy from us not from other suppliers?
We have a strongtechnical team of technicians,all technicians are trained in special training in assessment of the structure of the packaging printing machinery,repair and maintenance have a deep grasp.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Russian
