Product details

Product Description

Handheld fiber laser welding machine is a new type of welding, laser welding mainly for thin-walled materials, precision parts of the welding, can achieve spot welding, butt welding, stack welding, sealing , etc.

Product Feature:

Welds smooth, beautiful, no need to deal with after welding or just a simple process.
Focus spot diameter is small, to protect the welding power density and processing range.
Low maintenance costs, reduced power consumption and routine maintenance costs.
Weld quality, no pores, can reduce and optimize the base metal impurities, the organization can be refined after welding , weld strength, toughness at least equivalent to even more than the parent metal.
Can be precise control, focusing light small, high-precision positioning, easy to ac hi eve automation. Can achieve some of the dissimilar materials between the welding.

Product parameter

Model	ZC-Weld-2022	Laser Source	Raycus/MAX/JPT/IPG
Laser Type	Fiber Laser	Positioning Way	Red Light
Laser Power	1000W/1500W/2000W	Cooling Way	Water Cooling Industrial Chiller
Fiber Core Diameter	50μm	Laser Head	Zhongcan Customized
Laser Wavelength	1080nm	Welding Speed Range	0~120mm/s
Frequency Of Pulse	50~20khz	Output power stability	±1%
Fiber Laser Optic Length	10M-15M	Output Power Tunability (%)	10-100%
Humidity Range	﹤85%	Ambient Temperature	10℃~40℃

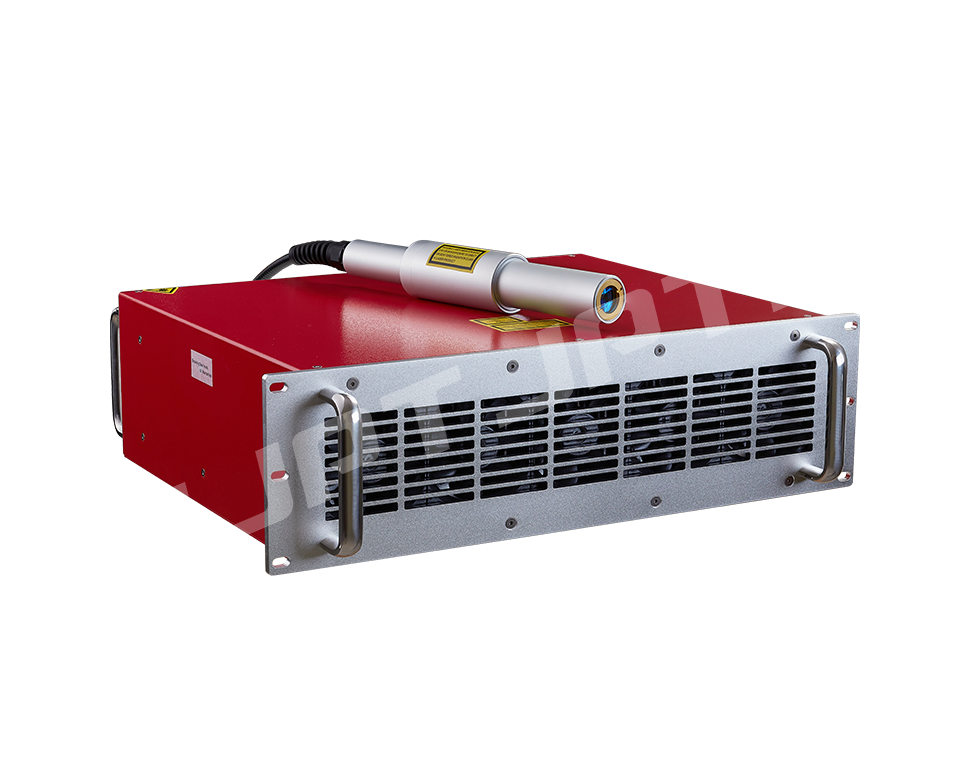

1. Raycus/MAX/JPT Laser Source

· 100,000 hours of lifetime, free maintenance;

· High electro-optical conversion efficiency (up to 25-30%), excellent beam quality, high energy density,

· Low energy consumption

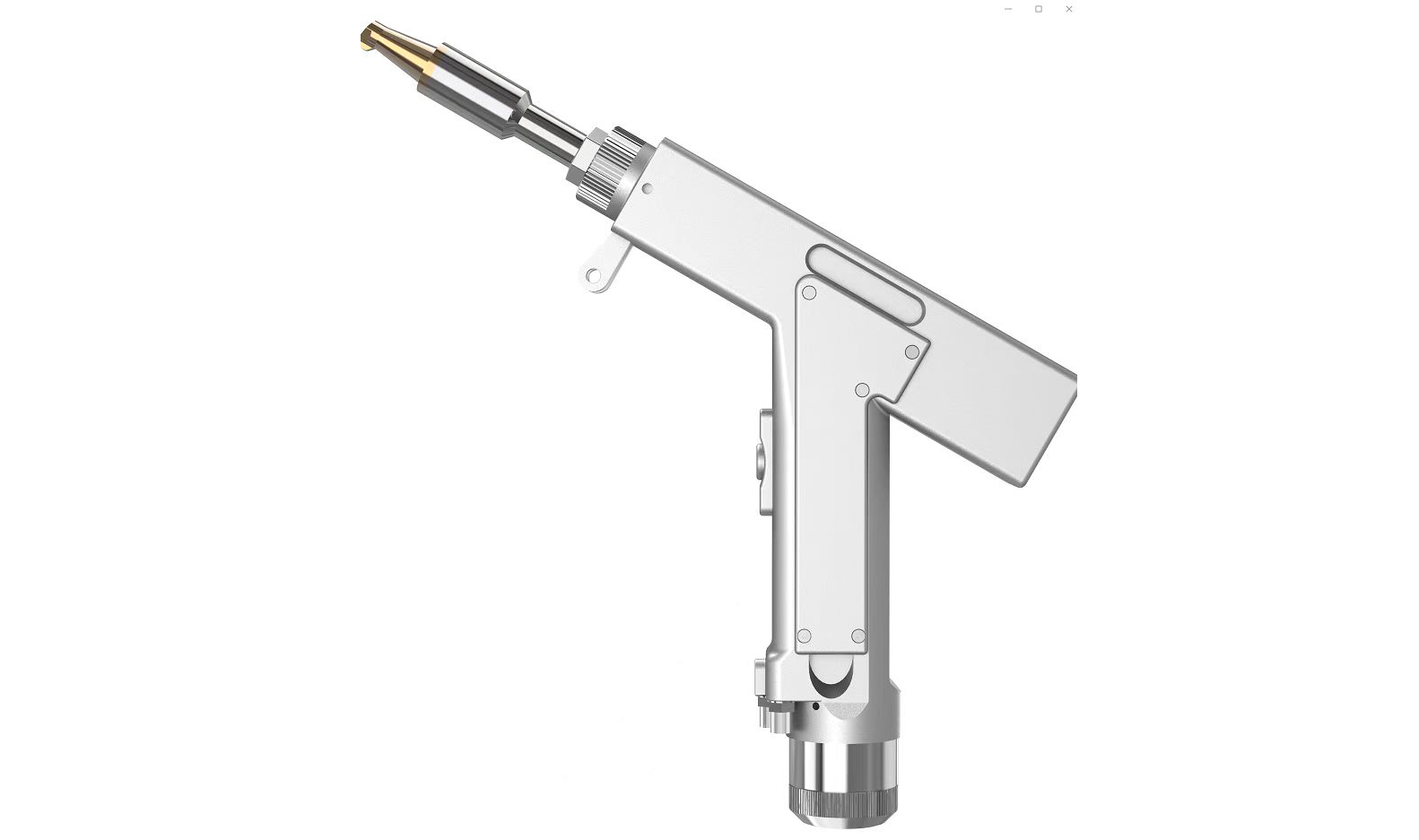

2. Laser Welding Head

· It is easy to use and adopts double protective layer to protect the lens.

· It is light in weight

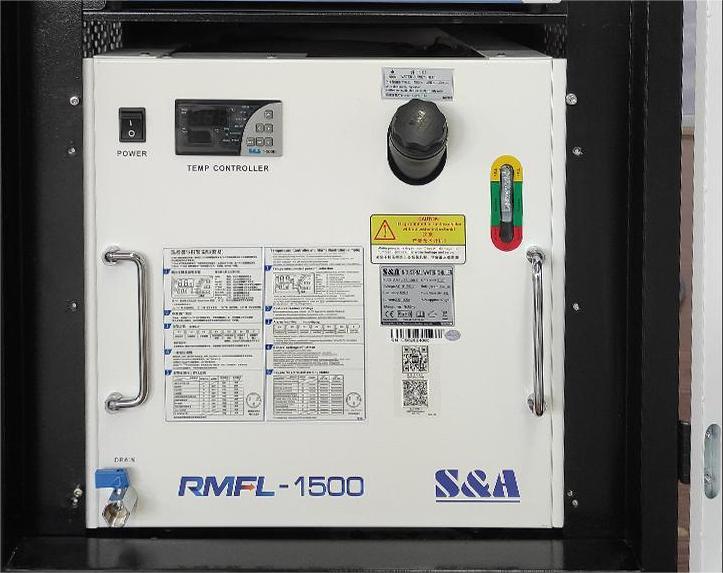

3. Industrial Water Chiller

·Automatically adjust the temperature according to different working environment, no need to change settings parameters;

·Intelligent dual temperature dual control mode ;

·Multiple alarm protection;

4. Welding System

Integrated touch screen, complete welding system, adjustable welding and cutting two modes, various parameters. We can customize your language for you.

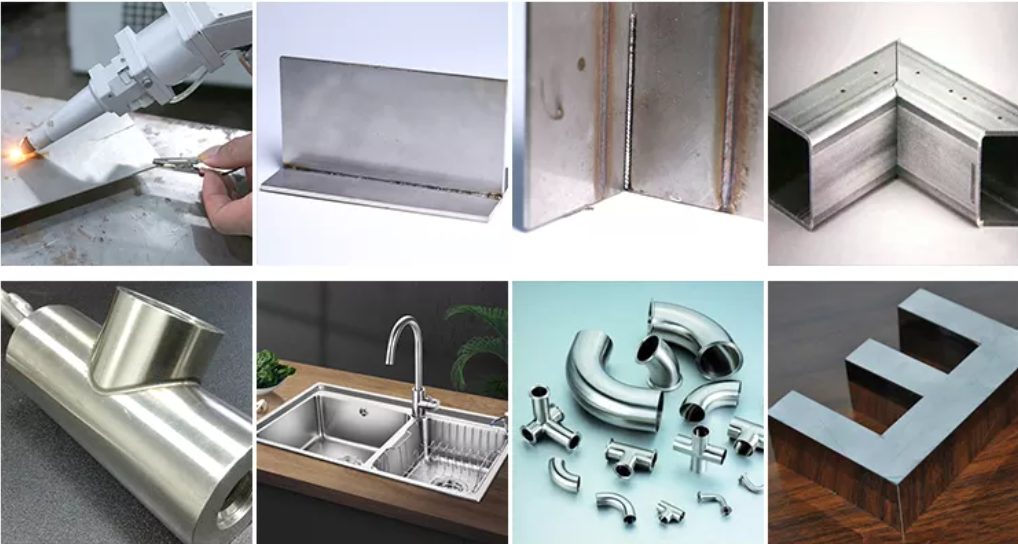

Sample Show

Company Overview

Zhongcan laser, established in 2011, is a cutting edge undertaking zeroing in on the innovative work, creation and deals of laser handling application items. After almost a decade of improvement and laser innovation development, the organization has turned into a key cutting edge undertaking in Shandong Province and one of the best 100 confidential endeavors in Shandong Province.
As of now, the items freely created by our organization take care of all fields of CNC laser hardware. Specifically, we have been in a main situation in the innovative work and creation of laser stamping machines and Laser Cutting Machine. There are essentially three sorts of laser stamping machines: fiber laser checking machine, CO2 laser checking machine and UV checking machine.Among them, UV stamping machines are broadly adored by clients because of their great body quality, great checking impact and wide application range. Simultaneously, flying laser checking machines are likewise exceptionally well known in light of their benefits of transmission.Of course, our machine with the biggest piece of the pie is the CO2 Laser Engraving and Cutting Machine, of which the most famous is the 9060-A model. The yearly deals of its single item in 2021 will surpass 630 units. The organization has put resources into two things toward the finish of 2020. The new programmed creation line is utilized to deliver laser welding machine 、Laser Pipe Cutting Machine and laser cleaning machine. Presently the innovation is very full grown, and in April 2021, a fiber laser machine with three elements of laser cleaning, laser welding and laser cutting 3 of every 1 was effectively evolved. In the wake of entering 2022, our organization actually keeps up with nonstop innovative work and tech development, and endeavors to carry more reasonable potential outcomes to our clients in the field of modern laser hardware!
