What is a high-frequency induction brazing machine?

High frequency induction brazing machine is a type of induction brazing system, which is a new type of non-contact rapid induction welding equipment. There are medium frequency induction brazing, high-frequency induction brazing, and ultra-high frequency induction brazing. Induction heating brazing has the characteristics of fast heating speed and short liquefaction process. It can also operate in various protective atmospheres, such as air, shielding gas, vacuum, and other environmental conditions, with good welding quality and effectiveness. High frequency brazing equipment uses a metal material with a melting point lower than the base material as the solder. The weld seam and solder of the base material are heated to a temperature higher than the melting point of the solder but lower than that of the base material. The method of filling the joint gap and diffusing with the base material to connect the welded parts.

The new type of all solid state high-frequency induction brazing machine, also known as high-frequency welding machine, is used for high-frequency induction brazing of diamond circular saw blades, hard alloy brazing machines for turning tools, milling cutters, drill bits, transformer copper wires, motor copper wires, copper rods, automotive pipe fittings, etc.

What are the advantages of high-frequency induction brazing machine?

Easy installation, only electricity and water are needed for use, no special installation required;

Easy to operate: Learn in just a few minutes.

Quick start: Start heating after connecting the water and electricity.

Lower power consumption: It saves about 30% energy compared to old medium frequency induction soldering machines for electronic tubes, and the smaller the workpiece, the lower the power consumption.

Good effect: The heating is very uniform, the heating speed is fast, and there is less oxide layer.

Adjustable power: The output power is adjustable.

Full protection function: It has alarm indicators for overvoltage, overcurrent, overheating, water shortage, as well as automatic control and protection functions.

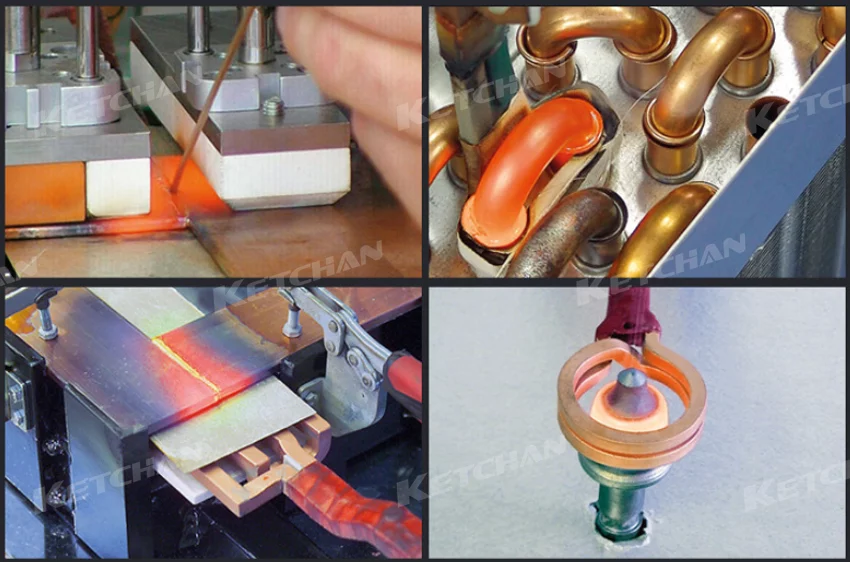

Application of High Frequency Induction Welding Machine

What’s high frequency induction brazing machine technical parameter:

Model	Power	Frequency
DE-15	15KW	20-80KHZ
DE-25	25KW	20-80KHZ
DE-30	30KW	20-80KHZ
DE-35	35KW	20-80KHZ
DE-40	40KW	20-80KHZ
DE-50	50KW	20-80KHZ
DE-60	60KW	20-80KHZ
DE-80	80KW	20-80KHZ
DE-100	100KW	20-80KHZ
DE-120	120KW	20-80KHZ
DE-160	160KW	20-80KHZ
DE-200	200KW	20-80KHZ
Memo: We can customize different input voltage high frequency induction brazing machines when use in different countries.

What is Ningbo Dedao Service?

All high-frequency induction brazing machines from Ningbo Dedao are produced strictly in accordance with the requirements and standards of the ISO9001 quality management system, and each product undergoes strict factory inspection.

Ningbo Dedao implements the after-sales service concept of "you use our equipment, we maintain the equipment". Our after-sales service is fast and timely. After receiving feedback on quality information, our company will provide satisfactory responses to customers within 24 hours. Domestic users arrive on-site within 3 days; We will reply to foreign users by phone, fax or email within 1 day, and we can also provide overseas services.

After equipment acceptance, the supplier should retain a technical personnel at the user's site to supervise the operation of the equipment and provide 1-3 days of technical training for the relevant technical personnel of the demand side.

The warranty period for all induction welding machines is one year from the date of acceptance. During the warranty period, the supplier will provide free maintenance for the equipment, and the equipment will be maintained for a lifetime for a fee.

After the equipment exceeds the warranty period, only necessary maintenance and material fees will be charged.

For self-made parts purchased by users, the supplier promises not to increase the price within 3 years after purchasing the first set of machines.
