Euro Cylinder Sash Lock (DDML026)
Product Overview
D&D HARDWARE’s Euro Cylinder Sash Lock (Model: DDML026) is a high-performance door lock engineered for entrance doors requiring both security and fire safety compliance. As a critical component of building fire protection systems, this lock combines EN1634-certified 260-minute fire resistance with BS EN12209 Grade 3 anti-intrusion performance—making it ideal for high-risk commercial and residential entrances. Crafted from solid SUS304 stainless steel (latch bolt, deadbolt, forend), it features a versatile Euro cylinder design that operates both latch and deadbolt mechanisms, while integrating seamlessly with D&D’s door handles, door closers, and Concealed Hinges. With 200,000-cycle durability and 240-hour corrosion resistance, it delivers long-term reliability in demanding environments—addressing the core needs of global B2B buyers such as contractors, facility managers, and door hardware distributors.
Euro Cylinder Sash Lock - Technical Specifications
- Model Number: DDML026
- Brand: D&D HARDWARE
- Certifications & Compliance: - BS EN12209/DIN 18251 Grade 3 (top European security standard for sash locks) - CE Classification: 3X910G3BC20 - 200,000-cycle durability test (simulates 15+ years of heavy use) - EN1634: 260-minute fire resistance (maintains integrity at 840°C) - EN1670: 240-hour corrosion resistance (neutral salt spray test, no rust)
- Material Composition: - Latch Bolt & Deadbolt: Solid SUS304 Stainless Steel (anti-warp, anti-corrosion) - Follower: SUS304 Stainless Steel (8×8mm square hole, compatible with door handles/door knobs) - Forend & Strike Plate: SUS304 Stainless Steel (3mm thickness for structural strength)
- Key Dimensions: - Backset Options: 45mm, 50mm, 60mm (fits door thicknesses: 40–90mm) - Distance (Lock Case Length): 85mm (standard Euro cylinder sash lock size)
- Mechanism Details: - Deadbolt: 2-turn operation (18mm projection for secure frame engagement) - Latch Bolt: Operated by lever handles on both sides for seamless passage - Cylinder Compatibility: Works with Euro profile cylinders (single/double, key/thumbturn, or smart lock variants)
- Forend & Strike Plate Design: Square (modern industrial) or Radius (traditional residential) profiles
- Finish Options: SSS (Satin Stainless Steel), PSS (Polished Stainless Steel), PVD (Matte Black/Bronze), PB (Polished Brass), AB (Antique Brass), AC (Antique Copper)
- Application: Entrance doors of commercial buildings (offices, hotels, malls) and residential properties (villas, apartments)

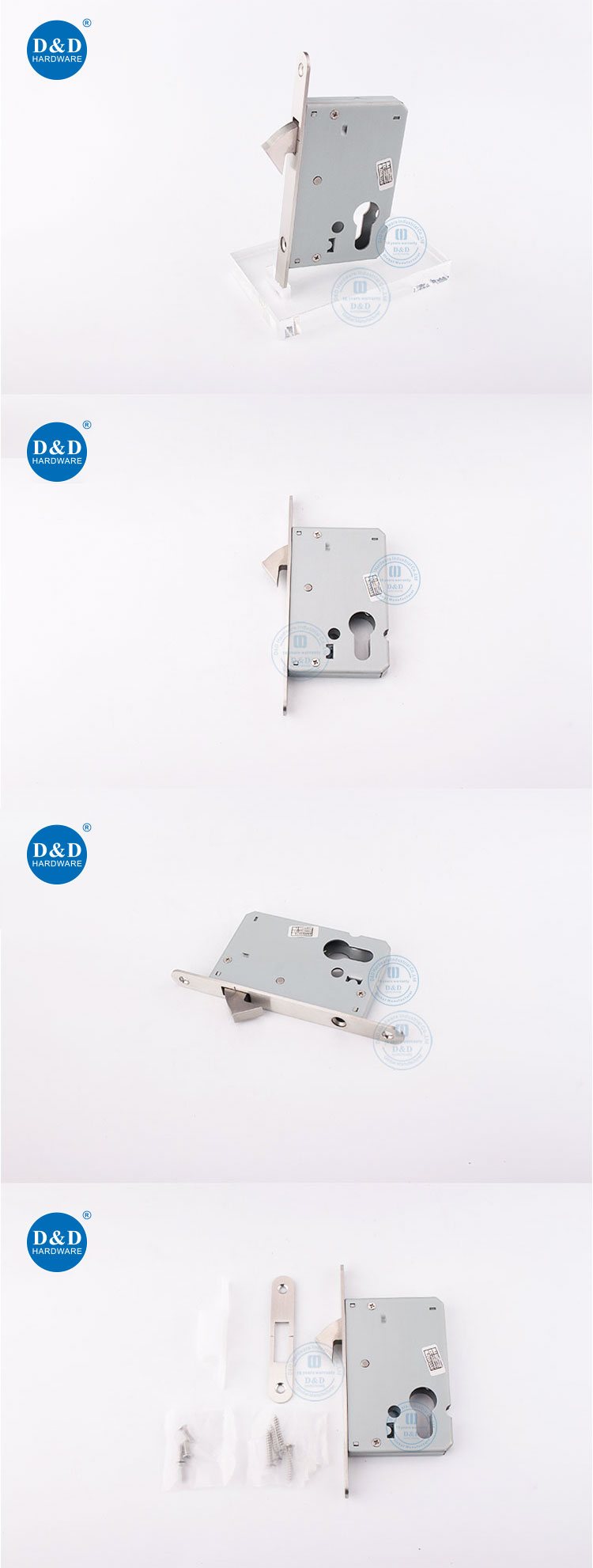

Euro Cylinder Sash Lock - Product Images and Videos
Euro Cylinder Sash Lock - Product Features & Advantages
- EN1634 260-Minute Fire Resistance for Life Safety: Engineered to maintain functionality during extreme heat (840°C for over 4 hours)—critical for compartmentalizing fires in offices, hotels, and multi-story residential buildings. Prevents fire spread through entrance doors, providing extra evacuation time for occupants.
- BS EN12209 Grade 3 Anti-Intrusion Security: Undergoes rigorous testing for anti-pick (10-minute resistance), anti-drill (5-minute resistance), and anti-snap (800N force resistance). The 2-turn deadbolt (18mm projection) ensures deep frame engagement, deterring break-ins at retail storefronts or residential front doors.
- Full SUS304 Construction for All-Environment Durability: All critical components are made of SUS304 stainless steel—resisting corrosion from coastal humidity, cleaning chemicals, or bathroom moisture. Passes 240-hour salt spray tests, outperforming zinc-alloy locks that degrade in harsh conditions.
- Euro Cylinder Versatility for Custom Security Levels: Accepts a range of Euro profile cylinders (sold separately): - Single cylinder: Key operation external, thumbturn internal (ideal for residential front doors) - Double cylinder: Key operation both sides (high-security office storage rooms) - Smart Lock cylinder: Bluetooth/NFC keyless access (modern hotels or co-working spaces) All cylinders operate both latch and deadbolt for streamlined use.
- Seamless Integration with D&D Door Hardware Ecosystem: The 8×8mm follower fits D&D’s stainless steel door handles (matching PVD/SSS finishes) and door closers (ensures automatic latching after use). Compatible with panic exit devices for commercial emergency egress—reducing cross-product compatibility issues.
Euro Cylinder Sash Lock - Installation & Operation Steps
- Pre-Installation Preparation: - Confirm door thickness (40–90mm) and select matching backset (45mm for slim doors, 60mm for thick office doors). - Choose forend design (Square/Radius) and finish (coordinate with D&D’s Stainless Steel Door Stops or door handles). - Select compatible Euro cylinder (single/double/smart lock variant) based on security needs. - Gather tools: 3mm/8mm drill bits, chisel, Phillips screwdriver, tape measure, pencil, level (critical for fire safety—misalignment causes heat leakage).
- Mark & Create Mortise for Fire Safety: - Use the included template to mark the mortise outline on the door edge (align backset line with door center). - Drill pilot holes along the outline to prevent splitting, then chisel the mortise to fit the lock body (depth = 85mm; width = forend width). - Chisel a 3mm-deep recess for the forend—ensures flush installation (prevents heat buildup gaps during fires).
- Install Lock Body & Test Mechanisms: - Insert the lock body into the mortise, align the forend with the recess, and secure with SUS304 screws (tighten to 6–8 ft-lbs torque—over-tightening warps the lock, compromising fire resistance). - Insert the Euro cylinder and test operation: - Latch bolt: Press lever handles on both sides to extend/retract (confirm smooth movement). - Deadbolt: Turn cylinder 2 full rotations to extend (18mm projection); reverse to retract—ensure no sticking.
- Mount Strike Plate & Integrate Fire-Safe Hardware: - Close the door, extend the deadbolt, and mark the strike plate position on the frame (use a level to avoid misalignment—gaps reduce fire resistance). - Chisel a recess for the strike plate (depth = plate thickness) and a 19mm-diameter hole for the deadbolt to engage. - Secure the strike plate with long screws (penetrate frame studs for strength); attach D&D’s door closer (adjust closing speed to 3–5 seconds for automatic latching).
- Final Fire Safety & Security Testing: - Operation Test: Lock/unlock 20 times with the cylinder; check that both latch and deadbolt function smoothly. - Fire Seal Check: Ensure no gaps between forend and door edge (use fire-rated sealant if needed, per local codes). - Maintenance: Lubricate moving parts with high-temperature graphite grease (resists 260°C+) every 6 months; clean forend with a damp cloth weekly.
Euro Cylinder Sash Lock - Application Scenarios
The DDML026 Euro Cylinder Sash Lock delivers critical fire safety and security across diverse entrance scenarios:
- Commercial (Offices, Hotels, Malls): - Use Case: Office main entrances, hotel guest floor doors, mall retail storefronts, high-rise building lobby doors. - Value: 260-minute fire resistance meets commercial fire codes; BS EN12209 Grade 3 security protects assets; integrates with panic exit devices for emergency egress.
- Residential (Villas, Apartments, Townhomes): - Use Case: Residential front doors, villa courtyard gates, apartment building main entrances, basement access doors. - Value: Fire resistance protects families during emergencies; SUS304 resists coastal humidity; compatible with smart lock cylinders for keyless convenience.
- Institutional (Schools, Hospitals, Government Buildings): - Use Case: School main office doors, hospital ward entrances, government facility secure entrances. - Value: 200,000-cycle durability handles heavy use; fire safety complies with institutional regulations; anti-tamper design deters vandalism.
- Hospitality (Boutiques, Resorts, Senior Living Facilities): - Use Case: Boutique hotel guest room doors, resort villa entrances, senior living community main doors. - Value: Polished finishes (PSS/PB) enhance aesthetics; fire safety protects vulnerable occupants; lever operation is senior-friendly.
Value for B2B Buyers: - Contractors: 200,000 units/month supply meets project timelines; fire-rated design reduces code compliance risks; compatible with D&D’s door hardware ecosystem (no third-party sourcing). - Facility Managers: 10-year warranty lowers replacement costs; 240-hour corrosion resistance reduces maintenance; fire safety certification simplifies inspections. - Distributors: Niche focus on fire-rated Euro cylinder locks fills market gaps; OEM/ODM services support private-label branding for regional door hardware clients. - Architects: Compliance with global standards (EN12209, EN1634) simplifies international project specifications; finish options enable cohesive door hardware design.
Euro Cylinder Sash Lock - Certifications and Compliance
- International Fire & Security Certifications: - BS EN12209/DIN 18251 Grade 3: Tested for anti-pick (10-minute resistance), anti-drill (5-minute resistance), and 200,000-cycle durability—ensures long-term security. - EN1634: Fire resistance certified to 260 minutes (EN 1634-1:2014)—tested in ISO 834 fire chambers to maintain lock functionality and prevent fire spread. - EN1670: 240-hour neutral salt spray resistance (ISO 9227)—no visible rust, confirming suitability for humid or coastal environments. - CE Classification 3X910G3BC20: Meets EU safety standards for mechanical locks, enabling access to European markets.
- Factory Compliance: - SGS Audited Factory: Verified for ethical manufacturing, traceable material sourcing (each lock links to SUS304 mill batches), and 200,000 units/month production capacity—meeting global supply chain requirements for office developers, hotel chains, and residential builders.
Euro Cylinder Sash Lock - Customization Options
D&D offers tailored solutions for DDML026 to meet project-specific fire safety and design needs:
- Size & Fit Customization: - Extended Backset: 65mm, 70mm for extra-thick doors (e.g., villa solid wood entrance doors). MOQ: 500 units. - Custom Lock Case Length: Modified 85mm length for heritage building doors. MOQ: 1,000 units.
- Material & Finish Upgrades: - SUS316 Stainless Steel: Enhanced corrosion resistance for marine resorts or coastal residential buildings (500-hour salt spray test, no rust). MOQ: 500 units. - Custom PVD Colors: RAL-matched hues (e.g., office brand colors, hotel pastels) to align with interior design. MOQ: 300 units. - Fire-Rated Finish: High-temperature powder coating (resists 300°C+) for industrial offices or factories. MOQ: 1,000 units.
- Functional Modifications: - Integrated Smart Lock Cylinder: Pre-installed Bluetooth/NFC cylinder for keyless access in hotels or co-working spaces. MOQ: 1,000 units. - Emergency Release: Adds a panic lever (integrates with panic exit devices) for commercial emergency egress. MOQ: 500 units. - Anti-Microbial Coating: Silver-ion treatment on SUS304 components (reduces bacteria spread) for hospital entrances. MOQ: 300 units.
- OEM/ODM Services: - Private Label: Custom logos on forends, branded packaging, and multilingual (English/Spanish/German) fire safety guides. MOQ: 2,000 units. - Fire-Safe Kits: Bundled with D&D’s door closers, Concealed Hinges, and Stainless Steel Door Stops for turnkey entrance solutions. MOQ: 3,000 units.
