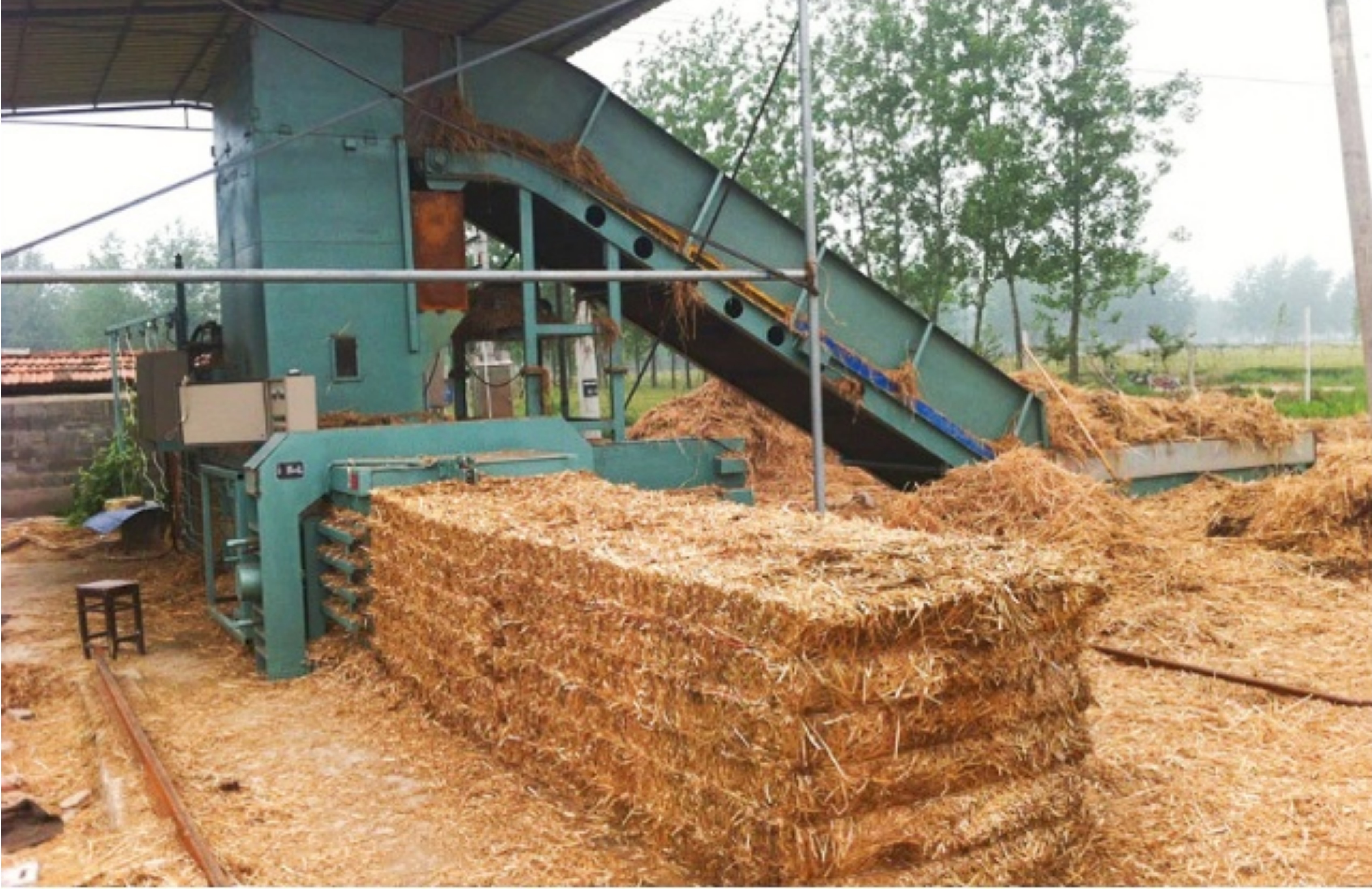

Straw Baler Automatic Horizontal Baling Press

Hay Baler Machine is a mechanical equipment used to compress hay into bales for storage, transportation and use.With the improvement of global agricultural mechanization and the rapid development of animal husbandry, the demand for hay is increasing, which requires efficient Straw Baler Machine to process hay to meet the market demand. For example, in some large-scale pastures, in order to store enough winter feed, it is necessary to use Horizontal Baler to pack the harvested pasture quickly. At the same time, the development trend of agricultural scale and intensification makes the large and efficient horizontal hay baler more and more popular in the market.

Working Principle：

1. Material conveying: the hay is conveyed to the compression chamber of the baler through feeding devices, such as conveyor belt, screw pusher, etc..

2. Compression molding: In the compression chamber, the piston or press plate driven by the hydraulic system squeezes the hay to reduce its volume and increase the density.

3. Stretching and fixing: When the hay is compressed to a certain degree, the strapping device of the baler will automatically put the strapping band or rope around the hay bale to fix it and prevent it from getting loose.

Structure Composition.

1. Feeding device: including feeding hopper, conveyor belt, etc. It serves to feed the hay into the compression chamber evenly and smoothly.

3. Compression chamber: It is the main place for hay compression, made of strong metal plates, the size and shape of the inner space depends on the model and design of the baler.

3. Hydraulic system: It consists of oil pump, oil cylinder, hydraulic valve, etc. It provides power to the compression piston so that it can produce strong squeezing pressure to compress the hay into bales.

4. Stretching device: usually used automatic strapping machine, can automatically complete the strapping band winding, tensioning and cutting and other operations, common rope bundling and strap bundling type two.

5. control system: generally use PLC control system, can realize the automatic operation of the baler, including feeding, compression, strapping and other processes of precise control, but also can set the size of the baling, density and other parameters.

Advantage:

1. Efficient baling: the horizontal hay baler has a high degree of automation and can continuously carry out hay baling operations, which greatly improves baling efficiency and saves labor costs.

2. High compression density: through the powerful hydraulic system, the hay can be compressed to a high density, which makes the hay bales smaller in size, easy to store and transport, and reduces the storage space and transportation cost.

3. Good bale quality: the bales made by the baler are regular and tight in shape, not easy to be loosened, which is conducive to long-term storage and long-distance transportation, and also reduces the loss of hay in the process of storage and transportation.

4. Wide range of application: not only applicable to various types of hay, such as alfalfa, sheep grass, oat grass, etc., but also can be used for baling other fiber materials such as straw, reeds, etc.

Application Scenario:

1. Livestock industry: in pastures, farms and other places, it is used for baling and storing harvested pasture grasses to provide livestock with fodder in winter or dry seasons.

2. Agricultural production: It can be used to bale wheat, rice, corn and other crop stalks to facilitate the recycling of straw, such as for biomass power generation, paper making, weaving and other fields.

3. Gardening: Bale the pruned branches, leaves and other garden waste, which is convenient for transportation and disposal and reduces the pollution to the environment.

Model	JPW80QT	JPW100QT	JPW120QT	JPW150QT
Hydraulic power	80Ton	100Ton	120Ton	150Ton
Packaging size(WHL)	1100800(300-1800)mm	11001000(300-2000)mm	11001100(300-2100)mm	11001100(300-2100)mm
Feed opening size(L*W)	1650*1100mm	1800*1000mm	2000*1100mm	2200*1100mm
Bale density	450-550Kg/m3	500-600Kg/m3	550-650Kg/m3	600-750Kg/m3
Bale line	4 line	4 line	5 line	5 line
Capability	4-7Ton/Hr	7-10Ton/Hr	8-13Ton/Hr	10-16Ton/Hr
Power	37KW/50HP	55KW/75HP	67KW/90HP	93KW/124HP
Machine size(LWH)mm	790035002300	890040502400	970043302400	1000042502500
Machine weight	11Ton	13.5Ton	17Ton	20Ton
