Obligue arm silk screen printing machine

The Oblique Arm Screen Printing Machine is designed for high-speed and high-volume screen printing applications. Featuring a cam-driven inclined screen lifting mechanism, the machine enables rapid screen separation and contact, significantly improving production efficiency while maintaining stable print quality. The front-to-back movement of the squeegee and flood bar ensures smooth ink transfer and consistent printing performance.

Compared with vertical lift screen printing machines, the oblique arm design offers higher operating speeds and is particularly suitable for large production runs where throughput and cost efficiency are prioritized. Its robust structure and reliable operation make it an ideal solution for continuous industrial printing applications.

Widely used in sublimation transfer paper, heat transfer film, spot UV coating, carton packaging, and other paper converting industries, the Oblique Arm Screen Printer provides an economical and productive solution for manufacturers seeking high-output screen printing equipment. It is especially suitable for single-design, large-quantity production environments requiring stable quality and efficient operation.

Samples

Machine introduction

Obligue arm silk screen printing machine//Advantage

The Oblique Arm Screen Printing Machine combines electric and pneumatic drive systems to deliver stable, reliable, and high-speed printing performance. Equipped with an imported control system, the machine ensures smooth and synchronized operation throughout the printing and screen lifting cycles, providing excellent repeatability and production consistency.
The printing table is manufactured from cast aluminum and covered with a 2 mm stainless steel surface, offering superior flatness, rigidity, and resistance to deformation. A precision coordinate adjustment device and vacuum hold-down system enable fast and accurate screen alignment, improving registration quality and reducing setup time.
The machine adopts German linear guide rails and imported timing belt transmission for smooth movement, low wear, and adjustable printing speed. Independent pressure adjustment of the squeegee and flood bar, together with angle adjustment up to 45°, allows flexible process control for different printing applications.
For enhanced print quality and operator safety, the machine features an automatic synchronous off-contact system to minimize ink smearing, as well as a safety rebound mechanism for reliable operation. Premium electrical components and an electronic touch-key control panel ensure user-friendly operation and long-term durability. The electrostatic powder-coated finish provides excellent solvent resistance and a premium industrial appearance.
Widely used in paper packaging, heat transfer film, sublimation paper, decals, plastics, and industrial graphics, the Oblique Arm Screen Printer is an ideal solution for high-volume screen printing applications requiring productivity, reliability, and cost-effective performance.

Obligue arm silk screen printing machine//Parameters

Technical parameters	S-JY6090PV	S-JY70100PV
	1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6 kgf/cm2; 3.Net weight: 560 KG; 4.Max printing area:600×900 MM; 5.Max printing speed:1000 Pcs/H. 6.Max screen frame size: 900×1200 mm; 7. Table adjustment Longitude: +-0.1 mm; 8. Working table size: 700×1000 mm	1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6 kgf/cm2; 3.Net weight: 65 0KG; 4.Max printing area:700×1000 MM; 5.Max printing speed:1000 Pcs/H. 6.Max screen frame size: 1000×1300 mm; 7. Table adjustment Longitude: +-0.1 mm; 8. Working table size: 800×1100 mm
Factory	110 V-220 V Power supply; 5-7 Bar compress air;
Package parameters	Gross weight: 312 kg Wooden case dimension:1800×1220×1430 mm CBM: 3.14 CBM
H.S.CODE	8443198000

Obligue arm silk screen printing machine//Usage

The Oblique Arm Screen Printing Machine is designed for high-speed and high-precision printing of paper, plastic films, adhesive labels, and other thin and flexible substrates. Equipped with a vacuum worktable, the machine securely holds the material in place while the inclined screen frame movement enables faster printing cycles and improved productivity.
With a maximum printing area of 600 × 900 mm, the machine is suitable for a wide range of industrial and graphic printing applications, including glass panels, machine nameplates, membrane switch panels, and printed circuit boards. The squeegee movement is controlled by a Taiwan frequency inverter system, ensuring smooth operation and adjustable printing speed for different production requirements.
Integrated with a UV curing machine, the system can perform various UV finishing processes, including UV spot varnishing, UV frosting, and UV glitter coating. It is also widely used for sheet-fed adhesive labels, water transfer decals, and heat transfer labels through different printing technologies.
Combining high productivity, reliable registration, and flexible application capability, the Oblique Arm Screen Printer provides an efficient and cost-effective solution for packaging, label printing, electronics, and other high-tech industrial sectors.

Catalogue

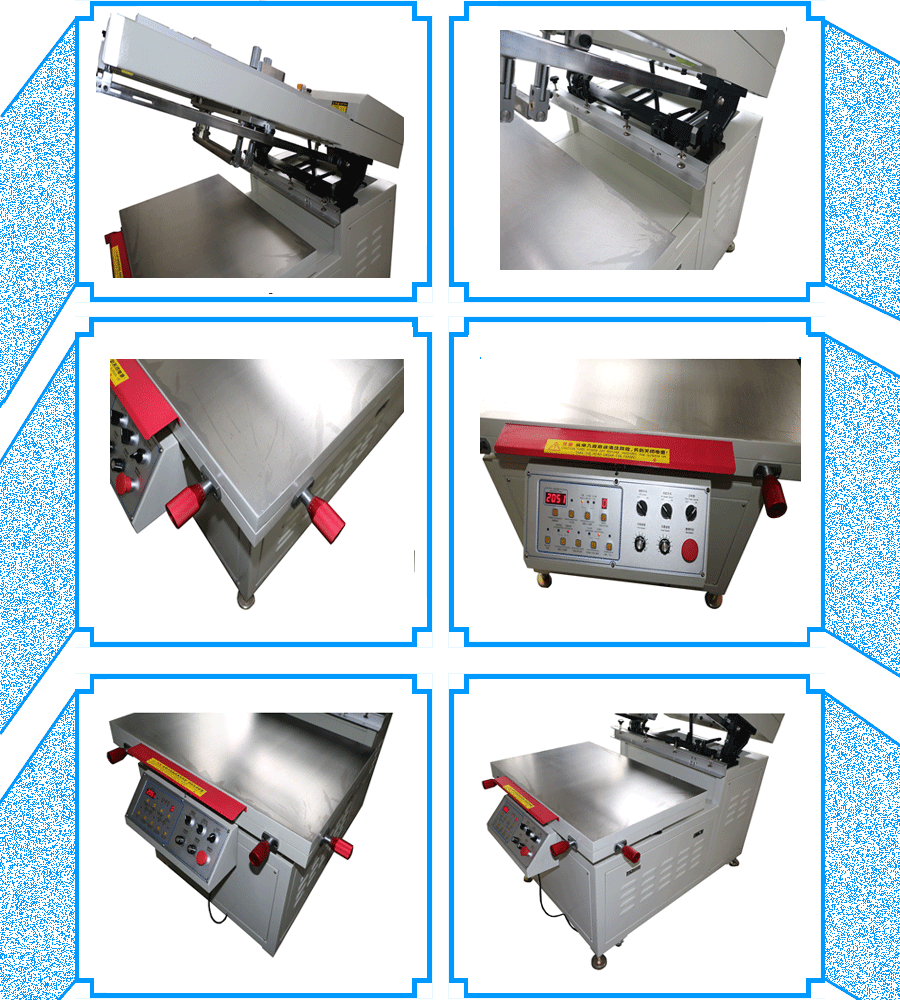

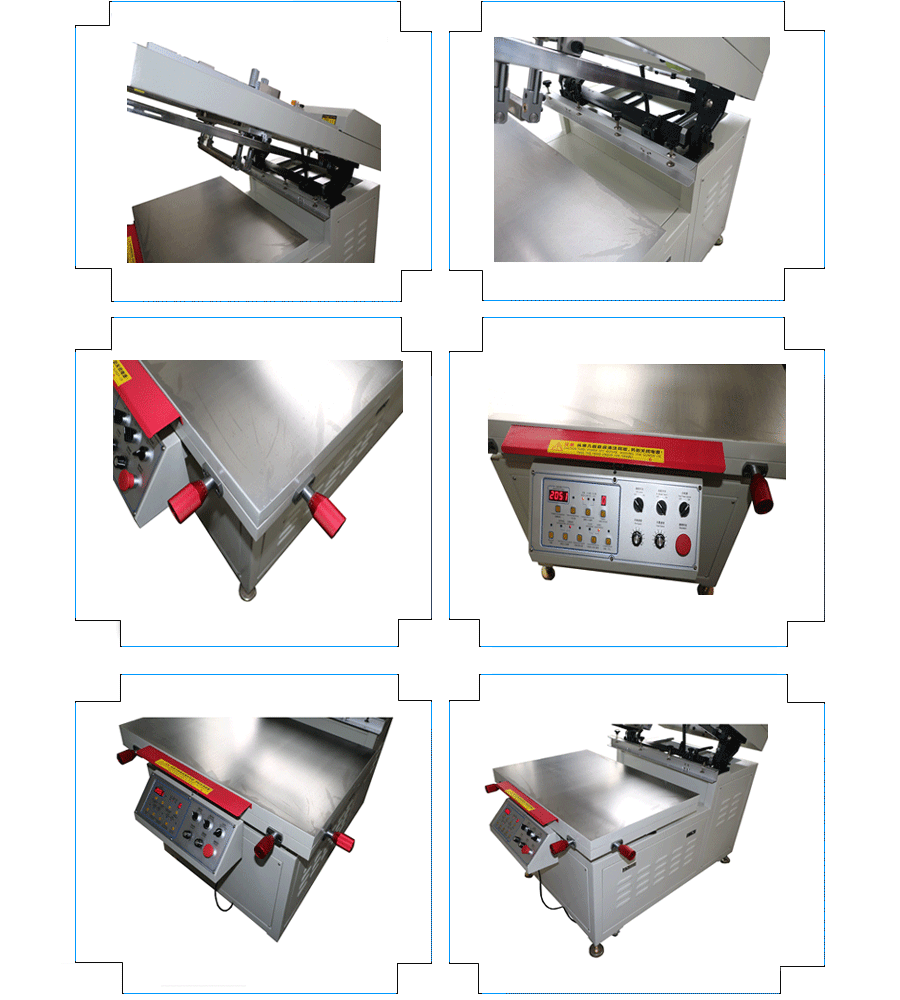

Details photo

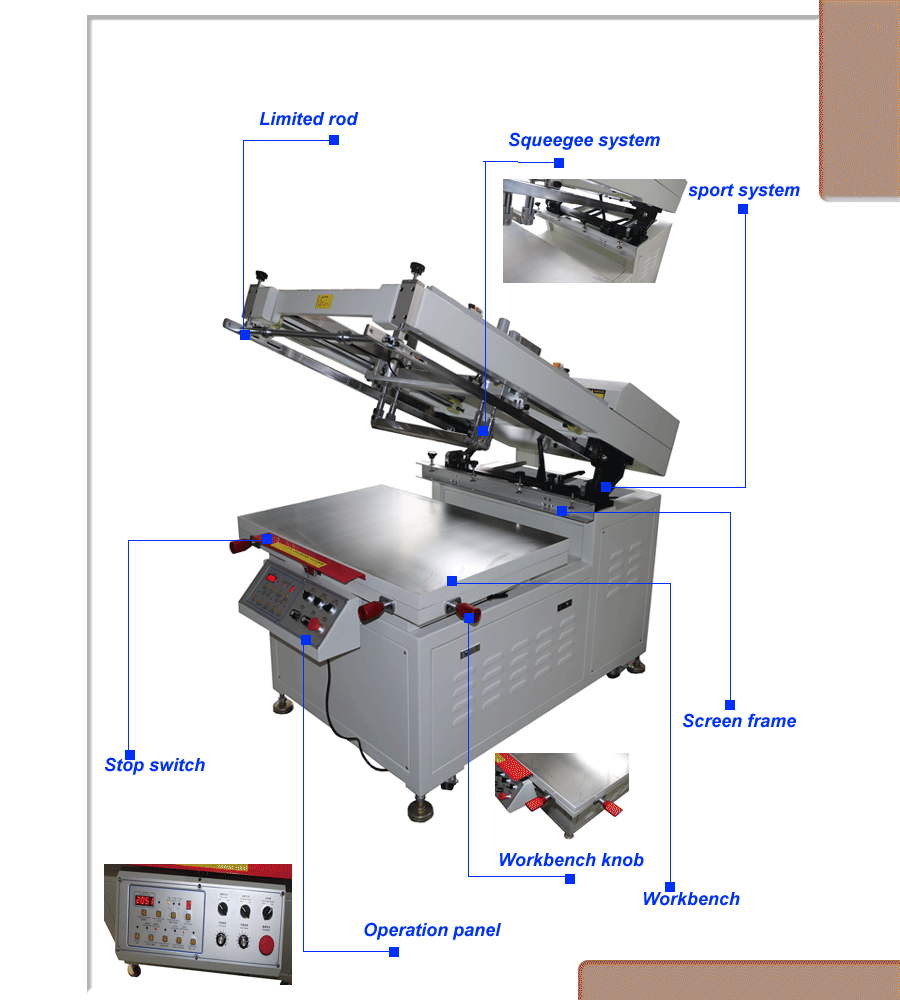

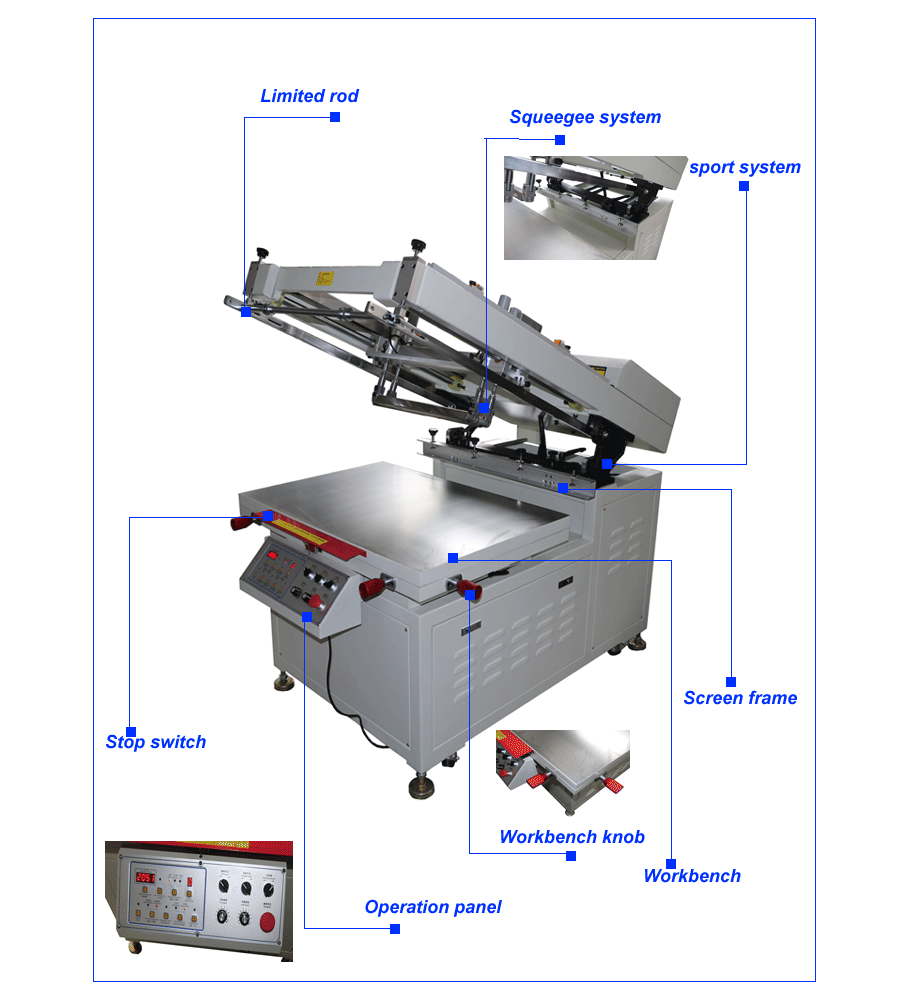

Structure
