Single color automatic pad printer

Glasses are eye protection tools worn by people in daily life. They mainly play the role of decoration and vision protection. The general structure of glasses is composed of lenses and frames. Printing the logo of products on the frames is a very common decorative process. Due to the irregular shape of the frames and the narrow position, the use of pad printing machines is more common. The materials of the frames are mainly metal and plastic. By selecting different types of pad printing inks, the pad printing machine can print on the frames very well.

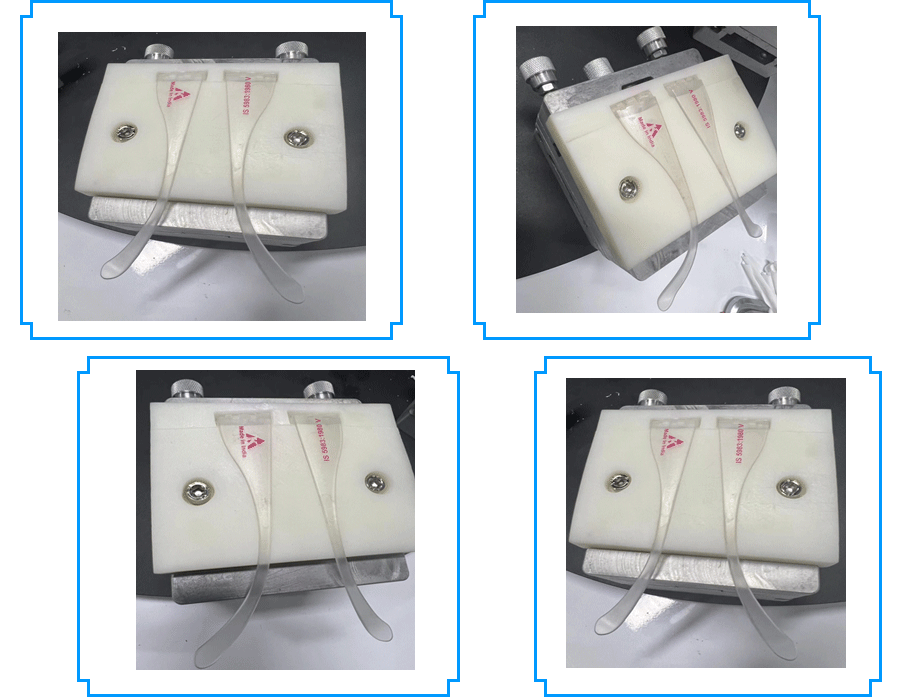

This turntable pad printing machine is specially designed for single-color pad printing of glasses frames. The workbench has 8 stations, evenly distributed on the 800mm turntable. Each station is equipped with two fixtures, each with a pair of frames. Printing a pair of frames in turn can effectively control the delivery of pairs of frames to avoid waste.

The touch screen operation panel, rubber head cleaning device, oil cup ink supply system and robot unloading device increase the smoothness of the printing process and reduce downtime.

The pad printing process is often used on the side of the glasses rack, and there are more monochrome. The pad printer for the glasses rack is more common with a turntable structure. The pad printer of this 8 -station uses a high -precision division for rotation control. The pad printer adopts an ink cup to supplies ink. The interface operation method of the touch screen human machine is installed. Reduce the strength of manual operation. Using IR drying device to greatly improve the drying speed of the product. Use a robotic downloading device to automatically capture the printed glasses racks on the conveyor belt.

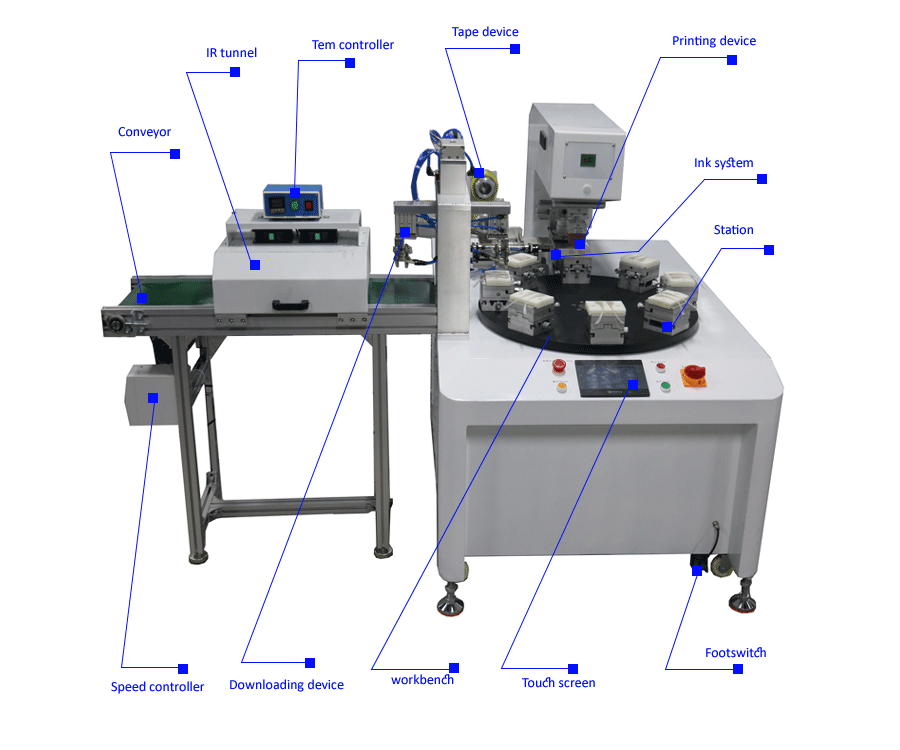

One color automatic rotating pad printer //Structure
Working table	8 stations rotating workbench
Ink supply system	closed cup system
Plate type and size	10mm Thick steel plate. Size :100*250mm.
One color automatic rotating pad printer//Usage and characters
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetics, commodity, sports goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
Robot automatic One color pad printer //Parameter
Technical parameters	Max plate areas: 100×250mm; Printing colour: 1 ; Max printing speed(Pcs/Hr):1500 ; Max Print area:50×50mm; Air consumption: 130L/Min; Working table dimension: 1000mm; Range of working table up-and-down: 100mm.
Works supply	1P220VPower supply; 5-7Bar Compress air;
H.S.Code	8443198000
Certicate	CE

Product Details- Advantage

Automatic rotating type pad printing machine;
Using the dimensional modulating table can be up and down, front, left, and rotation of the adjustment, which will help precise printing;
Handpick and place workpiece, operating more handy;
PLC and touch screen program control, the movement is more accurate and reliable;
Structure using die-casting aluminum, lightweight and solid.
Inkcup system, ink adjustment more convenient, more save ink;
World-famous pneumatic components to ensure the long service life of machine;
Rubber sliding shaft with hardened Line rail of high hardness, good abrasion resistance;
8 stations workbench controlled high precision Splitter;
Automatic rubber pad cleaning device installed;
Independent ink cup driven system;
Automatic downloading robot;
IR drying tunnel.

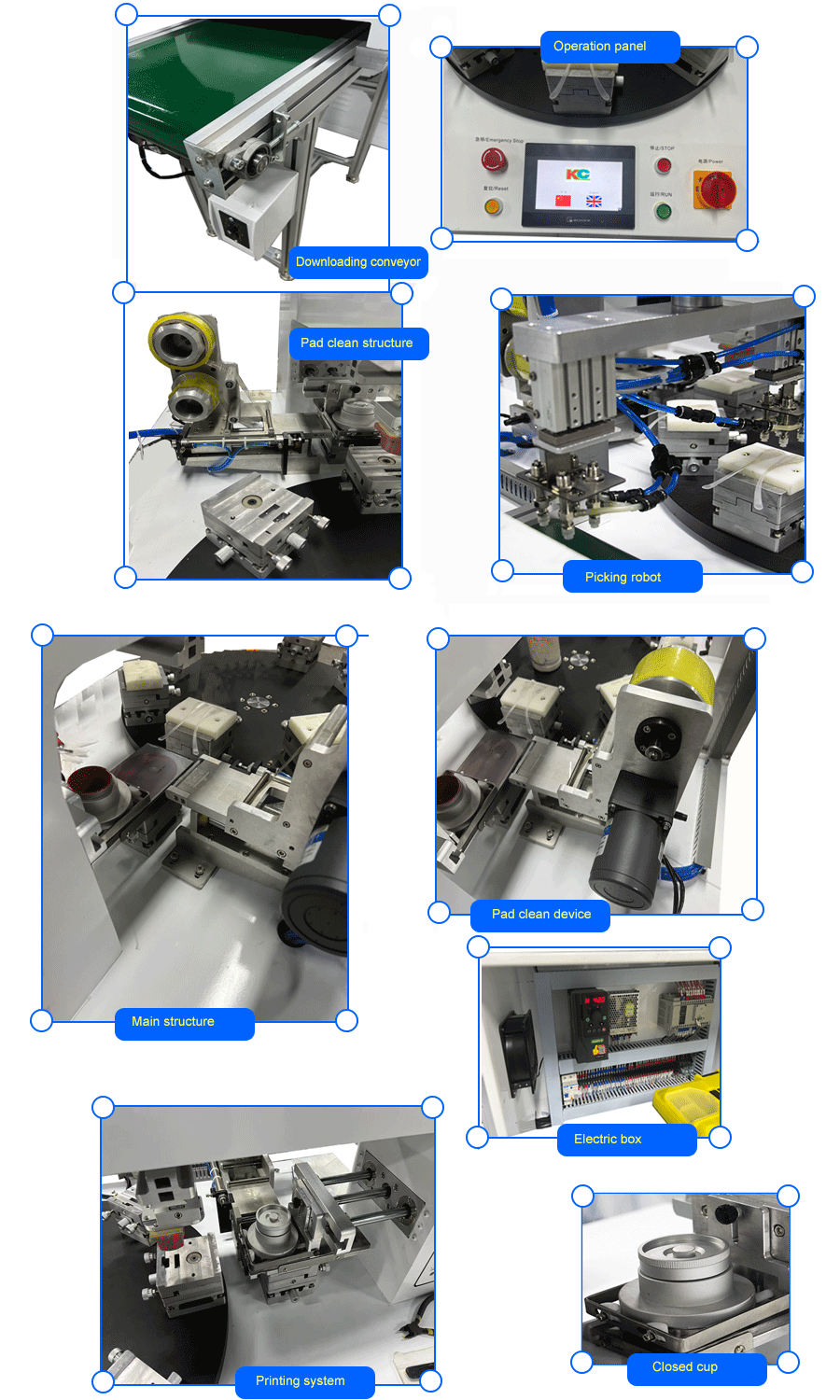

Machine structure

A rotary pad printer usually consists of the following parts:

1) Workbench: The workbench generally consists of 4-6-8-10 printing stations with an even number of positions. The entire rotary table rotates around the central axis. Each time a station is rotated, a pad print is performed. To improve efficiency, more than two products can be printed at a time. The workbench is generally controlled by a divider.

2) Operation panel. The rotary pad printer is more complex than the semi-automatic pad printer. There will be a PLC for action control and data setting. The printing requirements of different products have been achieved.

3) Pad cleaning device: In order to improve the printing quality, the rotary pad printer will be equipped with an automatic pad cleaning device. The ink remaining on the surface of the pad will be automatically removed.

4) Ink supply system: The ink supply system of the rotary pad printer can be an ink tray structure or an ink cup structure. The ink cup structure is more environmentally friendly.

5) Printing system: The printing system can be controlled pneumatically or by a servo motor. The servo motor control will greatly improve the stability and precision of the pad printer.

6) Unloading system: Automatically remove the product from the workbench, which is also one of the basic configurations of the turntable pad printer. The manipulator is designed according to the appearance characteristics of the product and can quickly and accurately remove the product.

7) Prepress treatment: Some products require dust removal, static electricity removal, and flame treatment. Prepress devices with different functions can be installed according to specific conditions.
